Specifications
Equipped With
SPECIFICATIONS

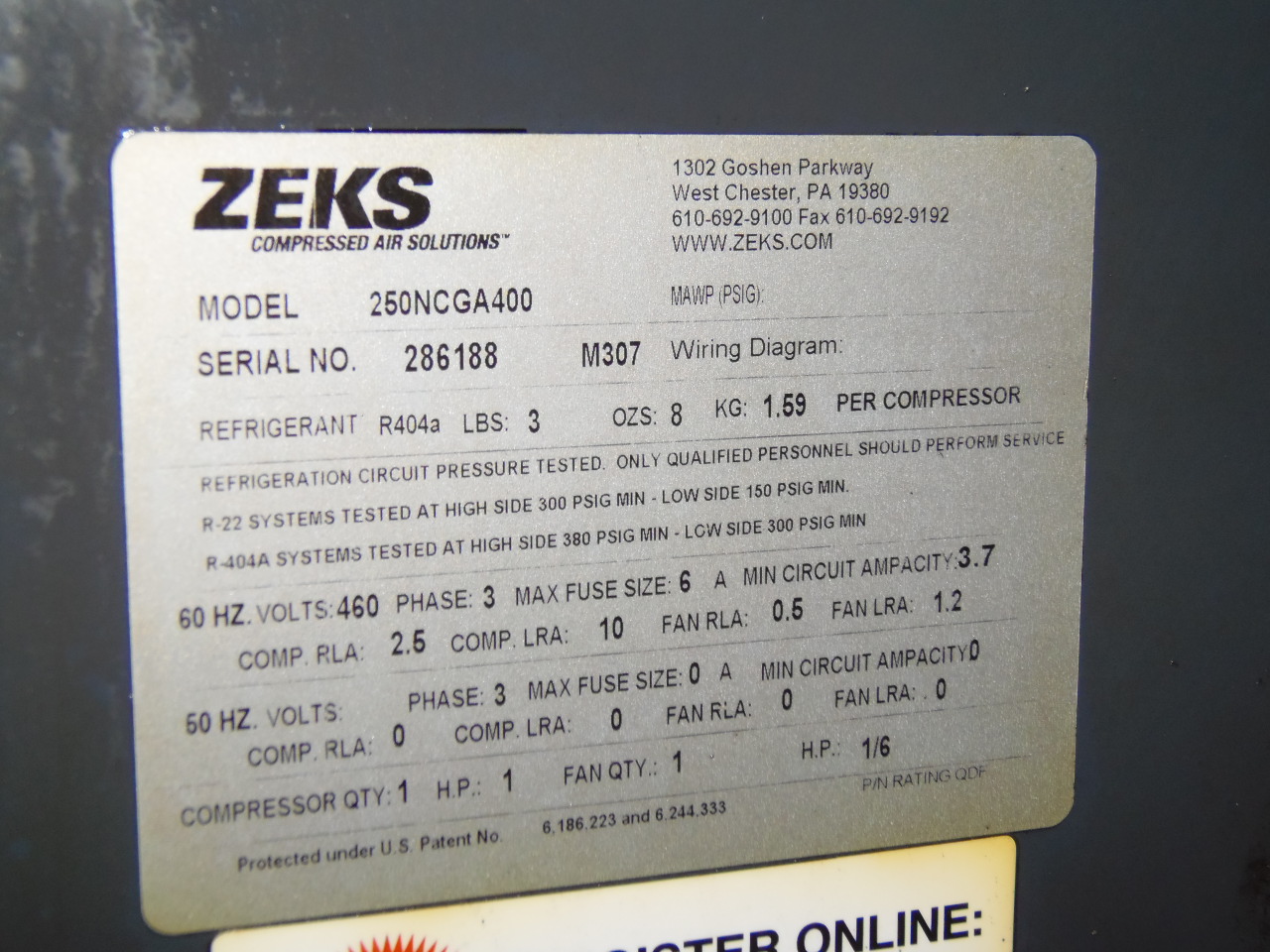

MAKE........................... ZEKS
MODEL.......................... 250NCGA400
SERIAL NUMBER.................. 286188 M307
CAPACITY....................... 250 CFM
REFRIGERANT (PER COMPRESSOR)... R404A - 3 LBS - 8 OZ.
PRESSURE DEW-POINT............. 38 DEGREES F +/-2 DEGREES F
RATED CAPACITY................. 250 CFM
RATED PRESSURE DROP............ 2.0 PSIG
COMPRESSOR..................... 1 HP
FAN............................ 1/6 HP
ELECTRICAL..................... 460/3/60
AIR CONNECTIONS................ 1.5" MPT
DIMENSIONS..................... 23" X 31" X 40" (W X D X H)
SHIPPING WEIGHT................ 335 LBS
R-404A SYSTEMS TESTED AT HIGH SIDE 380 PSIG MIN - LOW SIDE 300 PSIG MIN
PATENTED CFX STAINLESS STEEL HEAT EXCHANGER- LOW PRESSURE DROP
ENERGY EFFICIENT, HERMETIC REFRIGERATION COMPRESSOR

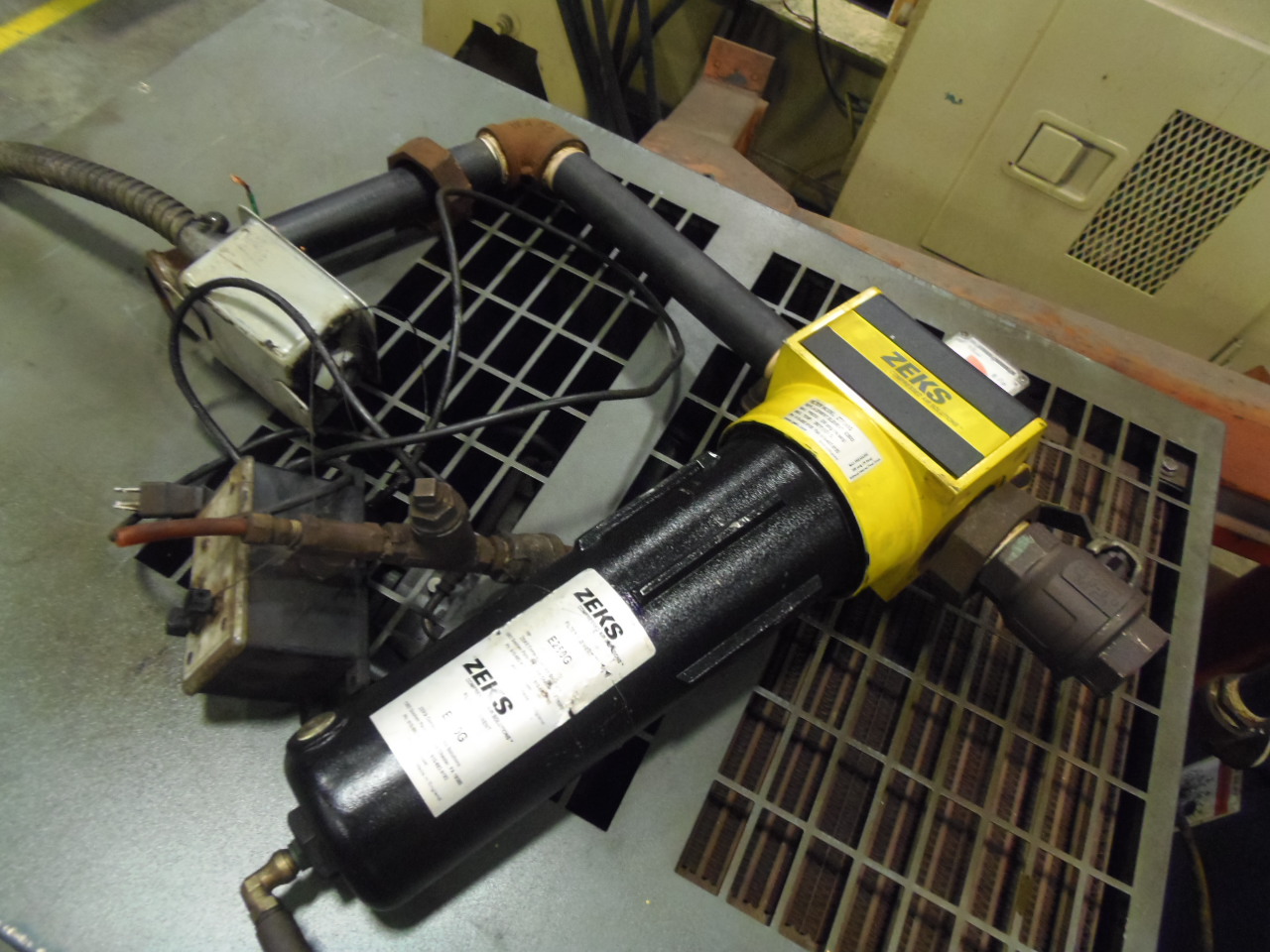

HIGH EFFICIENCY MOISTURE SEPARATOR
TIMED AUTOMATIC CONDENSATE DRAIN
ENVIRONMENTALLY FRIENDLY R404 REFRIGERANT
AIR-COOLED CONDENSER
SPECIFICATIONS SUBJECT TO VERIFICATION
