Specifications
Equipped With
MANUFACTURER........................ ZEISS

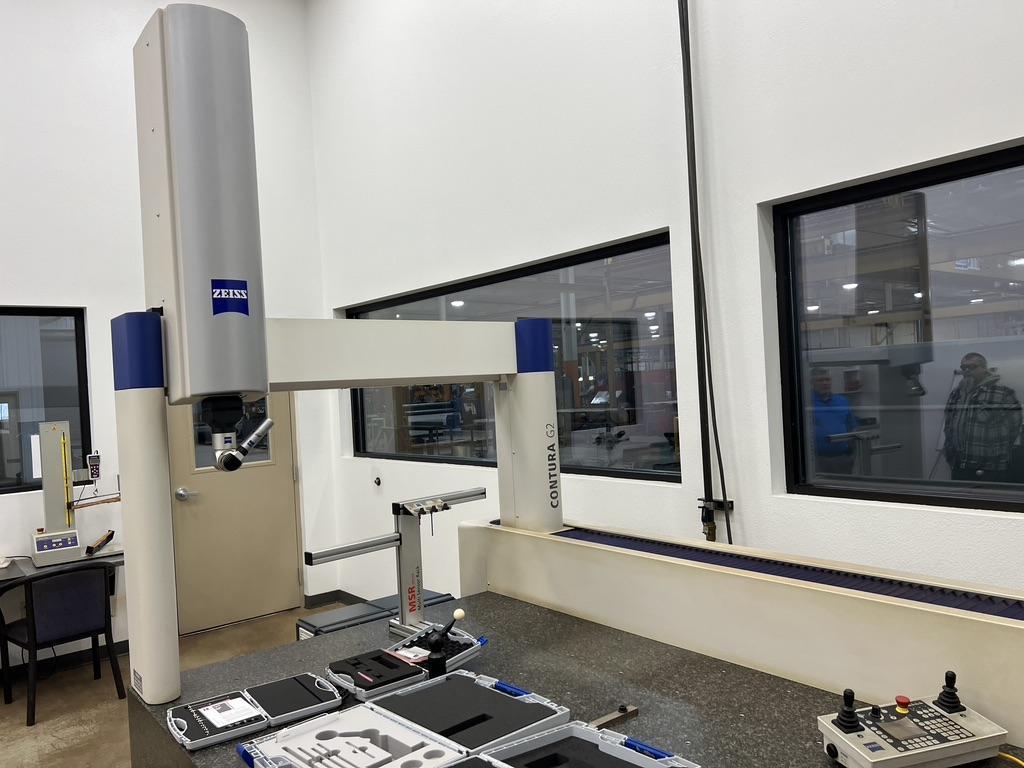

MODEL............................... CONTURA 2014 10/16/6 RDS
AGE................................. 2013

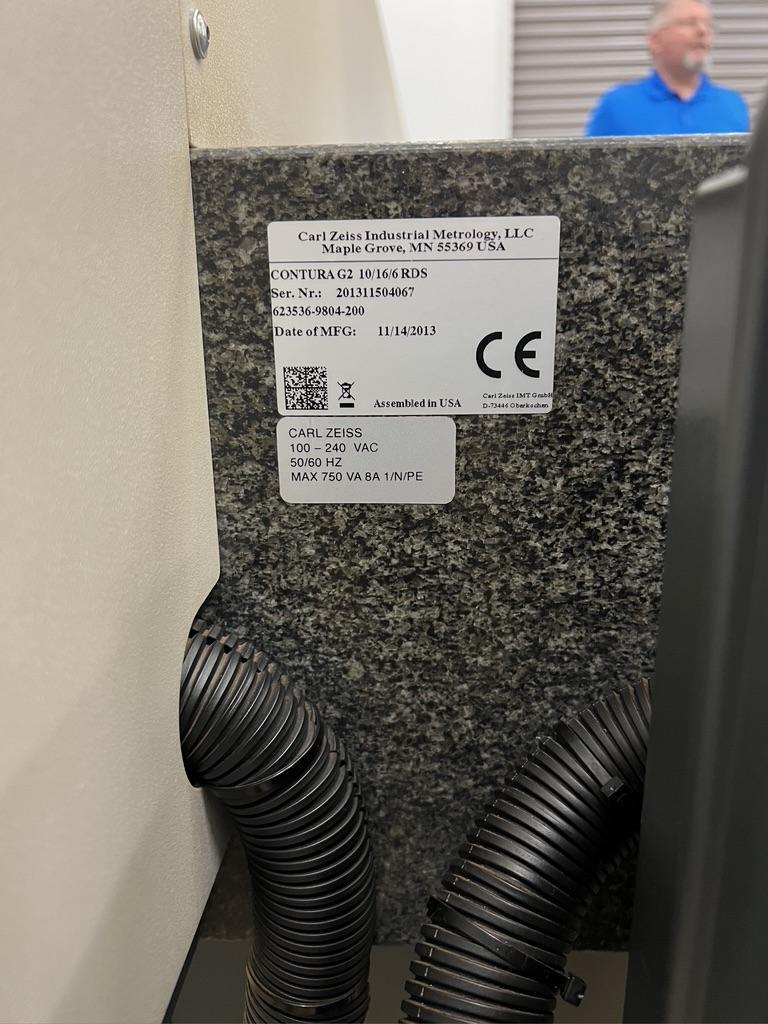

SERIAL NUMBER....................... 201311504067
TRAVELS X........................... 39.3"
Y........................... 63"
Z........................... 23.6"
MAX WORK PIECE WEIGHT............... 3300 LBS
SHIPPING WEIGHT (APPROX.)........... 6,200 LBS
EQUIPPED WITH:
The ZEISS RDS articulating probe holder is particularly well-suited for measuring complex parts, where features require many styli with different spatial directions. It reaches up to 20,736 positions in 2.5-degree increments – thus providing access to every part feature. This is made possible by the horizontally and perpendicularly arranged rotary axes with rotational ranges of plus/minus 180 degrees.

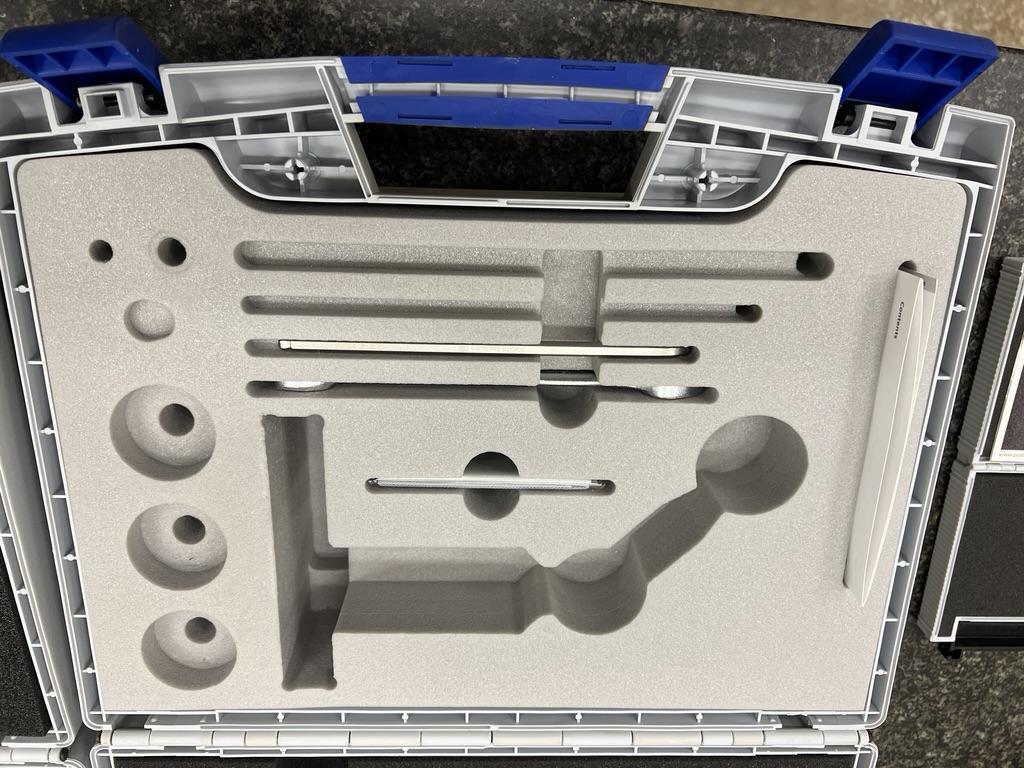

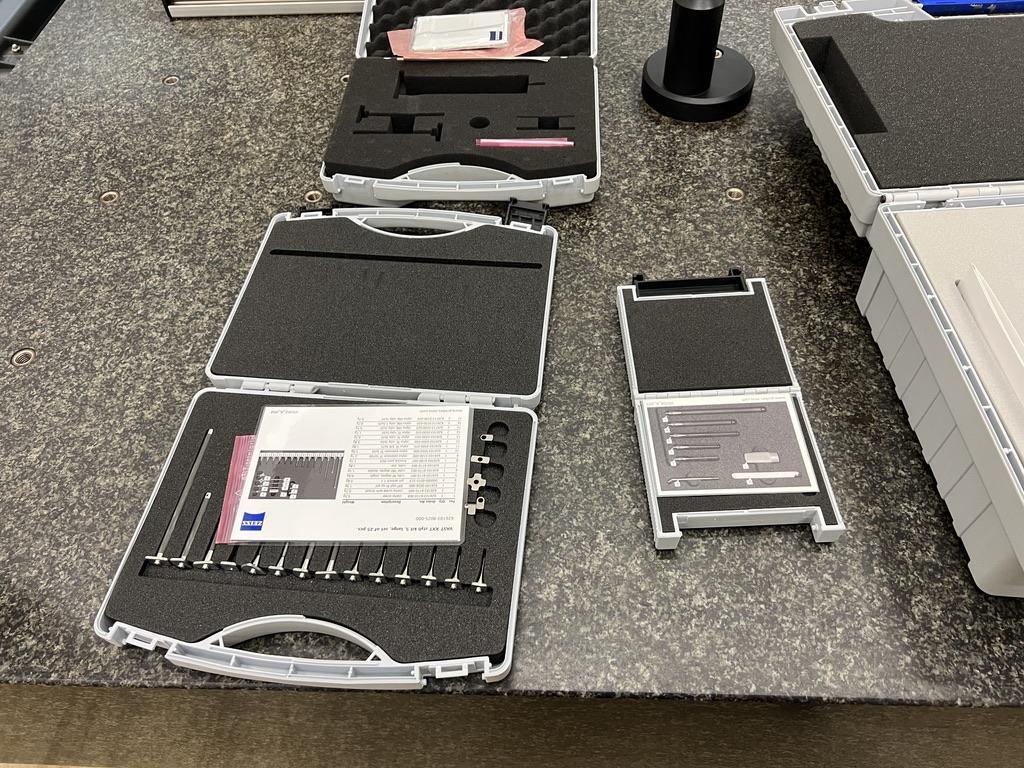

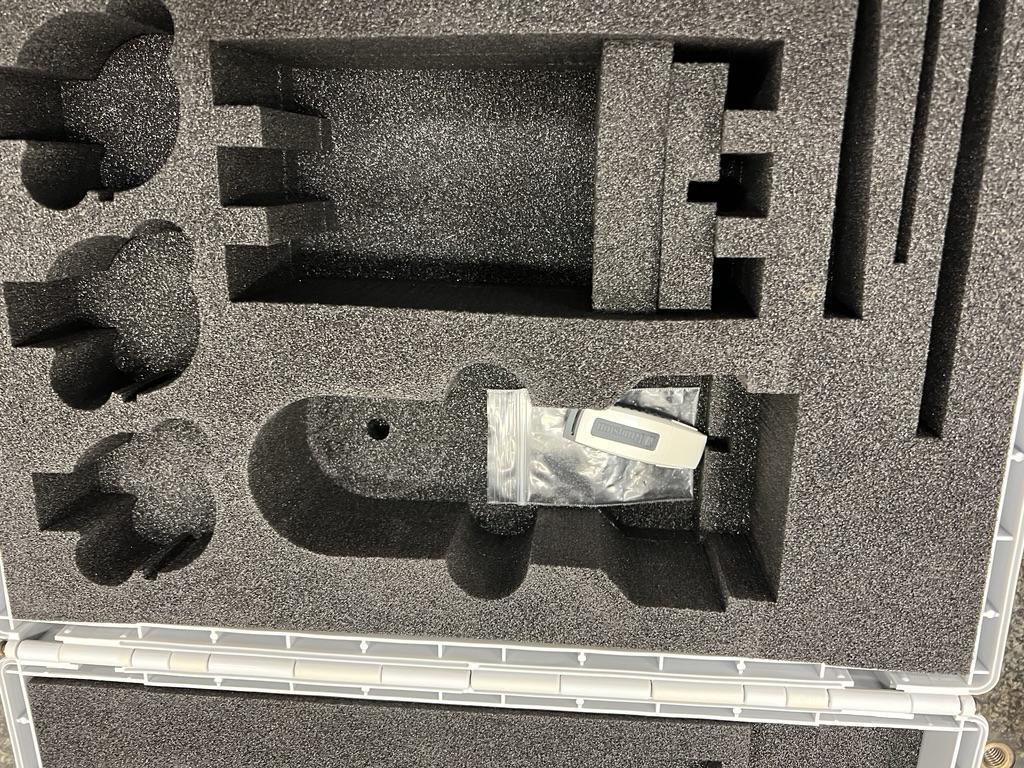

MISC. PROBES
PROBE RACK
CALYPSO SOFTWARE
REINSTALL $5500 PLUS TRAVEL
MACHINE IS MOUNTED ON A SPECIAL SKID AND READY TO BE SHIPPED
EC CONFORMING
