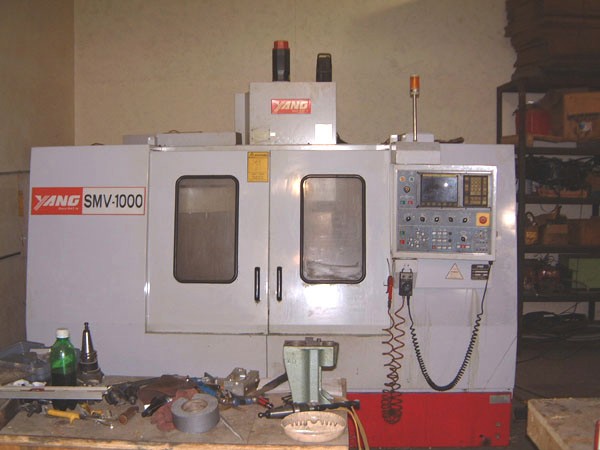

YANG SMV-1000, 42" x 19" TBL, 40"-X, 20"-Y, 20"-Z, CT 40 TAPER, 6000 RPM, 1998, FANUC O-MD CTRL, RIGID TAPPING

GENERAL SPECIFICATIONS:
MANUFACTURER YANG
MODEL SMV-1000
NEW (APPROX.) 1998
TABLE SIZE 42.13" x 19.69"
X TRAVEL 40"
Y TRAVEL 20"
Z TRAVEL 20"
SPINDLE SPEED 6,000 RPM
SPINDLE MOTOR 15/10 HP
SPINDLE TAPER CT 40
RAPIDS 1181 IPM
# OF TOOLS 20
TABLE LOAD CAPACITY 770 LBS.
ELECTRICS 220/3 PH/60 HZ
DIMENSIONS (APPROX.) 115"L x 8"W x 104"H
WEIGHT (APPROX.) 10,500 LBS.

EQUIPPED WITH:
FANUC O-MD CONTROL
RIGID TAPPING
COOLANT
FULL ENCLOSURE
LINEAR GUIDEWAYS
