Specifications
Equipped With
GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1998
SERIAL # Z10111

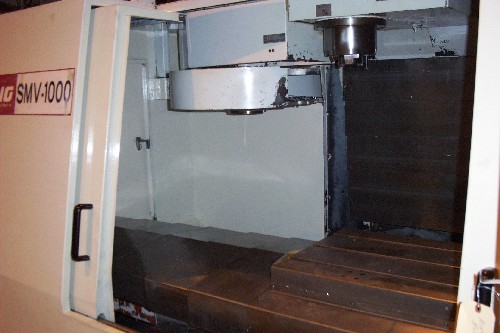

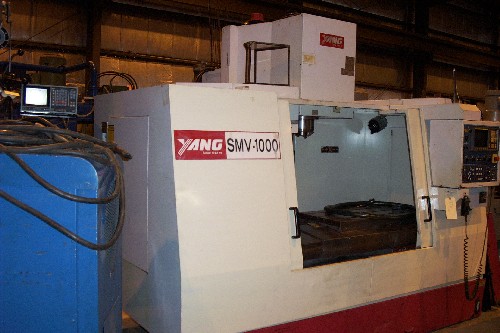

MODEL SMV-1000

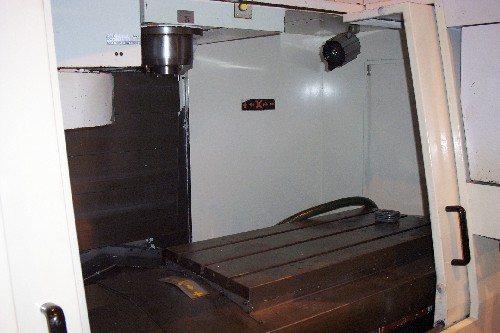

TABLE DIMENSIONS 42.13" X 16.69"
MAX. LOADING 661 LBS.
TRAVEL, LONGITUDINAL (X AXIS) 40"
TRAVEL, CROSS (Y AXIS) 20"
TRAVEL, VERTICAL (Z AXIS) 20"
ATC 20 TOOL, CAROUSEL TYPE
SPINDLE NOSE TO TABLE TOP 3.94" - 24.02"
FLOOR SPACE REQUIRMENT 114.6"Lx87.4"Wx103.8"H
SPINDLE CENTER TO COLUMN 24.67"
MAX. TOOL WEIGHT 13 LBS.
TOOL TAPER CAT 40
TOOL DIAMETER 3.5"
TOOL LENGTH 9.84"
SPINDLE MOTOR 10 HP
NET WEIGHT 10,535 LBS.
POWER REQUIRED 220 V/3 PH/60 HZ
EQUIPPED WITH:

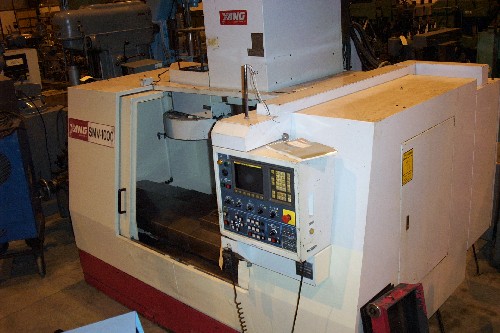

FANUC OMD CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
PITCH ERROR COMP, MANUAL PULSE GENERATOR
STANDARD COOLANT SYSTEM WITH TANK & PUMP
PRECISION, HEAVY DUTY LINEAR WAYS
FULLY ENCLOSED SPLASH GUARDING
ALL AVAILABLE MANUALS
