SPECIFICATIONS:

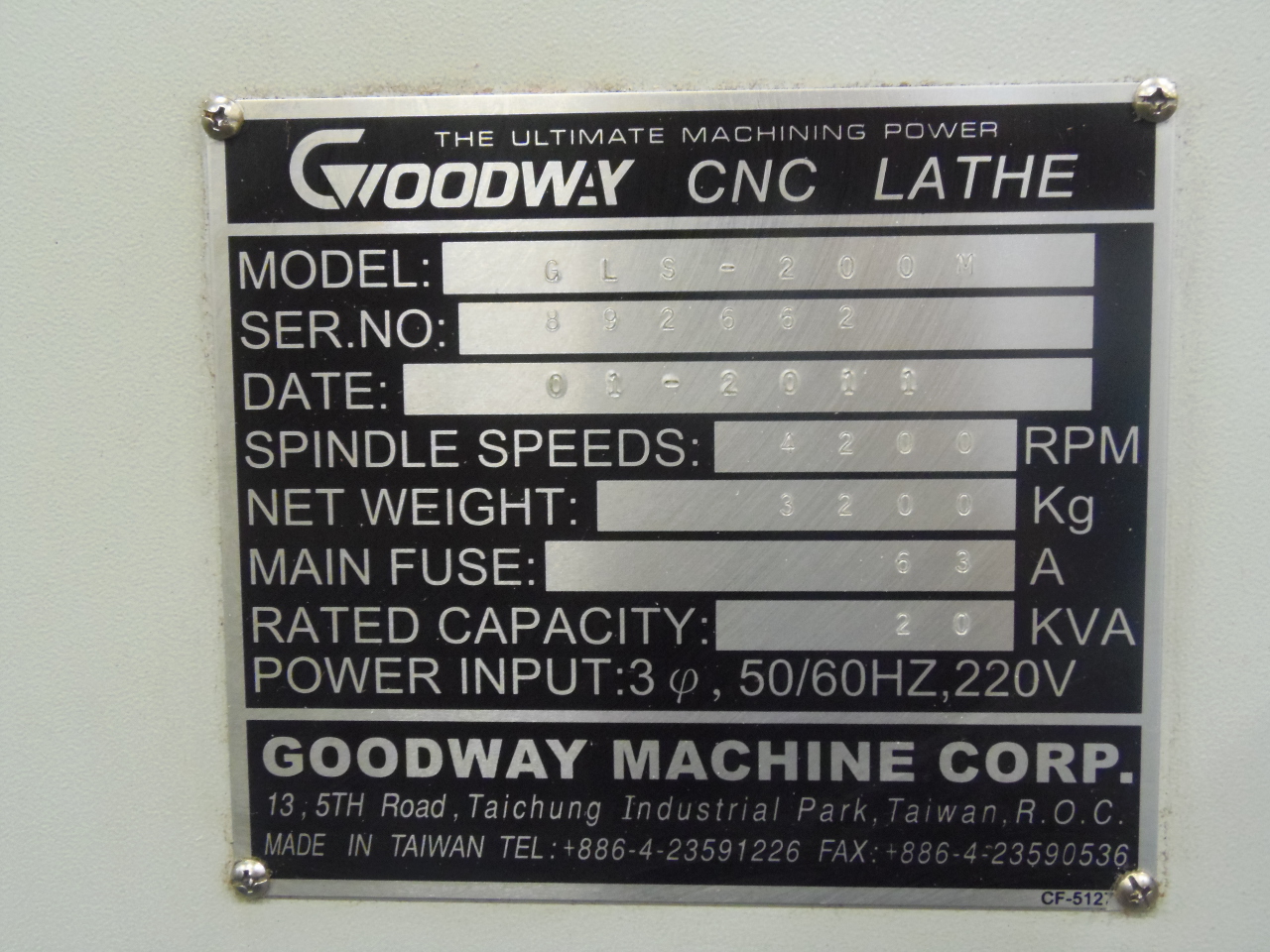

MAKE......................... YAMA SEIKI (GOODWAY)
MODEL........................ GLS-200M
SERIAL NUMBER................ 892662
AGE.......................... 2011
SWING OVER FRONT APRON....... 19.68"
MAX CUTTING DIAMETER......... 11.02"
MAX CUTTING LENGTH........... 19.68"
BAR CAPACITY................. 2.0"
SPINDLE BORE................. 2.59"
SPINDLE MOTOR................ 20/15 HP
SPINDLE SPEED................ 4,200 RPM
SPINDLE NOSE................. A2-6
X-AXIS TRAVEL................ 8.46"
Z-AXIS TRAVEL................ 23.62"
LIVE TOOLING SPEED........... 4,400 RPM

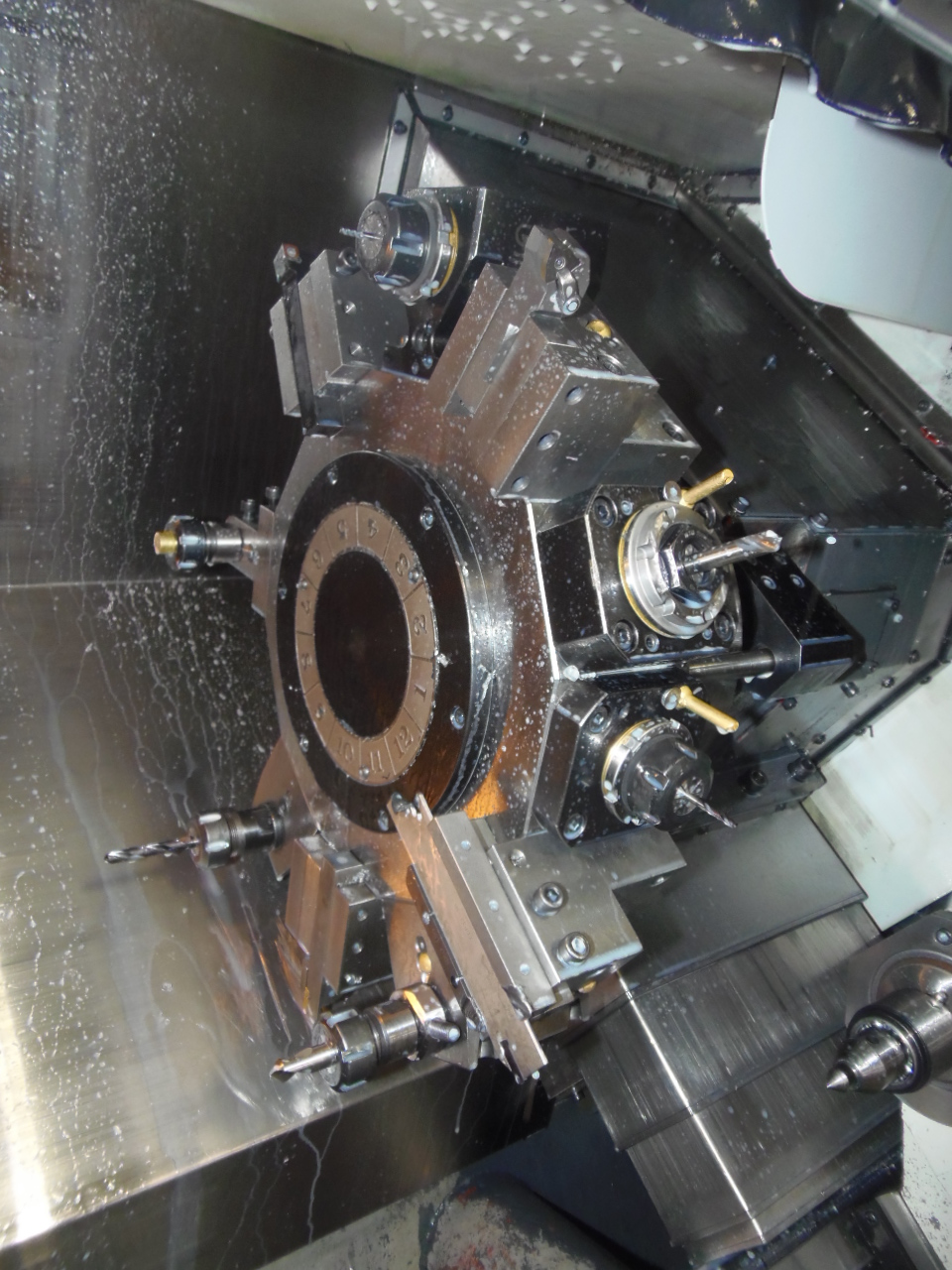

TURRET CAPACITY.............. 12-STATION
EQUIPPED WITH:

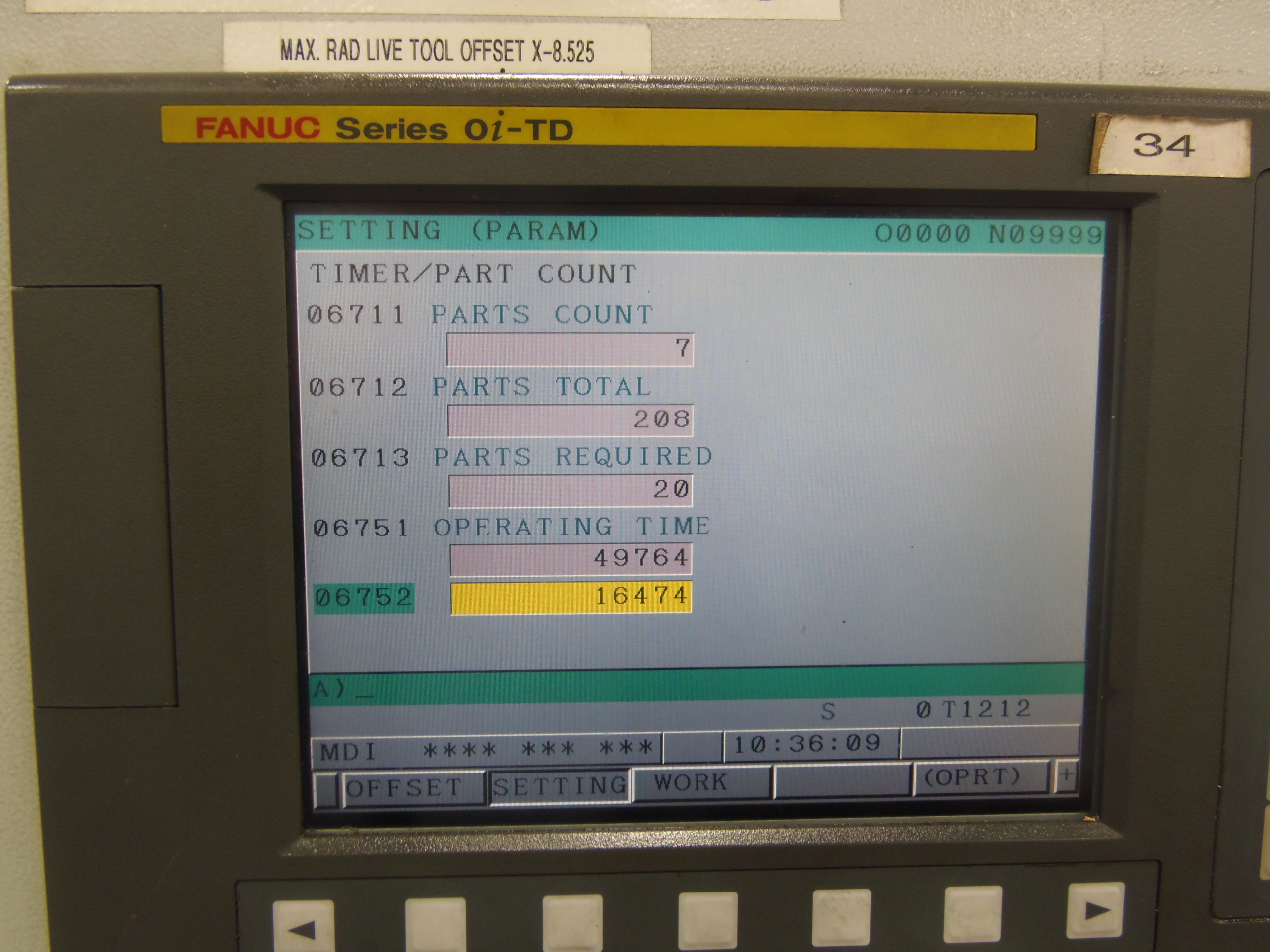

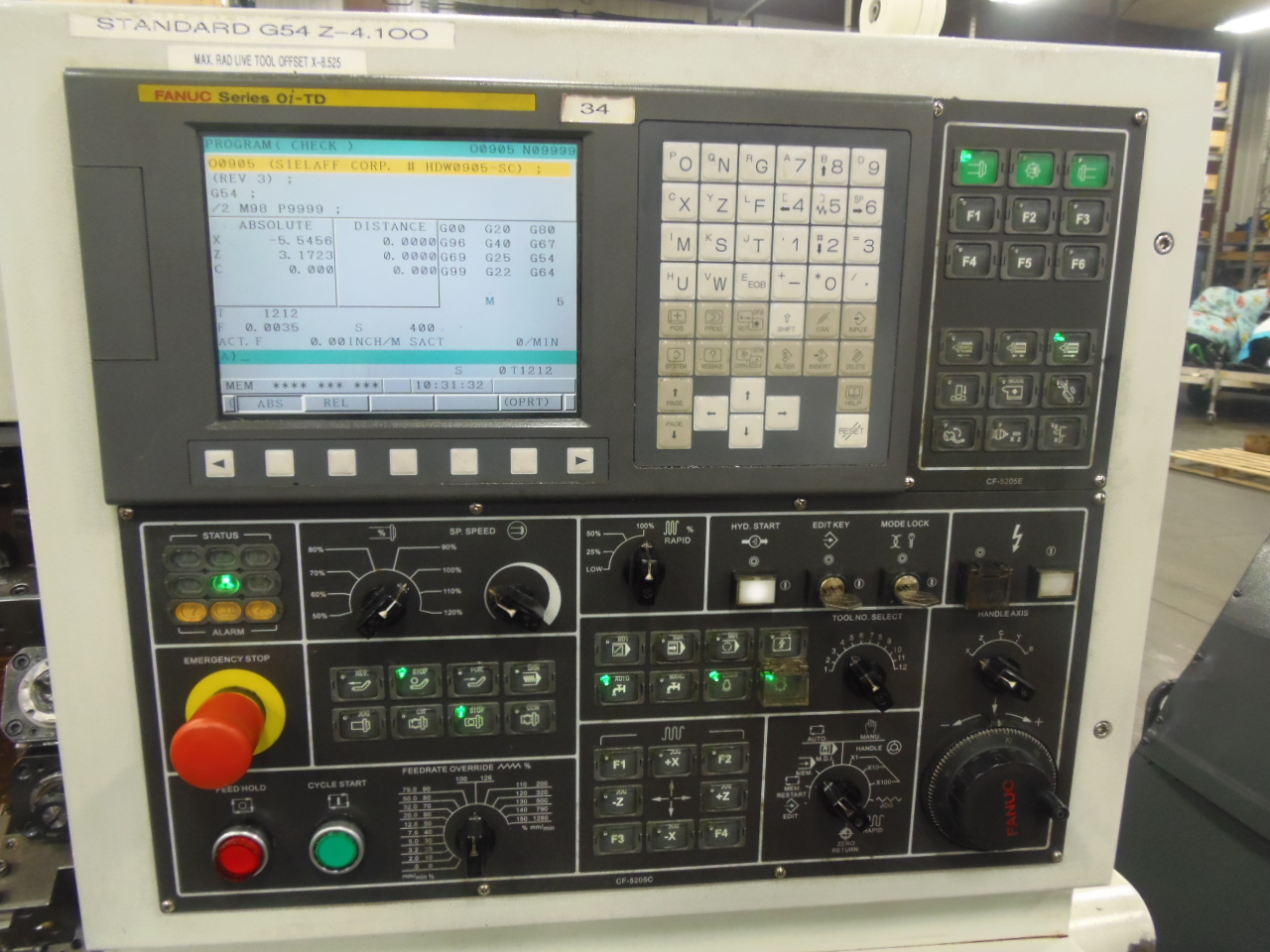

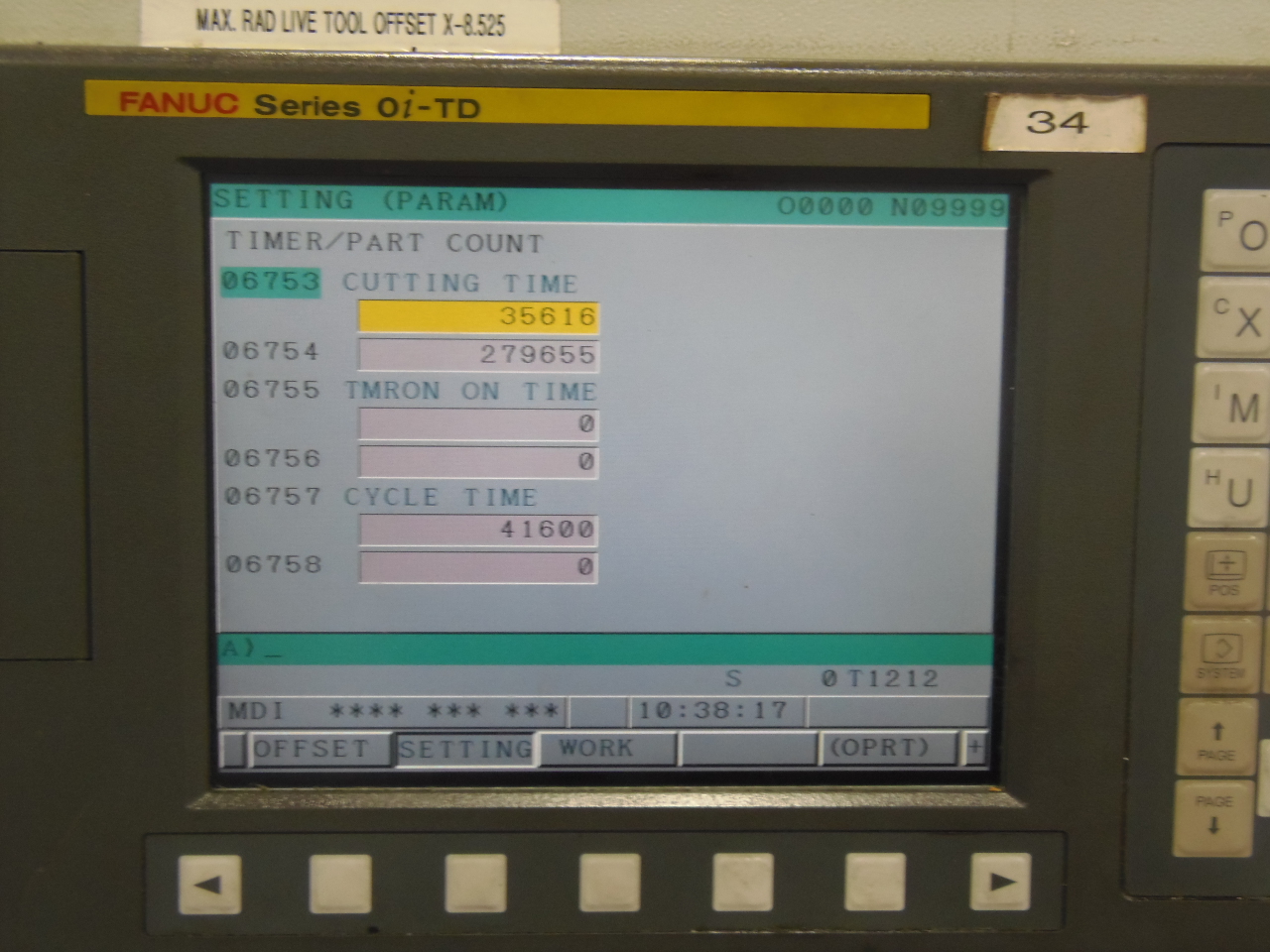

FANUC Oi-TD CONTROL
LIVE MILLING, FULL C-AXIS

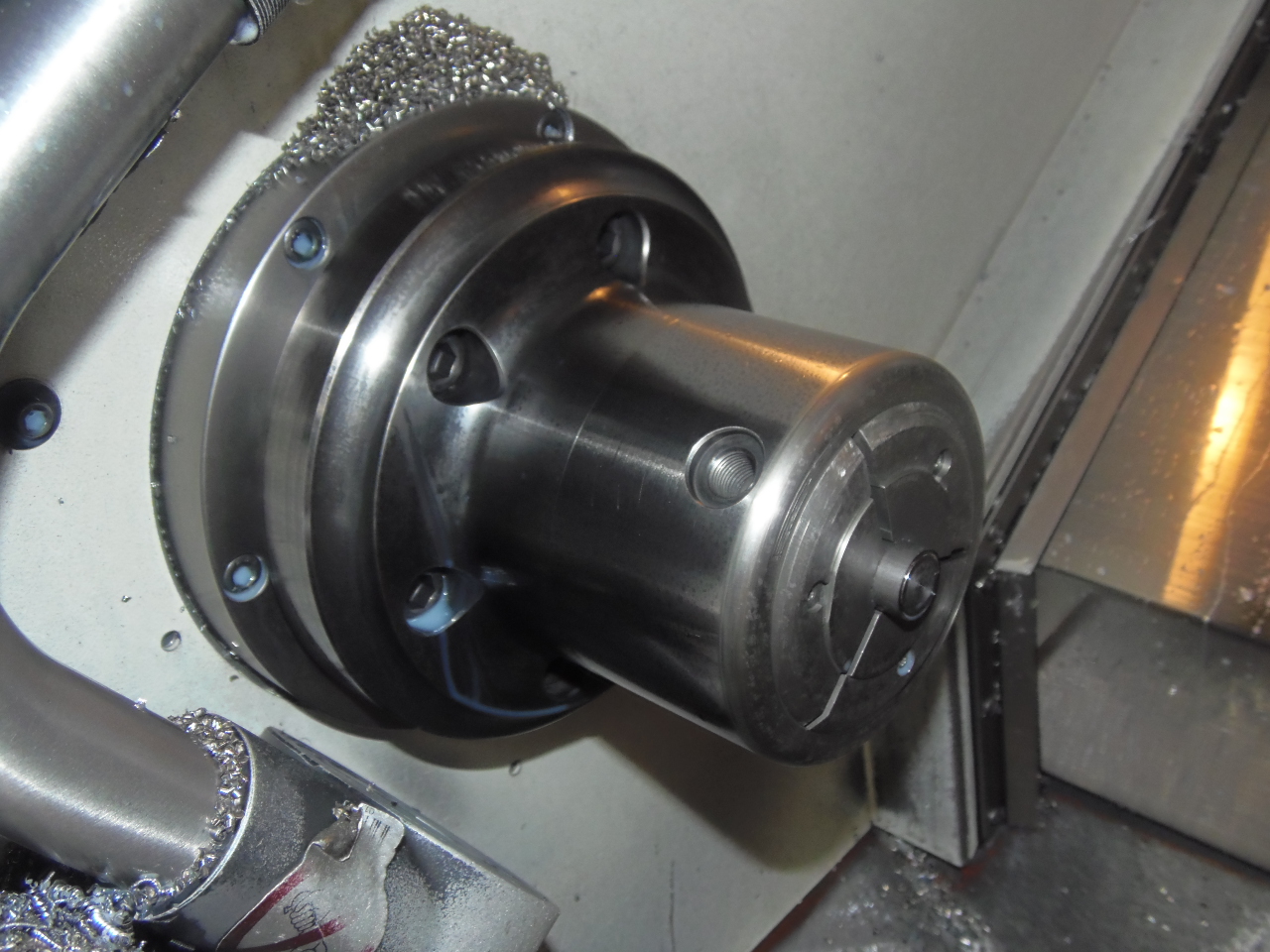

COLLET CHUCK

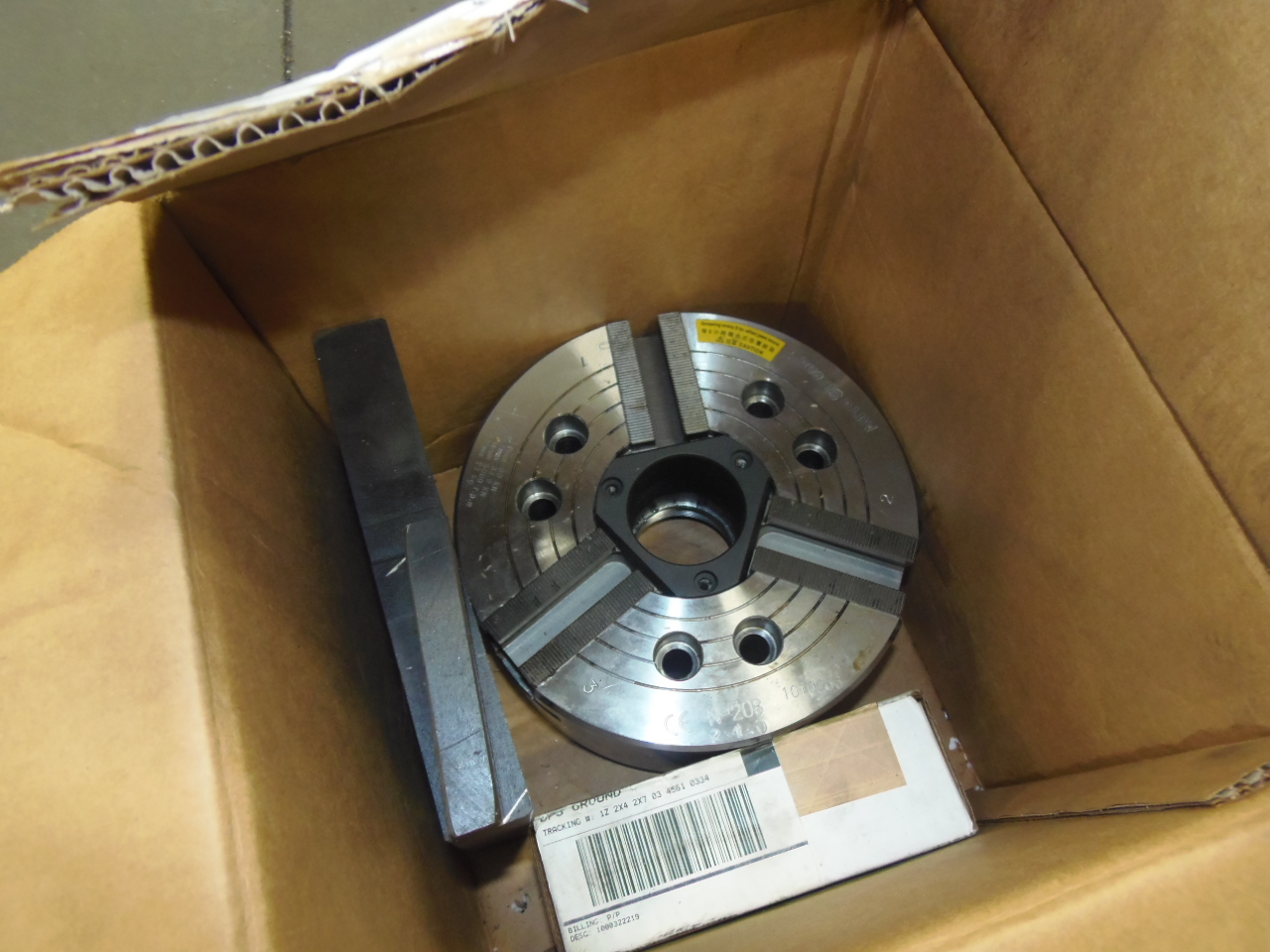

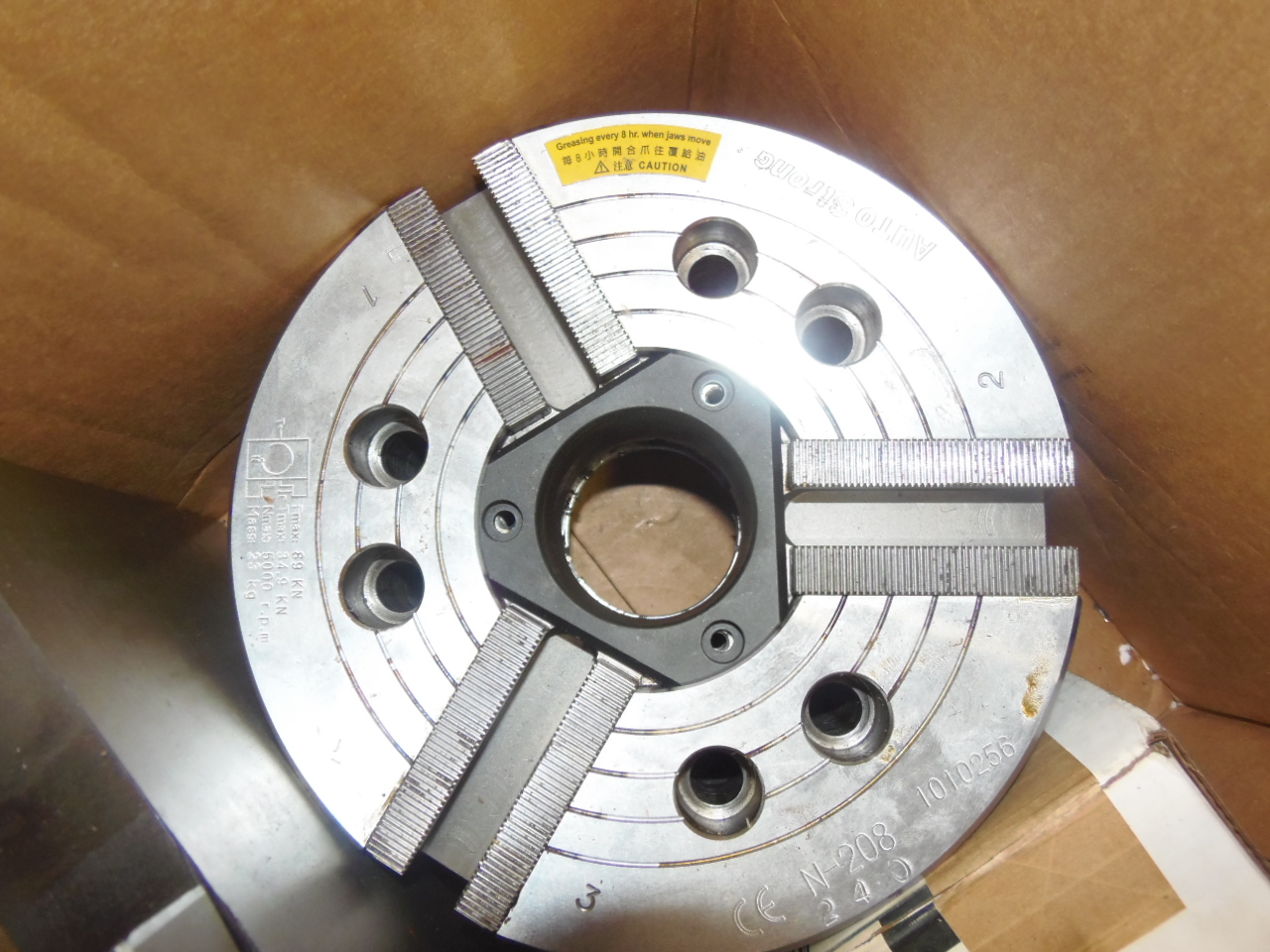

8" 3 JAW CHUCK

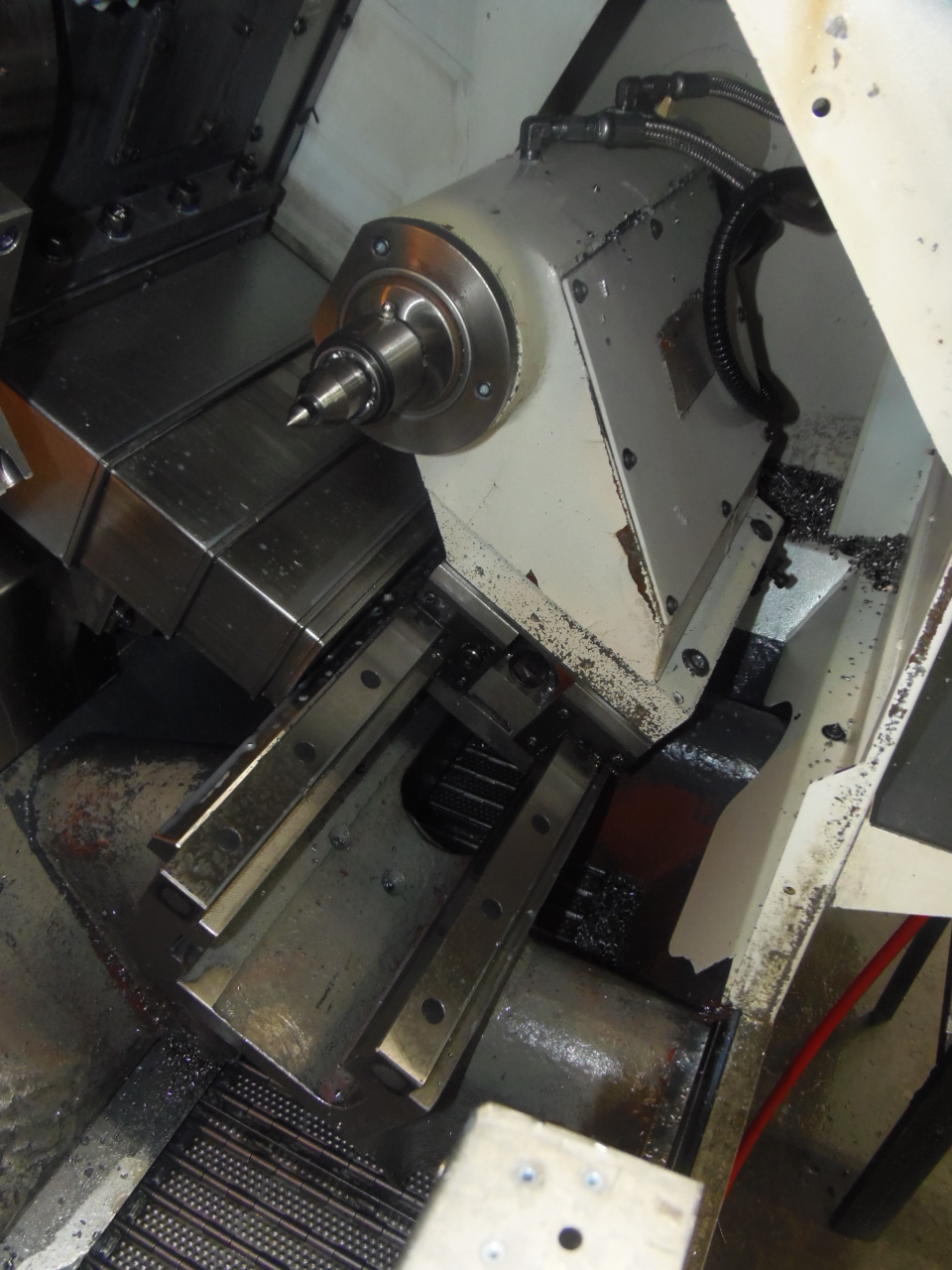

TAILSTOCK

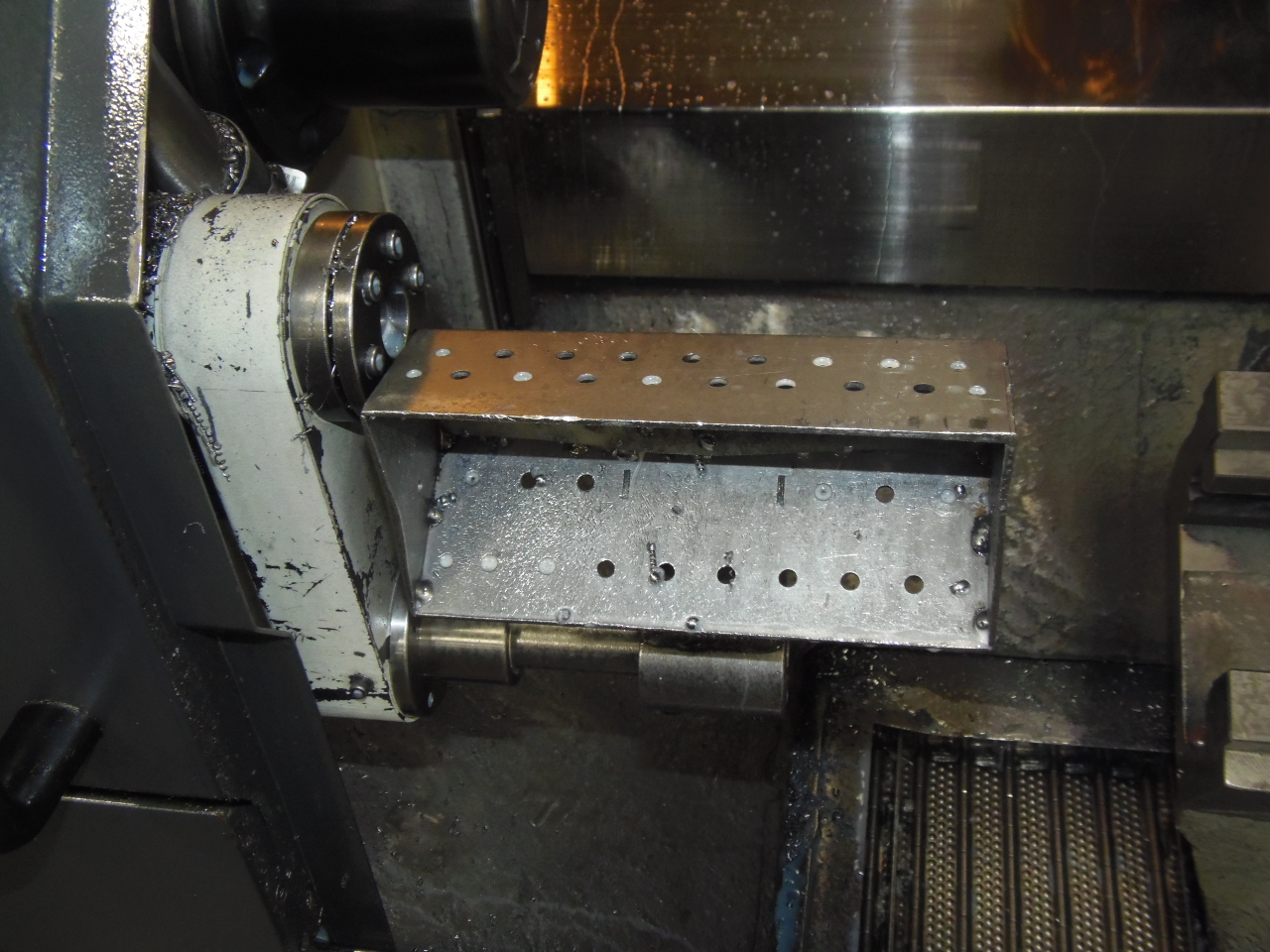

PARTS CATCHER

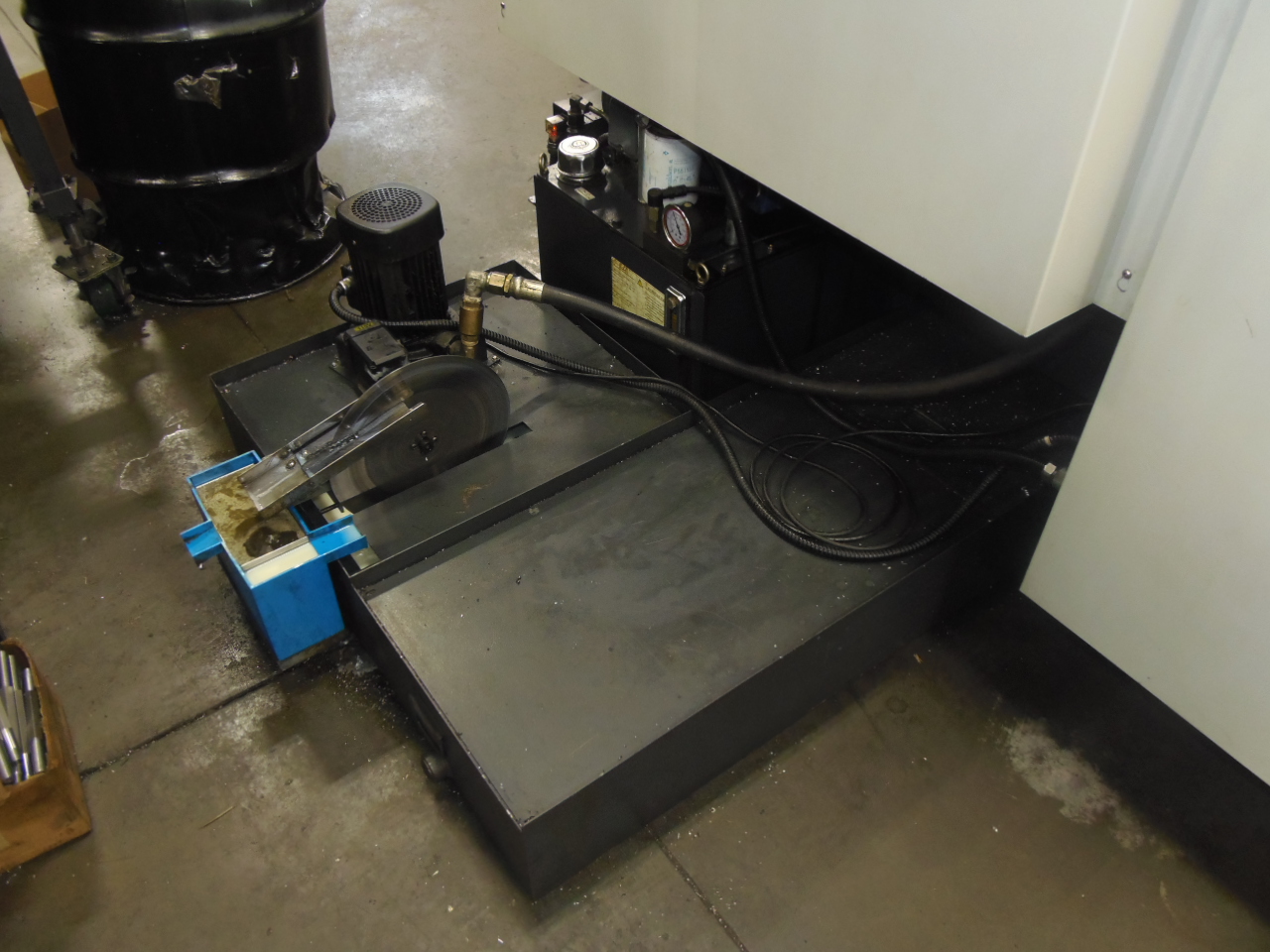

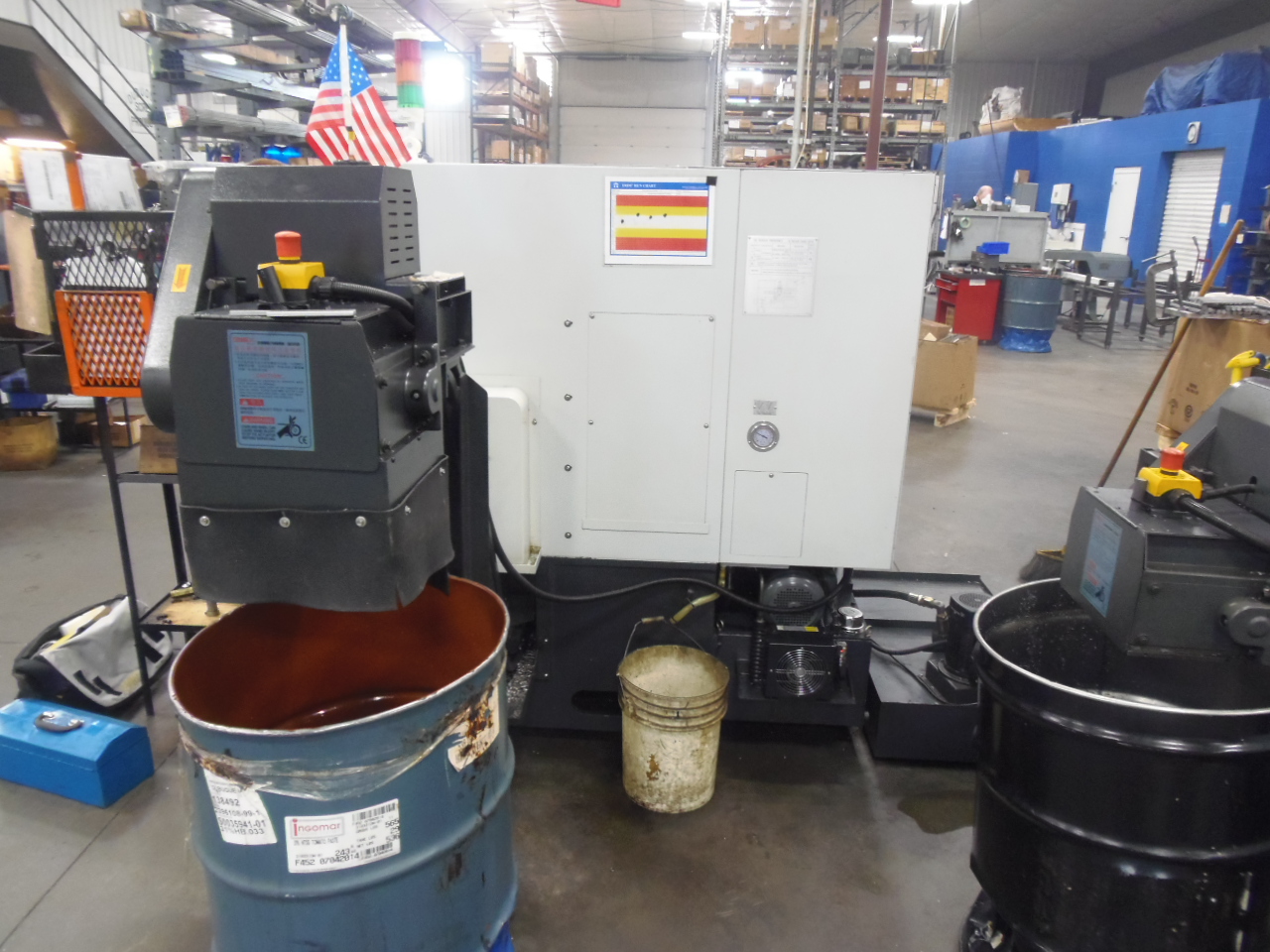

CHIP CONVEYOR

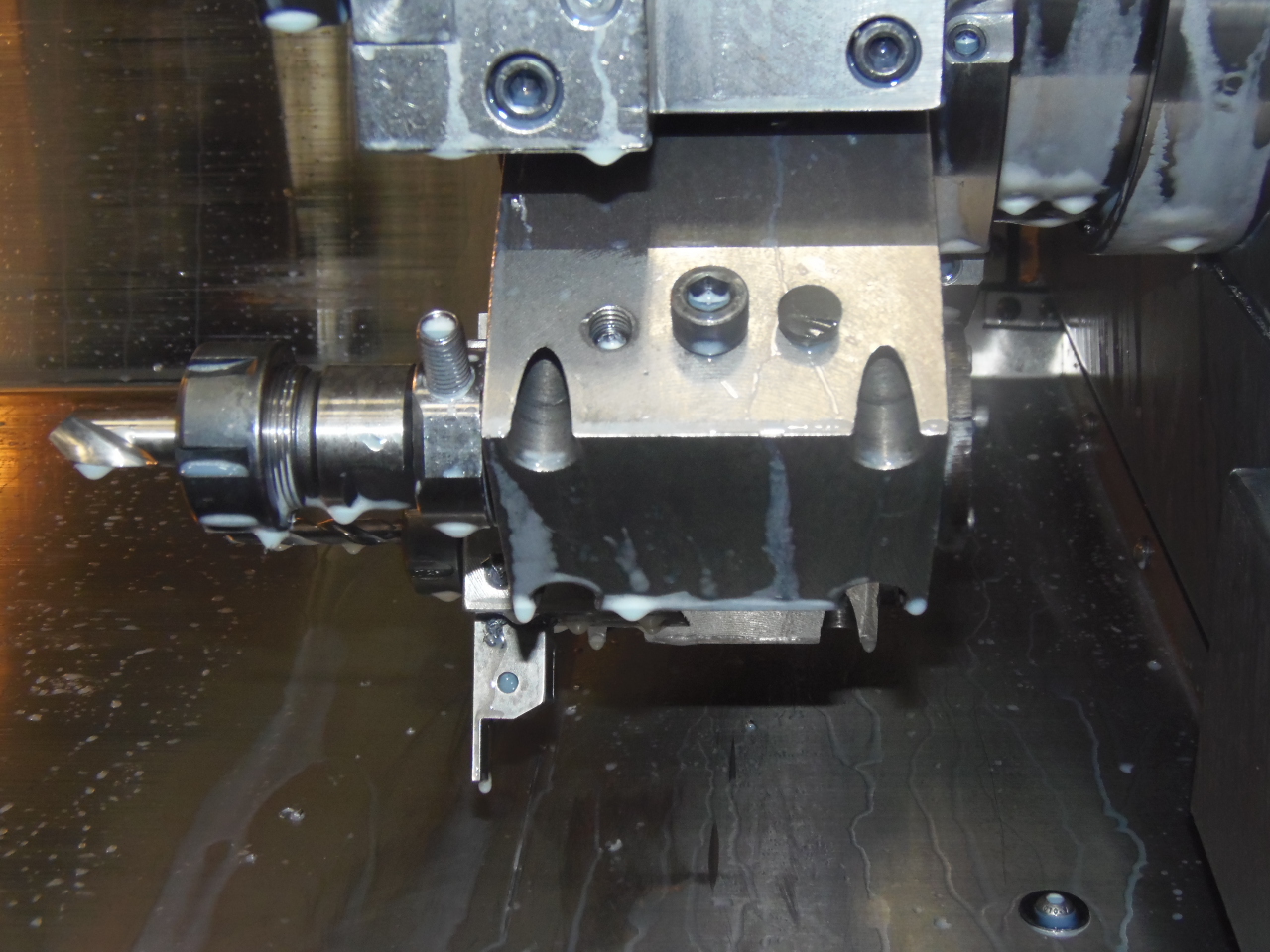

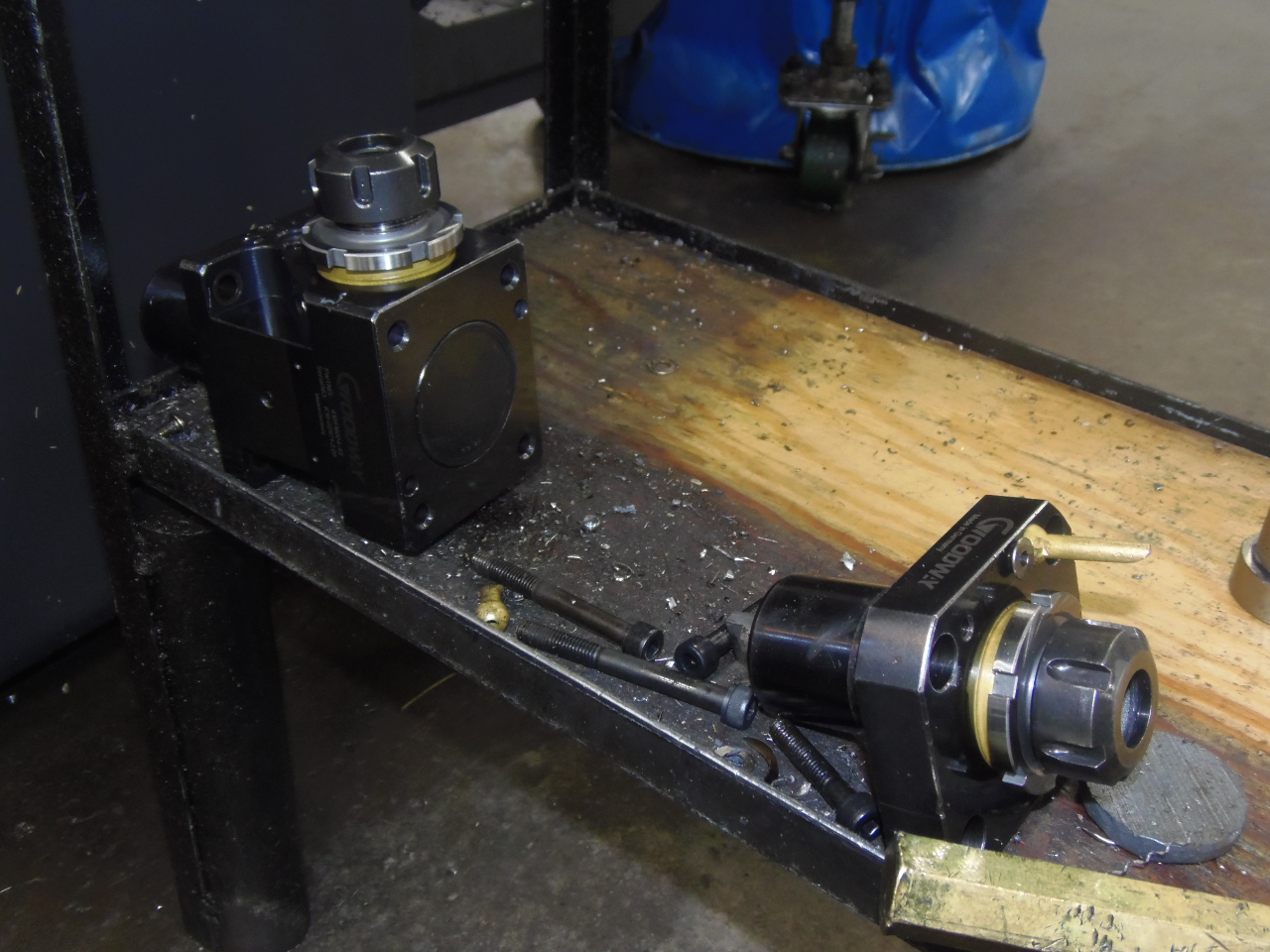

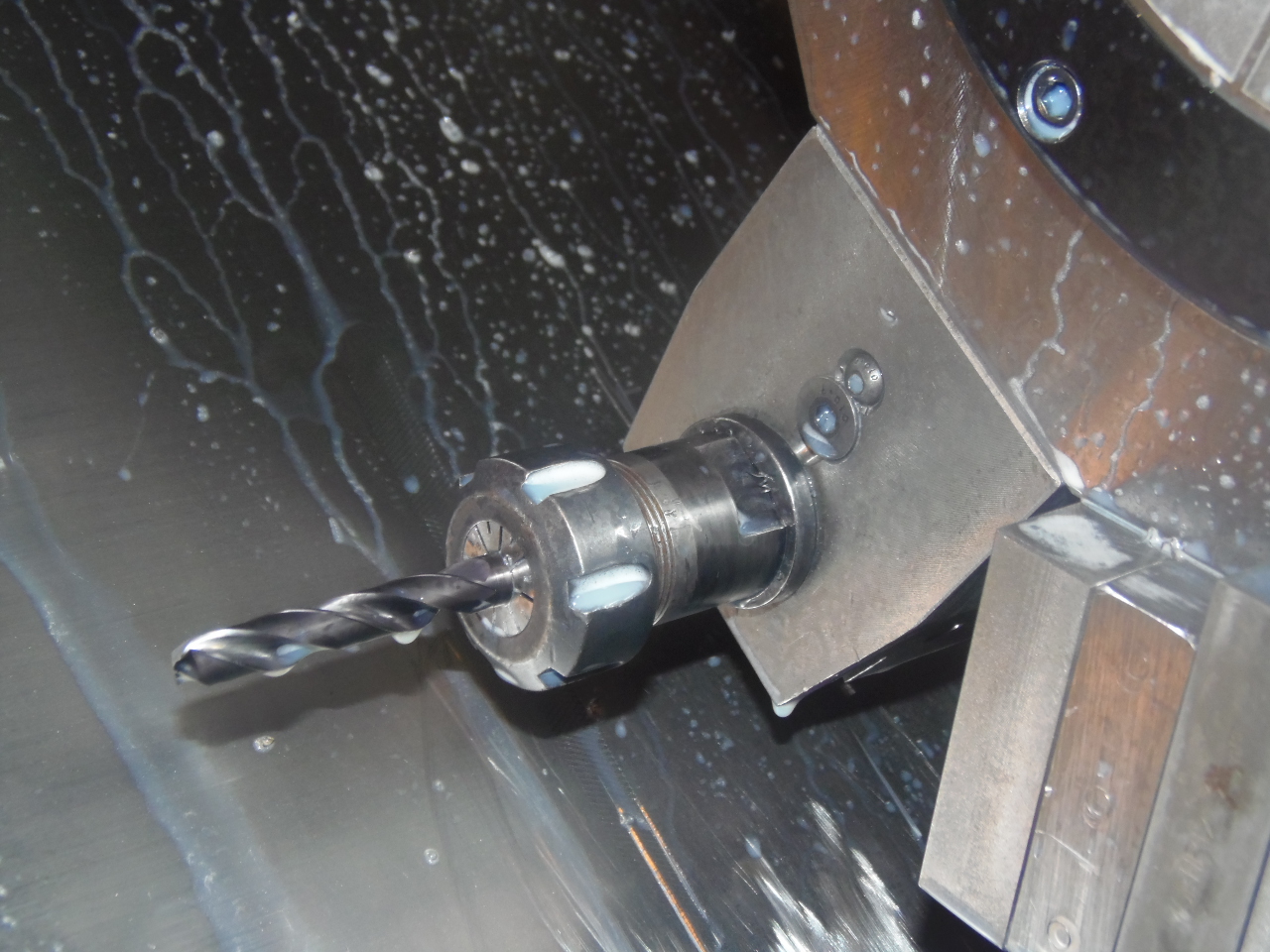

(2) AXIAL LIVE TOOL HOLDERS (ER-25 COLLETS)

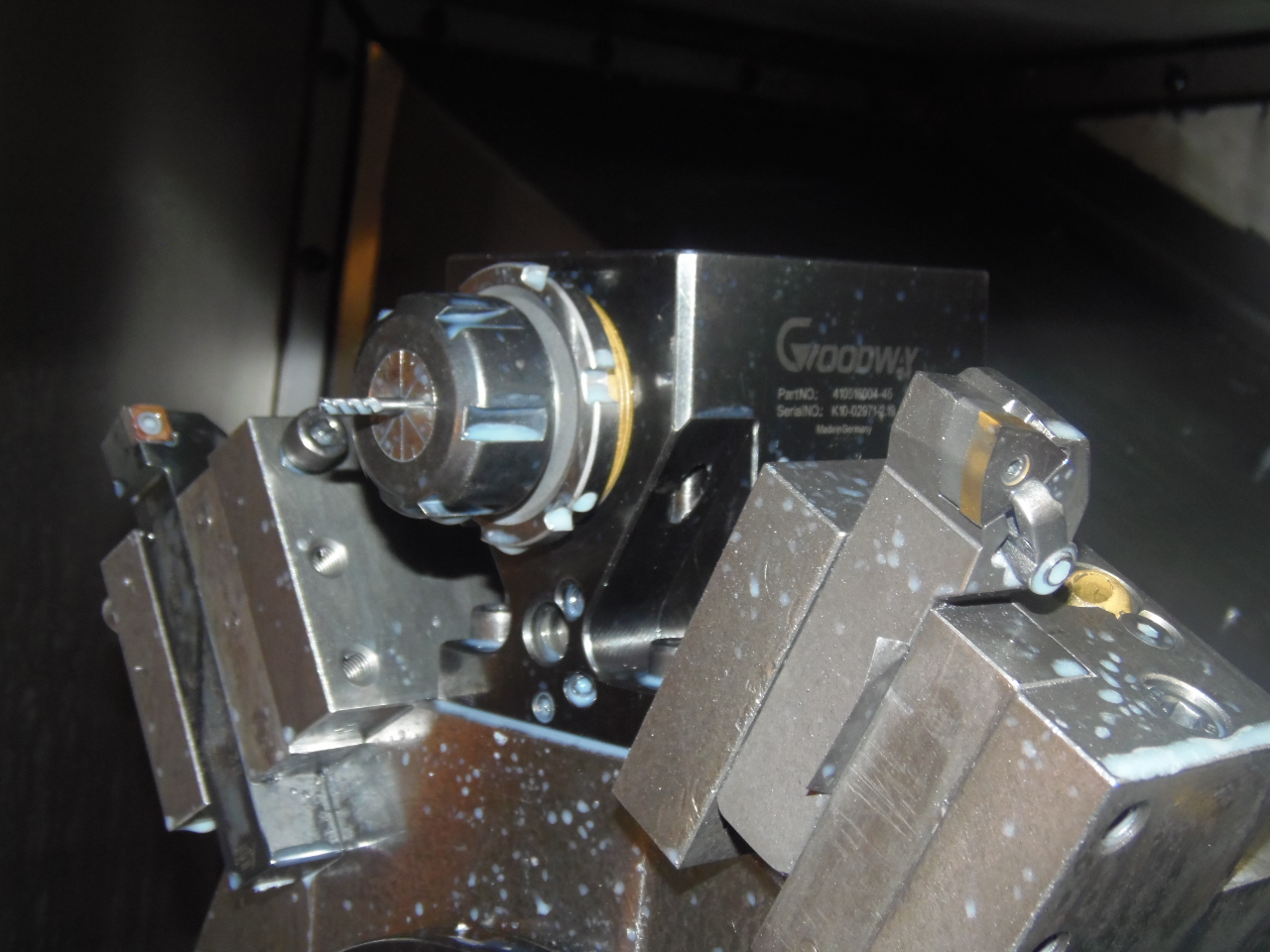

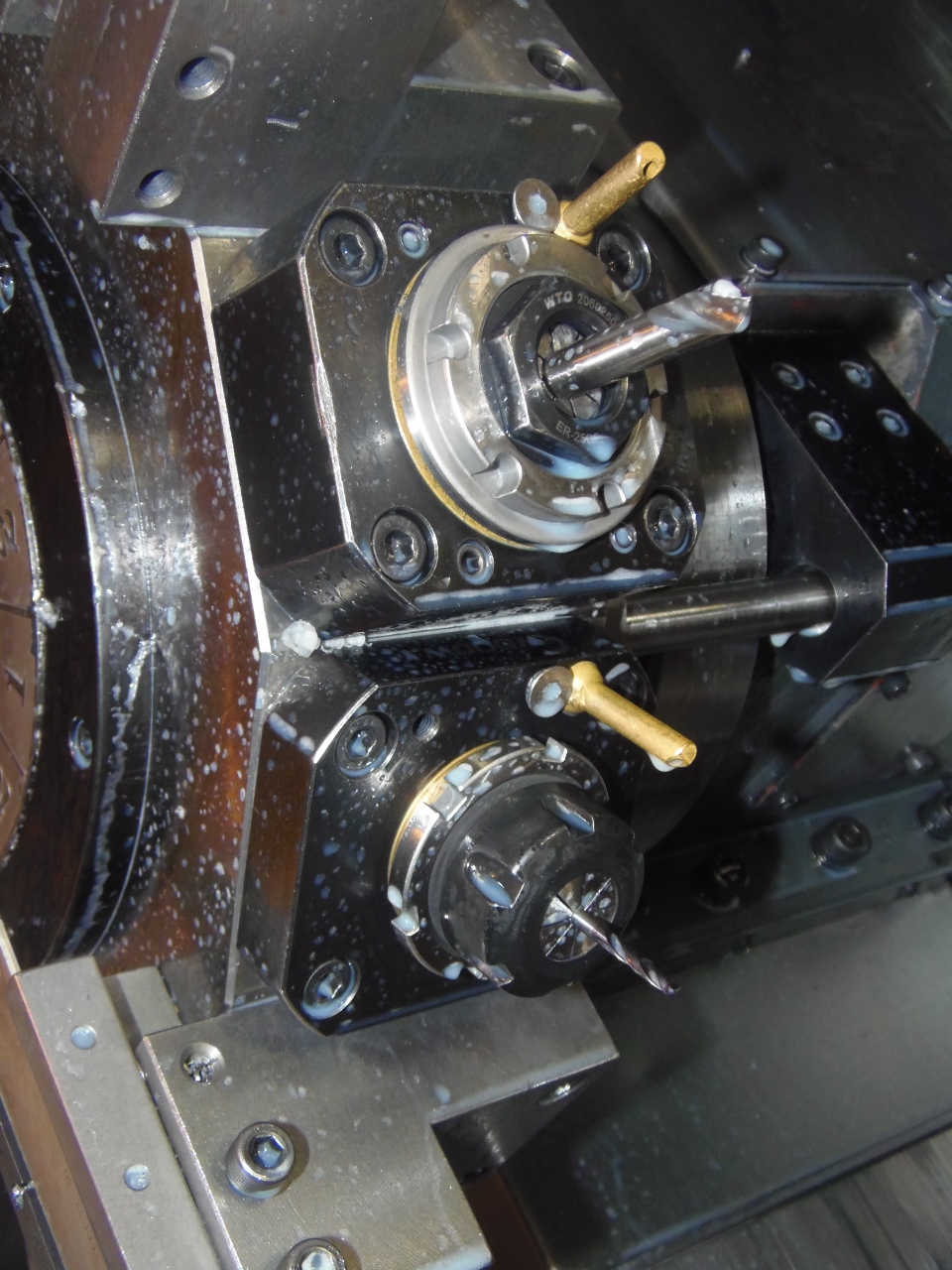

(3) RADIAL LIVE TOOL HOLDERS (ER-25 COLLETS)
