Specifications
Equipped With
No. Pound Capacity......7,000

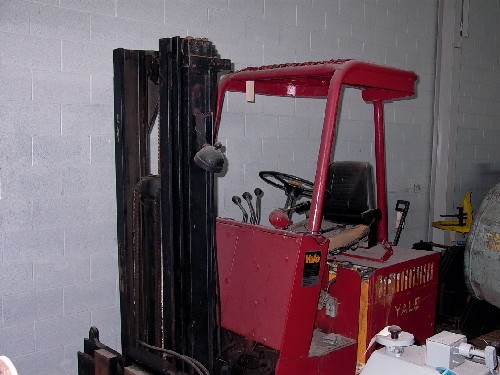

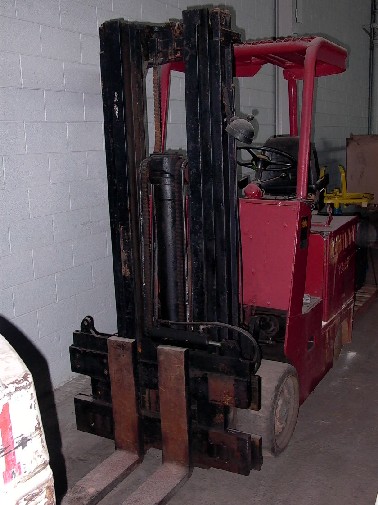

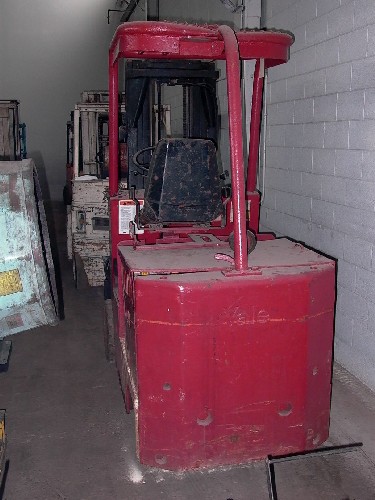

Manufacturer............Yale
Model No................K70C060G36T090
GENERAL SPECIFICATIONS:
SERIAL 296004
NEW APPROXIMATELY 1976
BATTERY EO
VOLTS 36
TRUCK WEIGHT LESS BATTERY 8250 LBS.
TRUCK WEIGHT WITH BATTERY 11,150 LBS.
BACK TILT 5 DEGREES
CAPACITY AT 24" LOAD CENTER 5200 LBS @ 213" HEIGHT OF FORKS
CAPACITY AT 24" LOAD CENTER 5700 LBS @ 156" HEIGHT OF FORKS
CAPACITY AT 24" LOAD CENTER AND 24" HIGH 700O LBS.
FORK LENGTH 53"
DIMENSIONS WITHOUT FORKLIFT 8'Lx4'Wx7-1/2'H
EQUIPPED WITH:
SIDE SHIFT
WITH CHARGER ON WHEELS (2 1/2' X 2' X 3'H) 500 LBS.
CHARGER INPUT 230/460/60/3
SEAT BELT
ROLLOVER TOP/CAGE
HARD TIRES
