Specifications
Equipped With

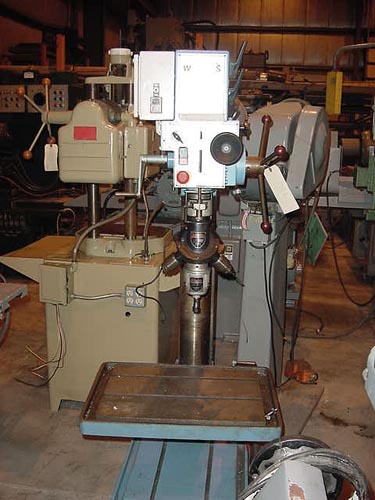

GENERAL SPECIFICATIONS:
MODEL 24514
SERIAL # 8065
CAP. CAST IRON: POWER FEED 1"
HAND FEED 1.5"
DRILLS TO CENTER 25"
MOTOR HP (2 SPEED) 3.0 HI/2.5 LO
MORSE TAPER NO. 3
DIA. OF QUILL 2-7/16"
SPINDLE OF TRAVEL 5-1/8"
SPINDLE TO TABLE (FLOOR) 30-3/4" MAX.
SPINDLE TO BASE (FLOOR) 45" MAX.
COLUMN DIA. 5"
COLUMN WALL 5/8"
TABLE, RECT., T-SLOTS 18" X 25"
BASE, MACHINED OVERALL 28" X 18-1/2"
BASE, MACHINED, GROUND AREA 16-1/2" X 15-1/2"
SPINDLE SPEEDS: @ 2.6 (L) 85, 120, 500, 730 RPM
@ 3.0 (H) 170, 240, 1000, 1460 RPM
POWER FEED PER RPM .003, .006, .008, .012
OVERALL SIZE 25"W X 28"D X 69-3/4"H
ELECTRIC 460/3 PHASE
EQUIPPED WITH:
HEAD AND TABLE RAISER
T-SLOTTED MACHINE BASE
EXTRA FINE HAND FEED
REVERSING SWITCH
NOTE: NEW COST IS $8,896.00
