GENERAL SPECIFICATIONS:

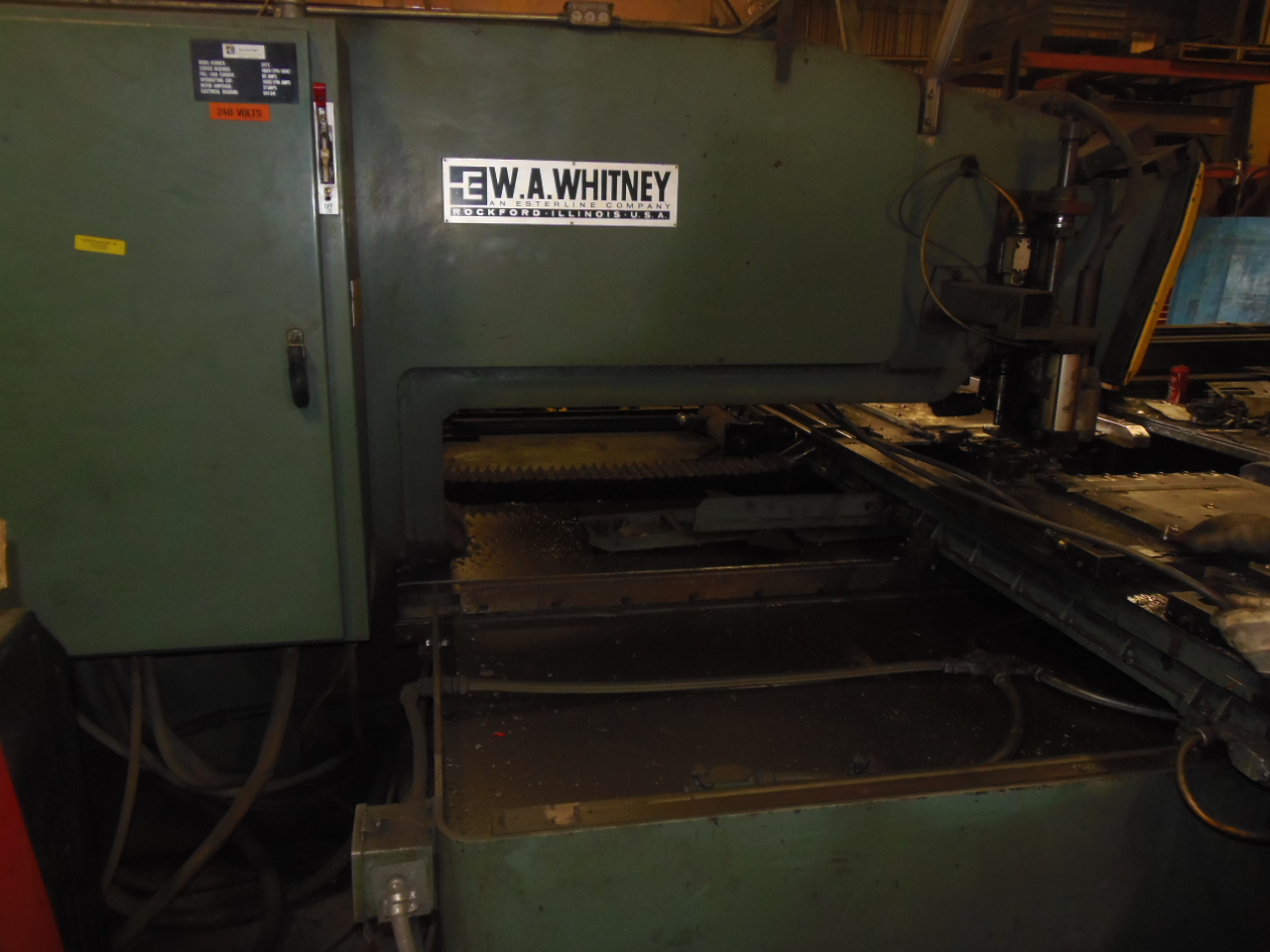

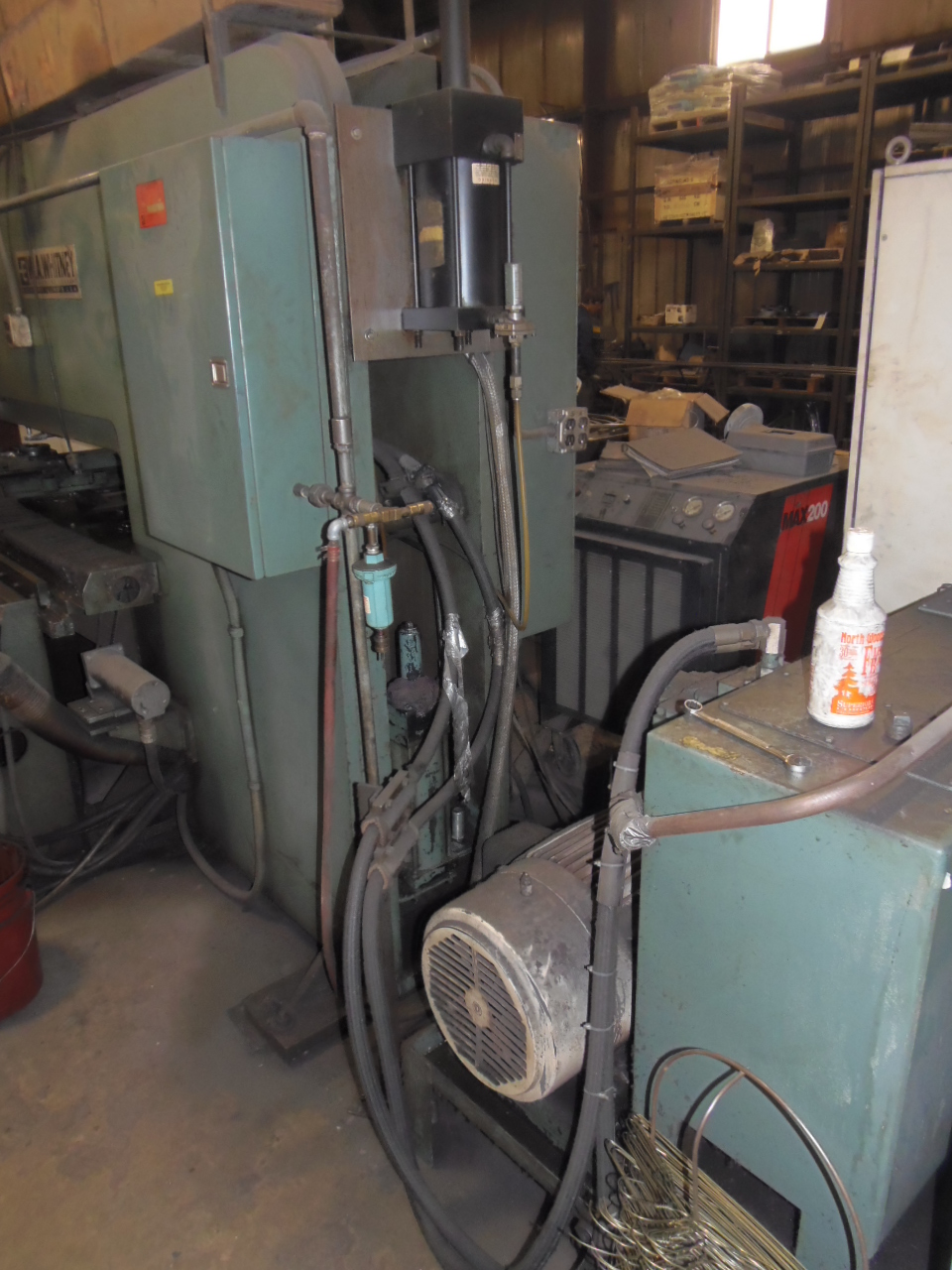

MANUFACTURER........................... WHITNEY
MODEL.................................. 647C
AGE.................................... NEW 1978
NEW DRIVES AND CONTROL................. 1997

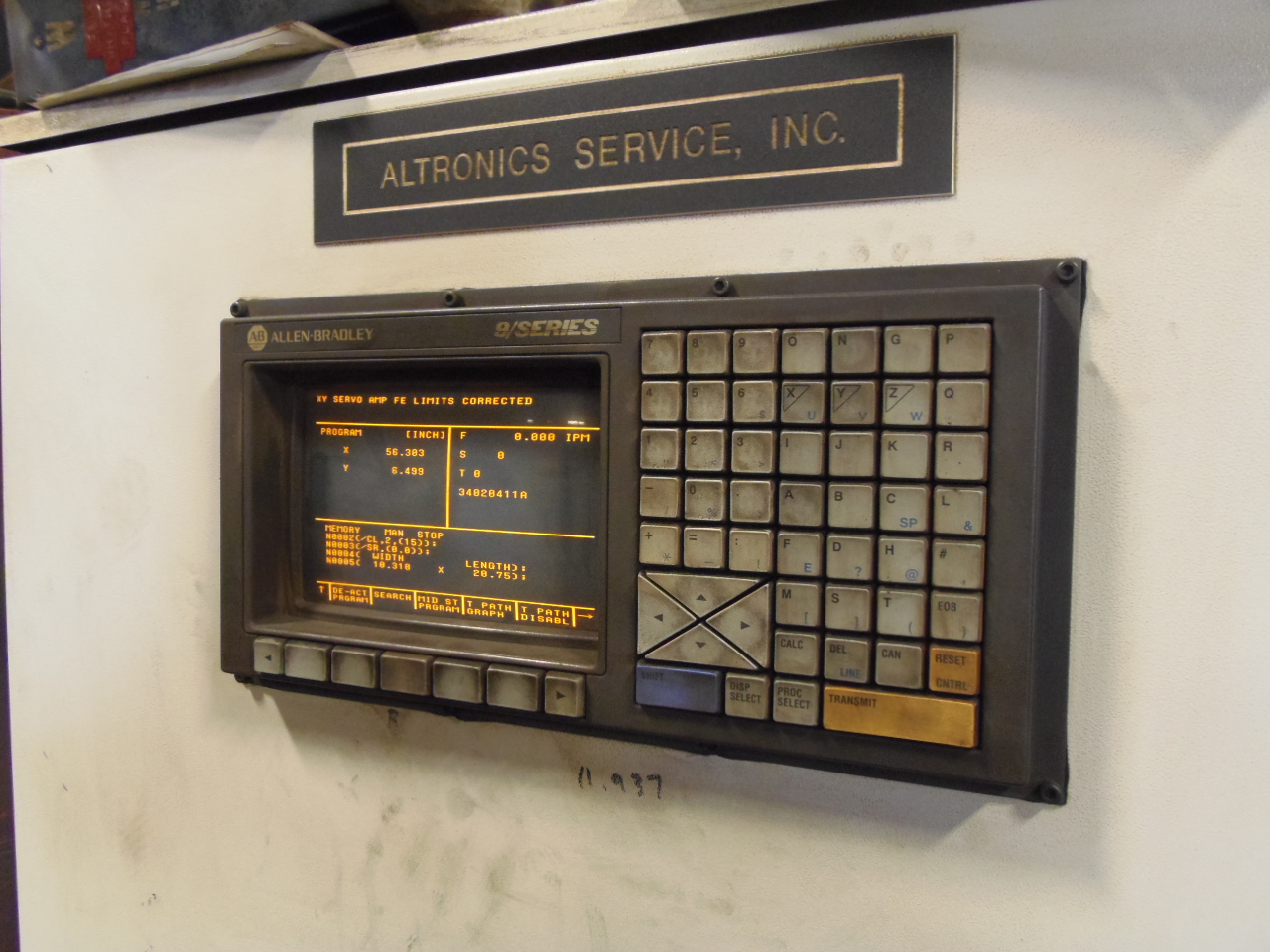

CURRENT CONTROL........................ ALLEN BRADLEY 9/SERIES MILL
TONNAGE................................ 40 TON
MAX. PUNCH DIAMETER.................... 5"
MAX. MATERIAL THICKNESS................ .5"
PIECE PART SIZE-MAX. UTILIZING
PROGRAMMED REPOSITIONING............ 48" X ANY LENGTH
MANUAL REPOSITIONING................ 96" X ANY LENGTH
MAX. PART WEIGHT....................... 500 LBS
PUNCH CAPACITY WITH 50,000 PSI MATERIAL
1" THRU 1/2", 1.25" X 3/8",
2.5" THRU 1/4", 3.5" THRU 3/16",
4.5" THRU 8 GAGE, 5" THRU 10 GAGE

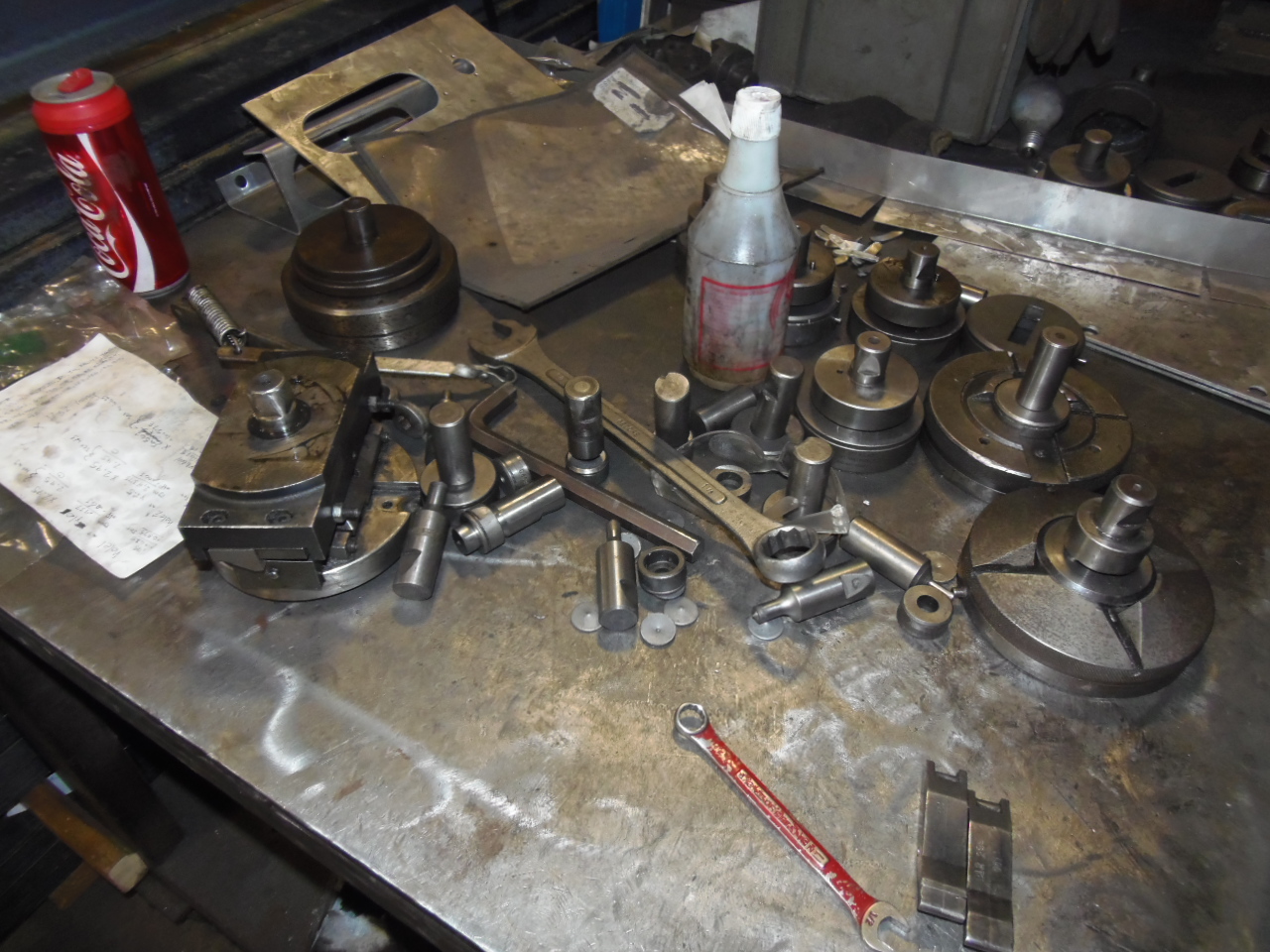

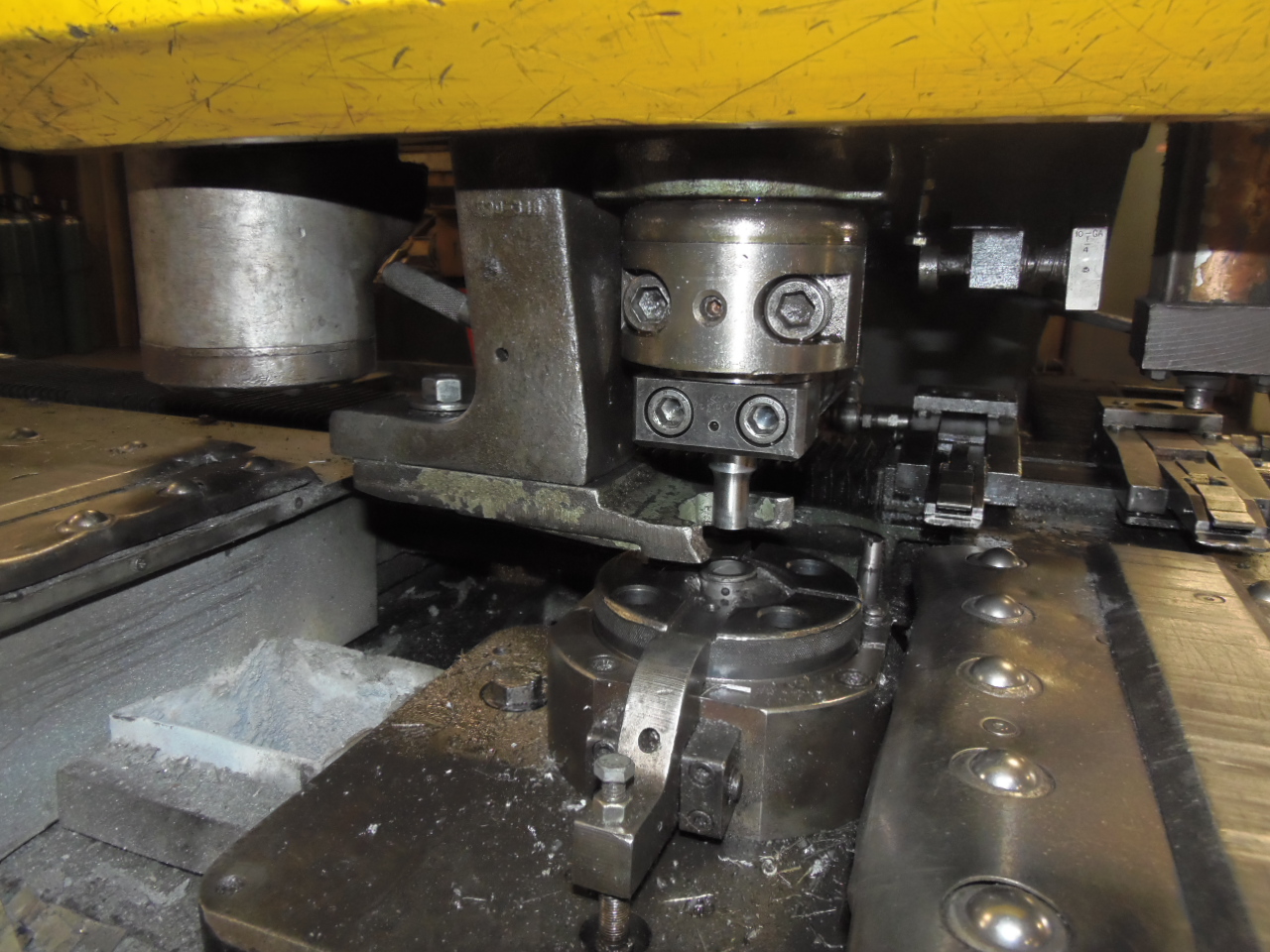

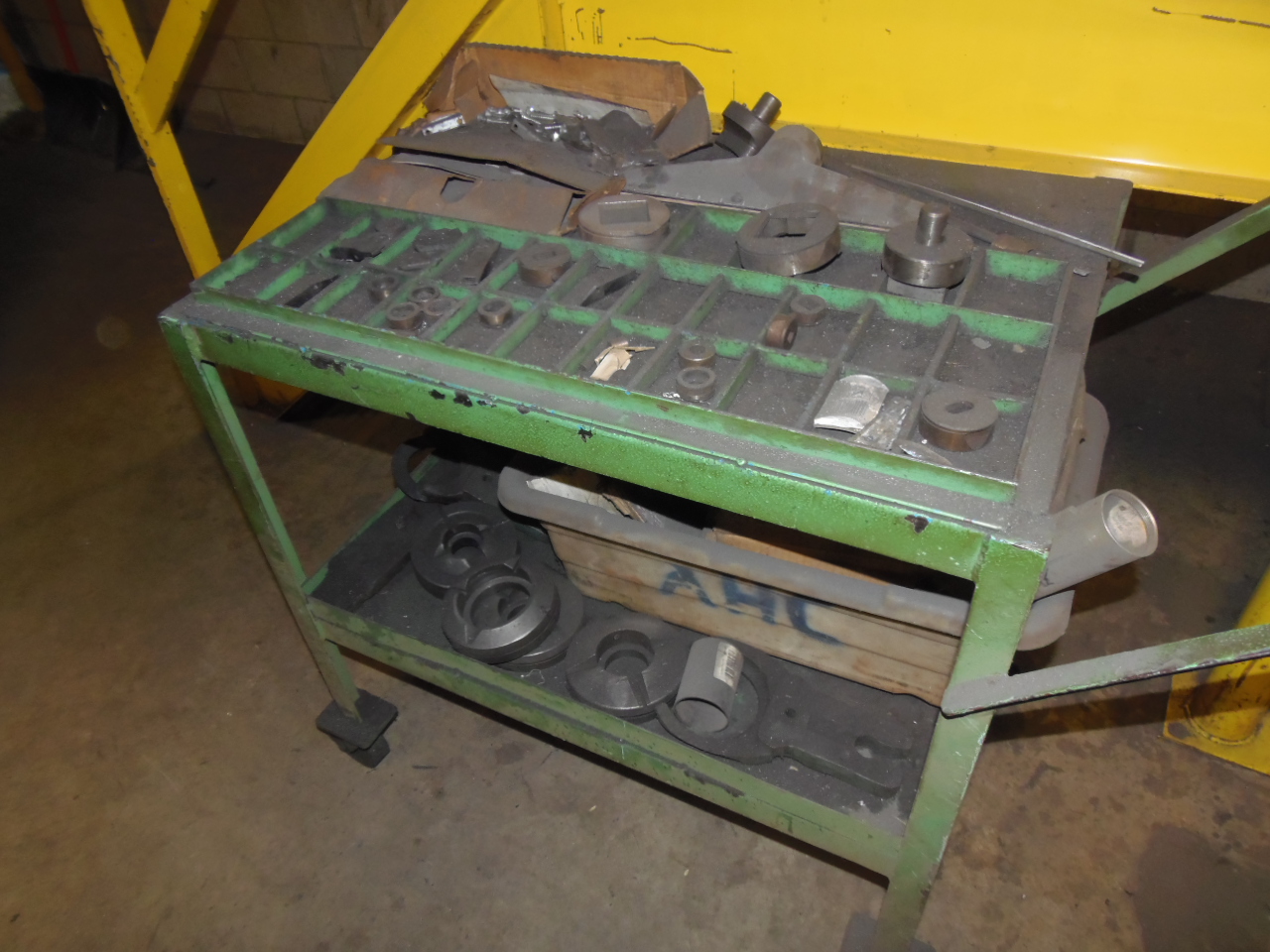

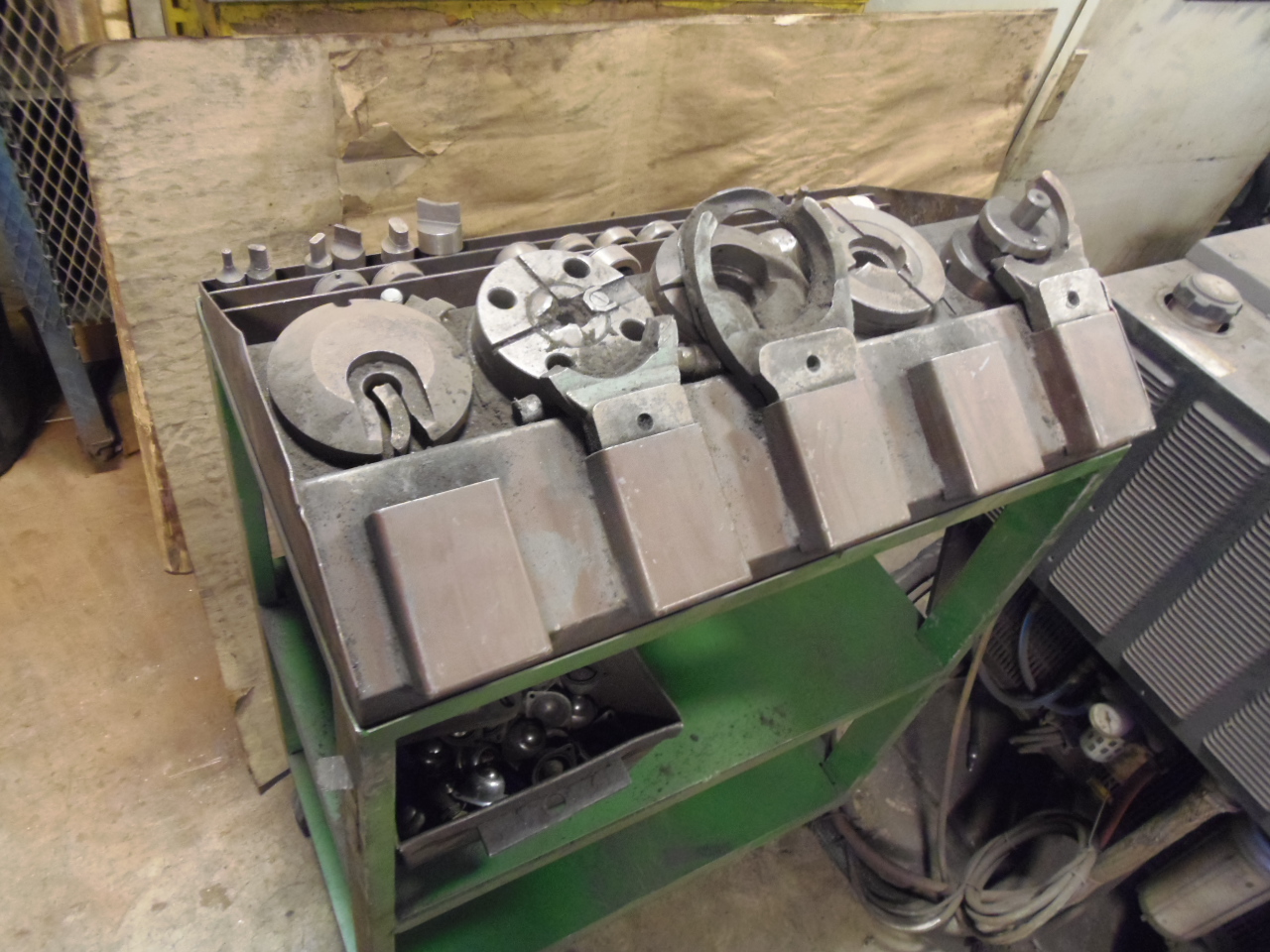

TOOLING................................ WHITNEY 28XX
PLASMA WATTAGE......................... 200
PLASMA ................................ HYPERTHERM HT2000LHF
RATED PLASMA CAPACITY.................. 2"
FLOOR SPACE............................ 142" X 180"
WEIGHT................................. 27,000 LBS

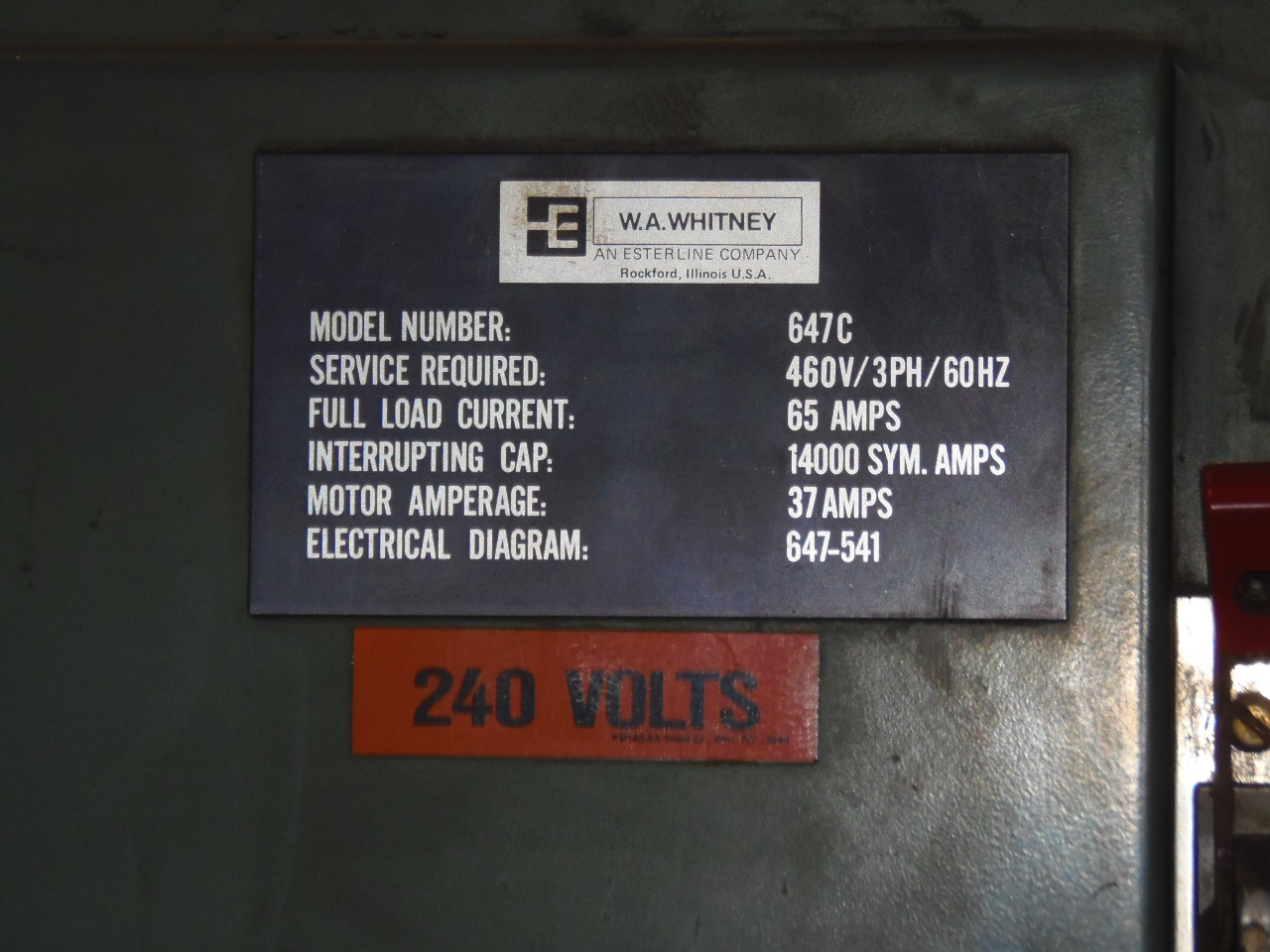

VOLTAGE................................ 240 VOLTS
EQUIPPED WITH:
MISC. OPERATOR, PROGRAMMING, AND ELECTRICAL MANUALS
