Specifications
Equipped With
FEATURES:
40 TON PUNCH CAPACITY

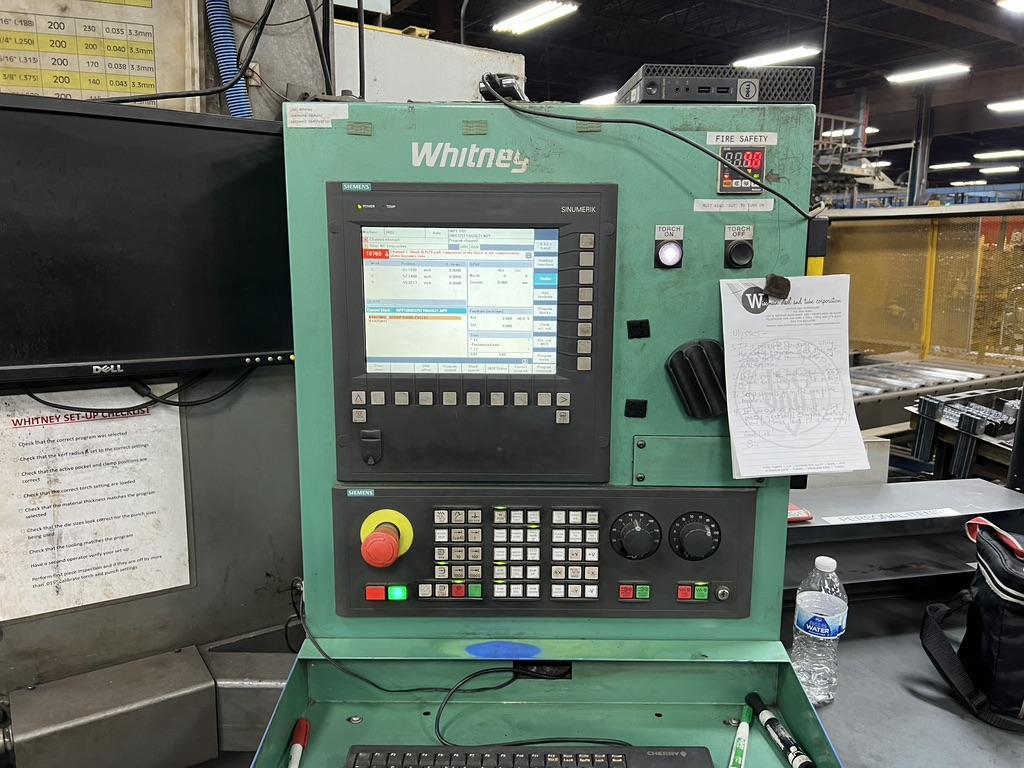

SIEMENS 840DI CNC CONTROL

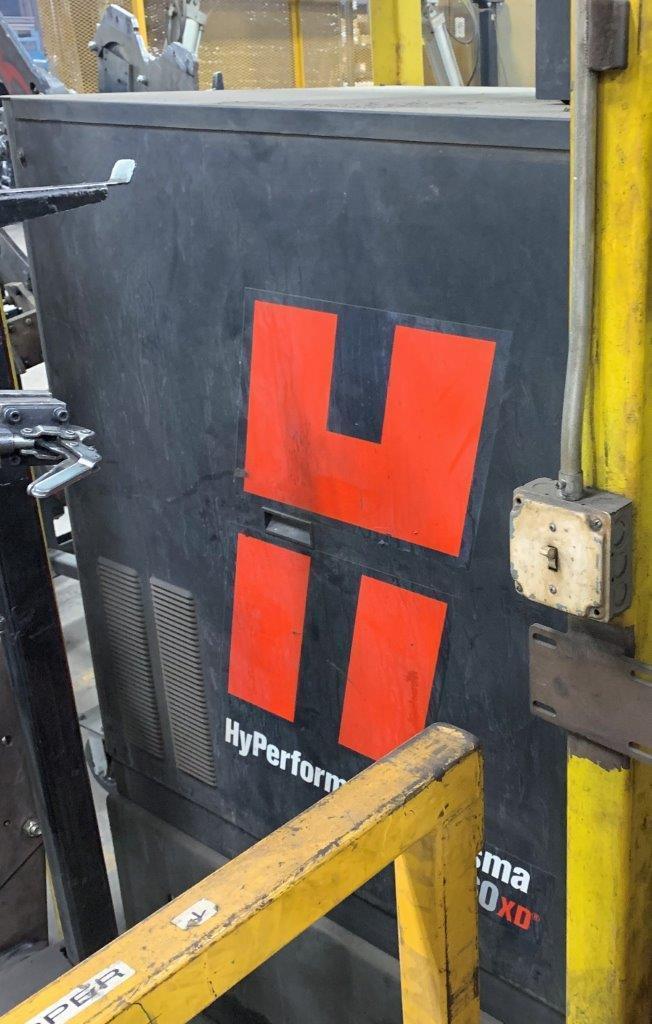

HYPERTHERM HPR260 PLASMA POWER SUPPLY
9-STATION TOOL CHANGER
CAPACITY:
PUNCHING CAPACITY THROUGHOUT STROKE . . 40 TONS
MAX. PUNCH DIAMETER . . . . . . . . . . 5"
HIT RATE ON 1" CENTERS . . . . . . . . 125
MAX. MATERIAL THICKNESS, PUNCHING . . . .500"
MAX. MATERIAL THICKNESS, PLASMA . . . . .500"
X-AXIS TRAVEL . . . . . . . . . . . . . 141.44"
Y-AXIS TRAVEL . . . . . . . . . . . . . 61.85"
MAX. AXIS TRAVEL SPEED . . . . . . . . 1000 IPM
MAX. WORKPIECE WEIGHT . . . . . . . . . 1250 LBS
HYDRAULIC PUMP MOTOR . . . . . . . . . 30 HP
APPROX. MACHINE WEIGHT . . . . . . . . 24,000 LBS.
APPROX. FLOOR SPACE . . . . . . . . . . 280"F-B X 329" L-R
EQUIPPED WITH:
SIEMENS 840DI CNC CONTROL
HYPERTHERM HPR260 PLASMA POWER SUPPLY
9-STATION TOOL CHANGER
INCLINED SMALL PARTS CONVEYOR
NOTE:
JUST REMOVED FROM SERVICE. IT HAS BEEN WELL MAINTAINED.
