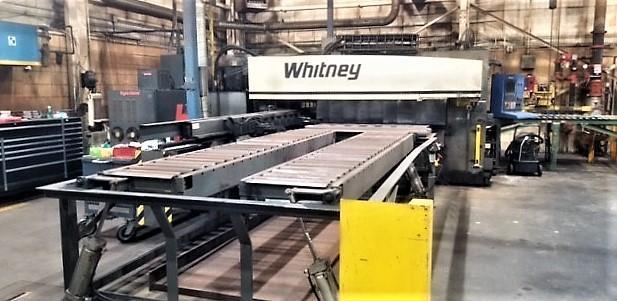

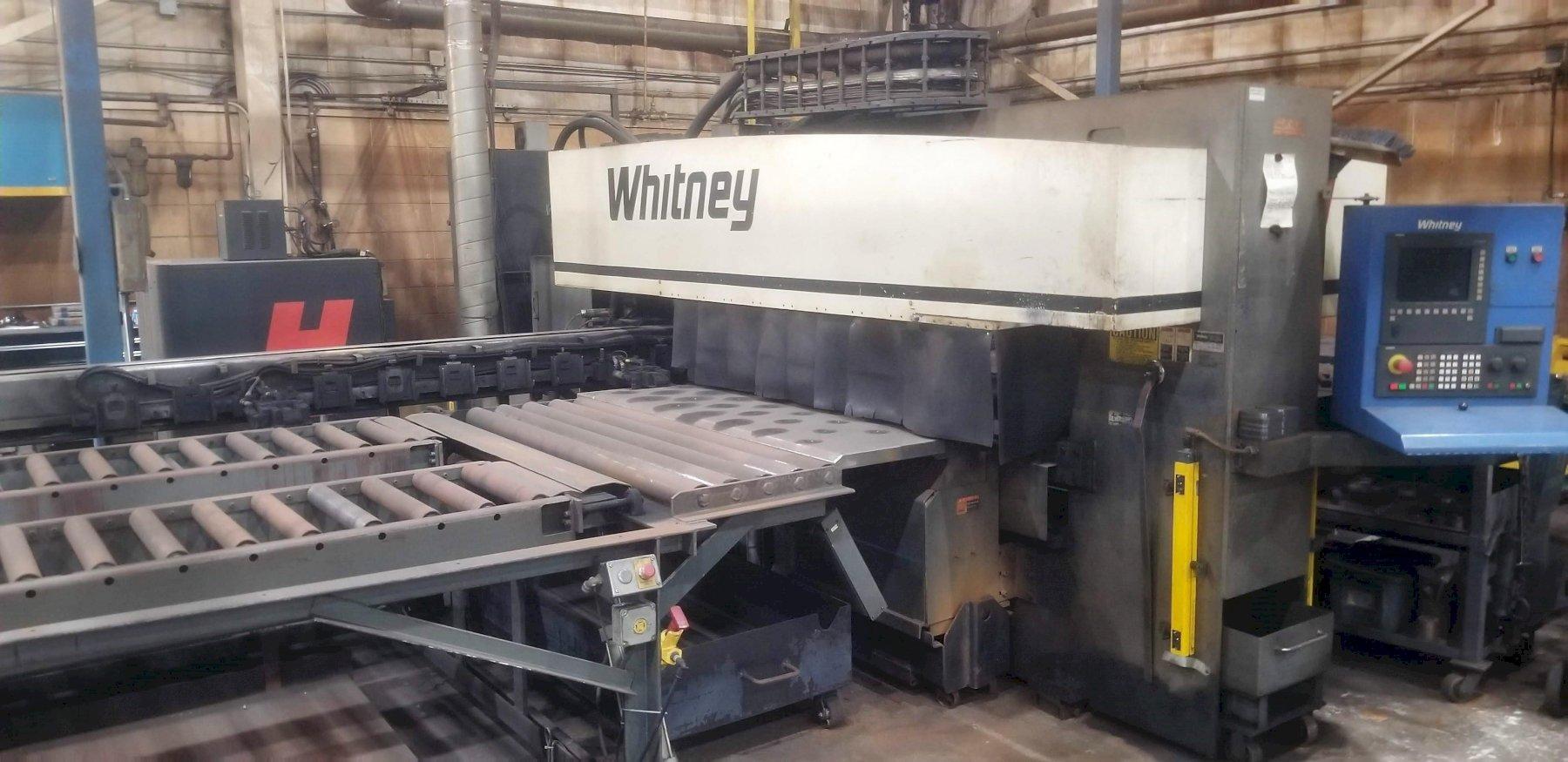

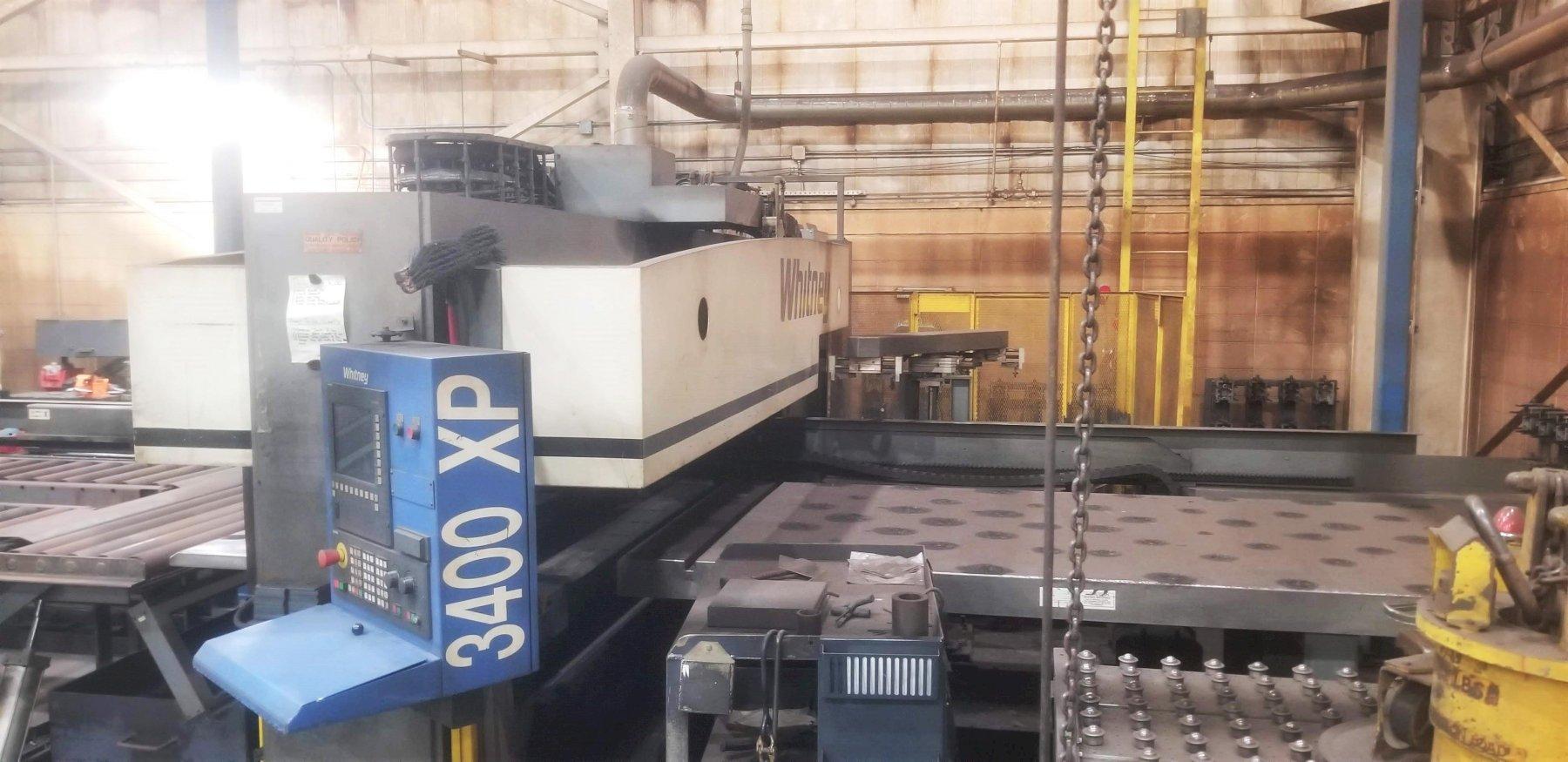

WHITNEY 3400XP CNC PUNCH/PLASMA, 2007, SIEMENS 840DI, HYPERTHERM HPR 260 PLASMA

Brand
W.A. WHITNEY

Model
3400 XP

Type
Punches, Plasma Combo

Stock #
10683

Condition
Used

Year
2007

Request a Quote

Specifications

Equipped With

CAPACITY:
Manufacturer............................... Whitney
Model...................................... 3400 XP
Serial Number.............................. 681-325-45271
Age........................................ 2007
Punching Capacity Throughout Stroke........ 40 Tons
Maximum Punch Diameter..................... 5"
Hit Rate On 1" Centers..................... 125
Maximum Material Thickness................. 0.50"
X-Axis Travel.............................. 141.44"
Y-Axis Travel.............................. 61.85"
Max. Axis Travel Speed..................... 1000 IPM
Maximum Plate Size W/O Repositioning....... 60" x 120"
Max. Work Piece Weight..................... 1250 lbs
Trap Door (Plasma Cut Parts)............... 24" x 60"
Machine Weight............................. 24,000 lbs
Floor Space................................ 280" FB x 329" LR


Equipped With:

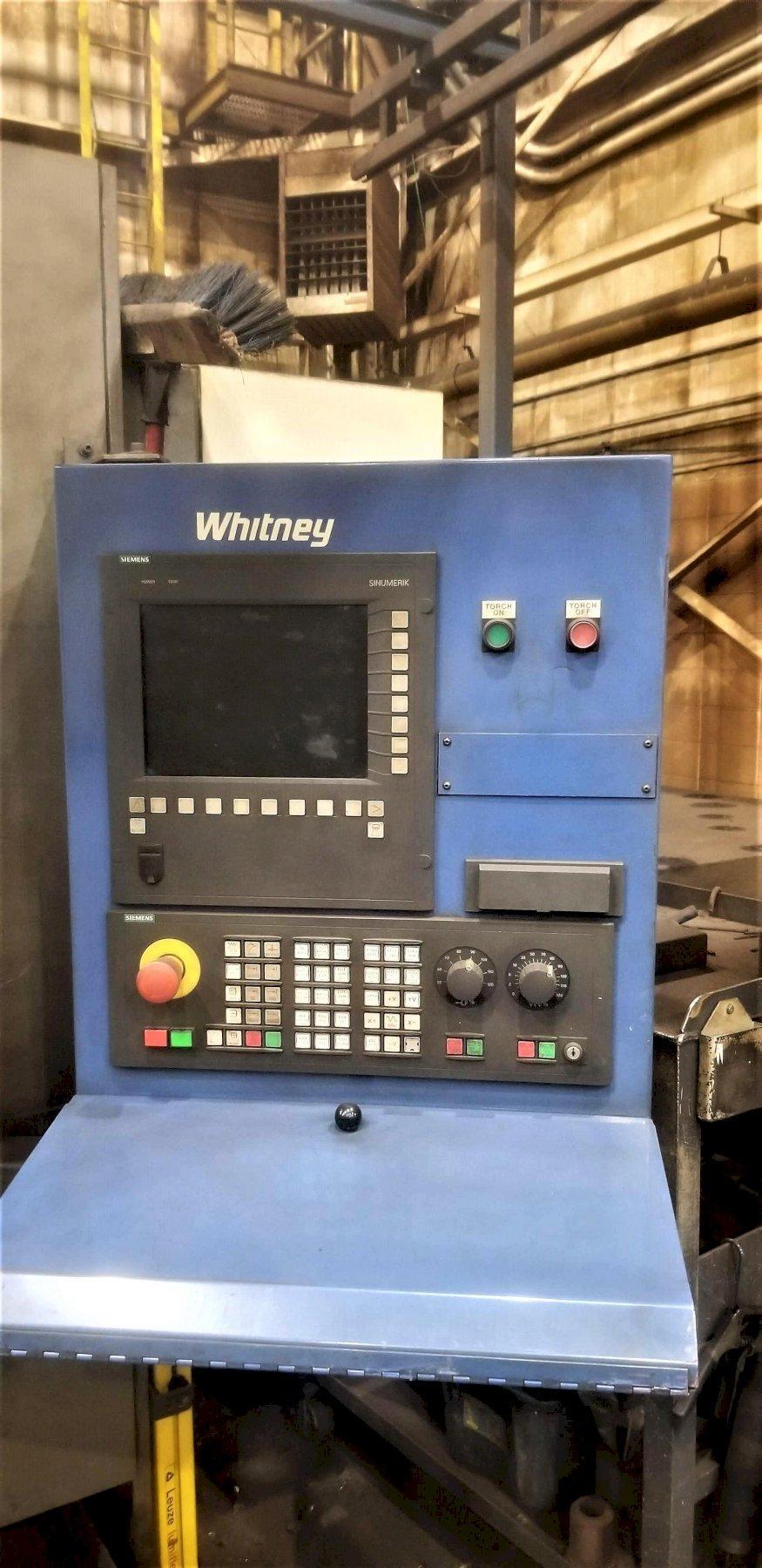

SIEMENS 840DI CNC Control
21-Station Tool Changer
Toolholders, Punches and Dies
Heavy Duty Retractable Work Clamps
Hypertherm HPR260 Plasma Power Supply
Inclined Small Parts Conveyor
Skeleton Drop Table
Dust Collection System
