Specifications
Equipped With

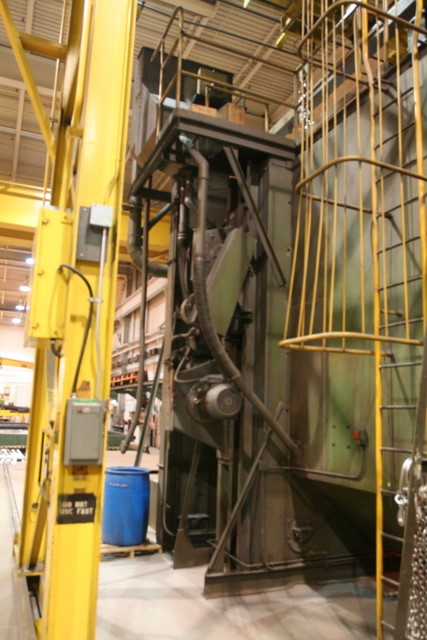

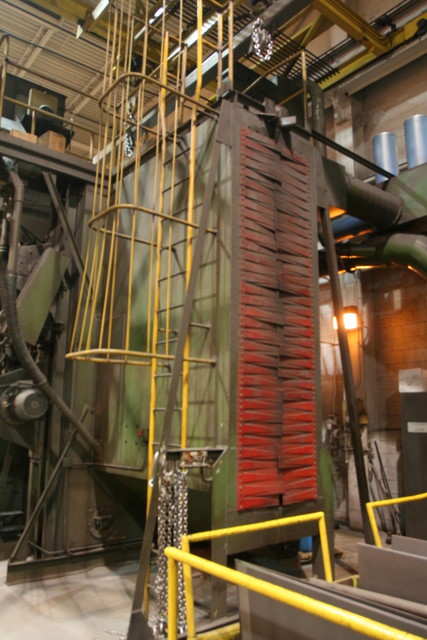

MANUFACTURER..............................................WHEELABRATOR
MODEL................................................................PLATE/STRUCTURAL
SERIAL NUMBER...............................................A-126048
AGE......................................................................1971
OPENING.............................................................6' WIDE X 15' TALL
NUMBER OF WHEELS........................................4

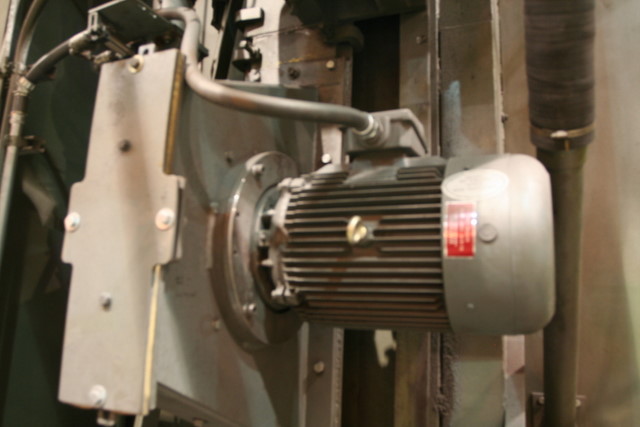

2 ARE PANGBORN 30 HP DIRECT DRIVE NEW 2008 (RI ROTOBLAST 240/265DD-2RI)
2 ARE WHEELABRATOR 30 HP M UNITS
EQUIPPED WITH;

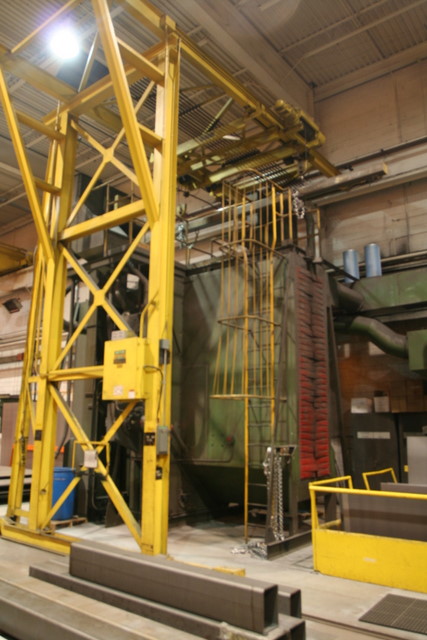

6000 LB ORLEY MEYER SINGLE LEG GANTRY CRANE FOR PASSING PLATE OR STRUCTURAL THREW BLAST CHAMBER WITH 10' L/R HOOK TRAVEL, 10'3' TROLLEY TRAVEL, GANTRY HAS BUILT IN TRAVEL SO DISTANCE CAN BE AS LONG AS THE RAIL THAT IS INSTALLED, 21' 8 7/8" LIFT TRAVEL, SHEPARD NILES HOIST, REULAND FR ADJUSTABLE SPEED DRIVE CONTROLS FOR GANTRY LEG DRIVE
MISC PARTS
FLUSH FLOOR MOUNT
MISC MANUALS AND PRINTS
UNIT HAS HAD YEARLY MAINTENANCE CHECKS
UNIT HAS BEEN REMOVED FROM PLANT
UNIT WILL BE LOADED ON OPEN TOP TRUCK AT NO ADDITIONAL CHARGE
APPROX. OVERALL DIMENSIONS OF UNIT IS 32' LONG X 19' WIDE X 25' HIGH
