Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE...................... WELLSAW

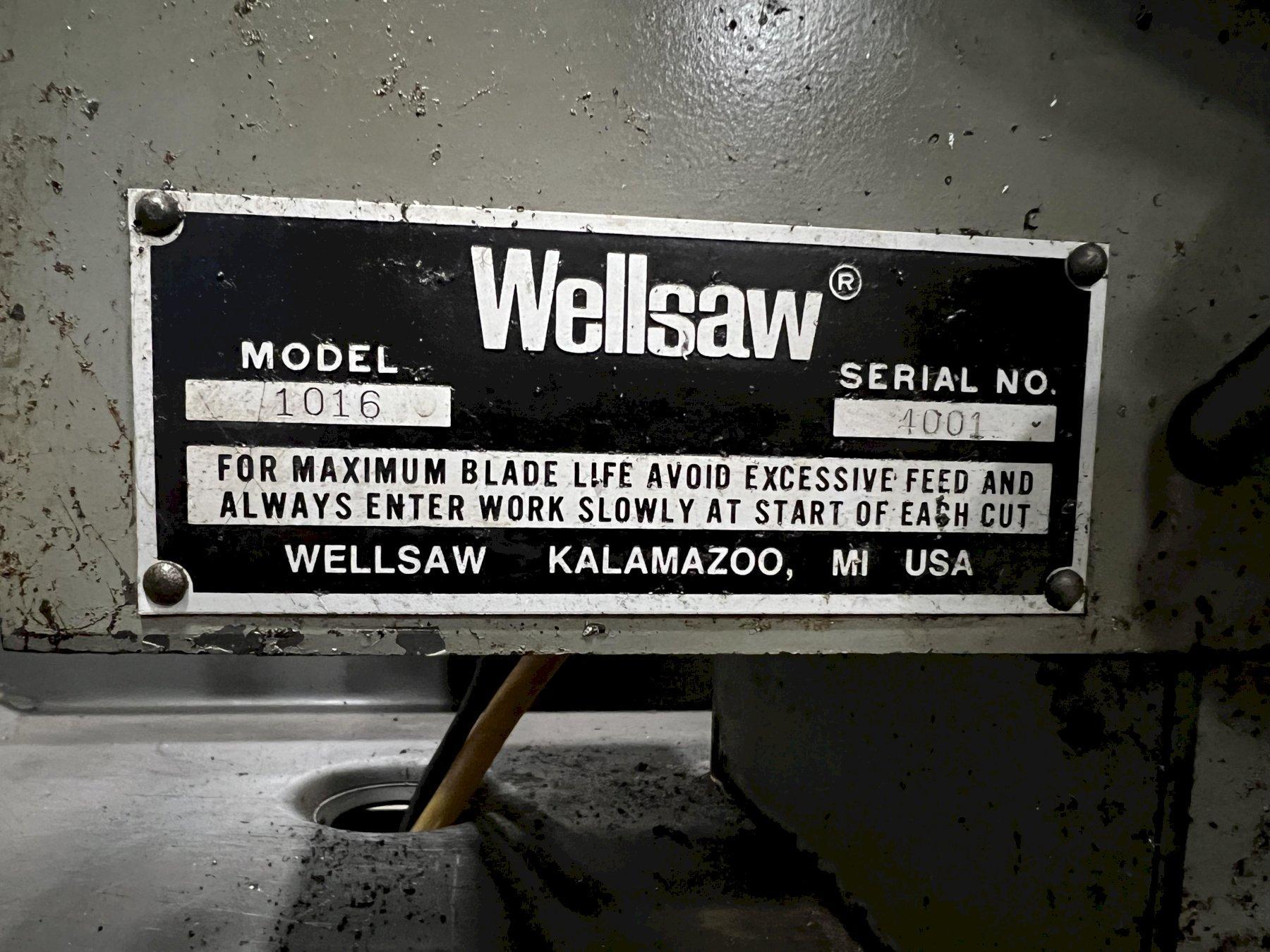

MODEL..................... 1016
SERIAL NUMBER............. 4001
CAPACITY:
ROUND..................... 10.5" DIAMETER
FLAT...................... 16" WIDE
RECTANGULAR............... 10" HIGH X 16" WIDE
45 ANGLE.................. 10" HIGH X 9" WIDE
BLADE SPEED............... 50-100-175-275 FPM
BLADE SIZE................ 1" X .035" X 11' 6"
SWIVEL VISE............... 45 DEG
VISE CONTROL.............. MANUAL
BAND WHEELS............... 15" DIAMETER
HEIGHT TO TOP OF BED...... 29"
WORKLOAD CAP.............. 1000 LBS.
DIMENSIONS................ 30" X 84"
SHIPPING WEIGHT........... 900 LBS
EQUIPPED WITH:
COOLANT
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
