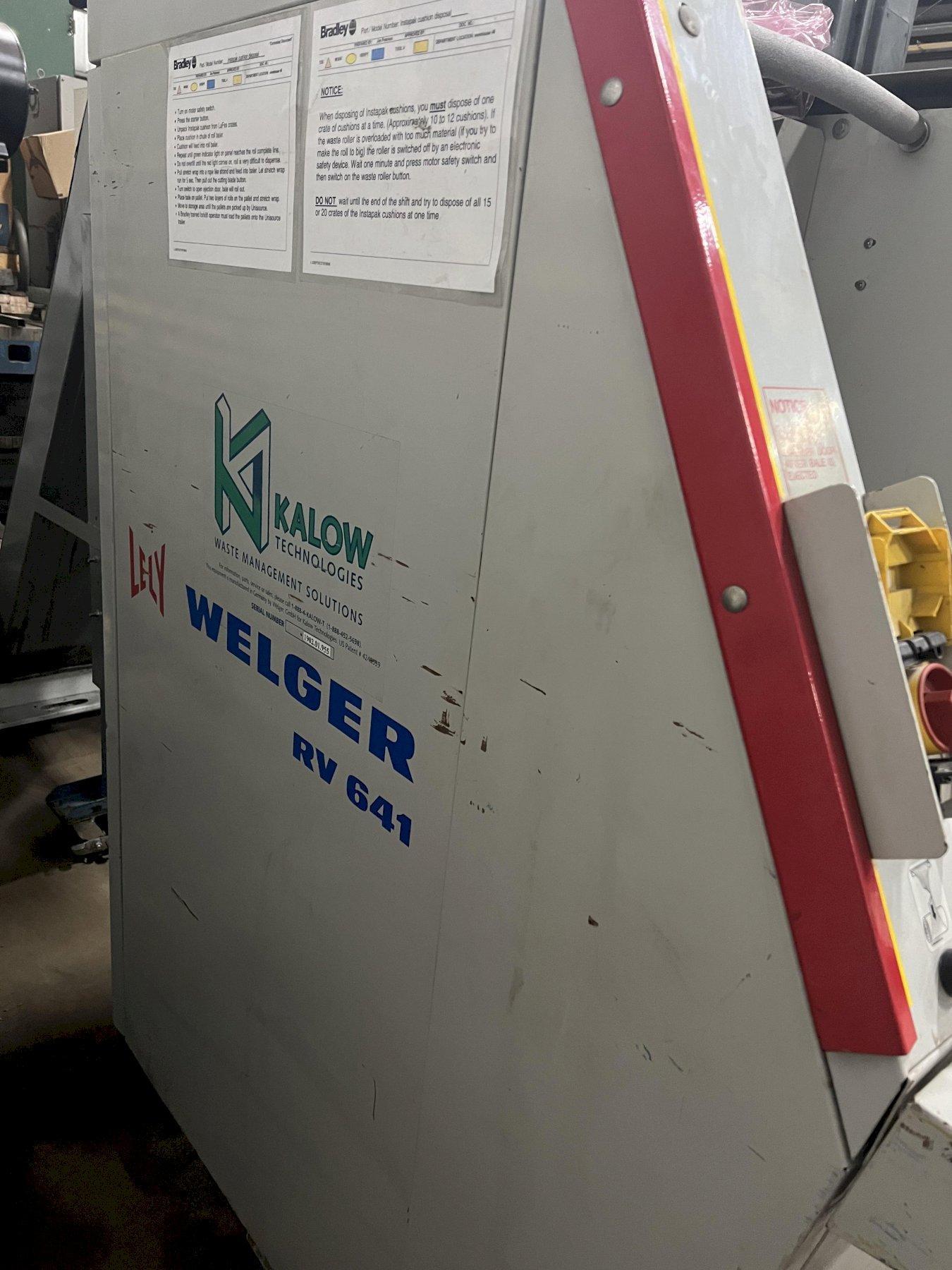

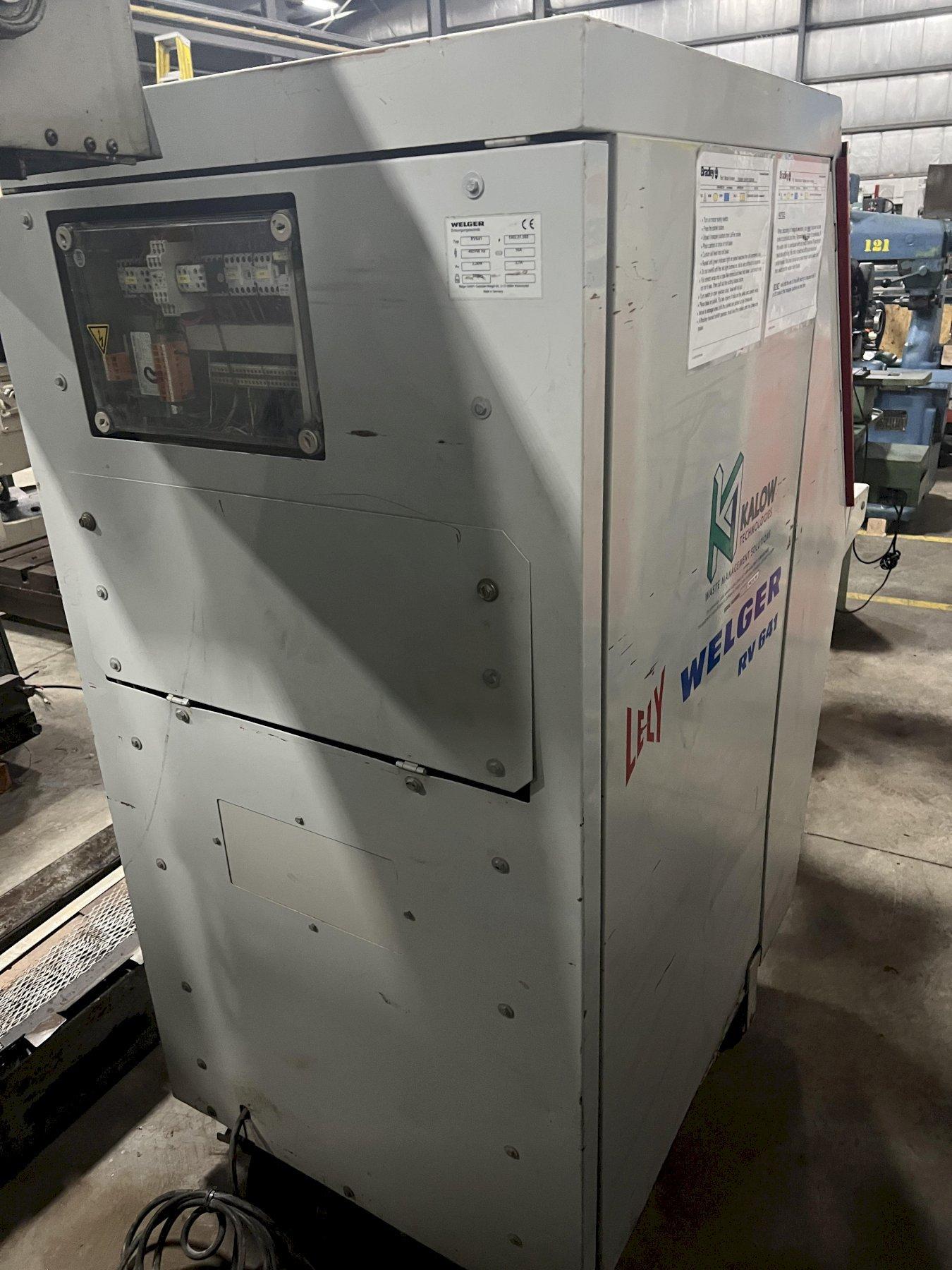

WELGER RV 641 WASTE ROLLER COMPACTOR, BALER

General Specifications

Width 900 mm

Depth 1490 mm

Height 1750 mm

Height of feed table 1080 mm

Width of feed table 600 mm

Weight 540 kg

Bale diameter up to 400 mm

– 3-position pre-select

Bale length 600 mm

Bale weight, according to: pressed commodity up to 30 kg

Pressed density according to: pressed commodity 250 - 400 kg/m 3

Throughput up to 300 kg/h

Catchment speed 0,36 m/s

Binding agent (optional) Film wrapping film 25 μm

Diameter 250 mm

Width 580 - 600 mm

Binding and bale ejection automatic fully

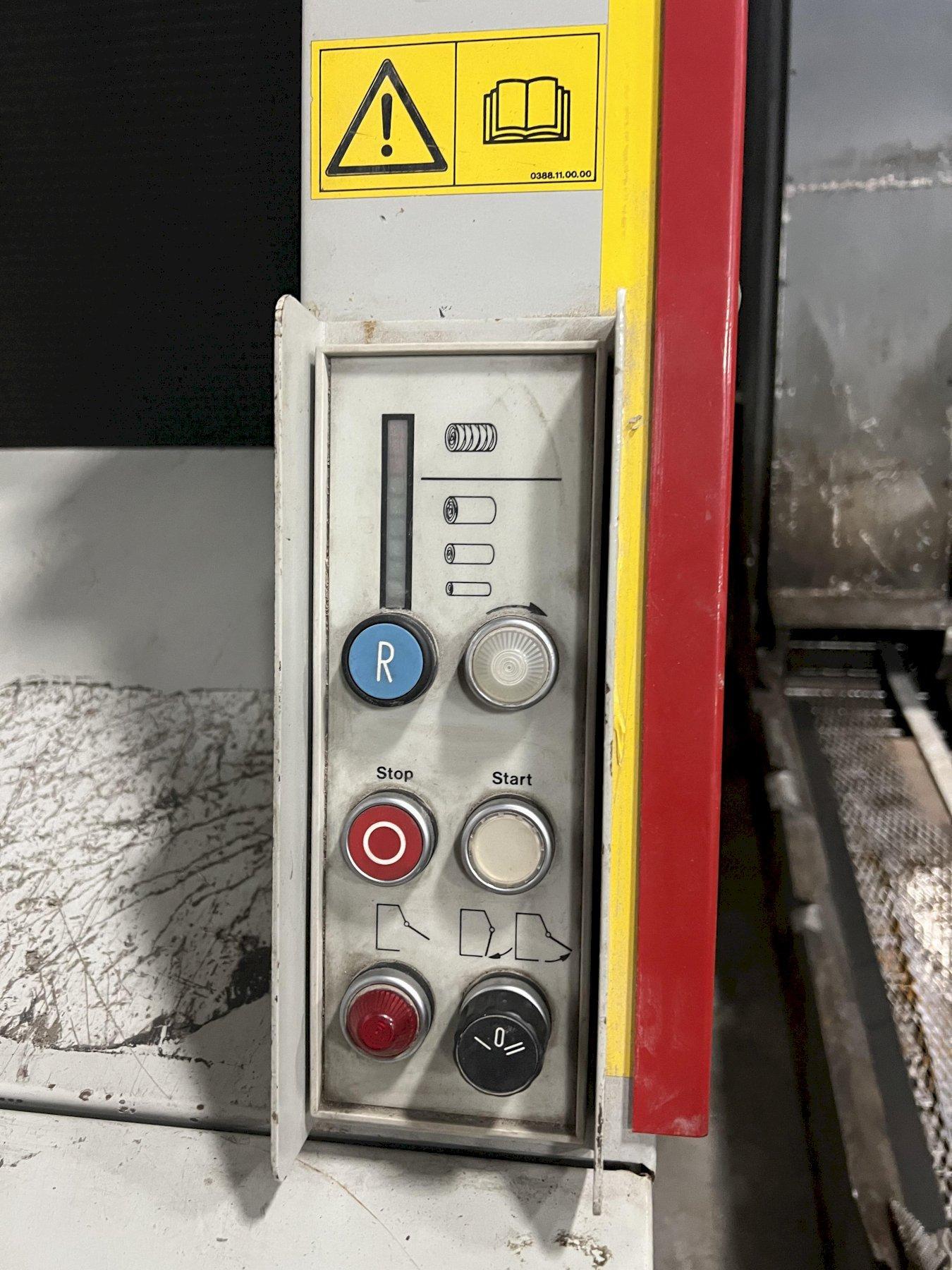

Electrical controls

with automatic overload protection

Reversed operation semi-automatic

Lockable main switch •

Indicating of bale diameter LED

Signals indicating maximum filling level acoustic

Safety contact rails against improper interference

Securing the protective hoods by limit switch

Time-relay with adjustable operating times

Specifications Subject to verification
