Specifications
Equipped With
GENERAL SPECIFICATIONS:

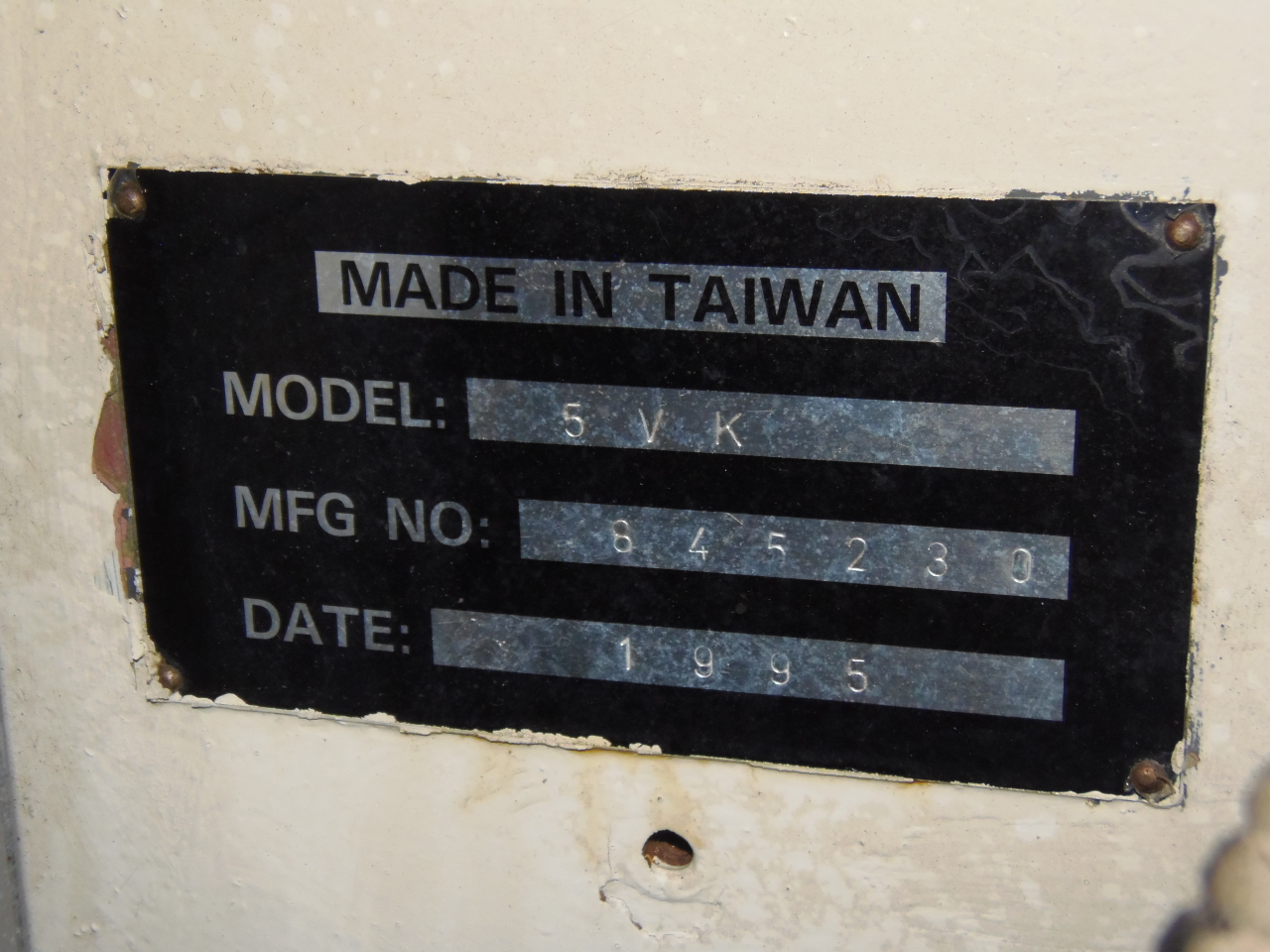

MANUFACTURER........................... WEBB
MODEL.................................. 5VK
SERIAL NUMBER.......................... 845230
YEAR BUILT............................. 1996
YEAR RETROFIT.......................... 2006
TABLE SIZE............................. 10" X 50"
TRAVELS
LONGITUDINAL........................ 36"
CROSS............................... 16"
VERTICAL............................ 18.5"
RAM ................................ 24"
QUILL .............................. 5"
SPINDLE HORSEPOWER..................... 5
QUILL DIAMETER......................... 4.375"
SPINDLE TAPER.......................... 40 N.S.T.

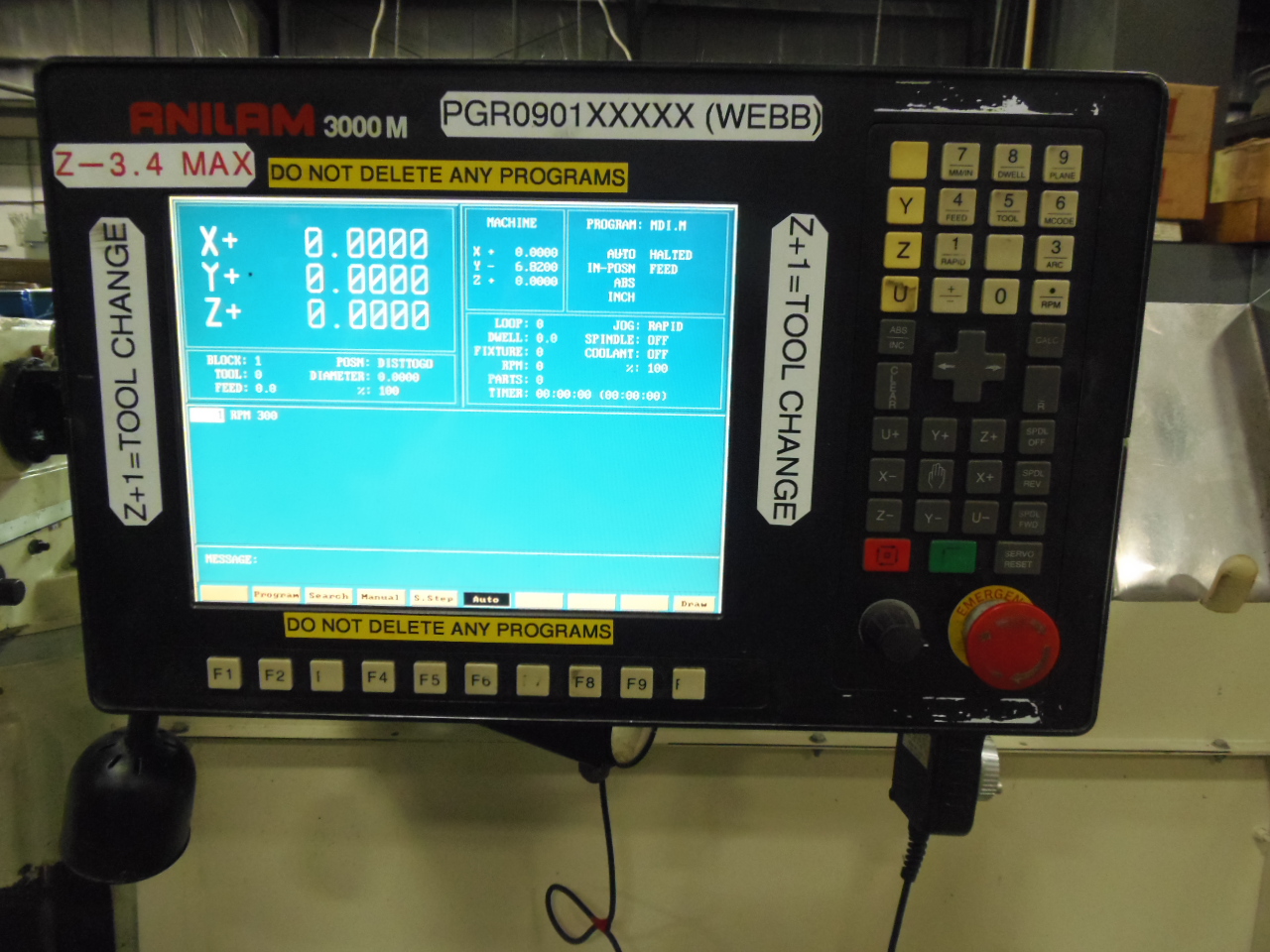

CONTROL................................ ANILAM 3000M
MACHINE WEIGHT......................... 4000 LBS
EQUIPPED WITH:
POWER DRAW BAR
HAND HELD MANUAL PULSE GENERATOR
MIST LUBRICATION
CHIP GUARDS
CLASS 7 SPINDLE
HARD CHROME QUILL
ONE SHOT LUBE
ROLLER BEARING HANDLES
