WASINO, No. LG-60, FANUC 3TC, 1986,GANG TOOLING

NEW APPROXIMATELY 1986
SWING OVER BED 12-5/8"
NOMINAL WORK SIZE 2-3/8" X 2-3/8"
SPINDLE NOSE A2-4
SPINDLE BORE 1-9/16"
SPINDLE SPEED 60-6000 RPM
Z AXIS TRAVEL 10"
X AXIS TRAVEL 11-13/16"
RAPID TRAVERSE RATE 315 IPM
TOOLING TYPE GANG TOOLING OF
SUBPLATE
APPROXIMATE NET WEIGHT 3,520 LBS

FANUC 3TC SPECIFICATIONS:
LINEAR AND CIRCULAR INTERPOLATION
2 AXIS SIMULTANEOUS
EIA OR ISO CODE
16 PAIRS OF TOOL OFFSETS
CRT

EQUIPPED WITH:
COOLANT SYSTEM
SEVERAL AVAILABLE

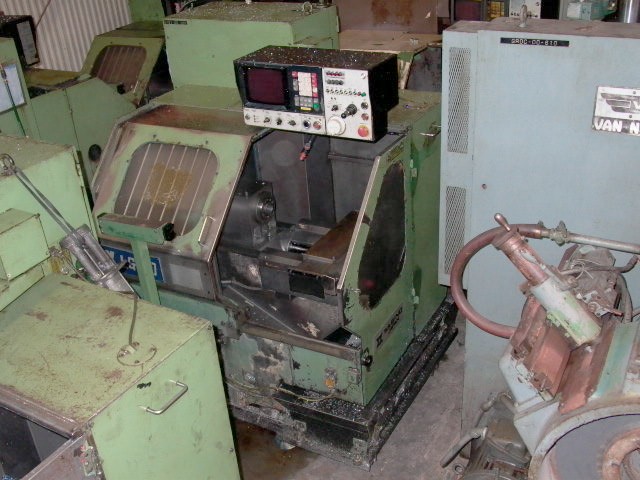

THE PHOTOS SHOW THE MACHINES AS THEY ARE. STORED IN A WAREHOUSE WITHOUT POWER.
