Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAXIMUM SWING 16.56"
NOMINAL WORKPEICE 4" x 19.68"
DISTANCE BETWEEN CENTERS 21.62"
X AXIS TRAVEL 5.87"
Z AXIS TRAVEL 20.5"
RAPID TRAVERSE RATE X AXIS 630 IPM
RAPID TRAVERSE RATE Z AXIS 787 IPM
SPINDLE NOSE A2-6
SPINDLE BORE 2.12"
SPINDLE SPEEDS 50 - 4,000 RPM
SPINDLE MOTOR 15 HP AC

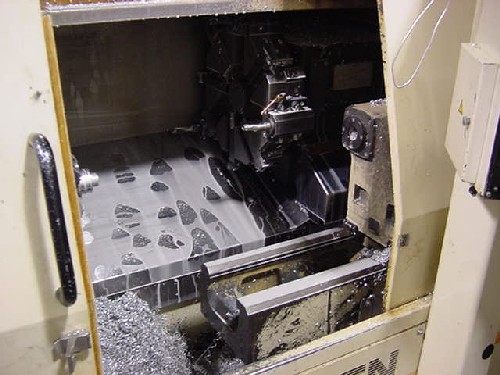

TURRET CAPACITY 8 STATION TURRET
TAILSTOCK QUILL DIAMETER 2.75"
TAILSTOCK QUILL TAPER MT #4
TAILSTOCK QUILL TRAVEL 2.75"
AUTO LOADER SPECIFICATIONS:
LOADER MODEL SR-1
NOMINAL WORK SIZE 3.12" X 2"
NOM. WORKPIECE DIA. (W/STD. HAND) 6.0"
NOM. WORKPIECE DIA. (W/Y HAND) 4.0"
NOM. WORKPIECE DIA. (W/SHAFT HAND) 1.5"
MAXIMUM HANDLING WORK WEIGHT 3.3 LBS x 2
NOM. WORKPIECE WEIGHT (W/STD. HAND) 6.6 LBS
NOM. WORKPIECE WEIGHT (W/Y HAND) 3.3 LBS
NOM. WORKPIECE WEIGHT (W/SHAFT HAND) 6.6 LBS
NUMBER OF CONTROLLED AXES 2 (Y & B AXIS)
WORK STOCKER TYPE ROTARY WORKTABLE WRS-1
APPROXIMATE LOAD/UNLOAD TIME (EST.) 6.0 SEECONDS
EQUIPPED WITH:

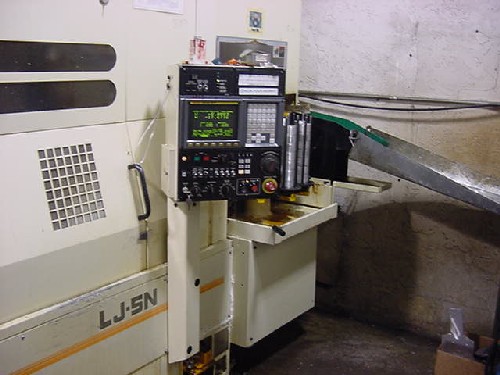

FANUC 0TC CNC CONTROL WITH 9" CRT
RS-232C PORT INTERFACE FOR DNC OPERATION

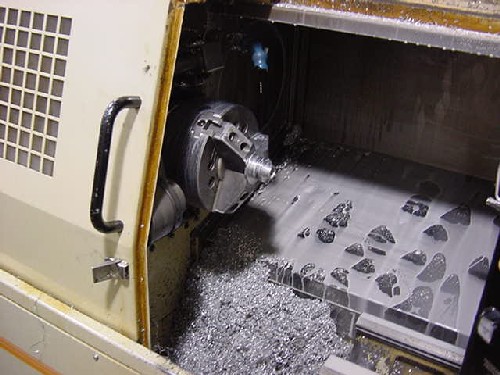

8" 3-JAW HYDRAULIC CHUCK WITH JAWS
TOOL EYE (TOOL LENGTH MEASUREMENT SYSTEM)

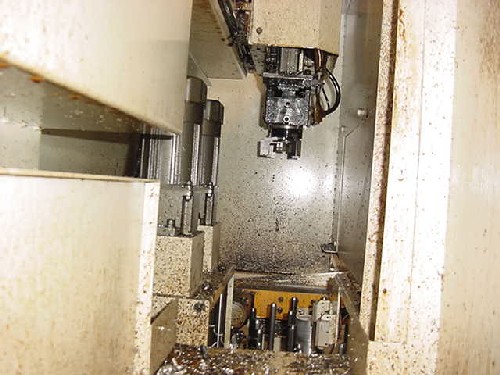

WASINO MODEL SR-1 ROBOTIC LOAD/UNLOAD SYSTEM
WORK STOCKER & WORK CONVEYOR SYSTEMS
STANDARD COOLANT SYSTEM WITH TANK & PUMP
RIGHT HAND DISCHARGE CHIP CONVEYOR
ALL AVAILABLE TOOLING, ALL AVAILABLE MANUALS
