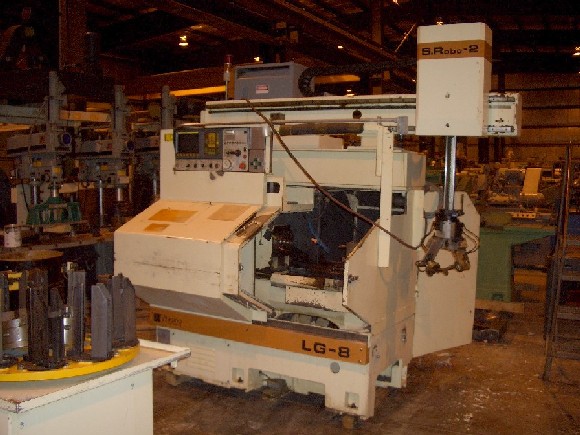

WASINO LG-8, 17-1/2" SWOB, 8" CHK, 21-5/8"-X, 11-13/16"-Z, GANG STYLE, 2-1/8" BORE, 10 HP, 1989

GENERAL SPECIFICATIONS:
MANUFACTURER WASINO
MODEL LG-8
NEW (APPROX.) 1989
MAX. SWING OVERBED 17-1/2"
CHUCK SIZE 8"
X TRAVEL 21-5/8"
Z TRAVEL 11-13/16"
TOOLING TYPE GANG STYLE
SPINDLE BORE 2-1/8"
SPINDLE NOSE A2-6
SPINDLE SPEED (VARIABLE) 4000 RPM
SPINDLE MOTOR 10 HP
DIMENSIONS (APPROX.) 87" x 79" 84"H
WEIGHT (APPROX.) 5,800 LBS.

EQUIPPED WITH:

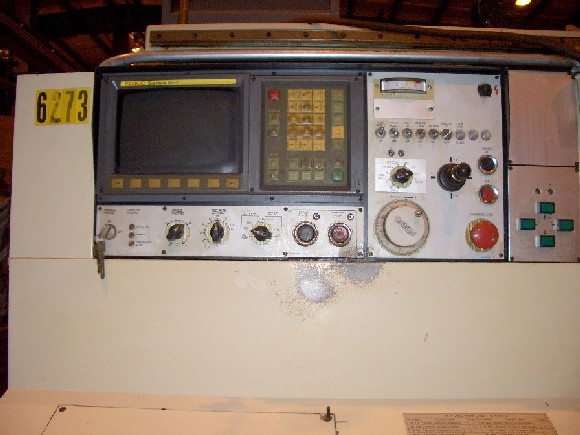

FANUC OT CONTROL

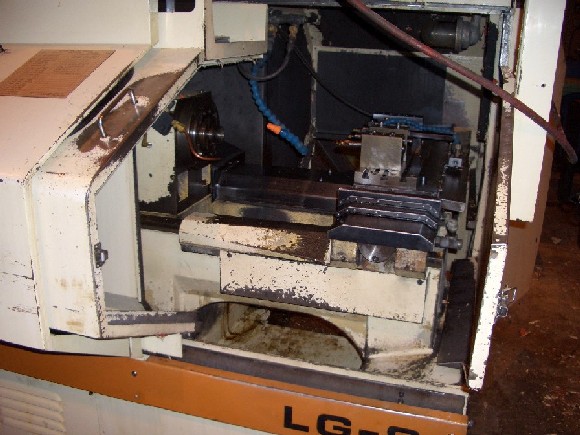

IN-LINE GANG SYTLE TOOLING W/T-SLOTTED CROSS SLIDE
GANTRY TYPE ROBOT FOR LOADING AND UNLOADING
CHIP CONVEYOR
COOLANT SYSTEM
