GENERAL SPECIFICATIONS:

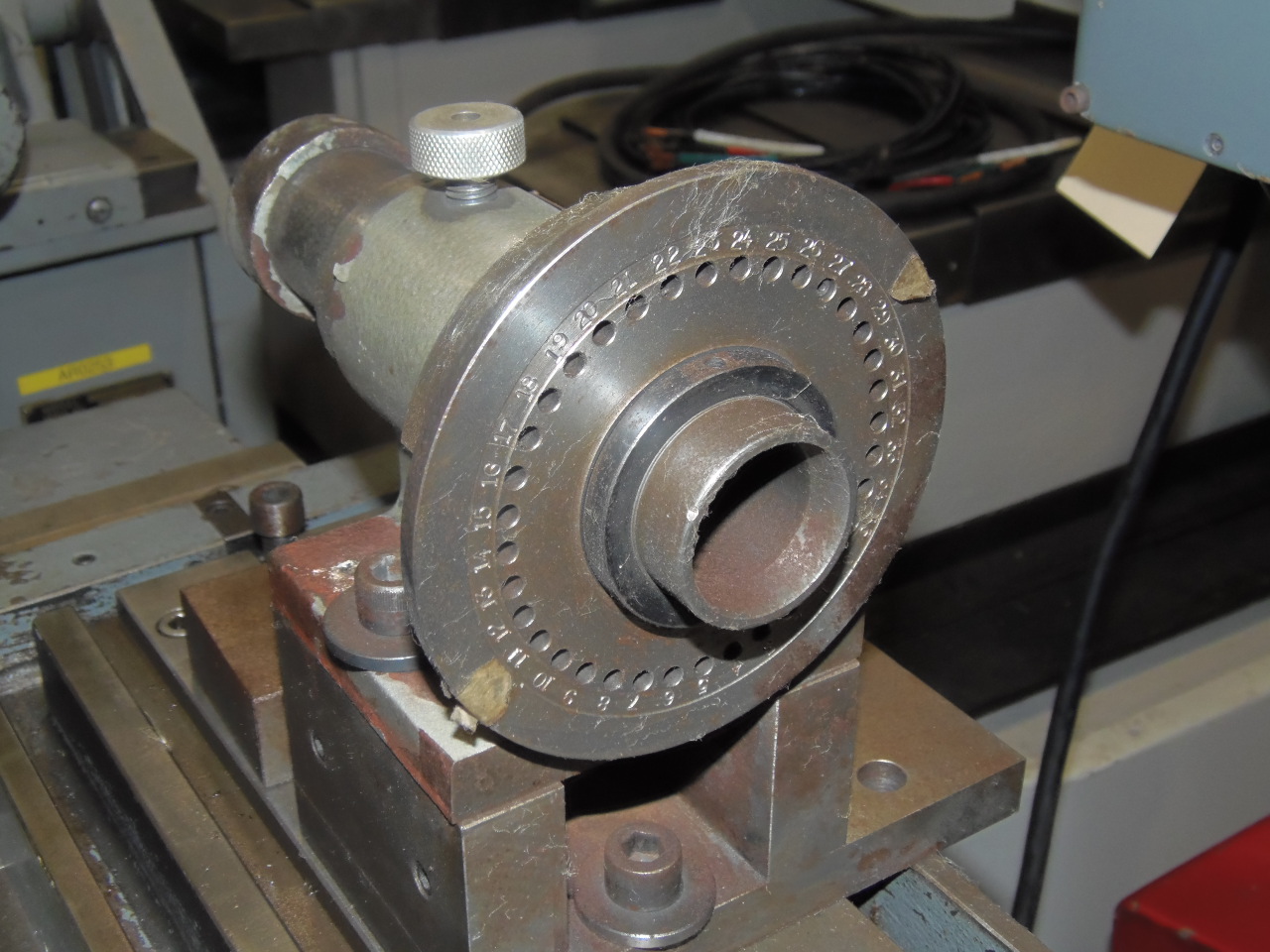

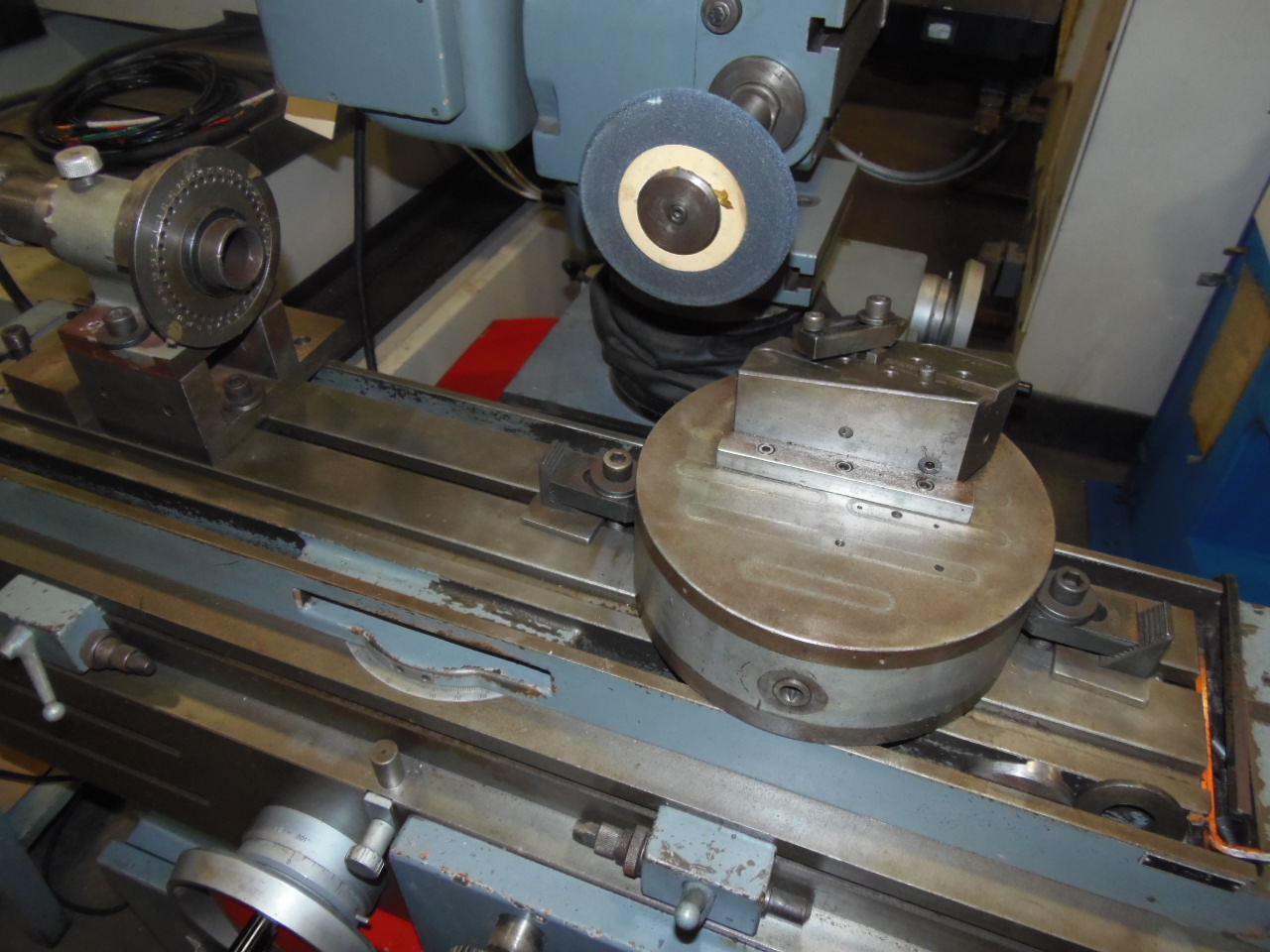

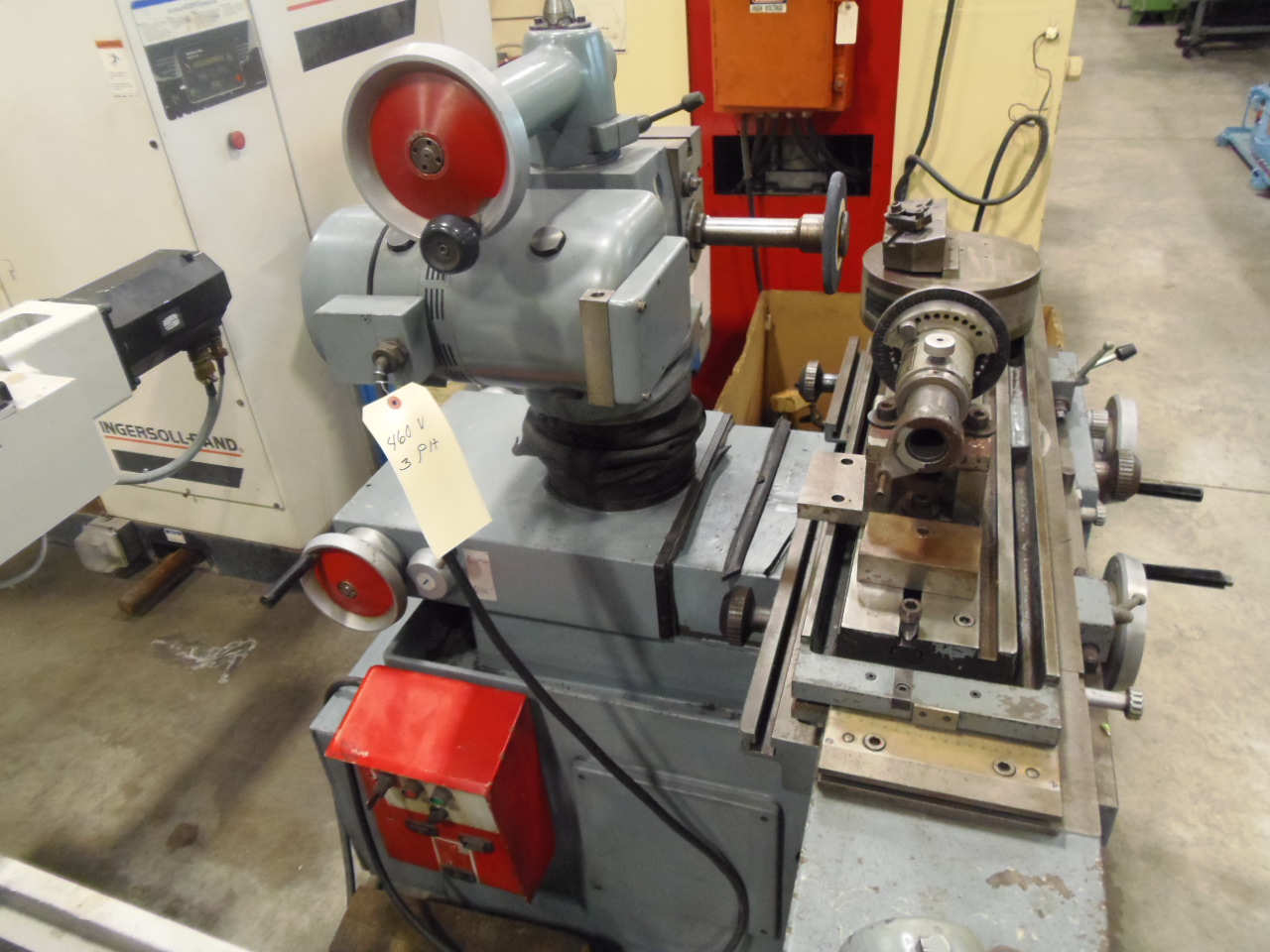

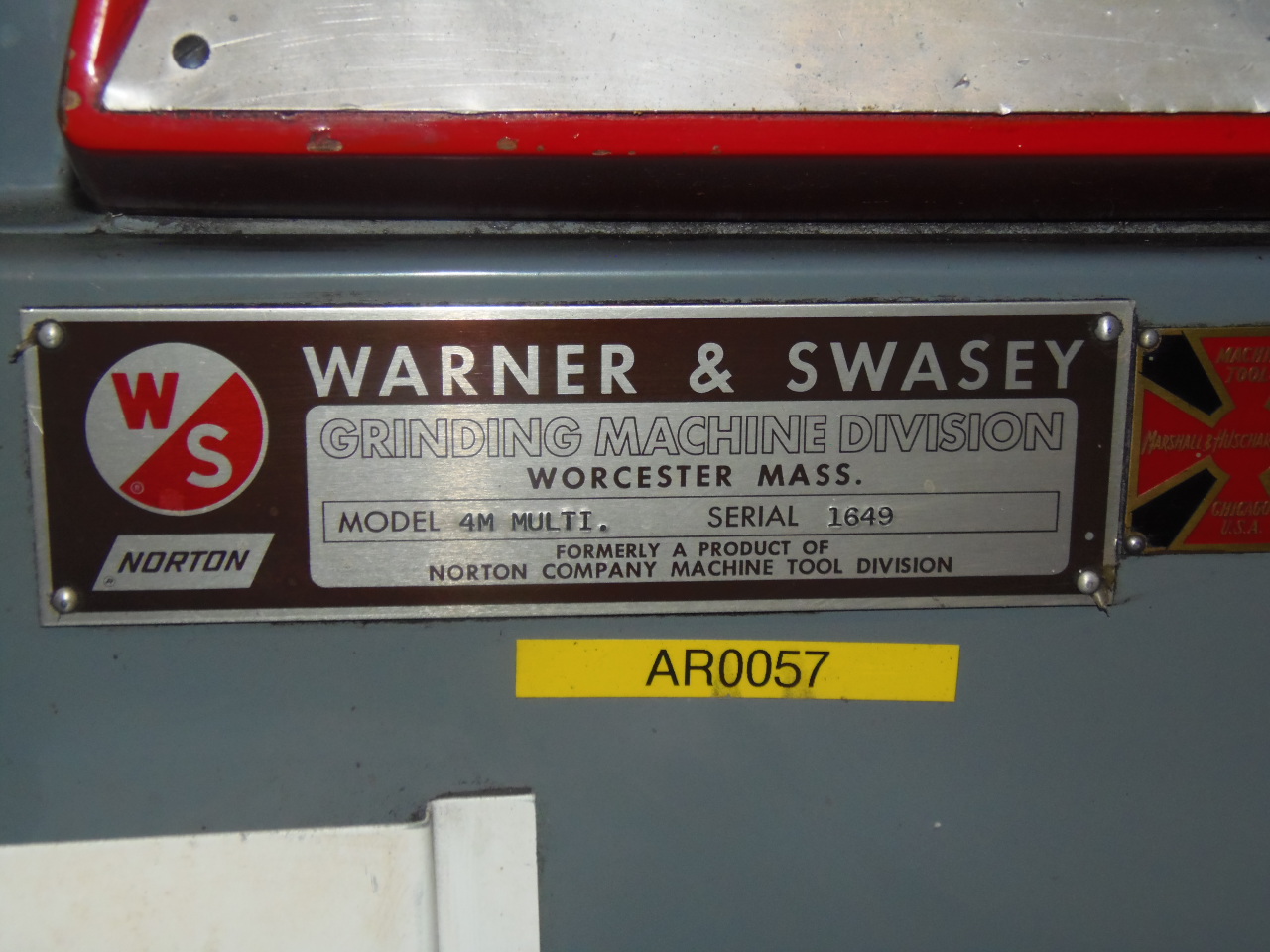

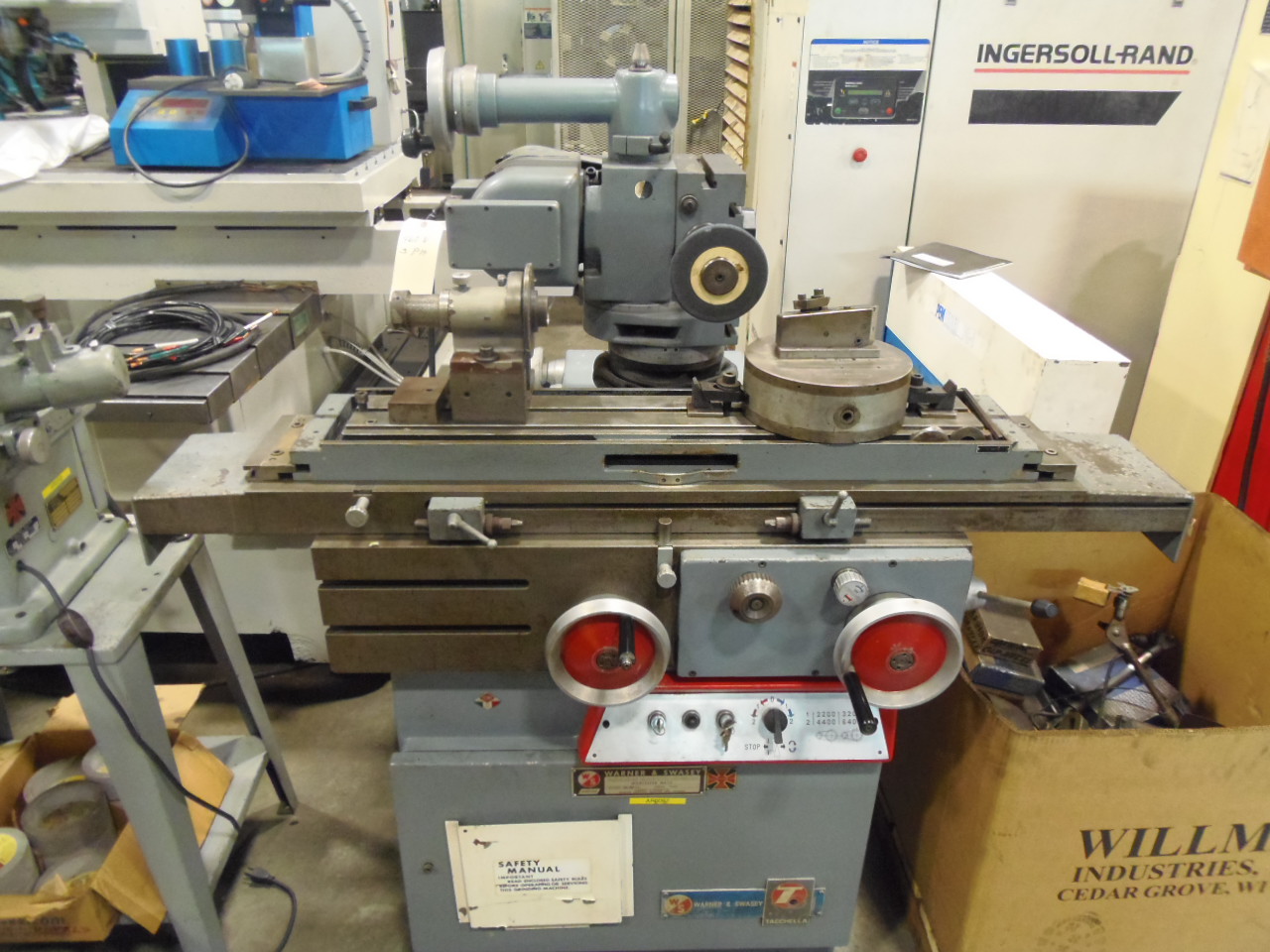

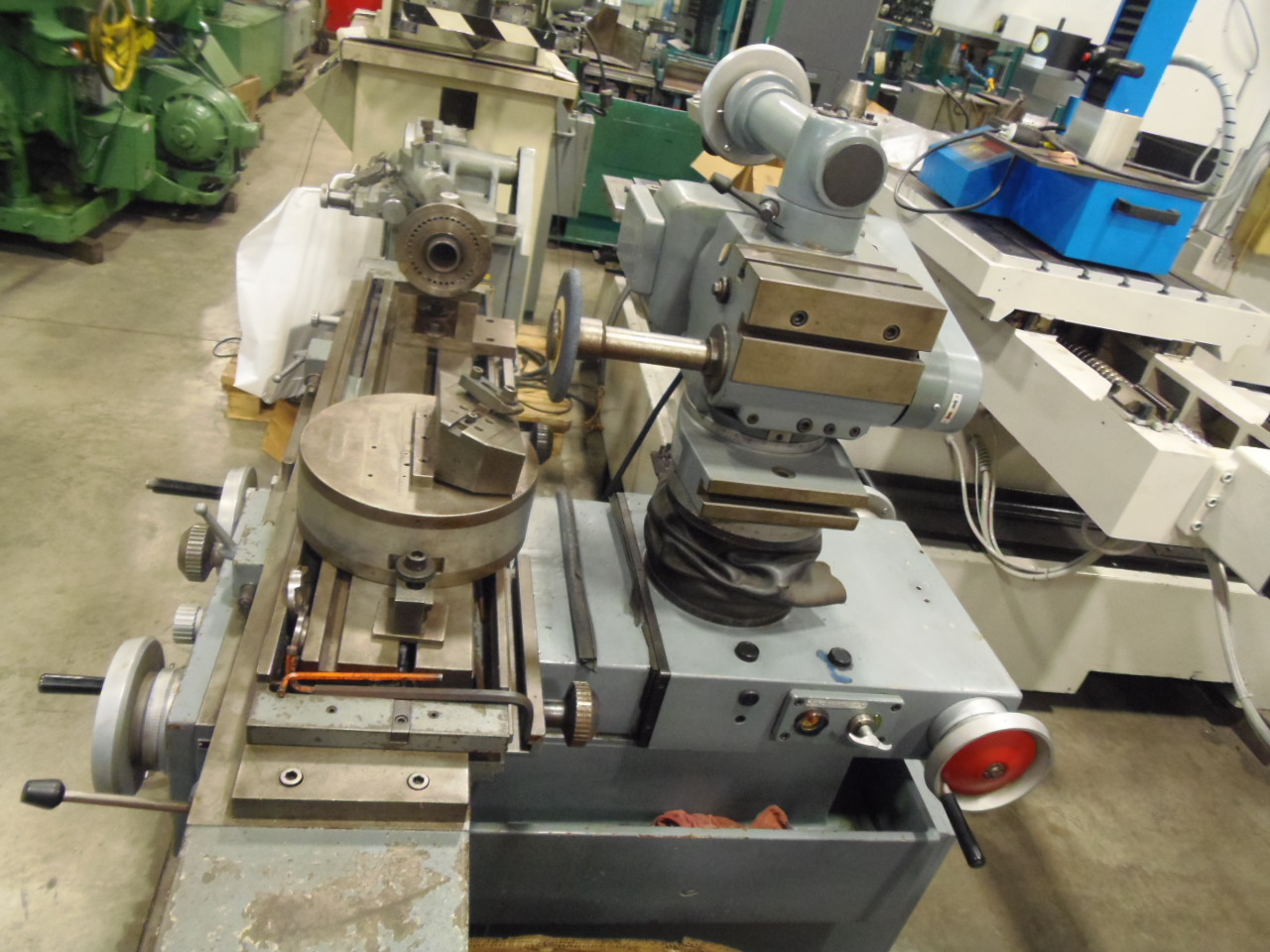

MAKE........................... WARNER SWASEY TACCHELLA
............................... NORTON
MODEL.......................... 4M MULTI

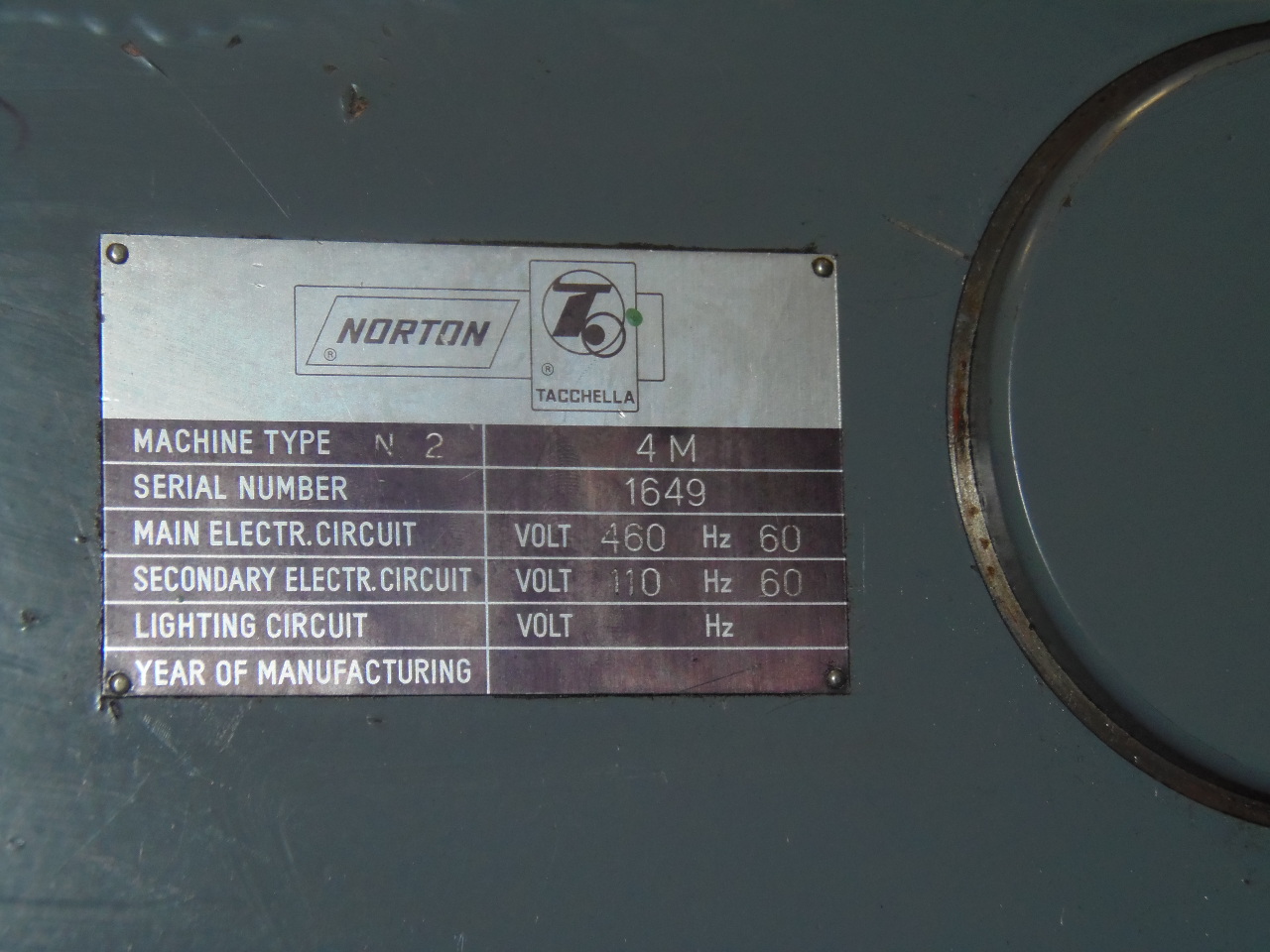

SERIAL NUMBER.................. 1649
AGE (YEAR)..................... 1974
CAPACITY DIAMETER.............. 10"
LONGITUDINAL TRAVEL............ 16"
VERT. MOVEMENT OF WHEELHEAD.... 10"
CROSS MOVEMENT OF WHEELHEAD.... 8"
WHEELHEAD MOTOR................ 1 1/2 - 2 HP

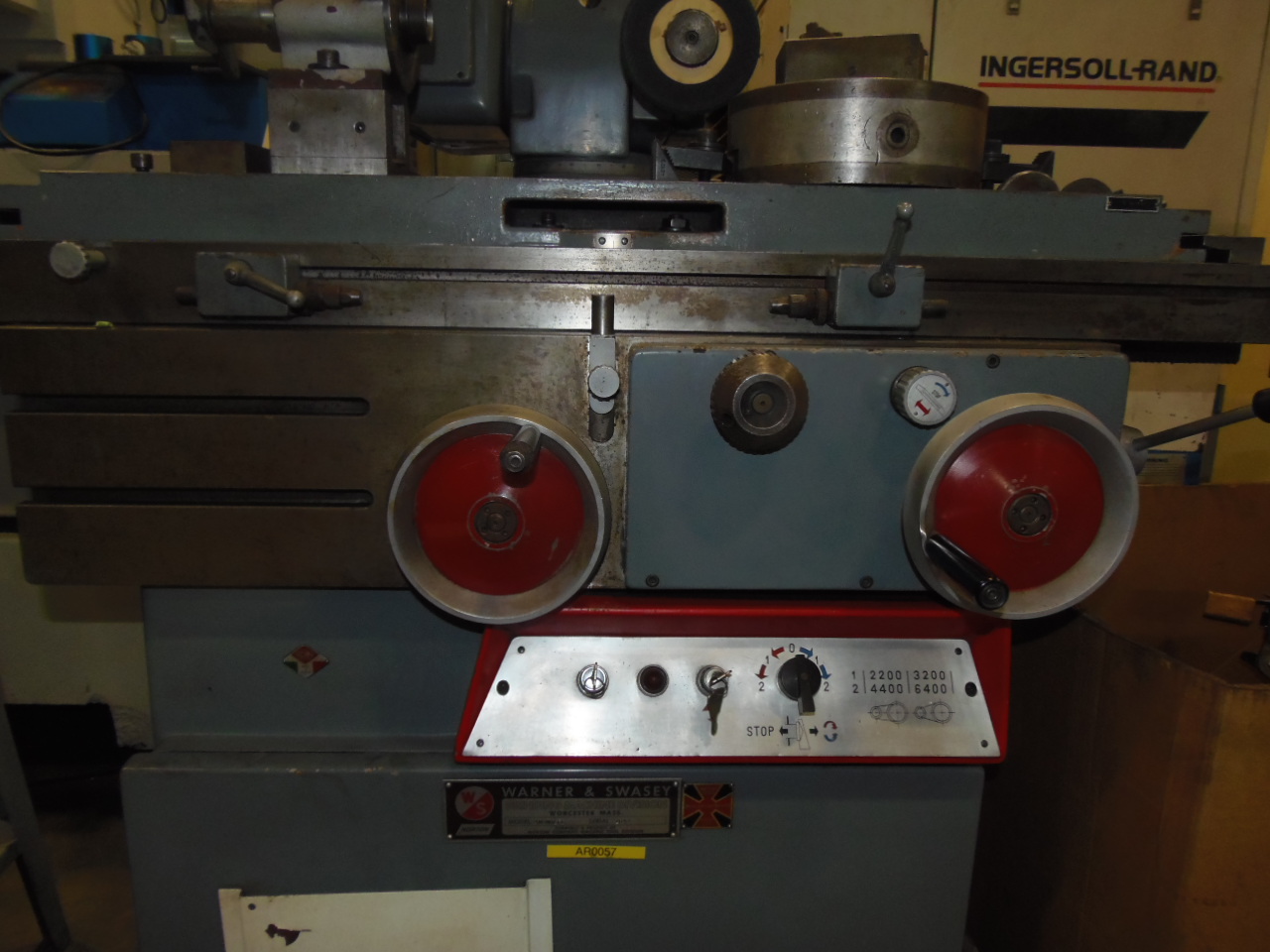

RPM OF GRINDING WHEEL.......... (2200/3200)-(4400/6500)
TABLE AUTOMATIC TRAVERSE SPEED. 0-40 FT/MIN
MAX. DISTANCE BETWEEN CENTERS.. 22"
MAX. DIST. BTWN. HEAD AND TAIL. 20"

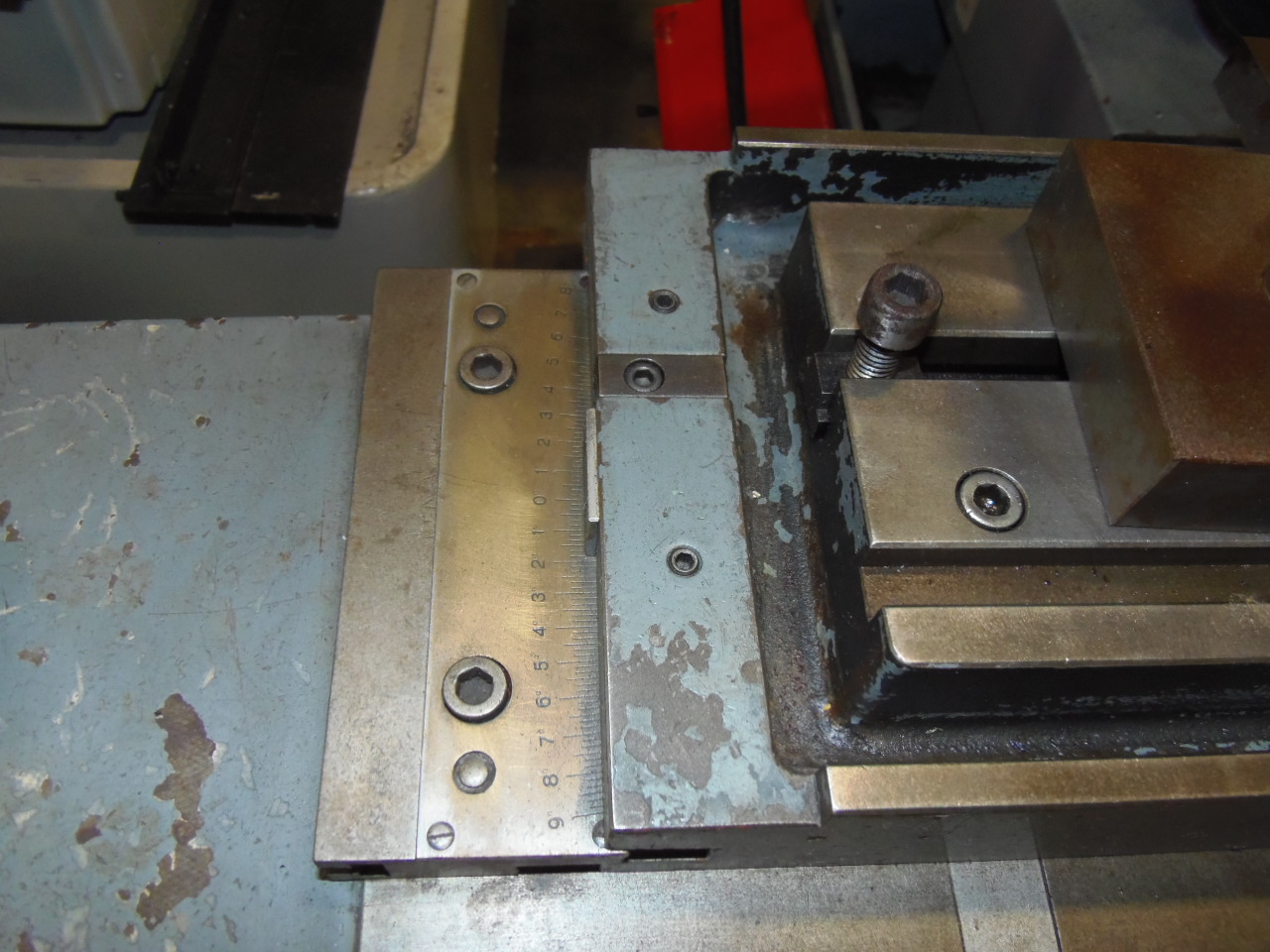

TABLE SURFACE.................. 5 1/8 - 35 1/2"

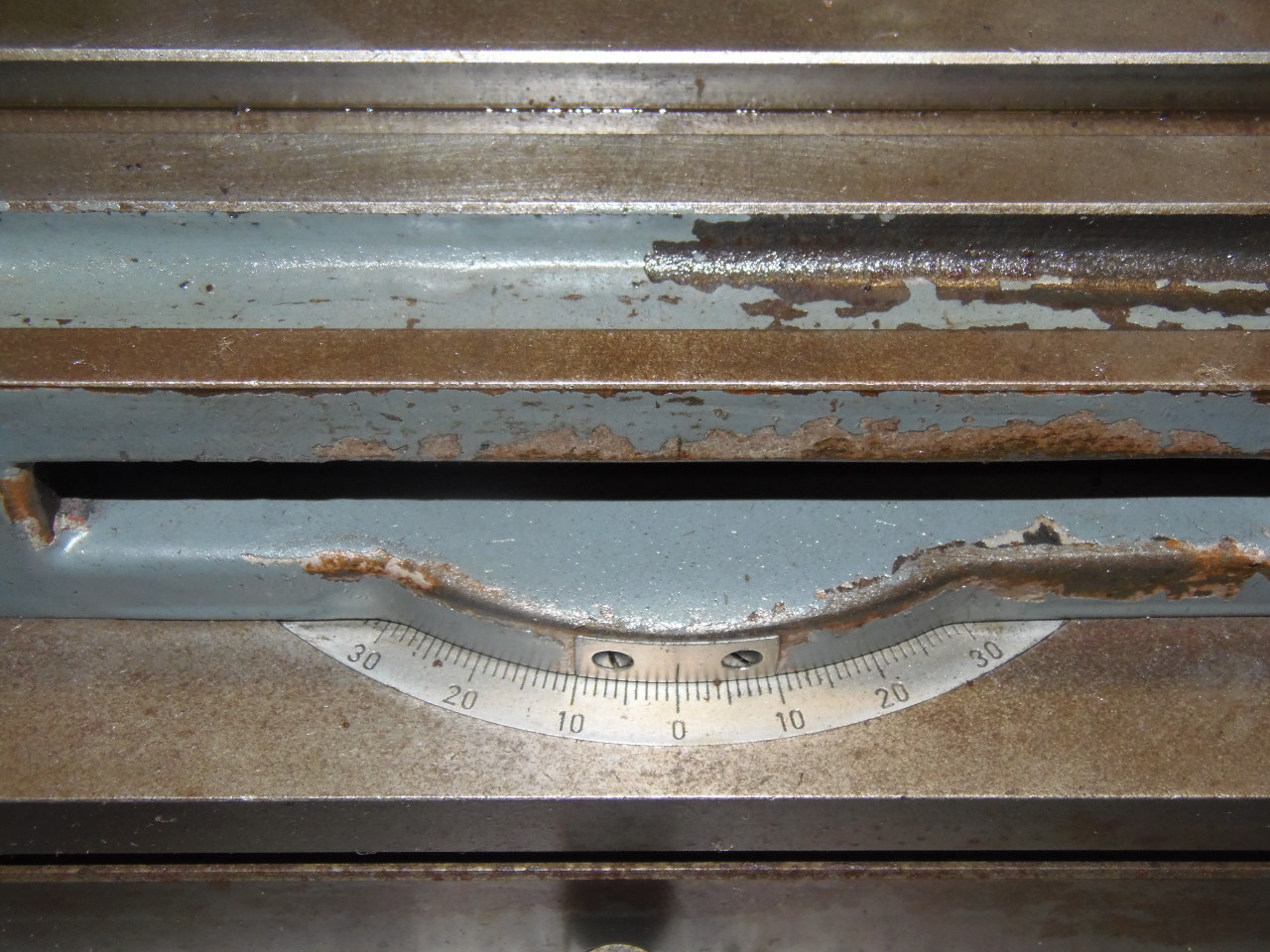

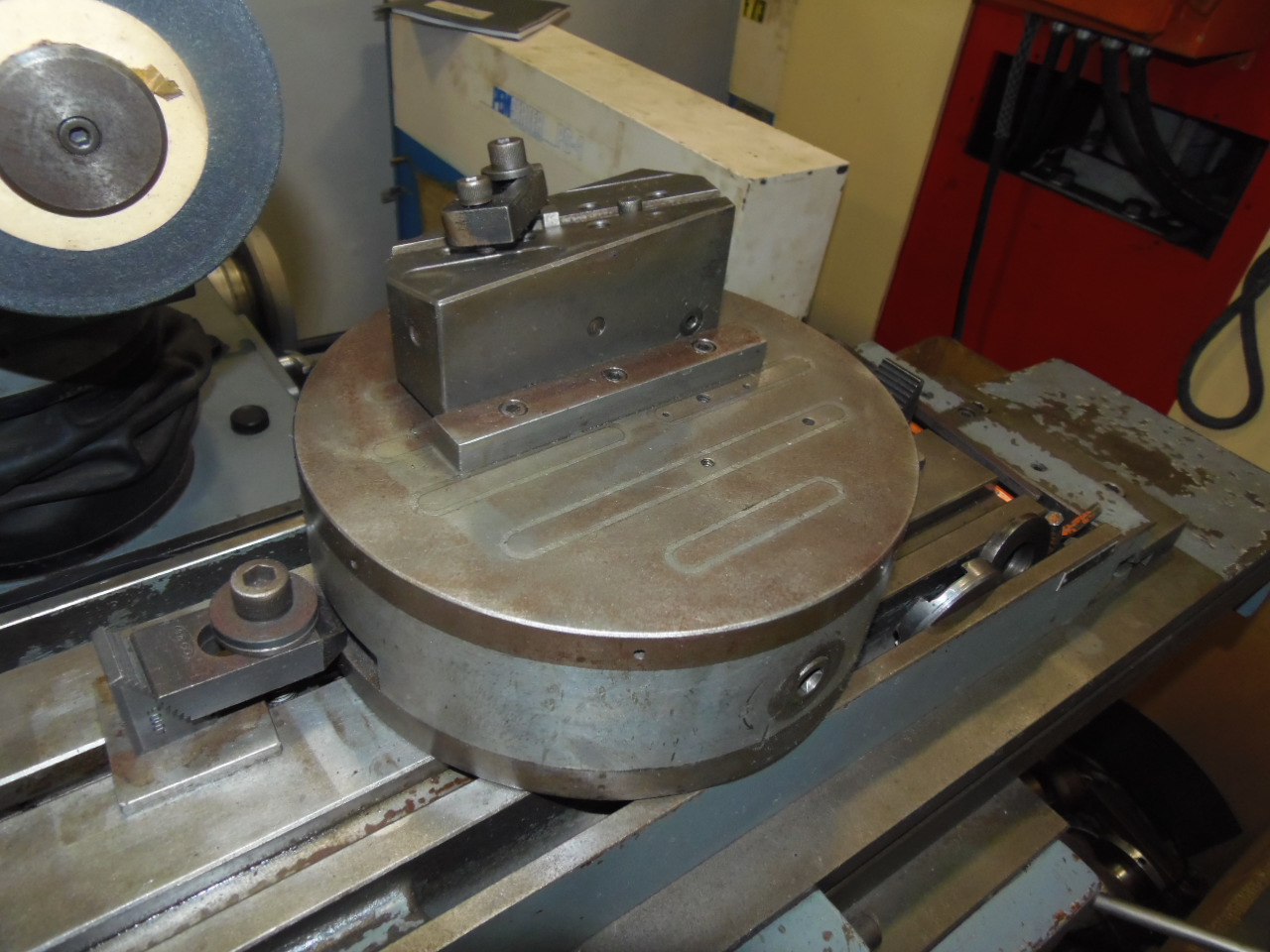

SWIVELING OF TABLE............. 360 DEG.
MAX. LENGTH OF STANDARD
CYLINDRICAL GRINDING........... 16"
TRANSVERSAL AND LONGITUDINAL
INCREMENT OBTAINED USING THE
ECCENTRICITY OF THE INTERMEDIATE
SUPPORT OF THE WHEELHEAD....... 4-7/16"

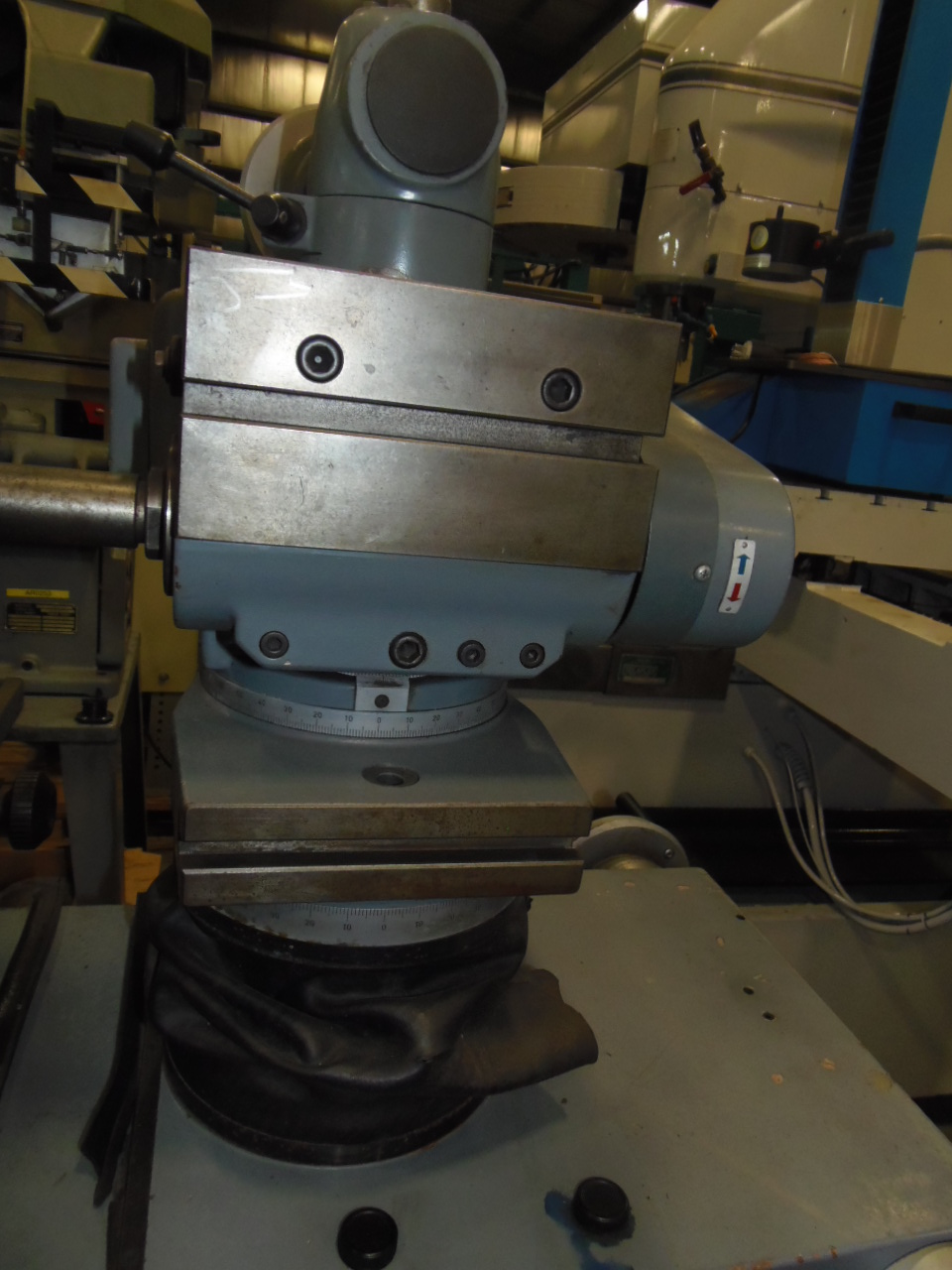

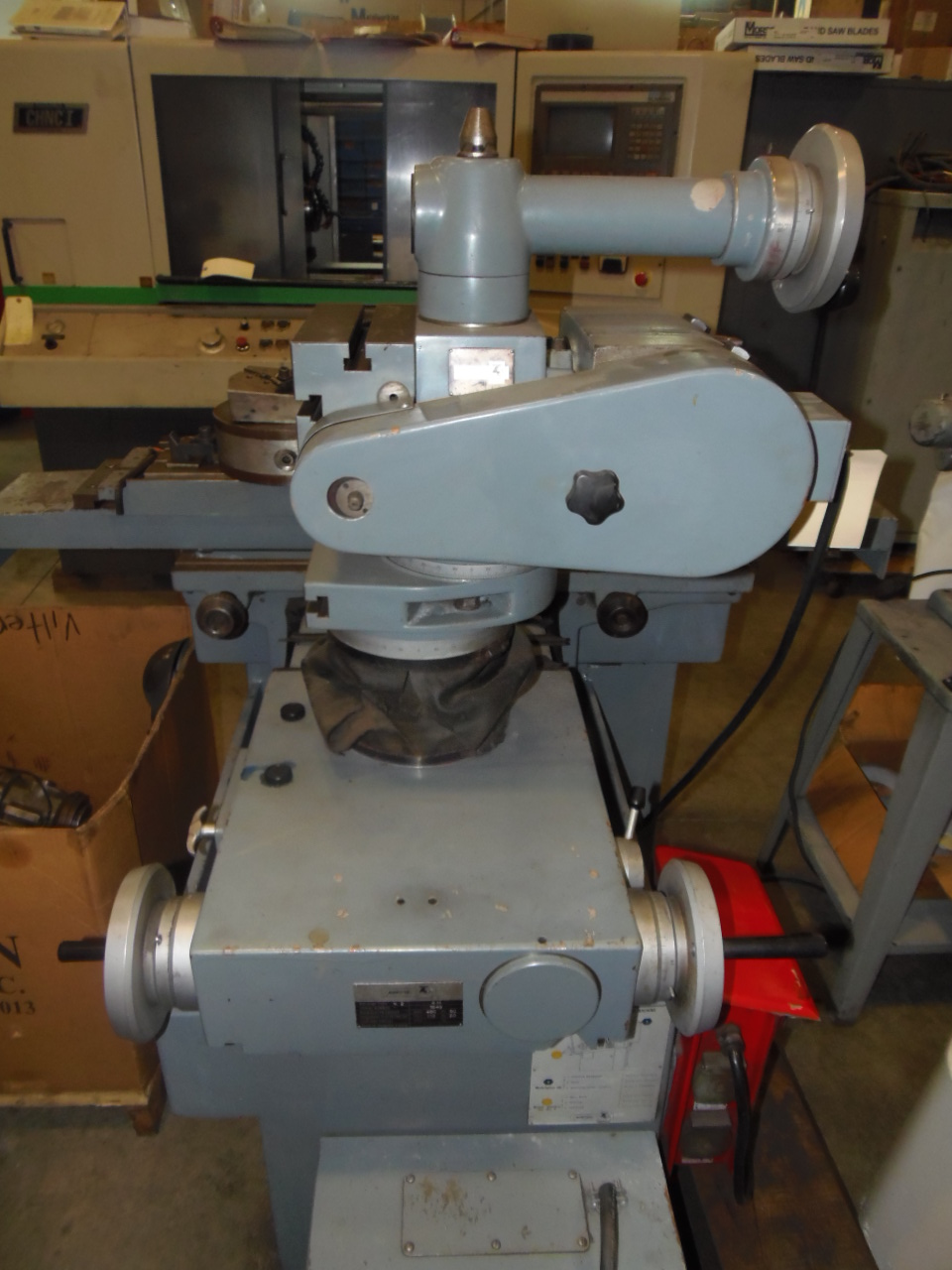

SWIVELING OF THE WHEELHEAD..... 360 DEG.
TILTING OF THE WHEELHEAD....... +/- 20 DEG.
MAX. DIAMETER OF GRINDING WHEEL 10"
WEIGHT (APPROX)................ 2500 LBS.
DIMENSIONS (APPROX)............ 60" X 48" X 48" H
EQUIPPED WITH:
MANUALS
SPECIFICATIONS SUBJECT TO VERIFICATION
