GENERAL SPECIFICATIONS:

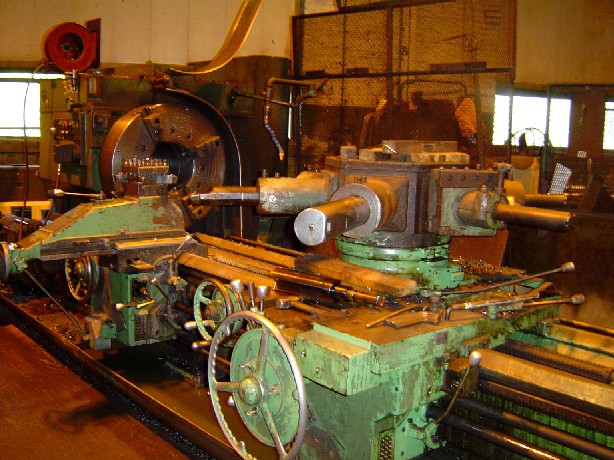

MANUFACTURER WARNER & SWASEY
MODEL M-3600
SERIAL # 2889696
LOT # 849
NEW (APPROX.) 1978
TYPE 5A
JIB HOIST CAPACITY 2 TON
HORSEPOWER 75 HIGH, 35 1/2LOW
SPINDLE BORE SIZE 12-1/2"
SPINDLE SPEED 10 - 281 RPM

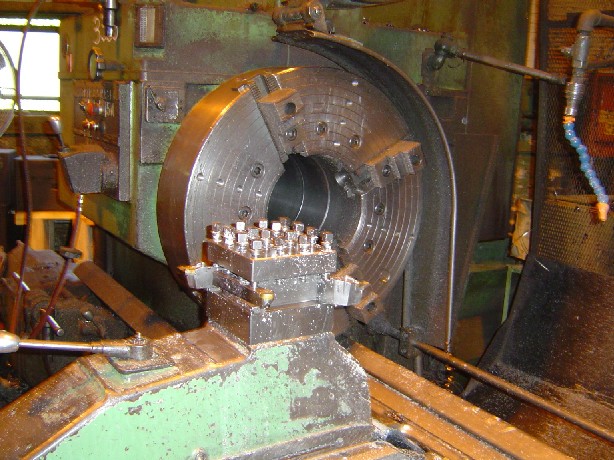

4 JAW CUSHMAN CHUCK 32"
MAXIMUM SIZE OF TOOL HOLES 6.25"
SWING CAPACITIES:
SWING OVER CARRIAGE 32.75"
SWING OVER WAYS 36.5"
LENGTH CAPACITIES:
MAX DISTANCE SPINDLE TO TURRET FACE 104"
CROSS TRAVEL ON CARRIAGE 21"
MAX TURNING LENGTH 83.5"
CROSS TRAVEL ON HEXAGON TURRET 14"
CROSS SLIDE LONGITUDINAL TRAVEL 92"
WEIGHT APPROXIMATELY 26,000 LBS
ELECTRICS 440V/3PH/60HZ
EQUIPPED WITH:
FRONT AND REAR TAPER ATTACHMENT
FULL LENGTH LEAD SCREW THREADING
CARRIAGE CROSS FEEDS
SQUARE TURRET TOOL POST
HEXAGON TURRET CROSS FEEDS
SCANOMATIC TRACING ATTACHMENT
CARRIAGE LONGITUDINAL FEEDS
HEXAGON TURRET LONGITUDINAL FEEDS
(5) LONG FLANGED TOOL HOLDERS
(1) FLANGE MOUNTED SLIDE TOOL
COOLANT
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
