Specifications
Equipped With
GENERAL SPECIFICATIONS:

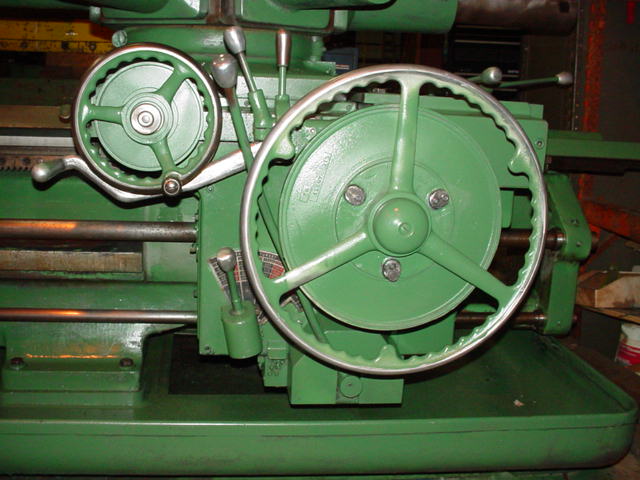

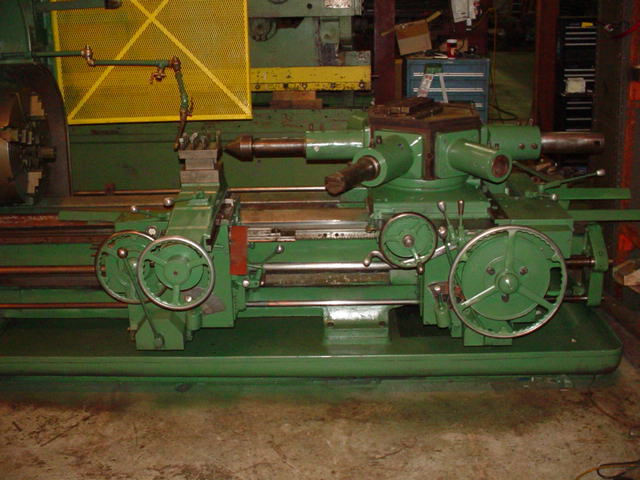

MANUFACTURER WARNER & SWASEY
MODEL M-3550
NEW (APPROX.) 1980
TYPE 4A
HORSEPOWER 75 HIGH, 37 1/2LOW

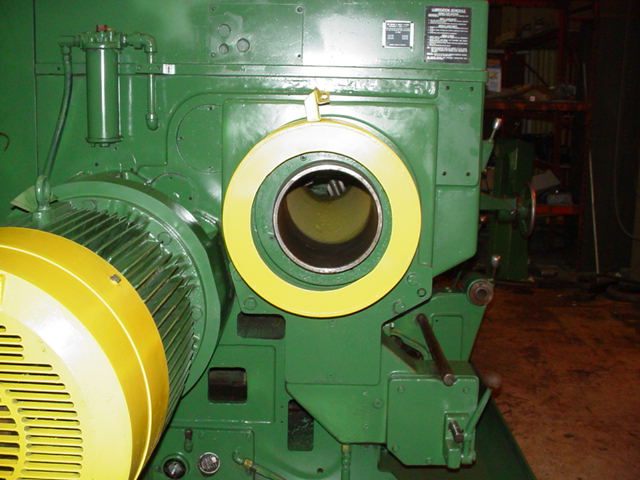

SPINDLE BORE SIZE, ROUND AND LENGTH 9 -1/4"
MAXIMUM SIZE OF TOOL HOLES 6.25"

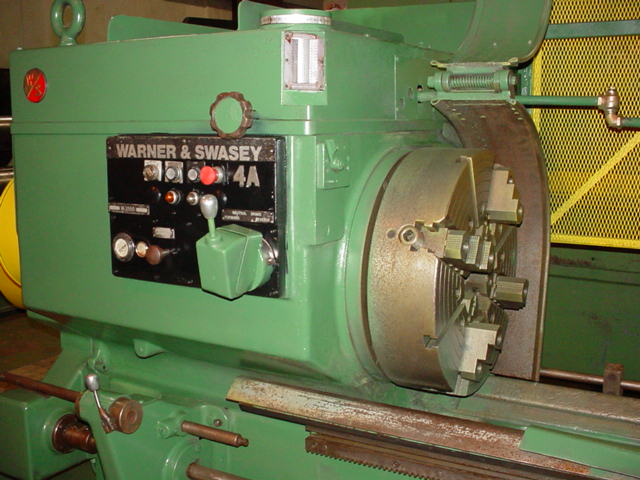

FOUR JAW CHUCK DIAMETER 24"
TAPER ATTACHMENT CARRIAGE AND TURRET
SWING CAPACITIES:
SWING OVER CARRIAGE 22.50"
MAXIMUM SWING OVER CARRIAGE GUARD 28.25"
SWING WITH GUARD 29.5"
LENGTH CAPACITIES:
LONG. TRAVEL ON CARRIAGE 58"

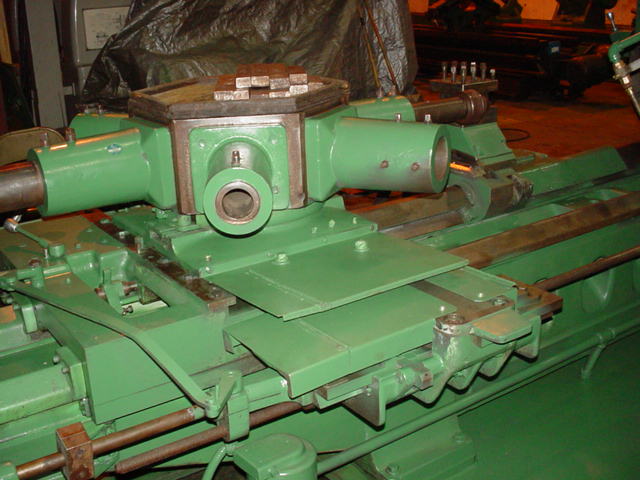

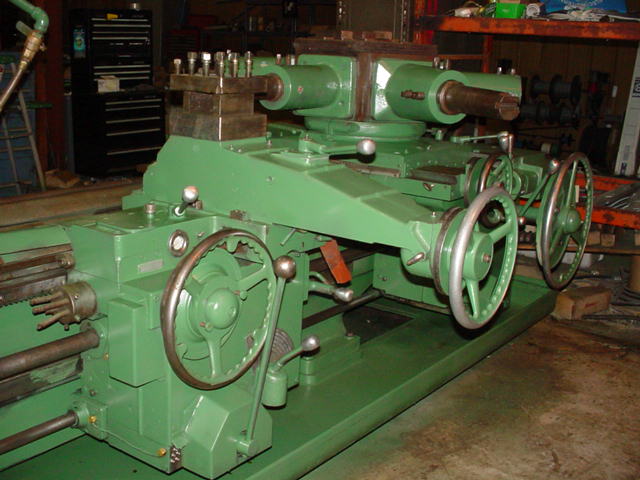

LONG. TRAVEL ON HEX TURRET 63.375"
CROSS TRAVEL ON HEX TURRET 12.5"
CROSS TRAVEL ON CARRIAGE 14.375"
SPINDLE SPEEDS (32) 10-526 RPM
CARRIAGE Longitudinal FEEDS(16) .005 - .167
CARRIAGE CROSS FEEDS(16) .002- .077
HEXAGON TURRET CROSS FEEDS(16) .002- .077
HEXAGON TURRET LONGITUDINAL FEEDS(16) .005- .167
Approximate Weight 24,000 lbs
EQUIPPED WITH:

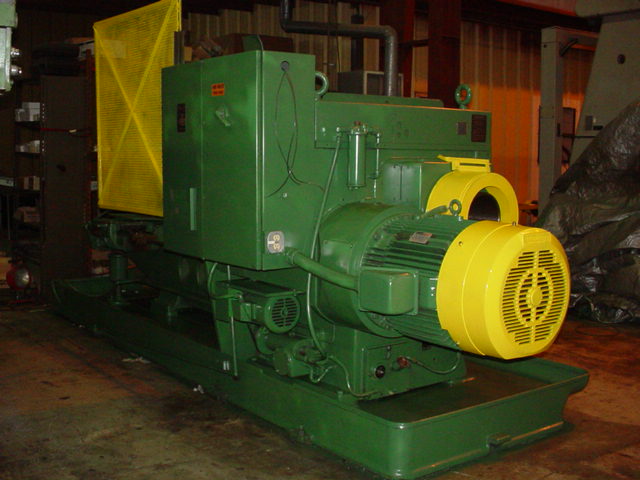

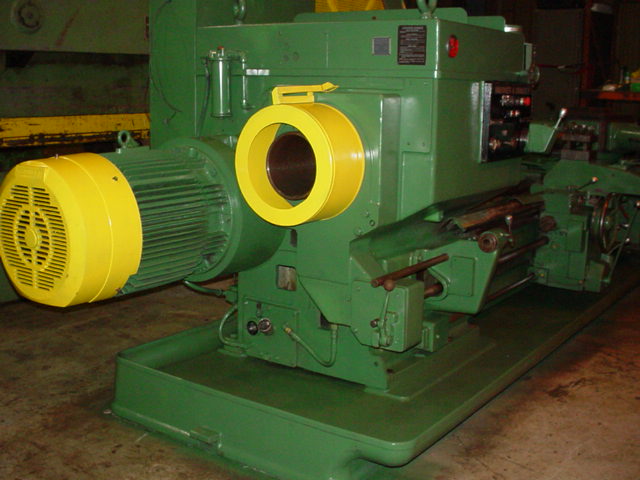

3 Phase, 60 Cycle, 440 Volt Main Drive Motor And Controls.
Rear Taper Attachment. Square Turret Tool Post. Micrometer Feed Dials For Tool Post And Hexagon Turret Cross Slides.(6) Long Flanged Toolholders. Coolant.
