Specifications
Equipped With

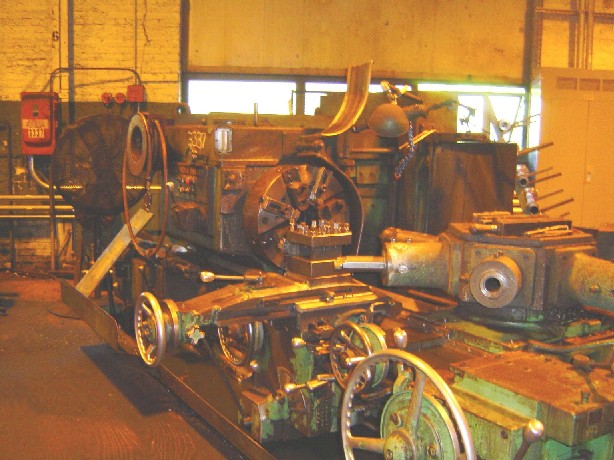

GENERAL SPECIFICATIONS:

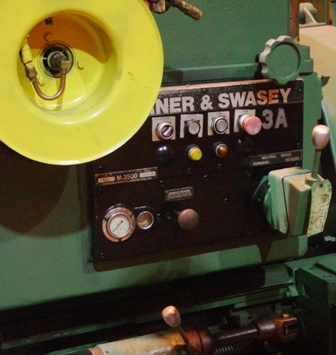

MANUFACTURER WARNER & SWASEY
MODEL M-3500
SERIAL# 2881200
NEW (APPROX.) 1979
TYPE 3A

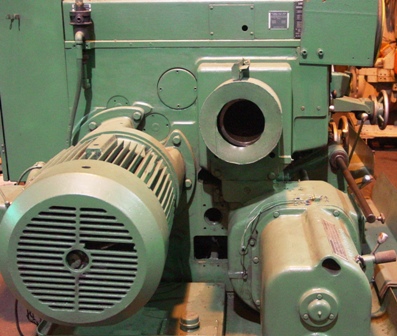

HORSEPOWER 60 HIGH, 30 LOW
SWING OVER CARRIAGE 18"
SWING OVER CARRIAGE GUARD 23.5"

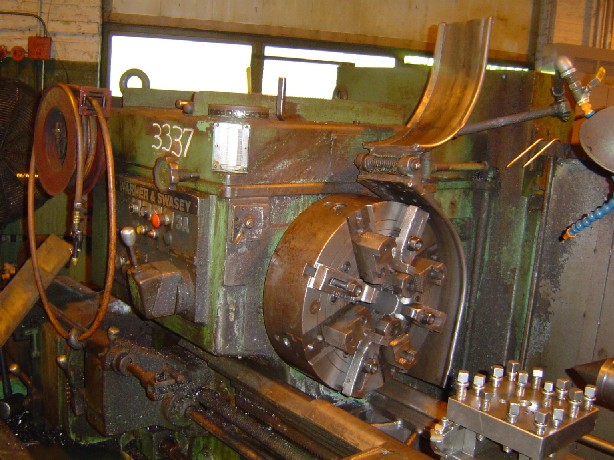

4 JAW CHUCK 21" DIAMETER (6.5" hole)
CROSS TRAVEL:
CROSS FEEDS .005 - .050 LOW
-017 - .167 HIGH
LONGITUDINAL TRAVEL:
CROSS FEED .005 - .050 LOW
.017 - 167 HIGH
POWER RAPID TRAVERSE - FEET PER MINUTE 16.5

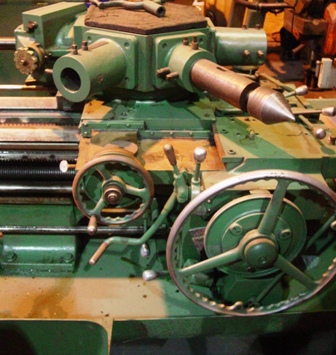

HEXAGON TURRET SIZE ACCROSS FLATS 17.25
BAR CAPACITIES:
ROUND 6.75" DIAMETER
FLANGED BUSHINGS FOR BAR HOLDERS 3" DIAMETER
MINIMUM SIZE BORING BAR 1" DIAMETER
SPINDLE TO TURRET FACE 59"
LENGTH TURNED 43"
LONGITUDINAL TRAVEL 51"
POWER RAPID TRAVERSE - FEET PER MINUTE 34.5
CROSS SLIDE TRAVERSE 8.5"
SPINDLE SPEED 32 SPEEDS(TWO SPEED MOTOR) 12 - 851

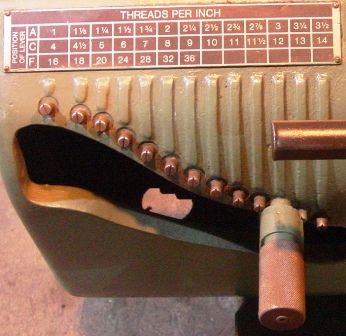

THREADS PER INCH 1 - 32
ELECTRICS 440/60/3
WEIGHT APPROX 21,500 LBS
EQUIPPED WITH:
FULL LENGTH LEAD SCREW THREADING
FRONT AND REAR TAPER ATTACHMENTS

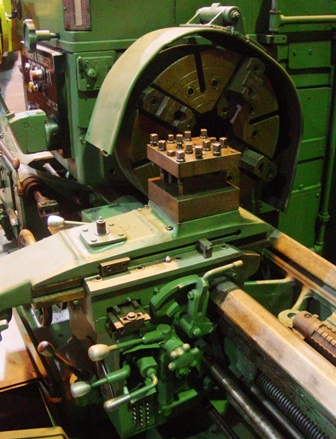

SQUARE TURRET TOOL POST
MICROMETER FEED DIALS FOR TOOL POST AND HEXAGON TURRET CROSS SLIDES
(2) SHORT FLANGED TOOL HOLDERS
(2) LONG FLANGED TOOL HOLDERS
(1) FLANGED MOUNTED SLIDE TOOL
COOLANT
