Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER........................... WARD RIDDLE
MODEL NUMBER........................... 15-200-20
SERIAL NUMBER OF COOLANT SYSTEM........ A629
HORSEPOWER OF HI PRESSURE COOLANT...... 19.25 HP
CAPACITY OF HOLE....................... 1.5"
MAX DEPTH OF HOLE...................... 42"
MAX LENGTH OF DRILL.................... 62"
TABLE SIZE............................. 40" X 84"
TRAVELS
X (L/R)............................ 60"
Z (IN/OUT)......................... 48"
Y (UP/DOWN)........................ 48"

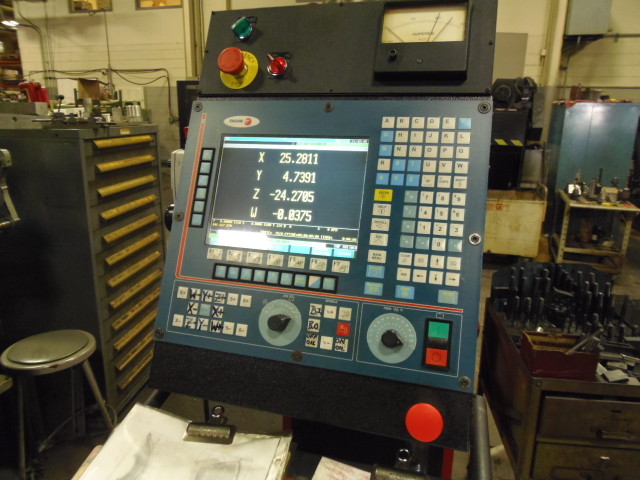

CONTROL TYPE........................... FAGOR 8055 AM CNC
SCREW TYPE............................. BALL SCREWS
AXIS MOTORS............................ SERVO
EQUIPPED WITH:

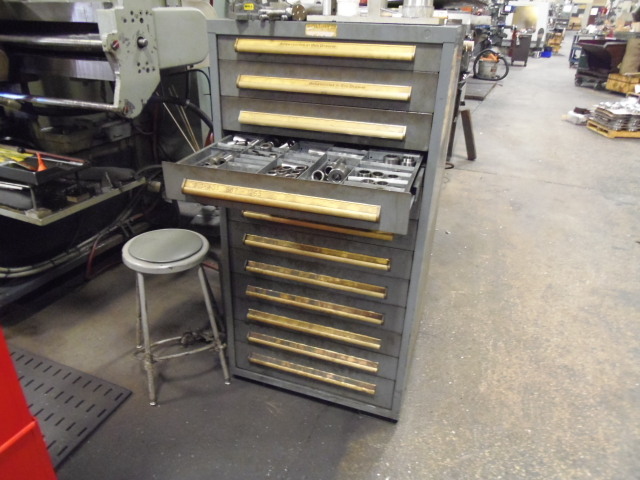

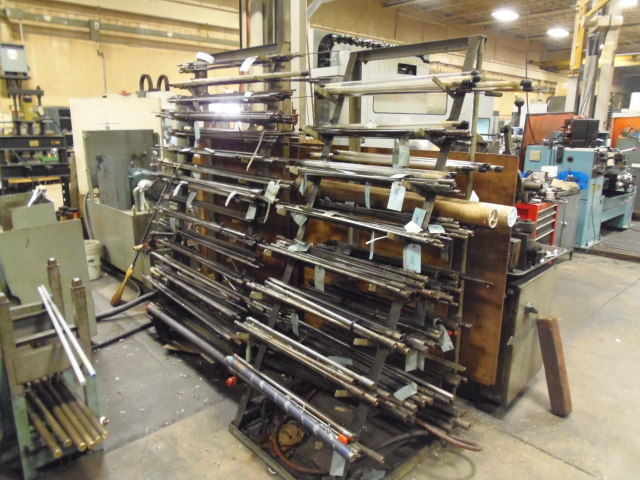

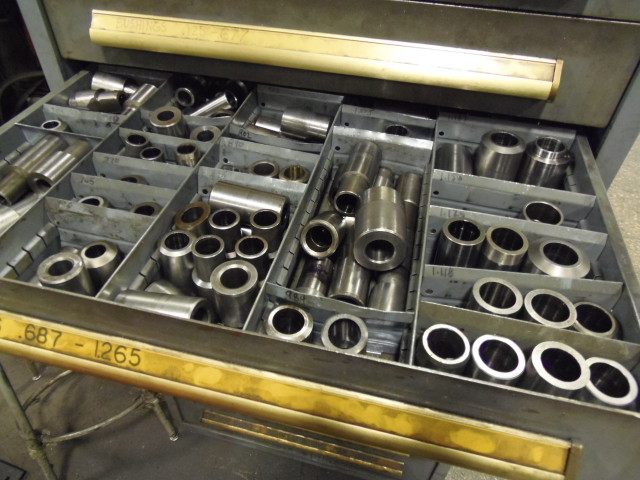

A HUGE ASSORTMENT OF DRILLS AND BUSHINGS

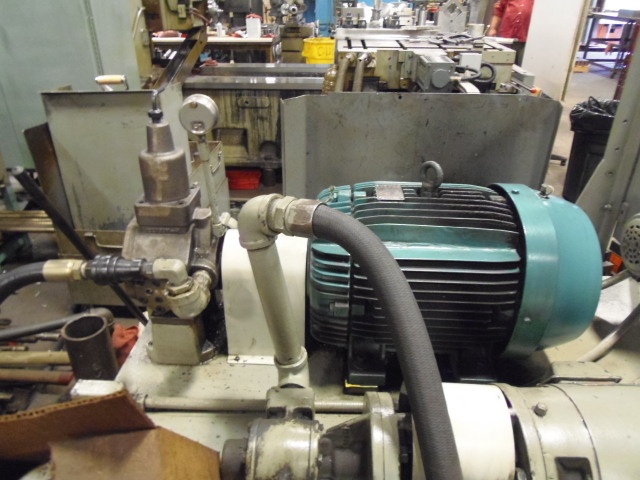

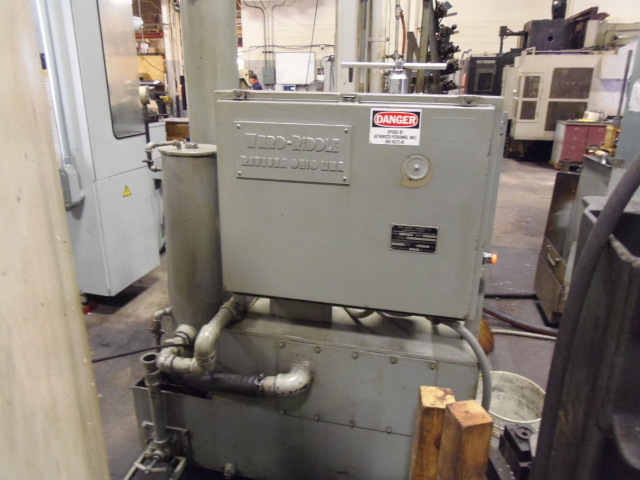

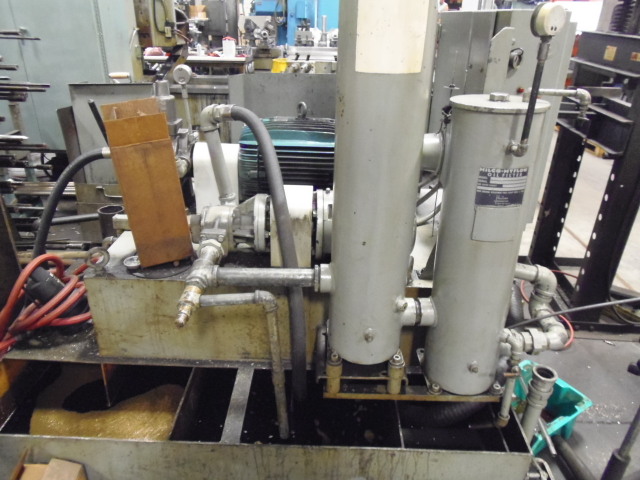

HI PRESSURE COOLANT SYSTEM
FAGOR CONTROL FEATURES
LINEAR, CIRCULAR, AND HELICAL INTERPOLATION
TOOL LENGTH AND RADIUS COMPENSATION
GRAPHICS
SIMULATION WITH EXECUTION TIME ESTIMATE
LOOK AHEAD OF N BLOCKS TO AVOID TOOL COLLISION
DNC COMMUNICATIONS
CANNED CYCLES FOR MACHINING, MULTIPLE POSITIONING,AND IRREGULAR POCKETS WITH ISLANDS
