W & S MDL WSU-12, 15" SWOC 26" SWOB, 40" BC, 3" BAR CAP., 3.5" HOLE, 3000 RPM, FANUC 6T CTRL, 1982

GENERAL SPECIFICATIONS:
MANUFACTURER WARNER & SWASEY
MODEL WSU-12
NEW (APPROX.) 1982
SWING OVER BED 26"
SWING OVER CARRIAGE 15"
DISTANCE BETWEEN CENTERS 40"
BAR CAPACITY 3"
SPINDLE HOLE 3.5"
SPINDLE NOSE A2-8
SPINDLE SPEED RANGE 43 - 3000 RPM
SPINDLE DRIVE MOTOR 30 HP/20 HP
X-AXIS STROKE 14.17"
Z-AXIS STROKE 42.76"
ELECTRICS 440V/3PH/60HZ
# OF STATION TURRET 12

EQUIPPED WITH:

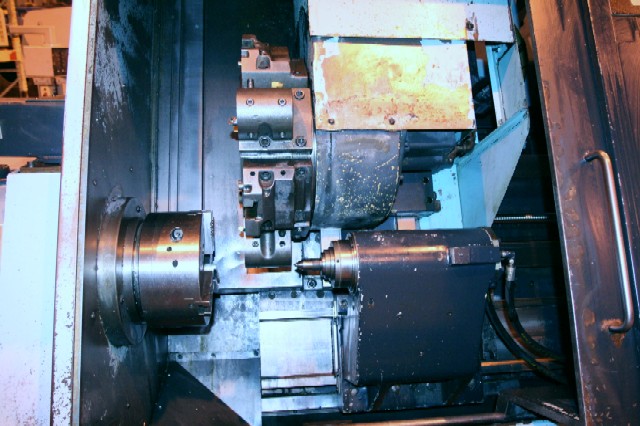

12" 3 JAW HYDRAULIC CHUCK

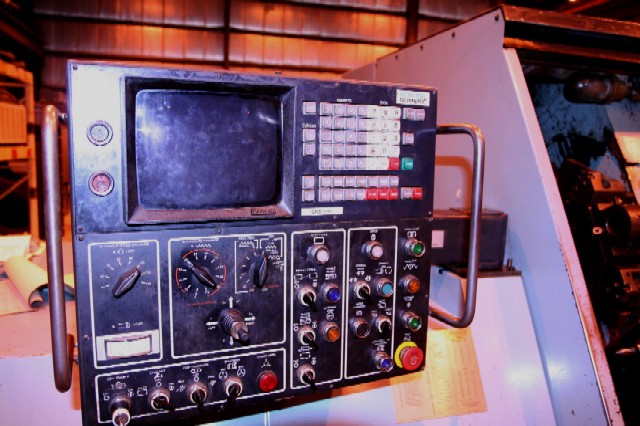

FANUC 6T CNC CONTROL
CRT
HYDRAULIC TAILSTOCK W/CENTER
COOLANT SYSTEM
CHIP CONVEYOR MACHINE DIMENSIONS 7' X 7'2" X 15' LONG 20,000 LBS
CHIP CONVEYOR 5' X 5' X 12' LONG 1,000 LBS TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
