Specifications
Equipped With
SPECIFICATIONS:

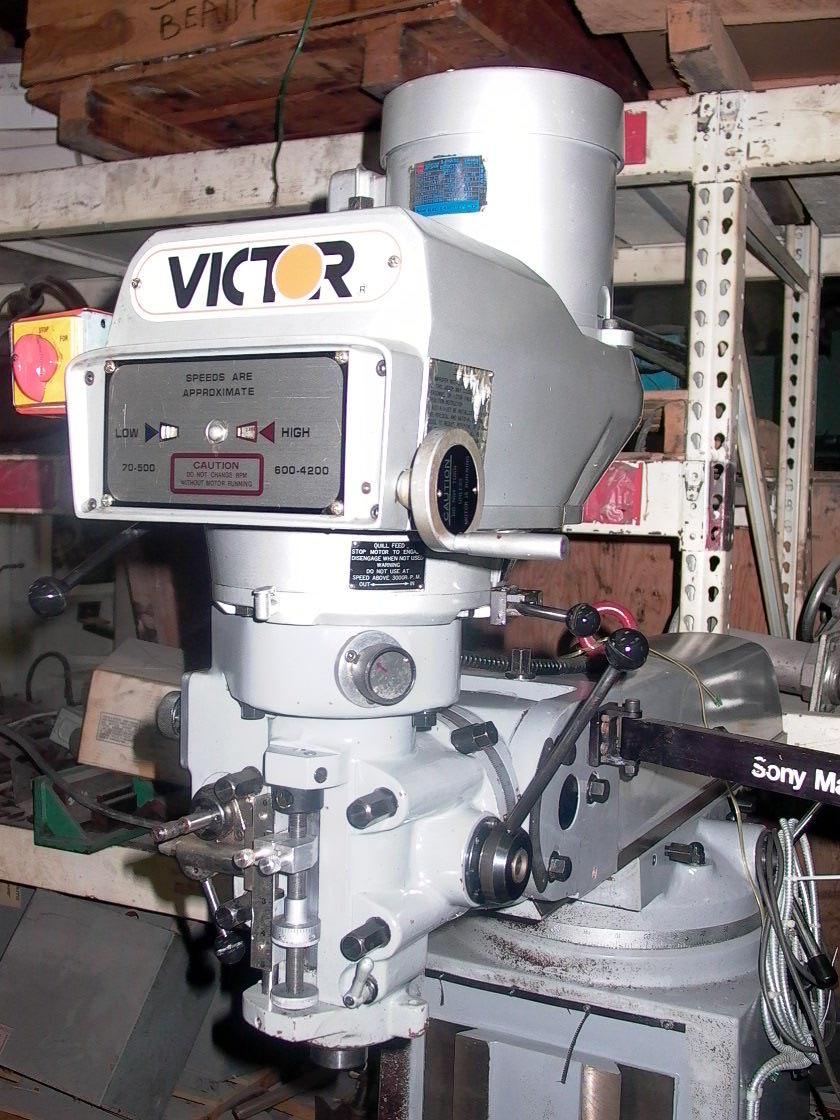

MANUFACTURER.......................VICTOR
TYPE...............................VERTICAL MILL
MODEL..............................CD 3VS
SERIAL #...........................K3V-950868-46051
AGE APPROXIMATELY..................1995
RPM RANGE..........................70-4200
SPINDLE MOTOR......................3HP
SPINDLE TAPER......................R8

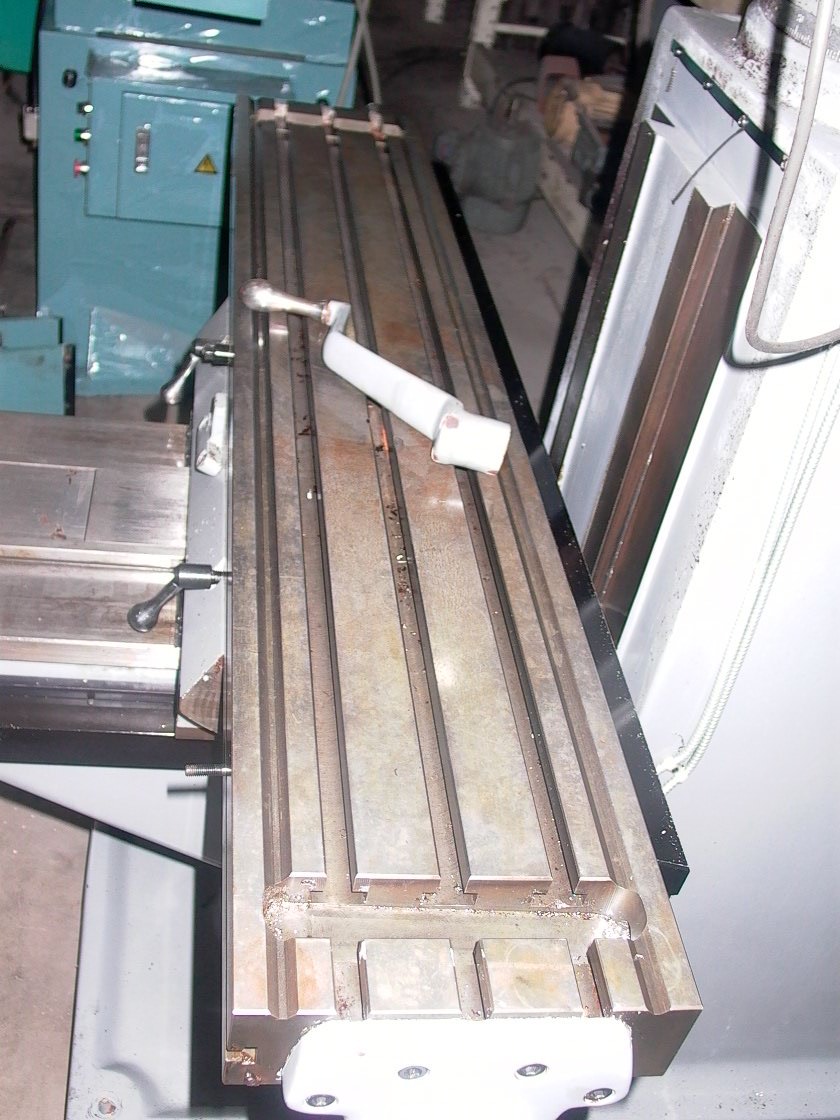

TABLE SIZE.........................10 X 54"
TRAVELS (RAM)......................12"
(LONGITUDINAL).............36"
(CROSS)....................16"
(VERTICAL BED).............17"
(QUILL)....................5"
OVERALL DIMENSIONS............87 3/4" X 63" X 81"H
WEIGHT APPROXIMATELY...............3300LBS.
EQUIPPED WITH:

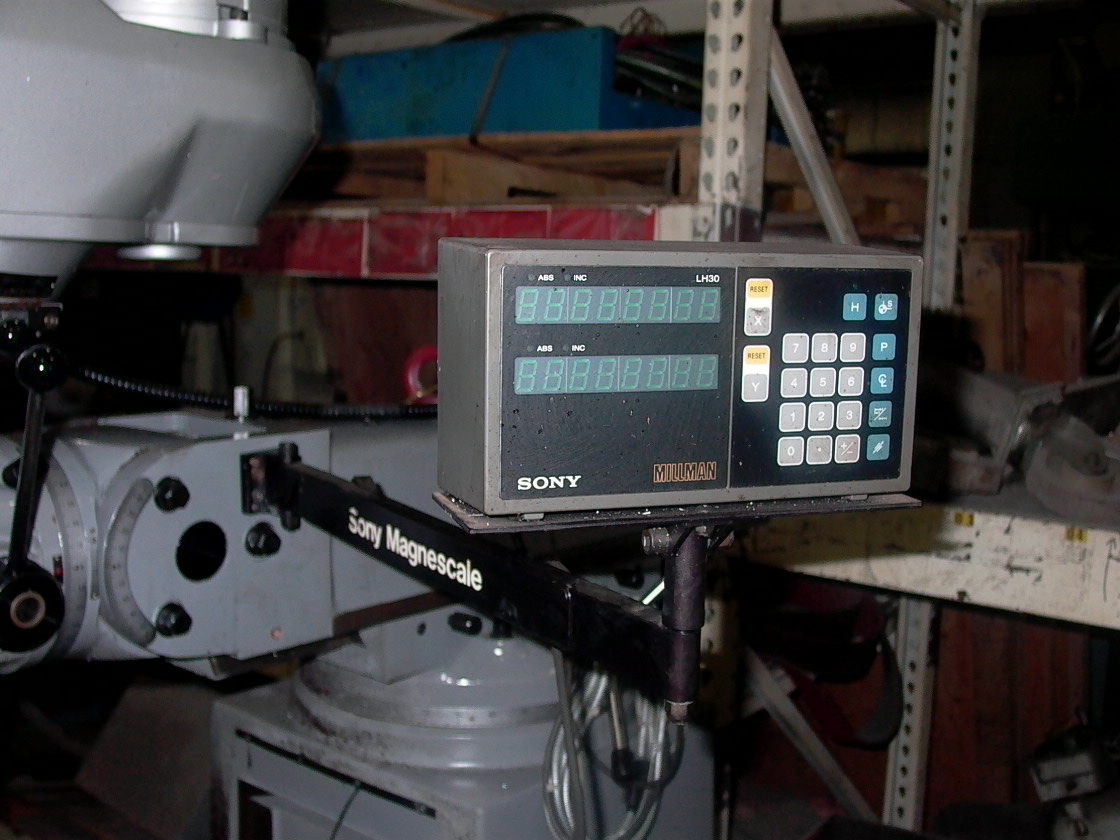

2 AXIS SONY DRO
VARIABLE SPEED
