Specifications
Equipped With
MANUFACTURER.................... VERNET BEHRINGER
MODEL........................... FP600 CNC
NEW............................. 2000
CAPACITY
USEFULL SECTION............. 23.6" X 13.4"
ANGLES...................... 1.9" - 11.8"
IPE/IPN..................... 3.1" - 23.6"
HEA/HEB..................... 3.9" - 31.5"
FLAT BARS................... 3/8" X 4 MIN.
3/4" X 23 5/8" MAX

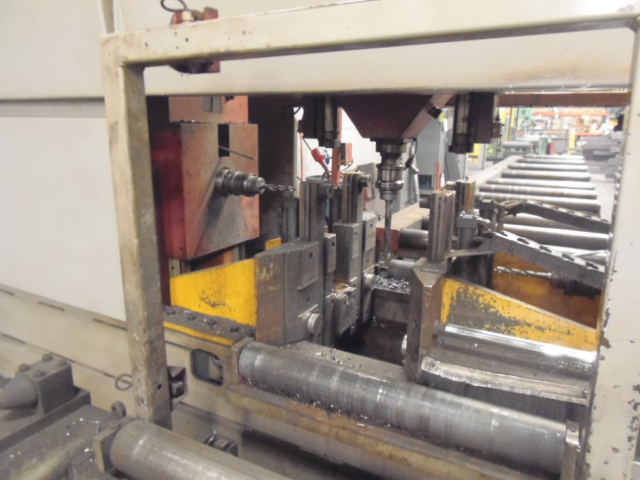

SPINDLES........................ 3 (2 HORIZONTAL & 1 VERTICAL)
SPINDLE TAPER................... SA 40
SPINDLE HP...................... 7.4
MAX. DRILL DIAMETER............. 1.4"
ROTATION SPEED.................. 200 - 800 RPM
SPINDLE STROKE.................. 11.8"
CARRIAGE MAX. SPEED............. 196.5 FT/MIN
CURRENT VOLTAGE................. 460V/3/60
EQUIPPED WITH:

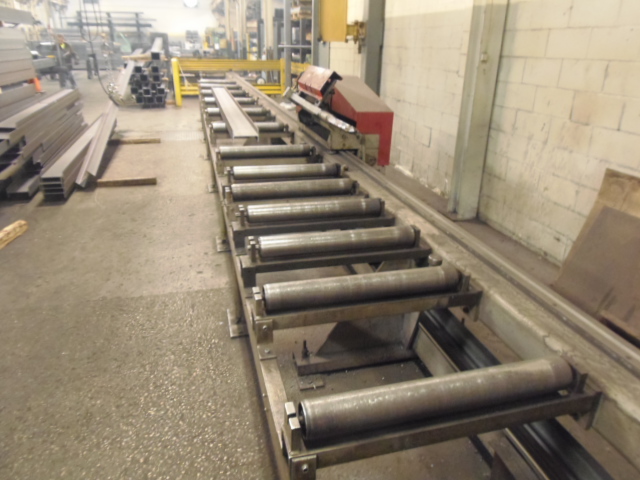

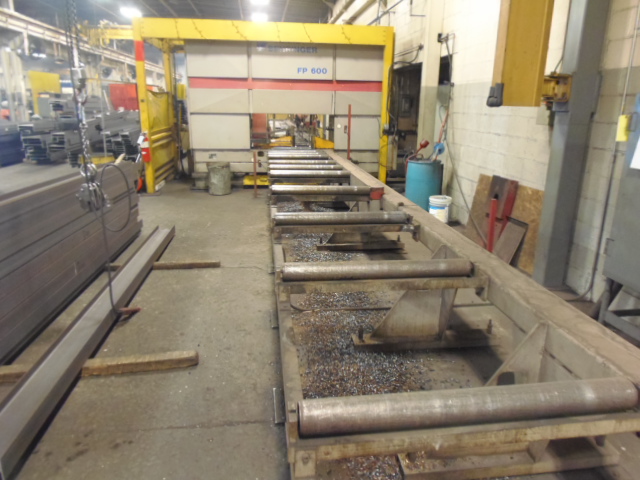

43' OF IN FEED STROKE WITH 40' OF CONVEYOR
25' OF MOTORIZED EXIT CONVEYOR CONTROLLED AT THE OPERATOR STATION
LIGHT CURTAINS FOR FRONT AND REAR OF DRILLING AREA
ADAPTIVE FEED-AUTO TRANSFER FROM FAST TO WORKING SPEED

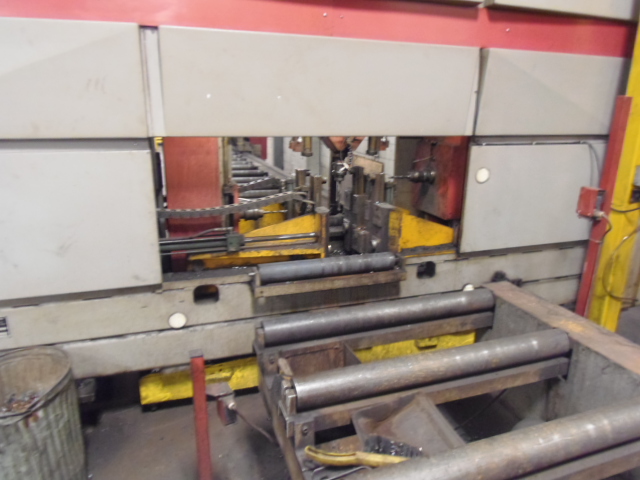

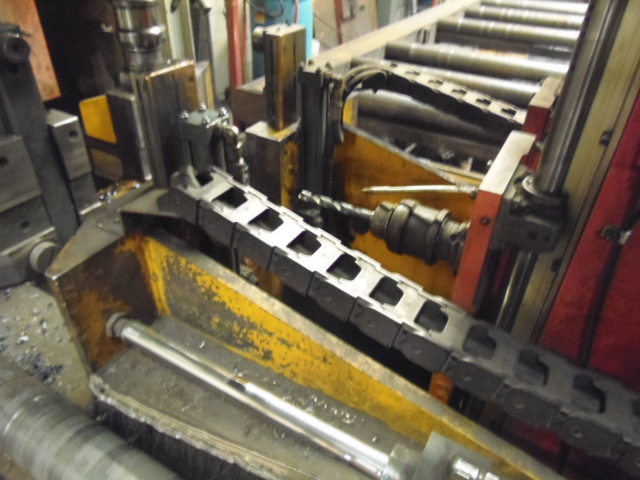

HYDRAULIC DOUBLE ACTING VICE WITH HORIZONTAL AND VERTICAL CLAMPS

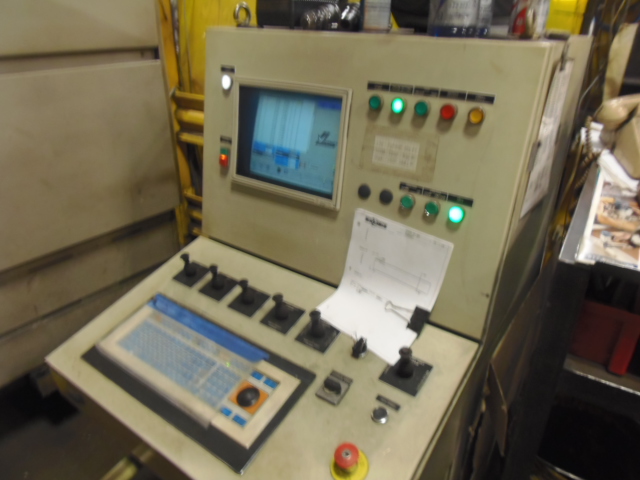

CNC NUMERICAL CONTROL WITH PENTIUM PC, 8 MG OF RAM, HARD DISK, 3.5" FLOPPY DISKS, NESTING OPTIMIZATION, BAR LENGTH MEASUREMENT, SPARE TIME PROGRAMMING, 14" CRT, KEYBOARD, RS 232 INTERFACE, DNC LINKING
MISC MANUALS AND SPARE PARTS
