FACTORY DESCRIPTION:

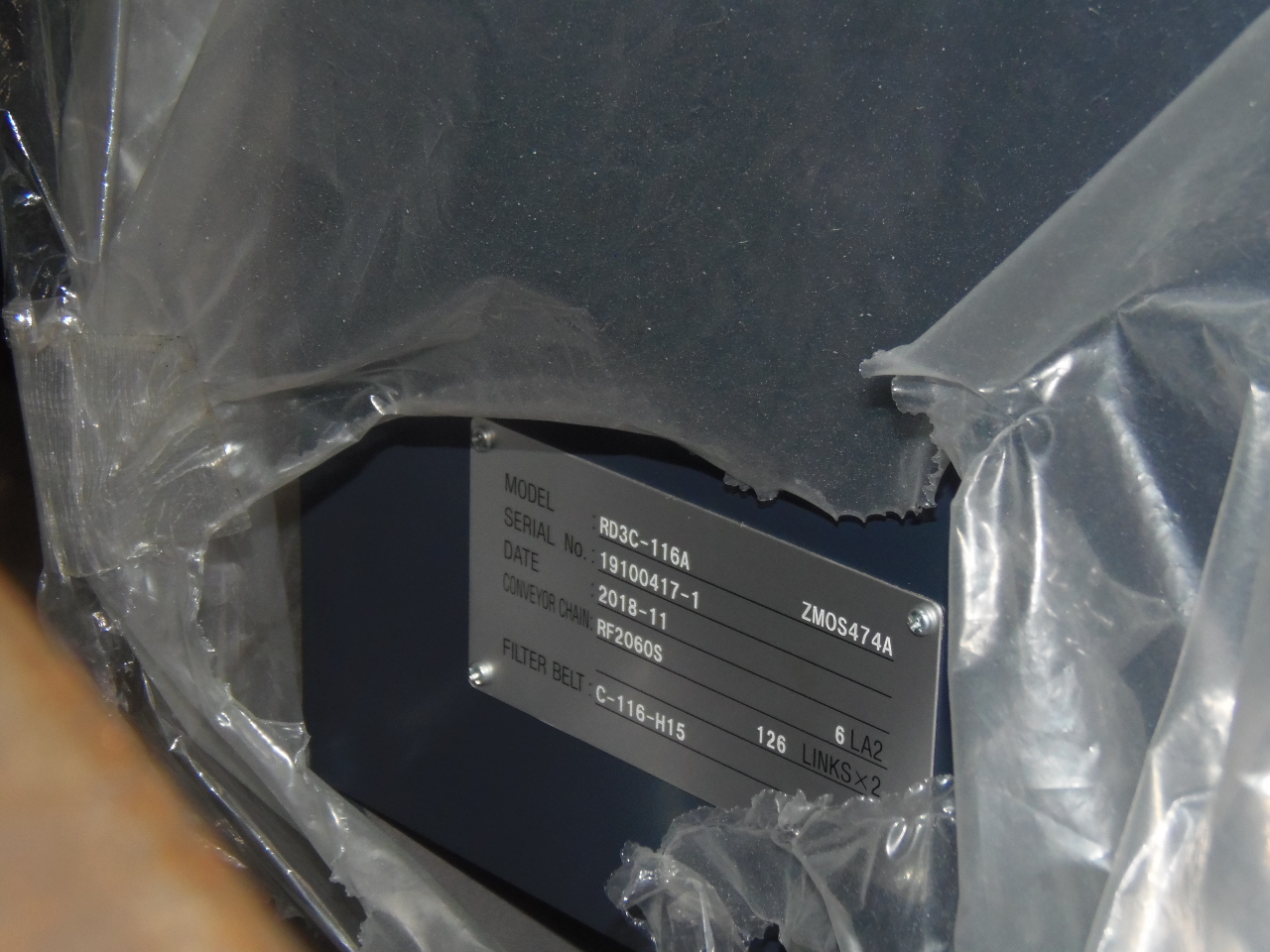

CONVEYOR MODEL........................ RD3C-116A
SERIAL NUMBER......................... 19100417-1
TANK SIZE............................. 49.25" X 90.25" X 14.75" HIGH
CONVEYOR WIDTH........................ 22.5"
CHIP DISCHARGE........................ REAR-LEFT
CENTER TROUGH......................... BASE COOLANT
LIFT-UP CONVEYOR-LSW880 STANDARD
CHIP REMOVAL METHOD............... SINGLE LAYER SCRAPPER
SECONDARY FILTRATION.............. ROTATING DRUM FILTER WITH STAINLESS STEEL PERMANENT MEDIA MESH AND CONTINUOUS BACK FLUSH CLEANING
CYCLONIC FILTRATION............... STANDARD HYDRO-CYCLONE PROVIDES 20um FILTRATION
CONVEYOR DISCHARGE HEIGHT............. 42"
TOP OF CONVEYOR HEIGHT................ 71"
COOLANT TANK CAP. (TOTAL/EFFECTIVE)... 232/127 GAL
THROUGH SPINDLE COOLANT PRESSURE...... 320 PSI
FLOW RATE............................. 4.5 GPM
NUMBER OF GRUNDFOS PUMPS.............. 4
UNIT OF EASY ROLL CASTERS............. YES
