GENERAL SPECIFICATIONS:
MANUFACTURER............................TSUGAMI

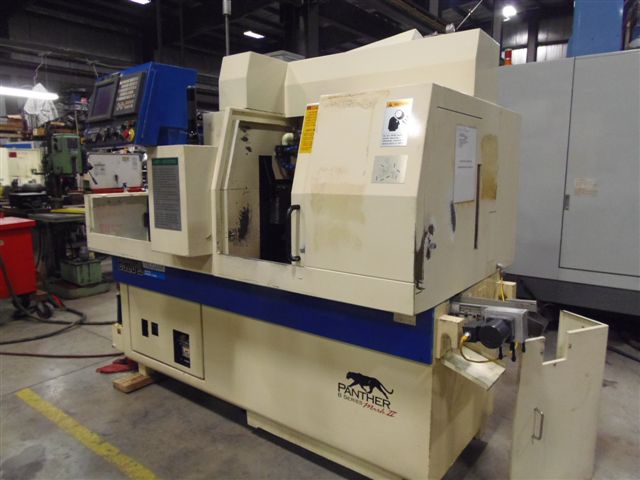

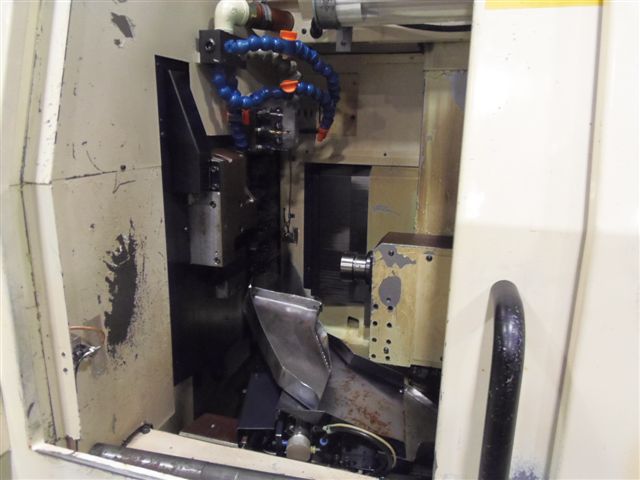

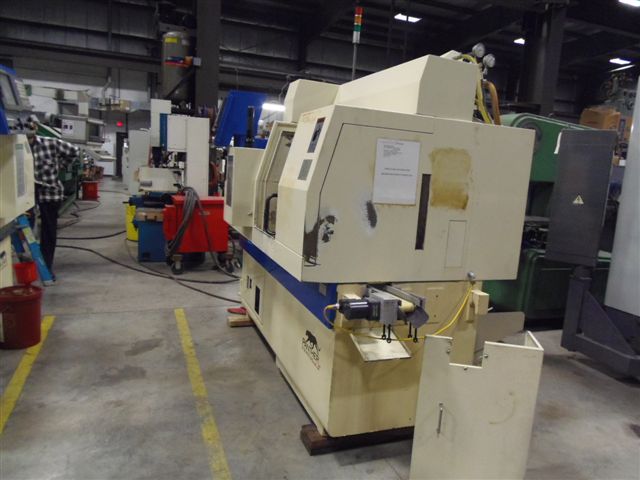

MODEL...................................BS20D-II SUPER SWISS TURN
SERIAL#.................................565
AGE APPROXIMATELY.......................1999
PART DIAMETER...........................1/4" TO 3/4"
MAX PART LENGTH.........................8"
RPM RANGE...............................200-8,000 RPM
RAPID TRAVERSE SPEED....................780 IPM
CUTTING SPEED...........................228 IPM
MAX CHUCKING DIA (SUB SPINDLE)..........1/2"
MAX DRILLING DIA (TOOL SPINDLE)........5/16"
MAX SLIT CUTTER DIA (TOOL SPINDLE)......1 1/2"
MAX DRILLING DIA (BACK SPINDLE).........1/8"
TOTAL NUMBER OF TOOLS...................17
NUMBER OF CONTROLLED AXIS...............8
C AXIS................................. .001 DEGREE
SPINDLE MOTOR...........................5 HP
SUB SPINDLE.............................2 HP
TOOL SPINDLE............................1.5 HP
OTHER AXIS..............................1.5 HP
WEIGHT..................................5500 LBS
EQUIPPED WITH:

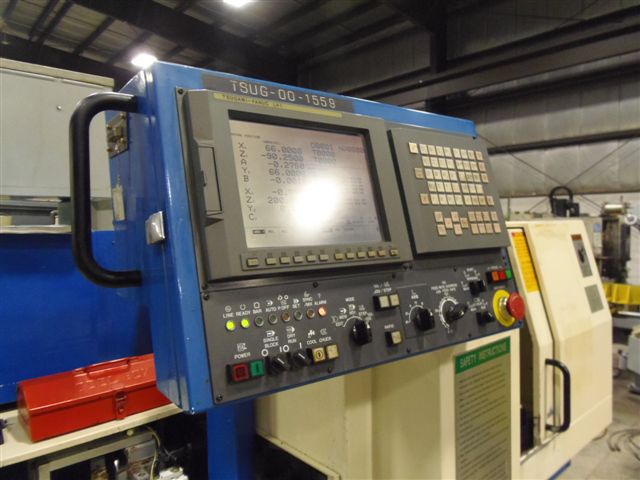

FANUC LH-1 CONTROL (FANUC 18i)

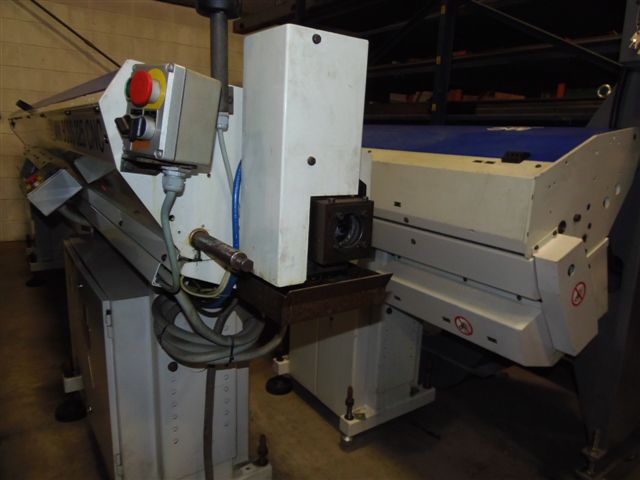

IEMCA BOSS 325 BAR FEED
CONTROLLED AXIS X1,Z1,A,Y1,B,C1,X2,Z2
SUB SPINDLE
LIVE TOOLING
(3)LIVE TOOL HOLDERS
(7)O.D. TOOL HOLDERS
(3)STATIONARY BACK WORKING TOOL HOLDERS
(4)STATIONARY END WORKING TOOL HOLDERS
CONTINUOUS THREAD CUTTING
CUT-OFF KNIFE BREAKAGE DETECTOR
PARTS CONVEYOR
TOOL BOX
15,000 CYCLE HOURS
