Specifications
Equipped With

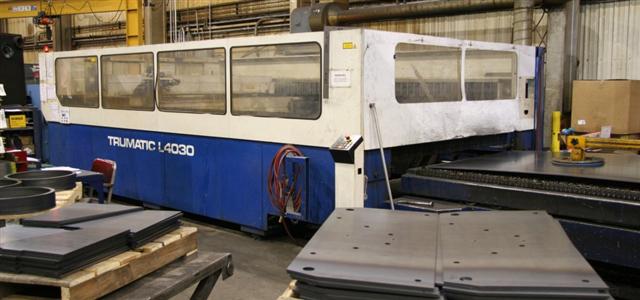

(1) Used Trumpf Model TruMatic L4030, CNC Laser w/Automatic Dual Pallet
Shuttle System, New 1998, SERIAL 130198
Specifications:
Resonator Output 3,200 Watts
Laser Output at tip 3,000 Watts
Maximum sheet size 6' x 12' (1828 x 3657)
X-Axis Travel 157" (3987)
Y-Axis Travel 79" (2006)
Z-Axis Travel 5" (127)
Maximum Material Thickness .75" Normal Steel
Max. Positioning Speed 3,300 IPM (Simultaneous)
Maximum Workpiece Weight 2,750 LBS
Equipped With:

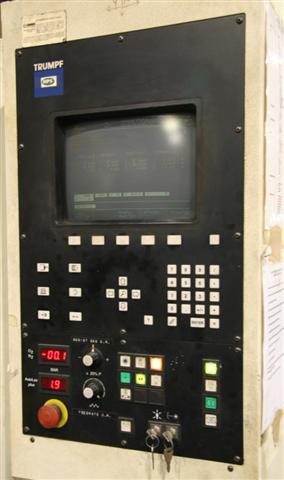

Bosch CNC Control

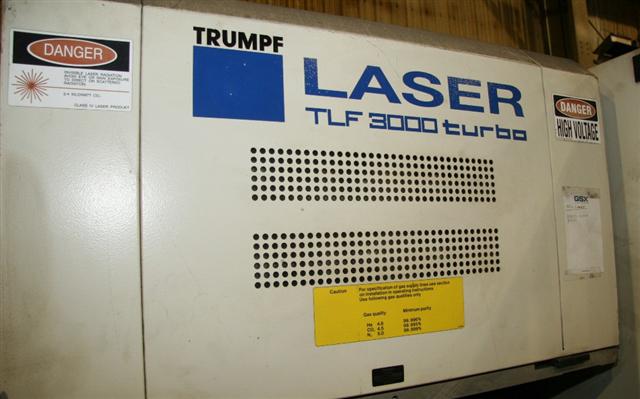

TLF 3000 Turbo Laser Resonator (new resonator installed 2006)

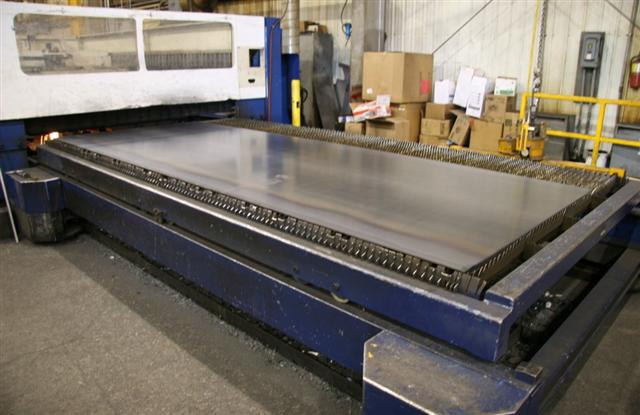

Automatic Dual Pallet Shuttle System

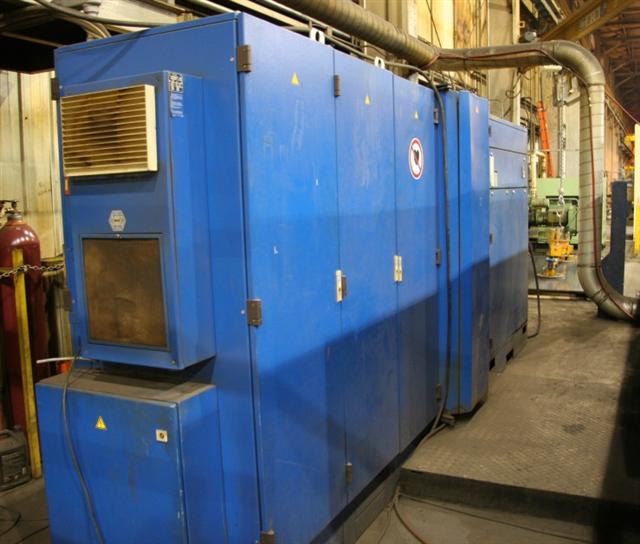

No Conveyor but New Compressor Pump in Chiller
2 Pans

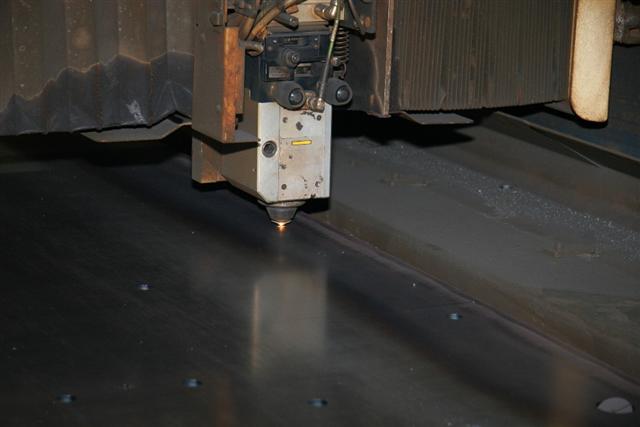

5" & 7.5" Cutting Heads
NOTE: New Resonator Installed in Sept. 2006
Approx. Hours on New Resonator 5,000
Approx. 15,000 power on hours after new resonator was installed
LINK TO ON LINE VIDEO OF THE MACHINE IN OPERATION
http://www.wismet.com/buy/detail.cfm?inventoryid=8218
Specifications and Equipment are Preliminary, Subject to Buyer Verification.
