GENERAL SPECIFICATIONS:
MANUFACTURER....................... TRUMPF
MODEL.............................. TCL 2510
NEW................................ 2004
SERIAL ............................ A0210A00174

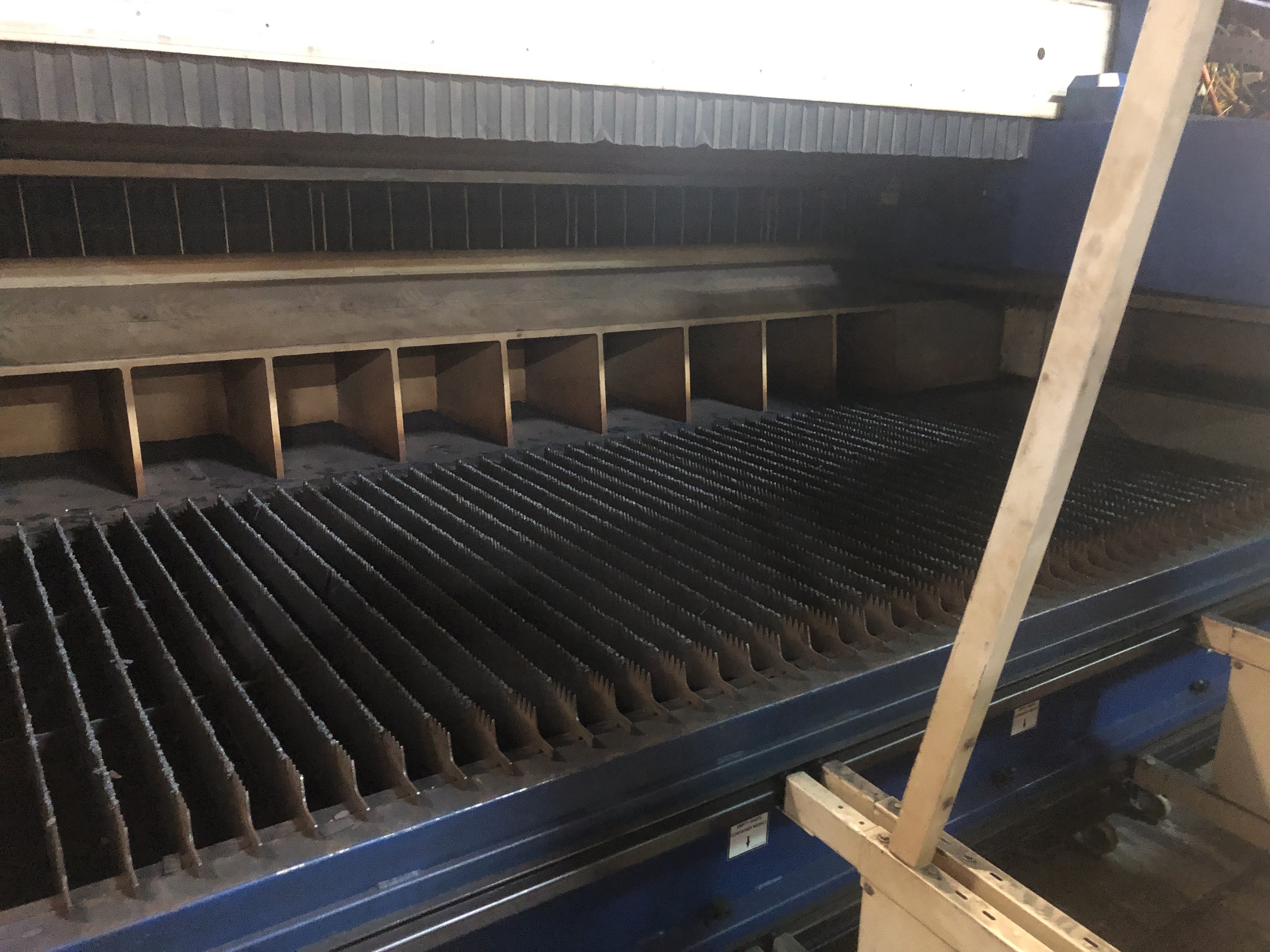

PART SIZE.......................... 5' X 10'
LASER OUTPUT....................... 2000 WATT
LASER TYPE......................... TCF 1

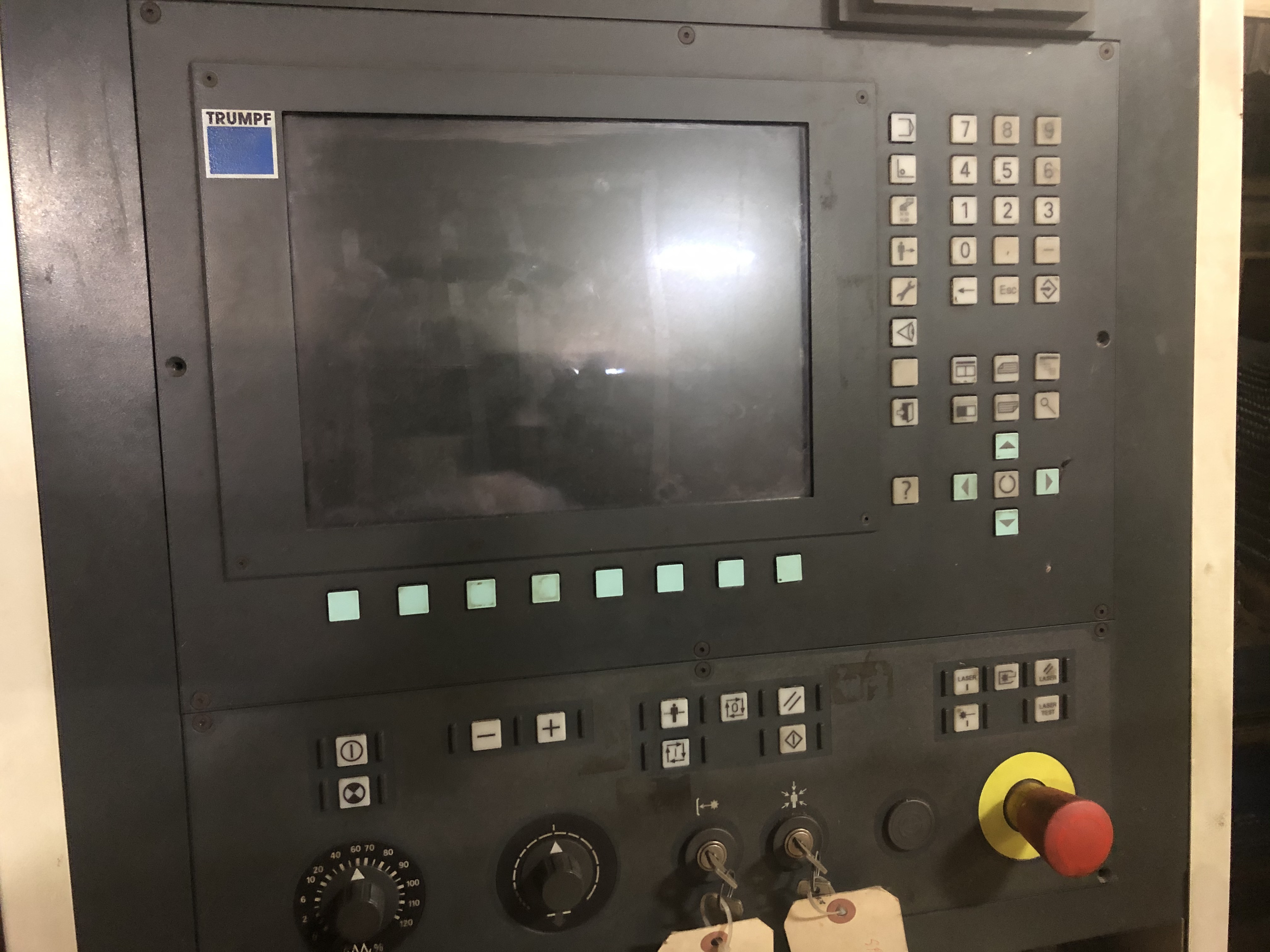

CONTROL............................ TRUMPF/SIEMENS SINUMERIK 840D
MAX. POSITIONING SPEED
AXIALLY PARALLEL................ 472 IPM
SIMULTANEOUS.................... 677 IPM
RATED CAPACITY OXYGEN.............. 1/2" CARBON STEEL
8 GAUGE STAINLESS
DIMENSIONS WITH LOAD/UNLOAD....... 444" X 204" X 106" H
TOTAL WEIGHT....................... 33,200 LBS
EQUIPPED WITH:

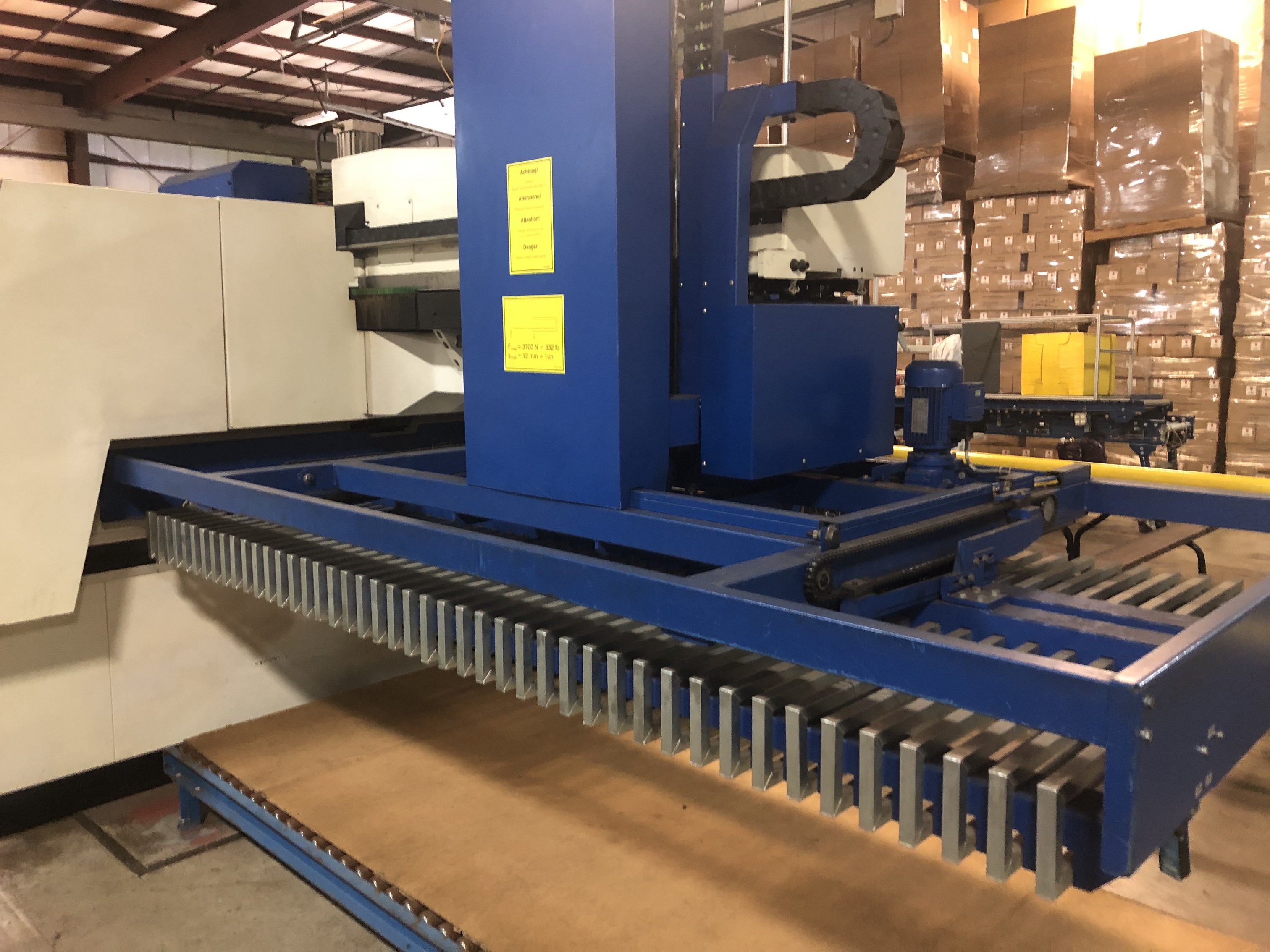

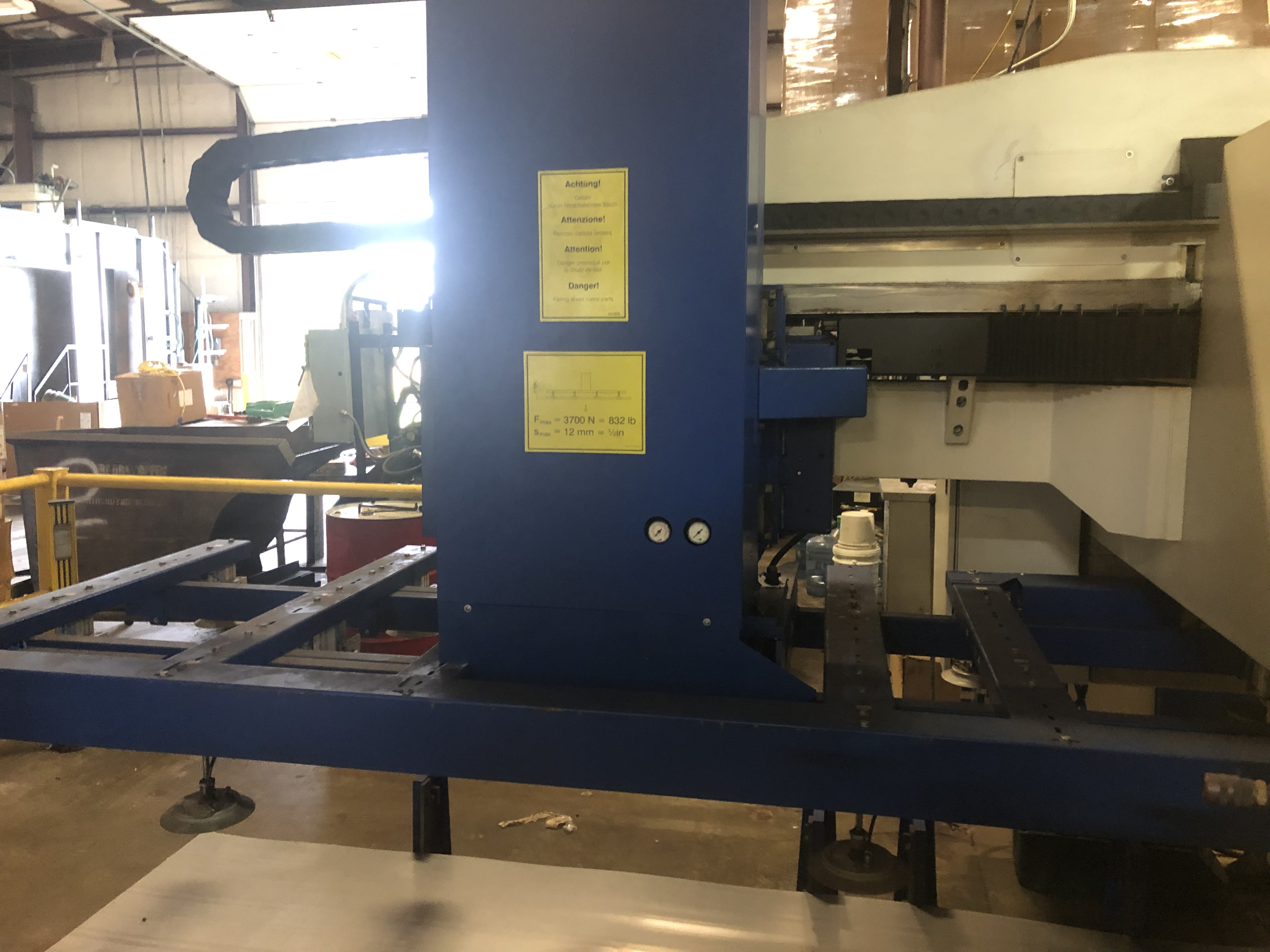

LOAD/UNLOAD SYSTEM

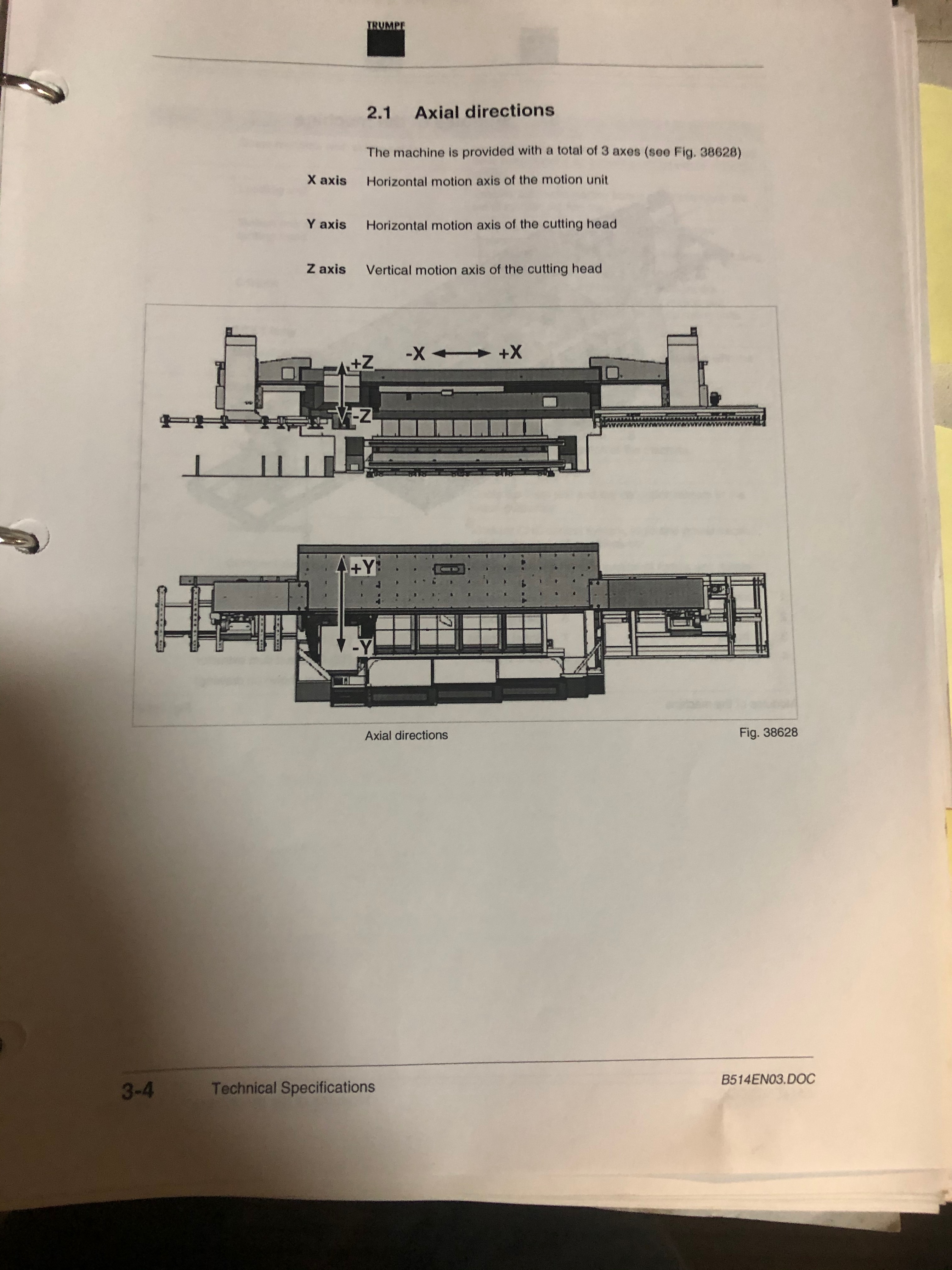

MISC MANUALS
LIGHT CURTAINS
10,137 BEAM ON HOURS
34,355 LASER ON
NEW LASER DRIVER AND COMPONENTS INSTALLED 9/18 AT A COST OF $24,000
