Specifications
Equipped With
GENERAL SPECIFICATIONS:

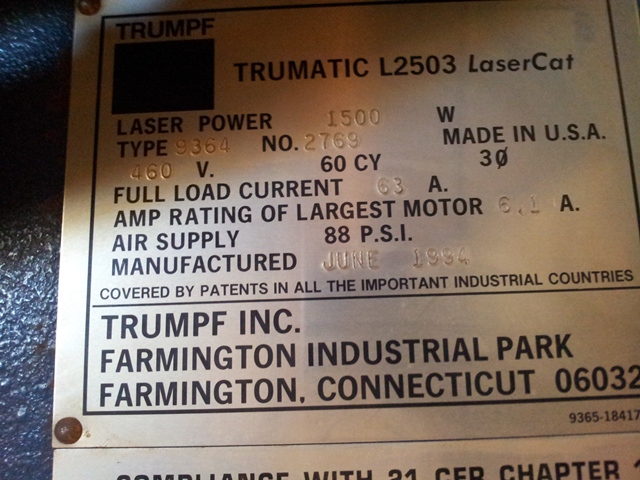

MANUFACTURER....................... TRUMPF
MODEL.............................. L2503 E2 LASERCAT
SERIAL NUMBER...................... 2769
NEW................................ 1994
PART SIZE.......................... 5' X 10'
LASER OUTPUT....................... 1500 WATT

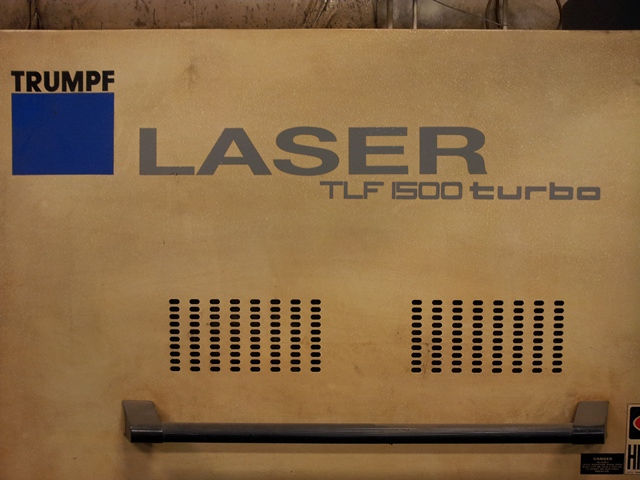

LASER TYPE......................... TLF1500 TURBO

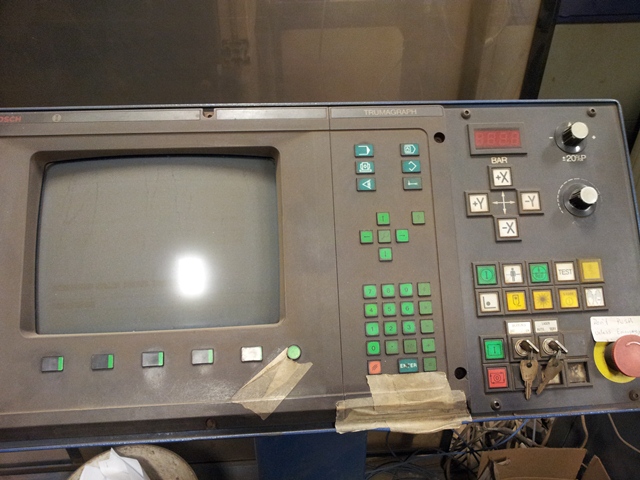

CONTROL............................ BOSCH CC220 TRUMAGRAPH
RATED CAPACITY OXYGEN.............. 1/2" CARBON STEEL
8 GAUGE STAINLESS
RATED CAPACITY NITROGEN............ 8 GAUGE STAINLESS
8 GAUGE ALUMINUM
EQUIPPED WITH:
DUAL PALLET SHUTTLE SYSTEM

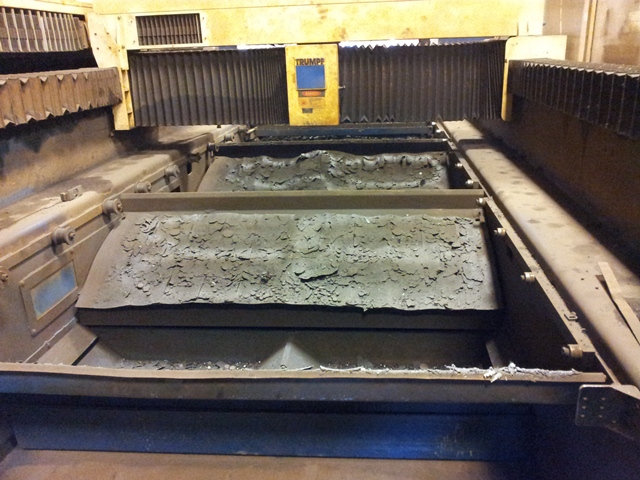

DOWN DRAFT TABLE
NITROGEN FOR STAINLESS
MISC MANUALS
LIGHT CURTAINS AROUND PALLET

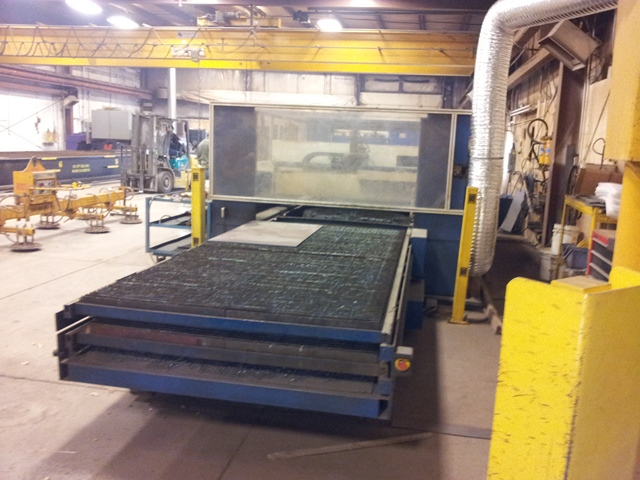

NOTE:THE MACHINE IS RUNNING IN A PLANT, IT WORKS GREAT, AND IS A SINGLE OWNER TOOL. IT CAN BE INSPECTED.
