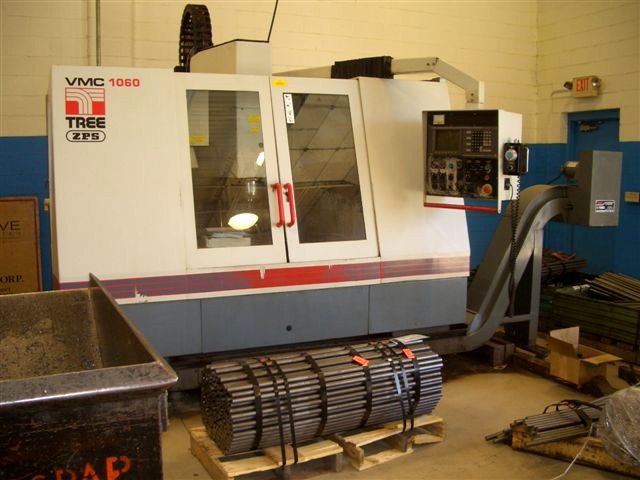

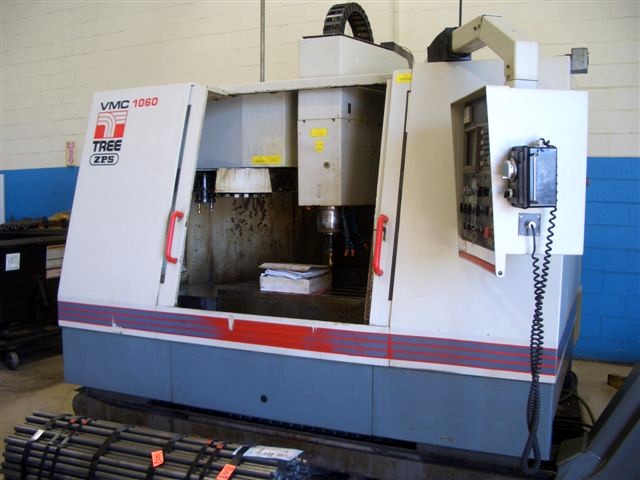

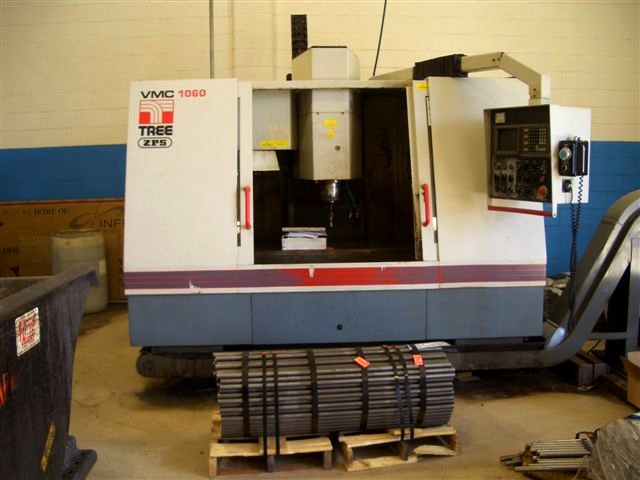

TREE VMC1060, 50" x 24" TBL, 40"-X, 24"-Y, 25"-Z, 15/20 HP, CAT 40, 24 ATC, DELTA DYNA PATH AUTOCON CTRL, 1997

GENERAL SPECIFICATIONS:
MANUFACTURER TREE
MODEL VMC1060
NEW (APPROX.) 1997
TABLE SIZE 50" x 24"
X-TRAVEL 40"
Y-TRAVEL 24"
Z-TRAVEL 25"
SPINDLE NOSE TO TABLE 3.9" - 28.9"
THROAT DEPTH 25"
CUTTING FEED RATE (X,Y,Z) 200 IPM
RAPID FEED RATE (X,Y,Z) 787 IPM
SPINDLE MOTOR 15/20 HP
SPINDLE SPEED (LOW RANGE) 20 - 2,000 RPM
SPINDLE SPEED (HIGH RANGE) 2,001 - 8,000 RPM
SPINDLE TAPER CAT 40
# OF TOOLS 24 ATC
DIMENSIONS (APPROX.) 110" x 84" x 115"H
WEIGHT (APPROX.) 17,000 LBS.

EQUIPPED WITH:

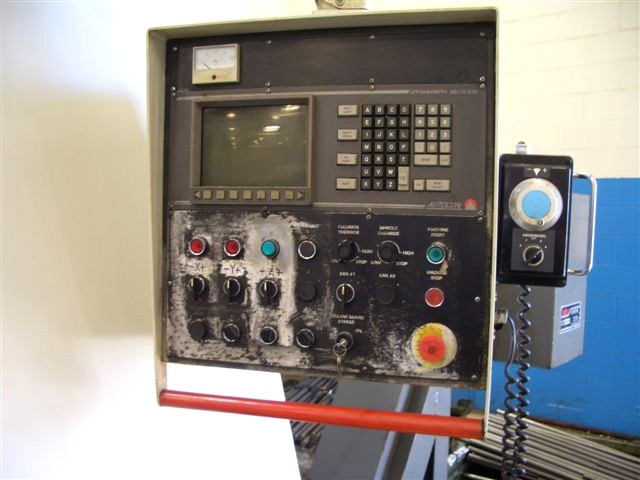

DELTA DYNA PATH AUTOCON CONTROL
BOX WAYS
CHIP CONVEYOR
COOLANT SYSTEM-SET UP FOR COOLANT THRU, NO H PRESSURE PUMP
