GENERAL SPECIFICATIONS:

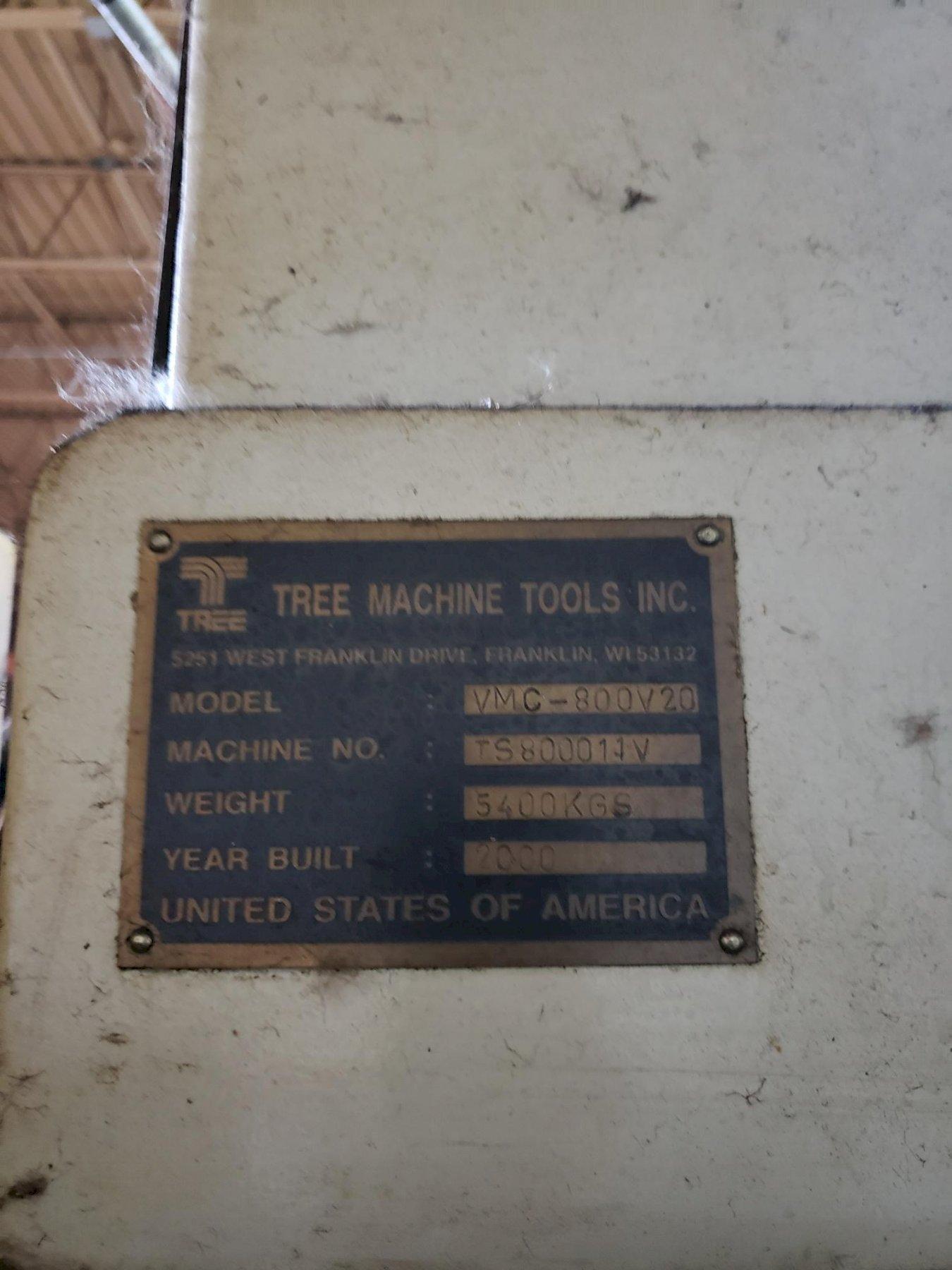

MANUFACTURER...................... TREE

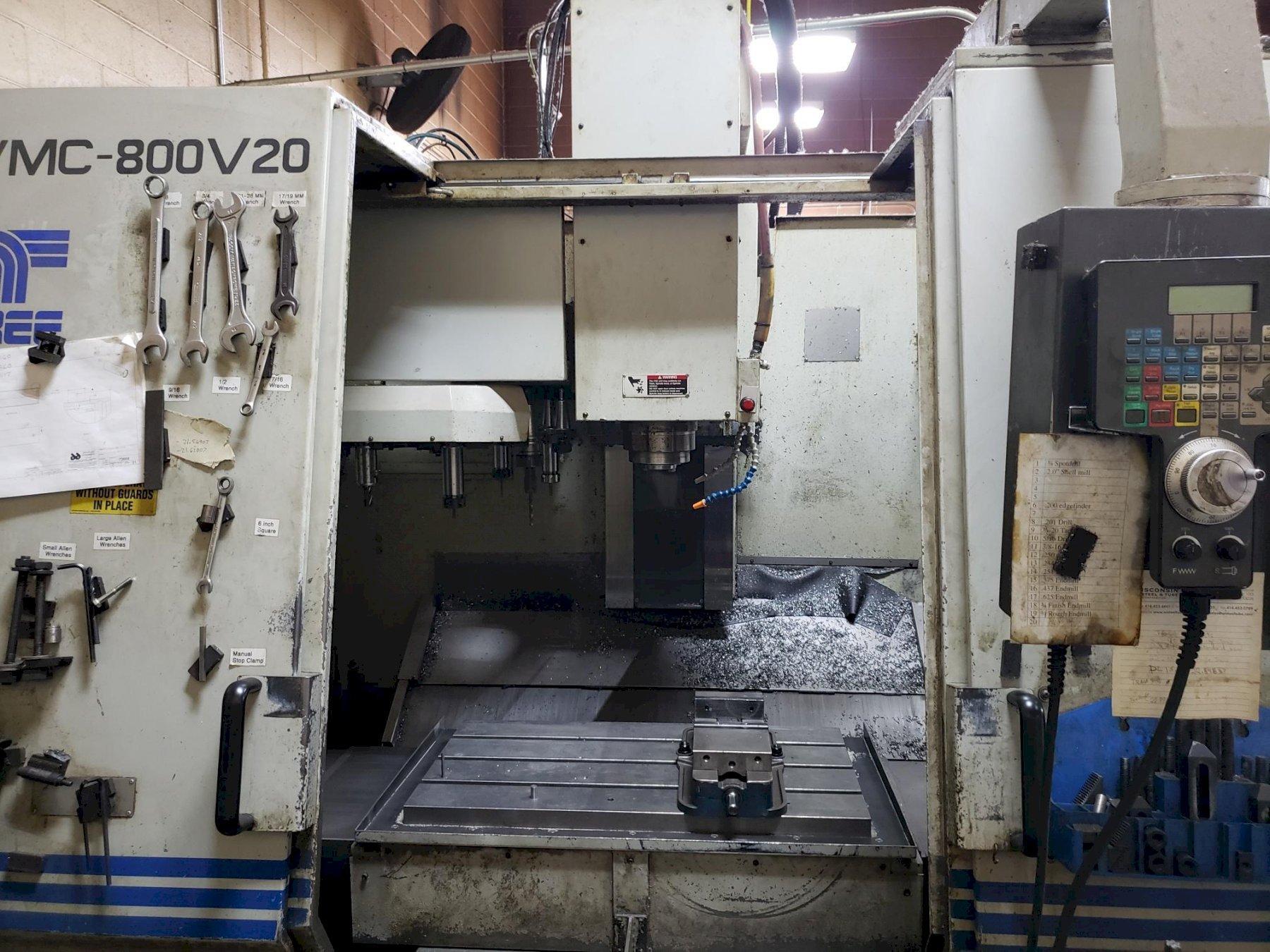

MODEL............................. VMC-800V20
AGE............................... 2000
SERIAL NUMBER..................... TS800011V
TABLE SIZE........................ 35.4" x 18.9"
MAXIMUM TABLE LOAD................ 2,200 LBS
SPINDLE NOSE TO TABLE TOP......... 5.5" - 27.6"
X AXIS TRAVEL..................... 32"
Y AXIS TRAVEL..................... 20"
Z AXIS TRAVEL..................... 22"
RAPID TRAVERSE RATE X AXIS........ 945 IPM
RAPID TRAVERSE RATE Y AXIS........ 945 IPM
RAPID TRAVERSE RATE Z AXIS........ 787 IPM
MAX. CUTTING FEED RATE............ 394 IPM
MAX. SPINDLE SPEED................ 8,000 RPM
SPINDLE TAPER..................... CAT 40
SPINDLE MOTOR (2 SPEED GEARED).... 15 HP
TOOL CHANGER CAPACITY............. 20 STATION ATC
NET MACHINE WEIGHT................ 12,000 LBS
FOOT PRINT OF MACHINE............. 87" X 130"
HEIGHT OF MACHINE................. 104.3"
EQUIPPED WITH:
SIEMENS ACRAMATIC 2100 PC BASED CNC CONTROL WITH CRT & RS-232C PORT
YASKAWA DRIVES
FULLY ENCLOSED GUARDING
ALL AVAILABLE MANUALS
