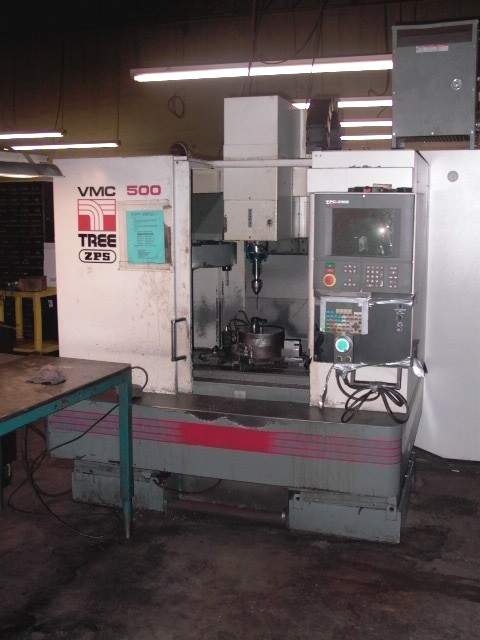

TREE VMC-500, 31" x 19" TBL, 19" TRVLS, 984 IPM, CAT 40 TAPER, 20 ATC

GENERAL SPECIFICATIONS:
MANUFACTURER TREE
MODEL VMC-500
AGE 1995
SERIAL # 1980-861007
TABLE SIZE 31.50" x 19.69"
X-AXIS TRAVEL 19.69"
Y-AXIS TRAVEL 19.69"
Z-AXIS TRAVEL 19.69"
SPINDLE NOSE TO TABLE 5.91" - 25.59"
SPINLDE CENTER TO COLUMN 20.25"
CUTTING FEED RATE 984 IPM
RAPID FEED RATE 984 IPM
MAIN SPINDLE MOTOR 10/15 HP
SPINDLE SPEED 50 - 10,000 RPM
SPINLDE TAPER CAT 40
# OF TOOLS 20
DIMENSIONS (APPROX.) 92.75" x 88.75" x 96"H
WEIGHT (APPROX.) 7,920 LBS
