Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER.............................. TREE
MODEL..................................... JOURNEYMAN
NEW APPROXIMATELY......................... 1978
SERIAL #.................................. 10916
TABLE SIZE................................ 10.5" X 48"
TRAVELS: X................................ 30"
Y................................ 12"
KNEE............................. 17.5"
QUILL............................ 6"
OVERARM.......................... 22"
RAPID TRAVERSE RATE....................... 100 IPM
MILLING FEED RANGE........................ 0.5-100 IPM
SPEED, VARIABLE........................... 50-2500 RPM
MAIN MOTOR................................ 3 HP
SPINDLE CAPACITY.......................... 1" DIA. COLLET
CENTERLINE OF SPINDLE TO COLUMN FACE...... 0-21.5"
SPINDLE NOSE TO TABLE TOP................. 0-20.5"
DIMENSIONS (APPOX.)....................... 67"Lx70"Wx80"H
WEIGHT (APPROX.).......................... 4,300 LBS.
EQUIPPED WITH:

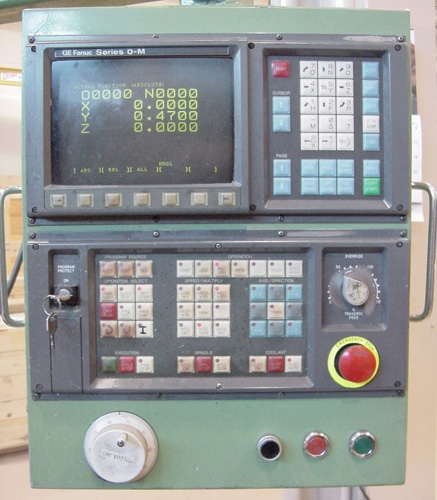

FANUC O-M 2-AXIS CNC CONTORL, (1991)
POWER VERTICAL KNEE ADJUST
BIJUR SPRAYMIST COOLANT UNIT
BIJUR AUTO-OILER
90 DEGREE HEAD TILT TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
