Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER................... SOUTHWESTERN INDUSTRIES
MODEL.......................... TRAK SB3
NEW............................ 1997
SERIAL NUMBER.................. 970004

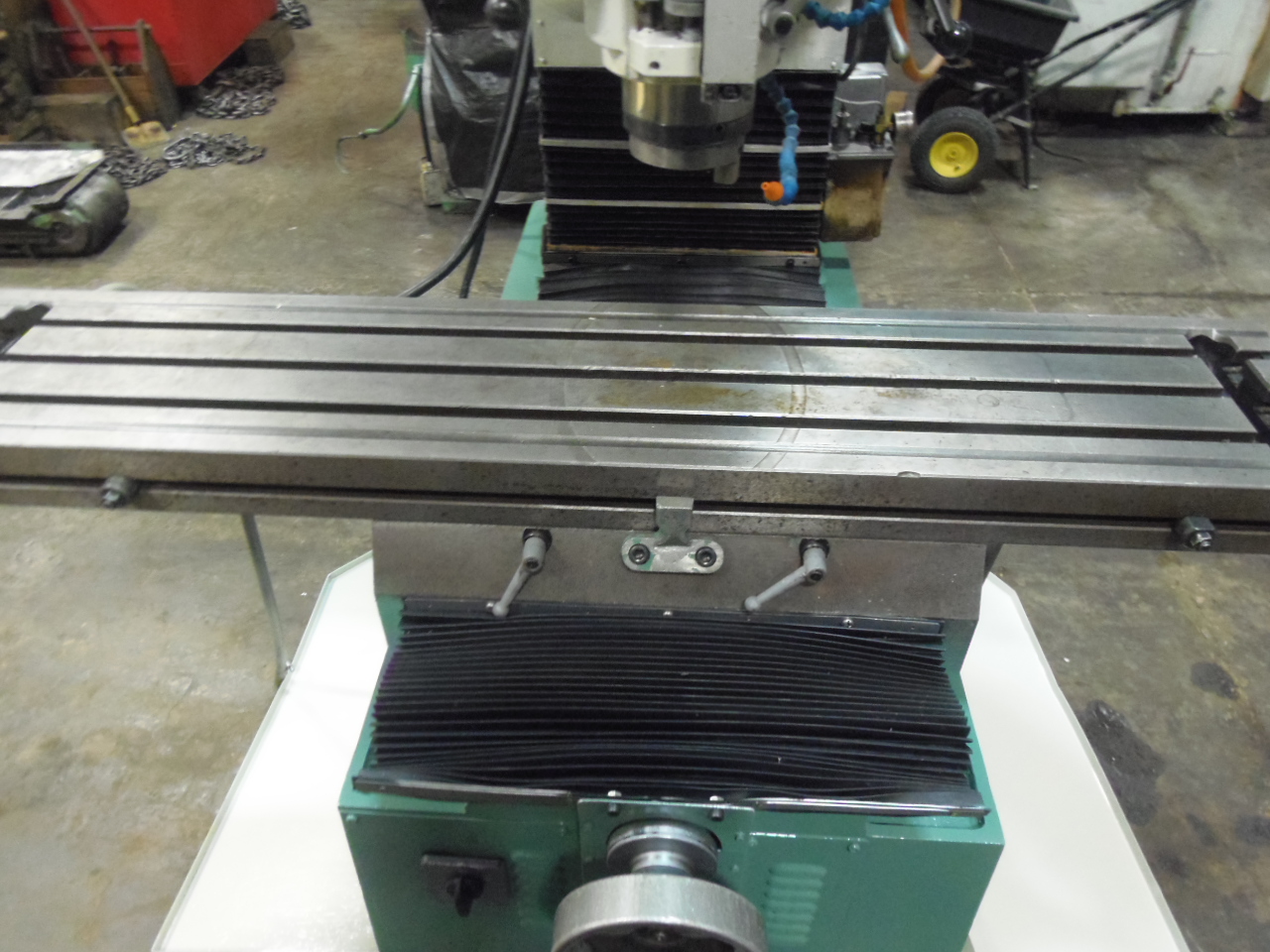

TABLE SIZE..................... 10" x 50"
X TRAVEL....................... 31"
Y TRAVEL....................... 17"
Z TRAVEL....................... 23.5"
MAX. WORK PIECE WEIGHT......... 1320 LBS
SPINDLE TAPER.................. #40 NST
SPINDLE SPEED.................. 70 - 4200 RPM
SPINDLE MOTOR.................. 3 HP
SPINDLE NOSE TO TABLE.......... 23.5"
HEAD SWIVEL (LEFT & RIGHT)..... 90 DEG.
ELECTRICS...................... 220/440/3PH/60HZ
WEIGHT (APPROX.)............... 4,400 LBS
EQUIPPED WITH:

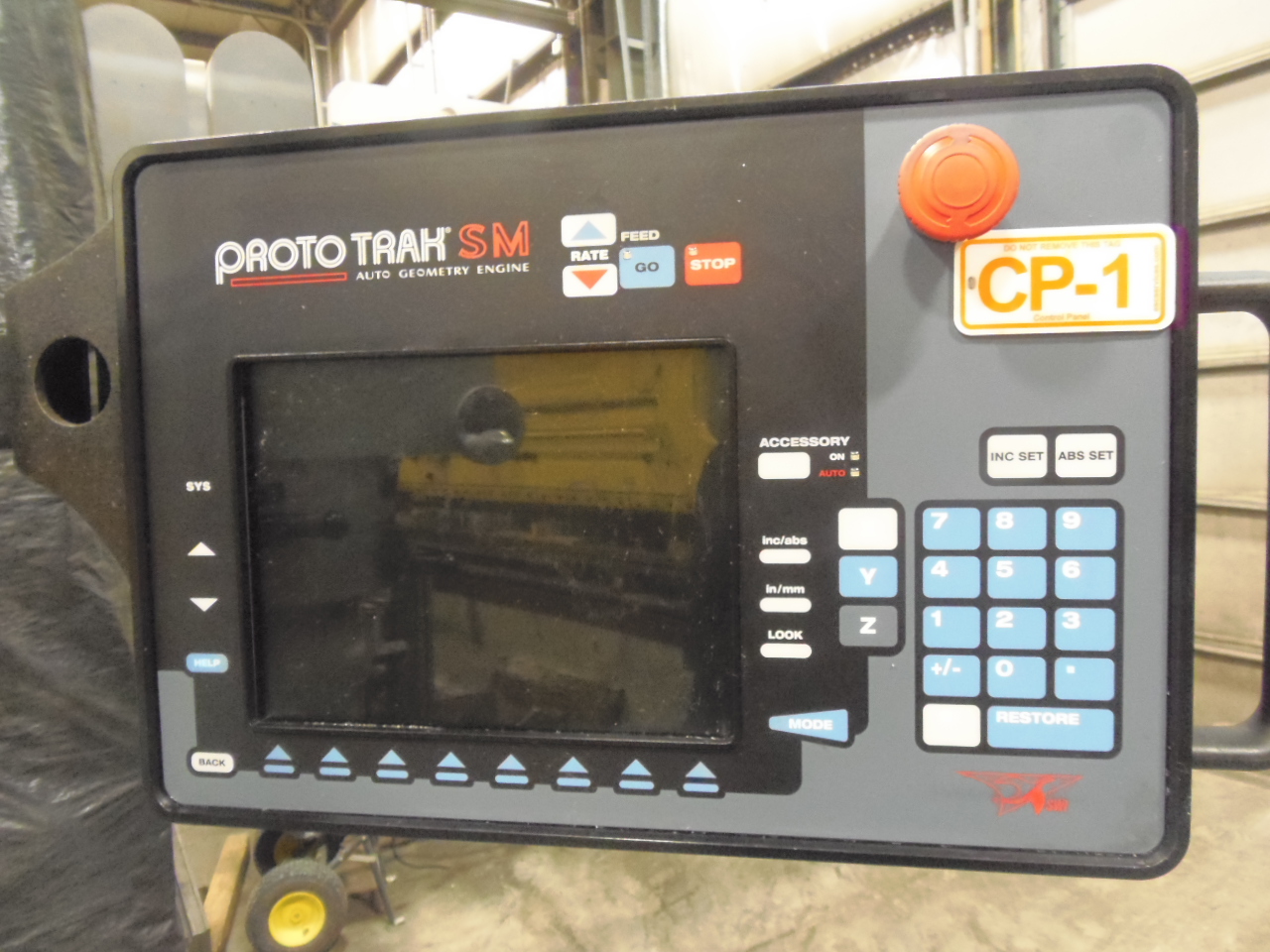

3-AXIS TRAK SM CONTROL WITH NEW PENDENT IN 2017
POWER DRAW BAR
CHIP PAN
GLASS SCALES
