Specifications
Equipped With
GENERAL SPECIFICATIONS

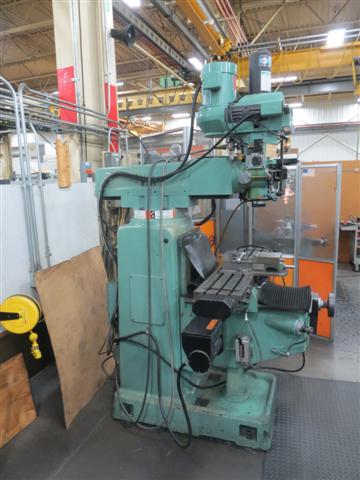

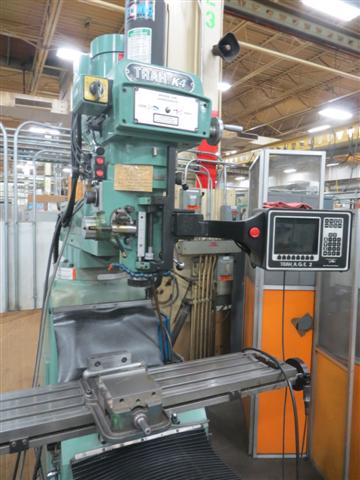

MANUFACTURER........................ TRAK (PROTO TRAK)
MODEL............................... K4
SERIAL NUMBER....................... 008BT10378
AGE................................. NEW 2000
TABLE SIZE.......................... 10" X 50"
TABLE TRAVELS....................... 16.5" X 36"
KNEE TRAVELS........................ 16.5"
QUILL TRAVELS....................... 5"
MAX WEIGHT.......................... 850 LBS
TAPER............................... NST 40
SPINDLE HORSEPOWER.................. 5
CONTROL............................. TRAK AGE 2
RAPID RATES......................... 100 IPM
APPROX. WEIGHT...................... 4,000 LBS
EQUIPPED WITH:
PENDENT CONTROL
POWER DRAW BAR
MISC. TOOL HOLDERS
MISC. MANUALS
CONTROL HAS CANNED CYCLES, AUT0 GEOMETRY ENGINE, CUTTER, CIRCULAR, AND LINEAR COMPENSATION, 9" CRT, RS232, FLOPPY DISC, CLOSED LOOP FEEDBACK,MATH HELP,PART GRAPHICS, MIRROR IMAGE AND ROTATION, ETC.
