Specifications
Equipped With
GENERAL SPECIFICATIONS:

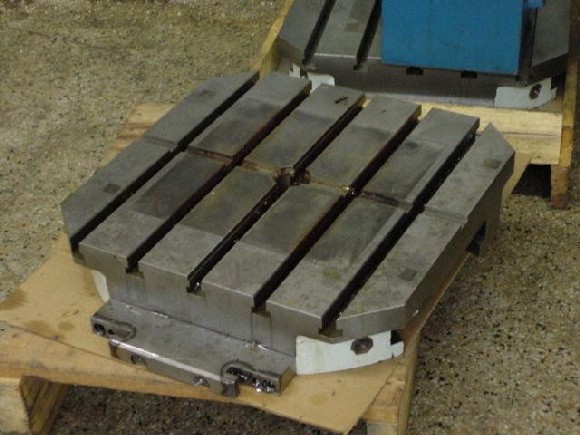

PALLET SIZE 21.65" x 21.65"
PALLET CHANGE TIME 13 SECONDS
MAXIMUM TABLE LOAD 1,760 LBS
SPINDLE NOSE TO PALLET CENTER 5.9" - 27.9"
SPINDLE CENTER TO PALLET SURFACE 1.9" - 29.9"
X AXIS TRAVEL 28"
Y AXIS TRAVEL 22.1"
Z AXIS TRAVEL 28"
B AXIS INDEXING 0.001º
RAPID TRAVERSE RATE X, Y & Z AXES 591 IPM
CUTTING FEED RATE 0.1 - 213 IPM
SPINDLE SPEEDS 20 - 5,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 20 HP AC
TOOL CHANGER CAPACITY 120 STATION ATC
MAXIMUM TOOL WEIGHT 44 LBS
MACHINE SERIAL NUMBERS NM6779 & NM7021
EQUIPPED WITH:
GE FANUC 15M CNC CONTROL WITH 15" COLOR CRT
EIMELDINGEN / TOYODA 18 STATION PALLET TRANSFER SYSTEM
RIGID TAPPING, 120 STATION ATC ON EACH MACHINE
COOLANT THROUGH THE SPINDLE, TORIT MIST COLLECTION
INTERNAL CHIP AUGER & EXTERNAL CHIP CONVEYOR
SPINDLE CHILLER (SPINDLE OIL COOLING), RENISHAW PROBING
APPROXIMATELY 20 PIECES (EACH MACHINE) CAT 50 TOOLING
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
