Specifications
Equipped With
GENERAL SPECIFICATIONS:

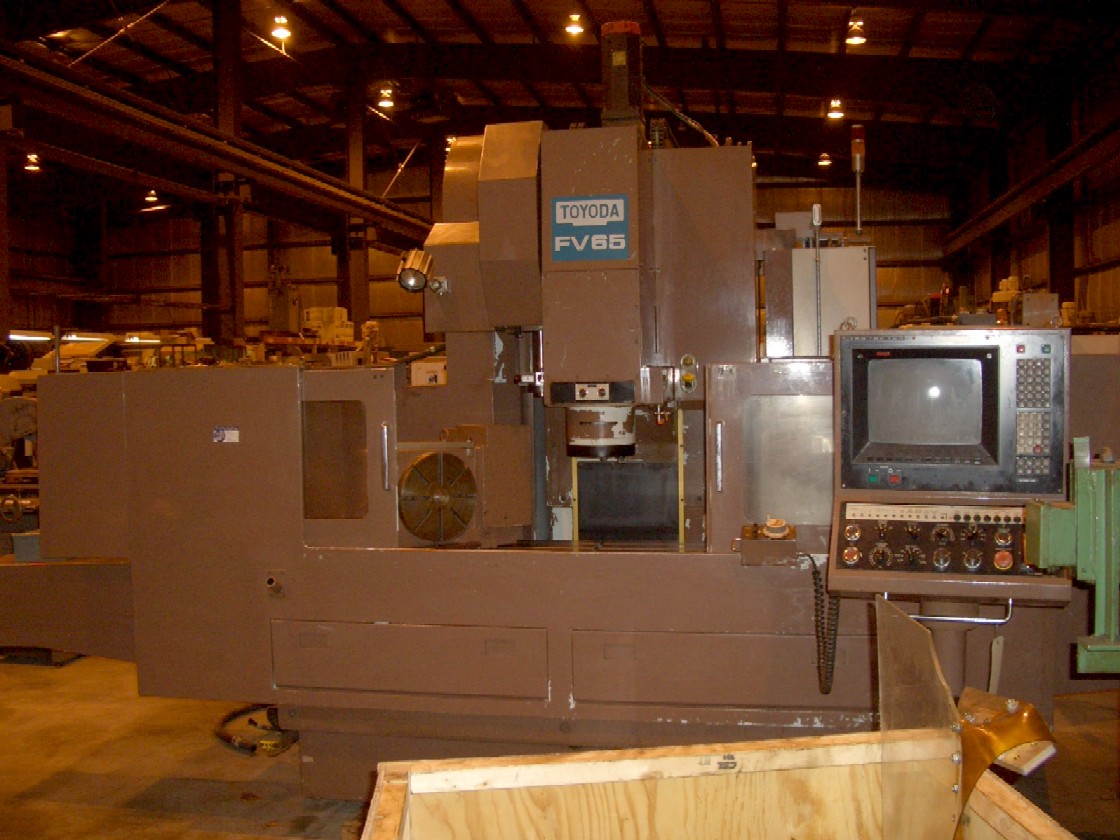

MANUFACTURER TOYODA
MODEL FV65
NEW (APPROX.) 1987
SERIAL # NF2276
TABLE SIZE 26" x 56"
X-AXIS TRAVEL 50"
Y-AXIS TRAVEL 25.6"
Z-AXIS TRAVEL 24"
SPINDLE TAPER 50
TABLE LOAD CAPACITY 4,400 LBS.
SPINDLE NOSE TO TABLE TOP 7.9" - 31.9"
RPM RANGE 20 - 4000 RPM
SPINDLE DRIVE MOTOR 20/15 HP
WEIGHT (APPROX.) 27,600 LBS.
EQUIPPED WITH:

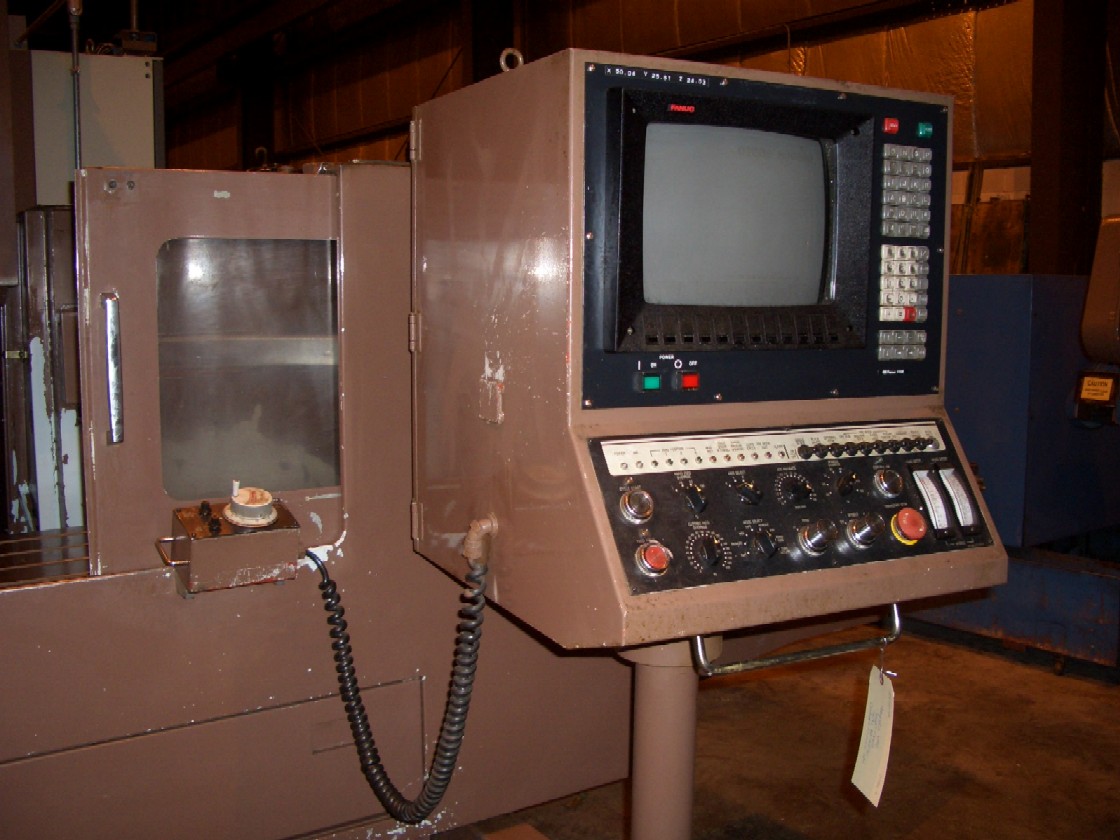

FANUC 11M CNC CONTROL
WORK COORDINATE SYSTEM
TOOL LENGTH COMPENSATION
PART PROGRAM STORAGE AND EDITING
CUSTOM MACRO
EXTERNAL DATA INPUT/OUTPUT
HELICAL INTERPOLATION
RS232C
CUTTER COMPENSATION

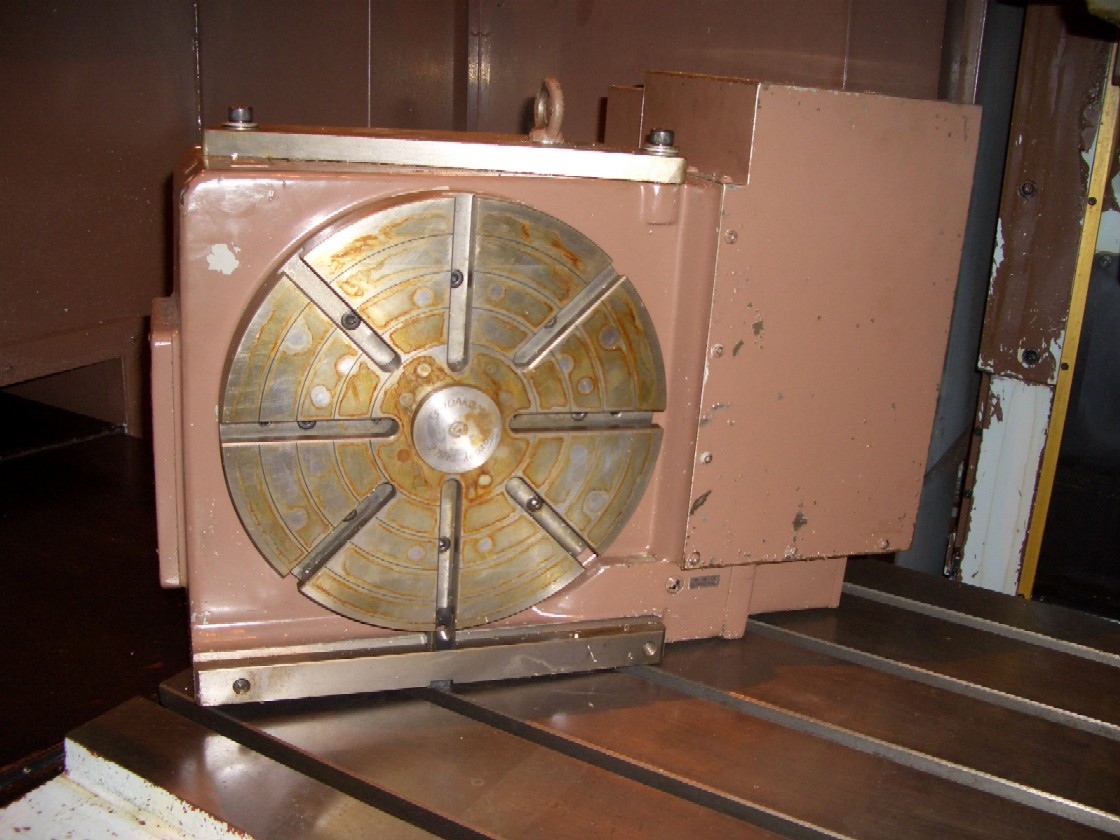

TSUDAKOMA 4TH AXIS ROTARY TABLE
FANUC SERVO MOTORS
CHIP CONVEYOR
ASSORTED MANUALS
