TOYODA FHN80T, 39.4"-X, 35.4"-Y, 31.5"-Z, CAT 50 TAPER, 31.5"x31.5" PALLET, 450 IPM, FANUC 11M CTRL

GENERAL SPECIFICATIONS:
MANUFACTURER TOYODA
MODEL FHN80T
SERIAL # NM6128
NEW (APPROX.) 1985
PALLET SIZE 31.5" x 31.5"
X TRAVEL 39.4"
Y TRAVEL 35.4"
Z TRAVEL 31.5"
SPINDLE TAPER 50
TOOLCHANGER CAP. (24 WORKING) 48
PALLET INDEXING 1 DEGREE
SPINDLE SPEED 20 - 4000 RPM
SPINDLE MOTOR 20/15 HP
RAPID FEED RATE 450 IPM
DIMENSIONS (APPROX.) 160" x 183"
WEIGHT (APPROX.) 35,000 LBS.

EQUIPPED WITH:

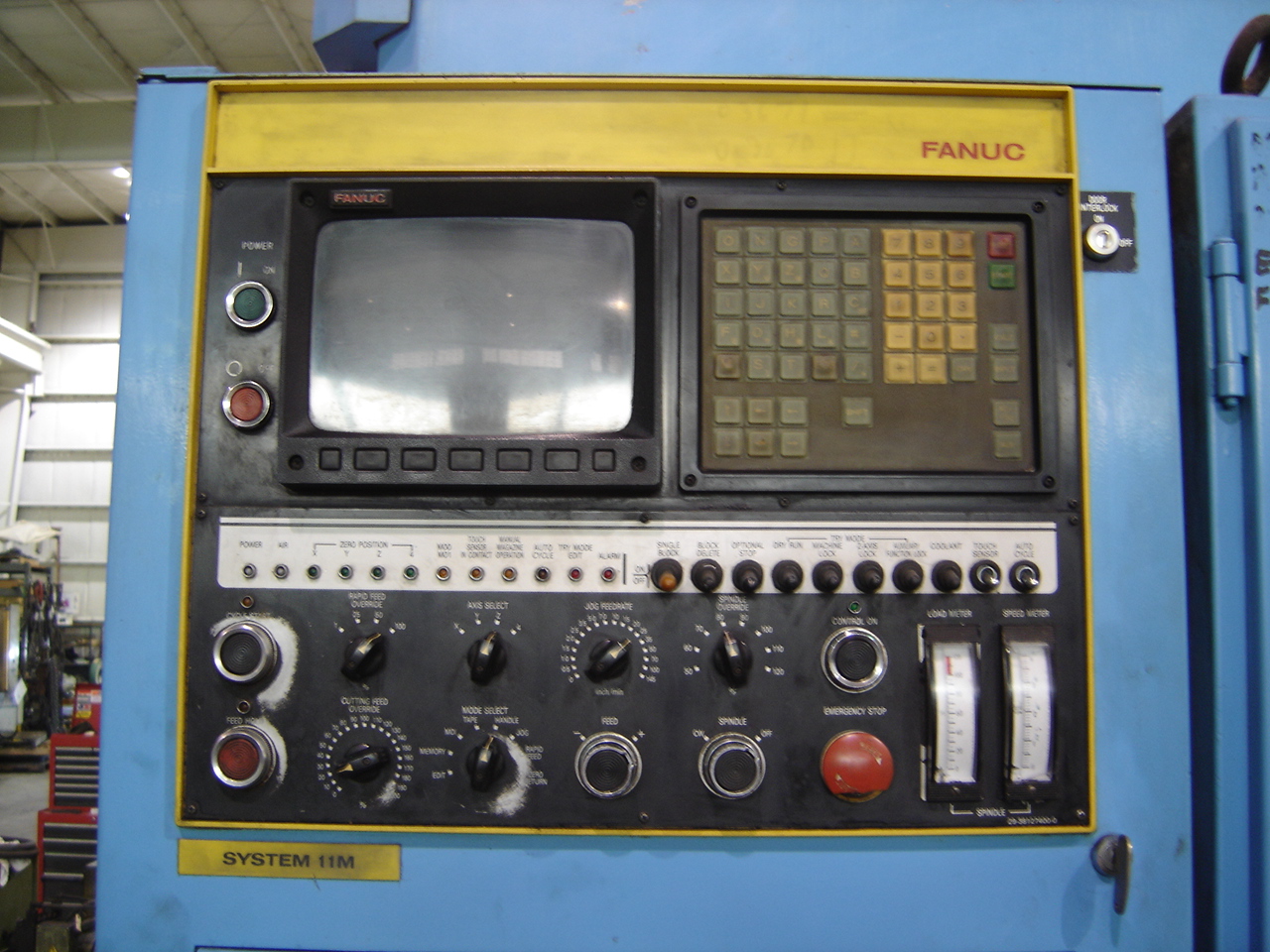

FANUC 11M CONTROL
DUAL PALLET CHANGER WITH EXTRA PALLET

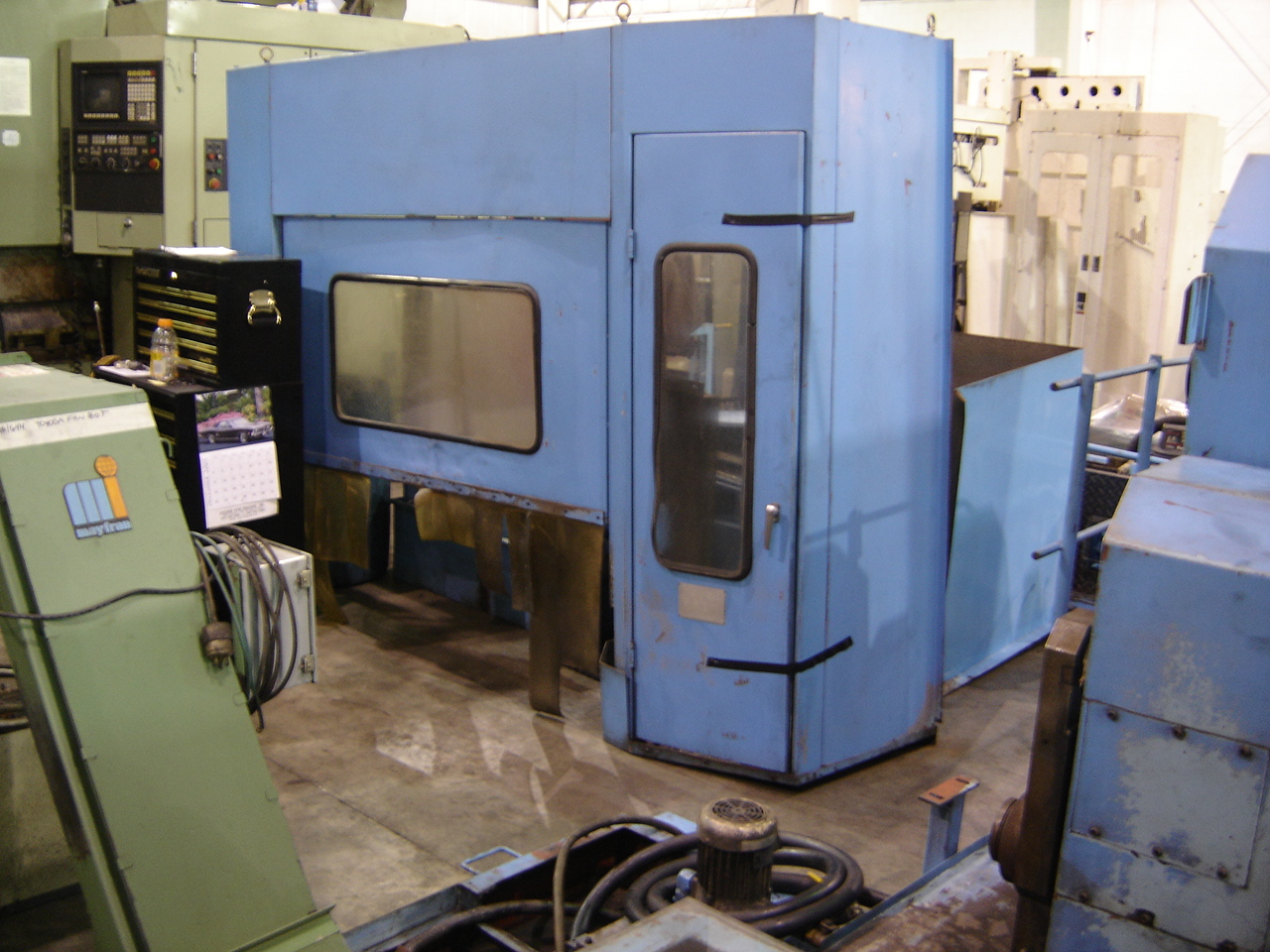

FULL ENCLOSURE
COOLANT SYSTEM
OILMATIC OIL TEMP REGULATOR
CURRENTLY IN A REBUILDERS SHOP
