Specifications
Equipped With
GENERAL SPECIFICATIONS:
PALLET SIZE 24.8" X 24.8"
MAXIMUM TABLE LOAD 2640 LBS
SPINDLE NOSE TO PALLET CENTER 10.43 X 38.39"
SPINDLE CENTER TO PALLET SURFACE 5.91" X 39.37"
X AXIS TRAVEL 39.37"
Y AXIS TRAVEL 33.46"
Z AXIS TRAVEL 27.95"
B AXIS INDEXING 360,000 POSITIONS
RAPID TRAVERSE RATE X, Y & Z AXES 393 IPM
CUTTING FEED RATE 0.1 - 141 IPM
SPINDLE SPEEDS 20-3150 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 45 HP AC

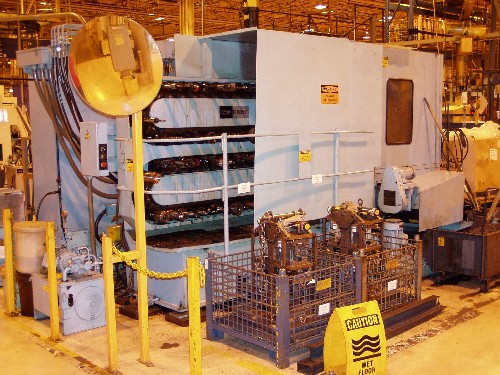

TOOL CHANGER CAPACITY 64 STATION ATC
EQUIPPED WITH:
FANUC 11M CNC CONTROL WITH 9" CRT & RS-232C PORT
FULLY ENCLOSED SPLASH GUARDING, ALL AVAILABLE MANUALS
MACHINE WEIGHT 24,300 LBS
Z WAYS RETURCITED IN 2000
