Specifications
Equipped With
GENERAL SPECIFICATIONS:

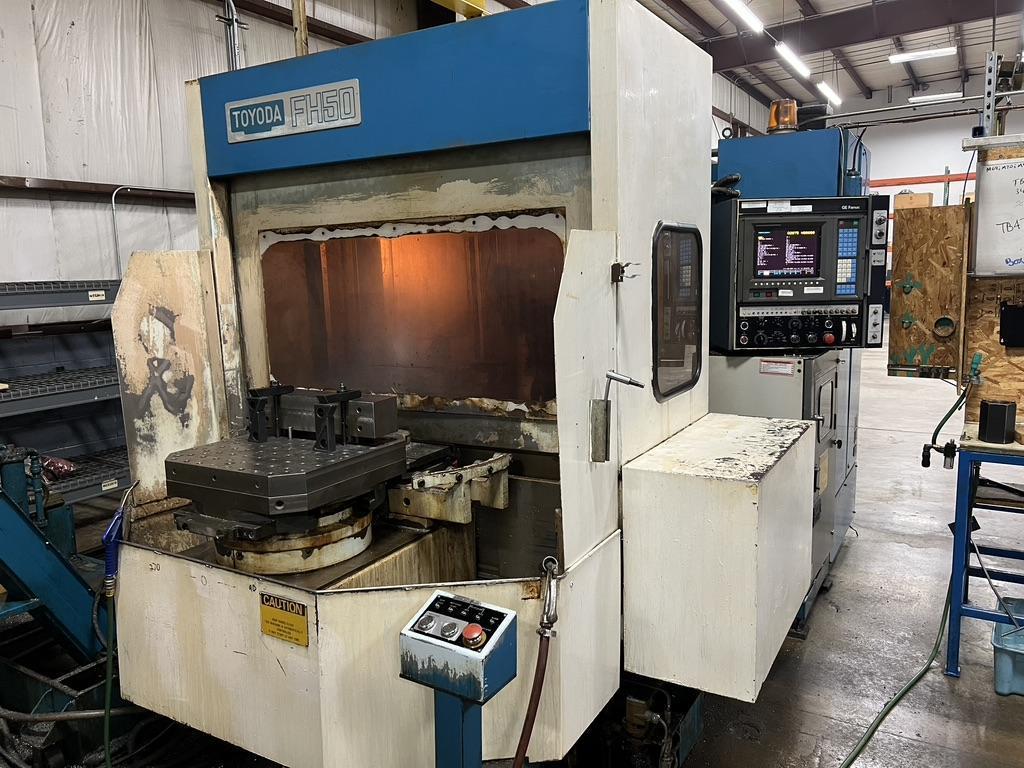

MAKE:.................... TOYODA
MODEL: .................. FH-50
CONTROL ................. FANUC 15
YEAR: ................... 2004
DUAL PALLET SIZE: ....... 19.7"
PALLET ROTATION: ........ 1 DEGREE
X TRAVELS: .............. 27.8 IN.
Y TRAVELS: .............. 22 IN.
Z TRAVELS: .............. 22 IN.

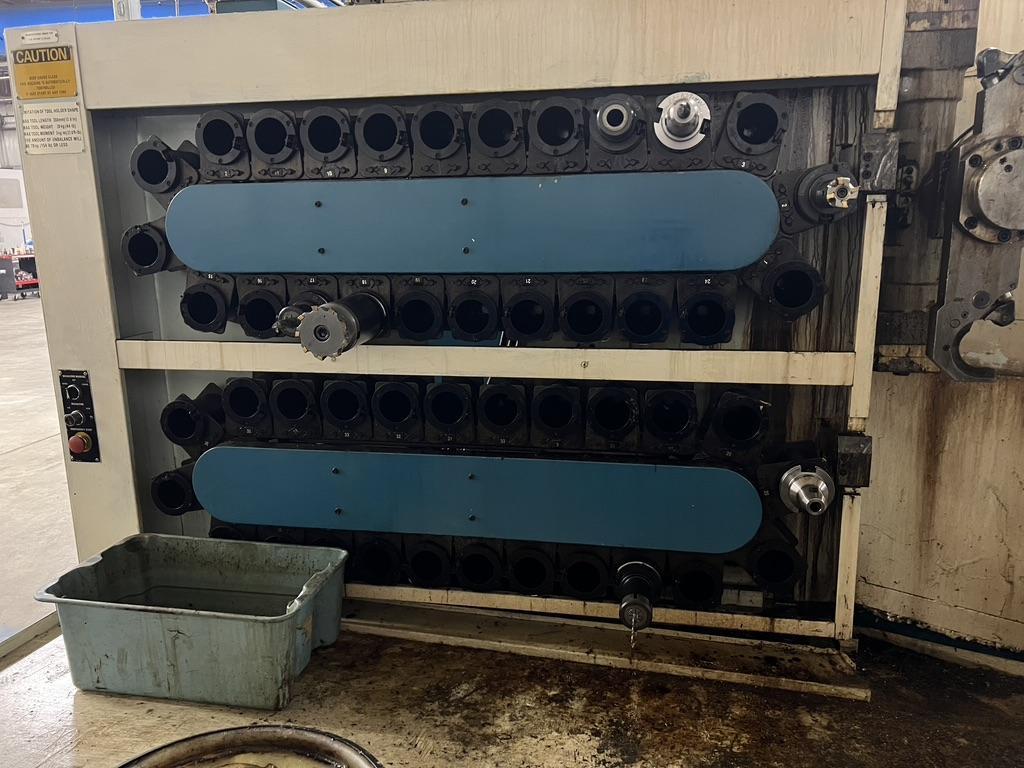

TOOL CHANGER: ........... 48 ATC
SPINDLE TAPER: .......... 50 BT
MAX SPINDLE RPM: ........ 5,000
SPINDLE MOTOR HP......... 25
MACHINE WEIGHT........... 24,000 LBS
EQUIPPED WITH:
FANUC 15M CONTROL (REPLACED 2019)

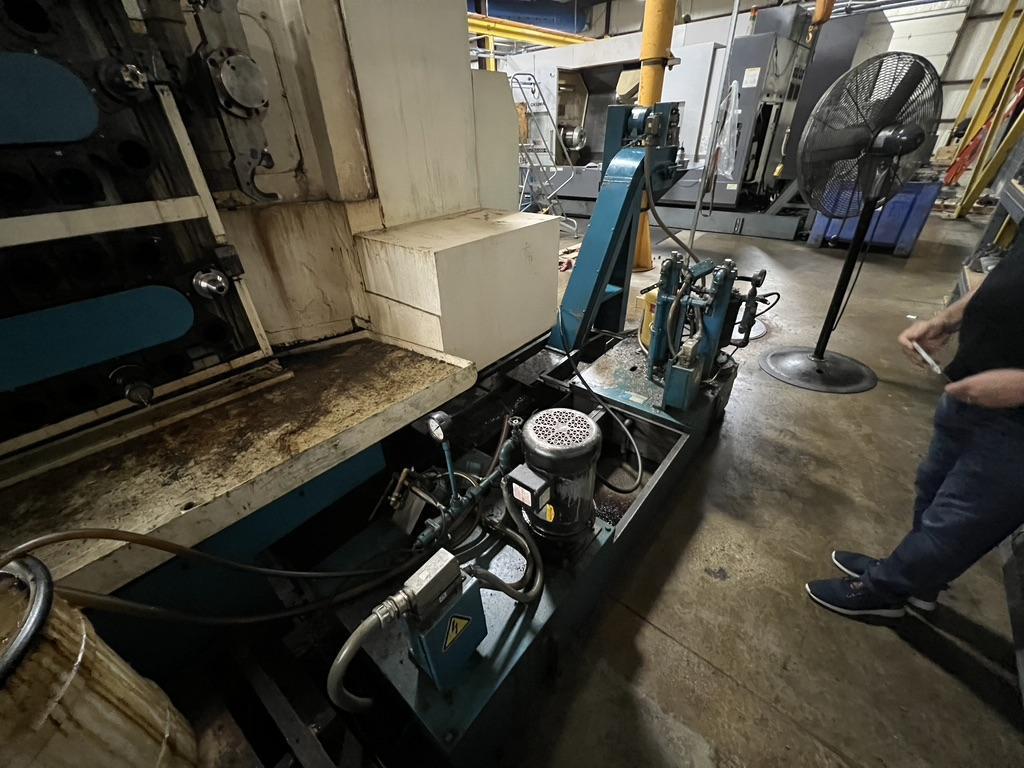

COOLANT SYSTEM
DUAL PALLET
CHIP CONVEYOR
***
SPECIFICATIONS SUBJECT TO VERIFICATION
