Specifications
Equipped With
GENERAL SPECIFICATIONS:

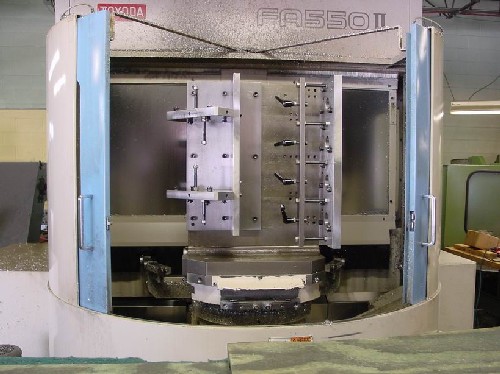

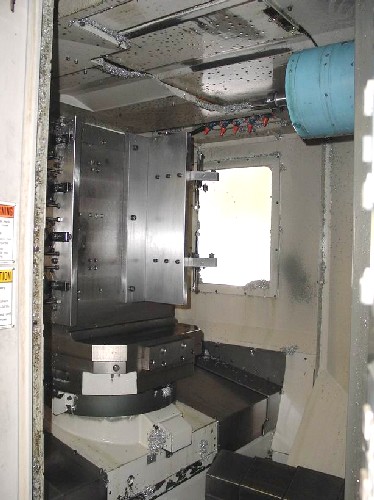

PALLET SIZE 21.65" x 21.65"
PALLET CHANGE TIME 7 SECONDS
MAXIMUM TABLE LOAD 1,760 LBS
SPINDLE NOSE TO PALLET CENTER 5.9" - 29.52"
SPINDLE CENTER TO PALLET SURFACE 2.0" - 31.5"
X AXIS TRAVEL 29.52"
Y AXIS TRAVEL 29.52"
Z AXIS TRAVEL 23.62"
B AXIS INDEXING 1 DEG.
RAPID TRAVERSE RATE X, Y & Z AXES 1471 IPM
CUTTING FEED RATE 0.1 - 1471 IPM
SPINDLE SPEEDS 50 - 14,000 RPM
SPINDLE TAPER CAT 50
SPINDLE MOTOR 30 HP AC
TOOL CHANGER CAPACITY 60 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 2.0 SECONDS
EQUIPPED WITH:
FANUC 16iM CNC CONTROL WITH 10.4" LCD CRT
RS-232C PORT INTERFACE FOR DNC OPERATION
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
COOLANT THROUGH THE SPINDLE (220 PSI)
1280 METERS PROGRAM STORAGE MEMORY
BARNES COOLANT FILTRATION SYSTEM FOR ALUMINUM
EXTERNAL LIFT-UP TYPE CHIP CONVEYOR
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
