Specifications
Equipped With

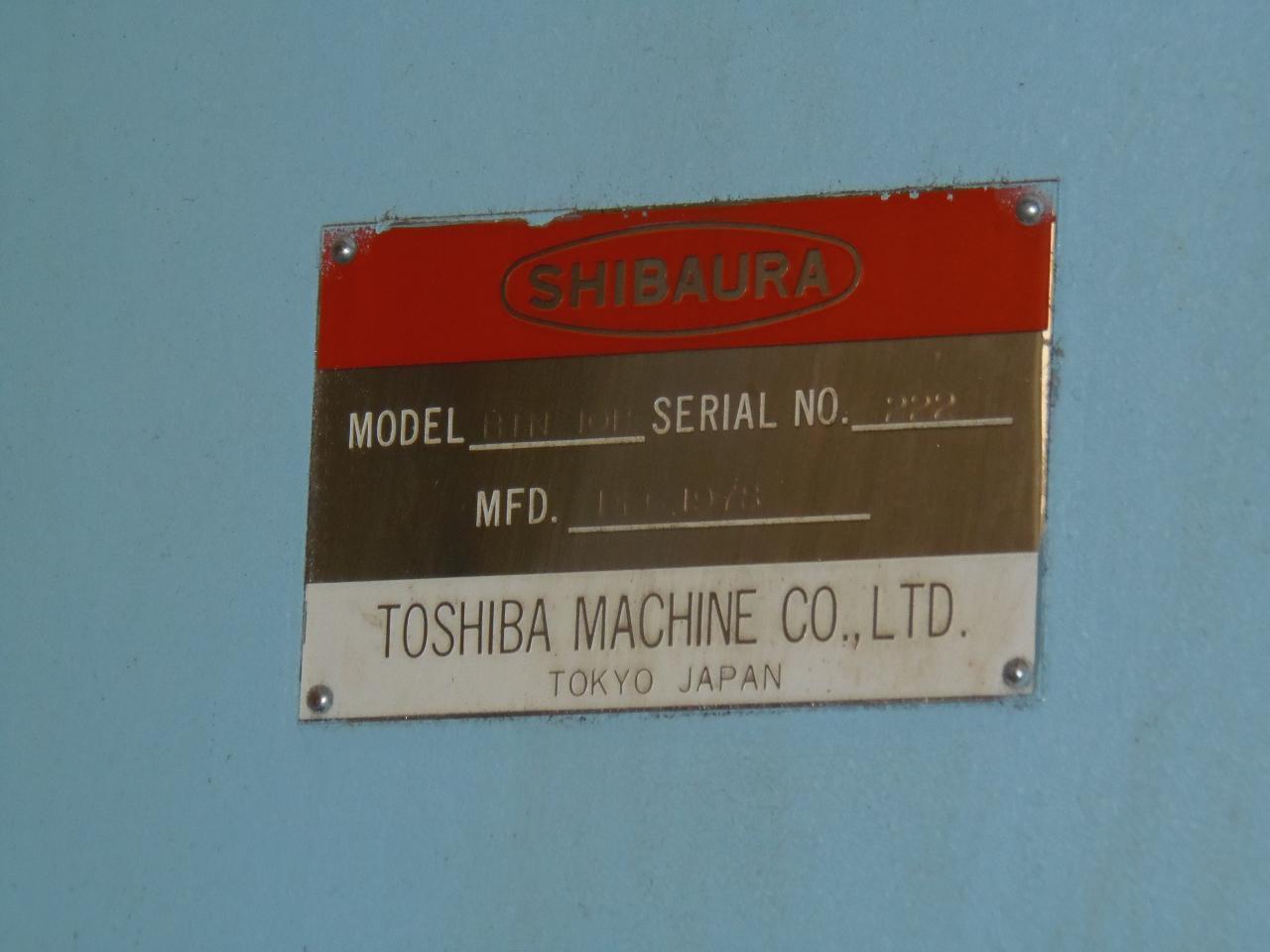

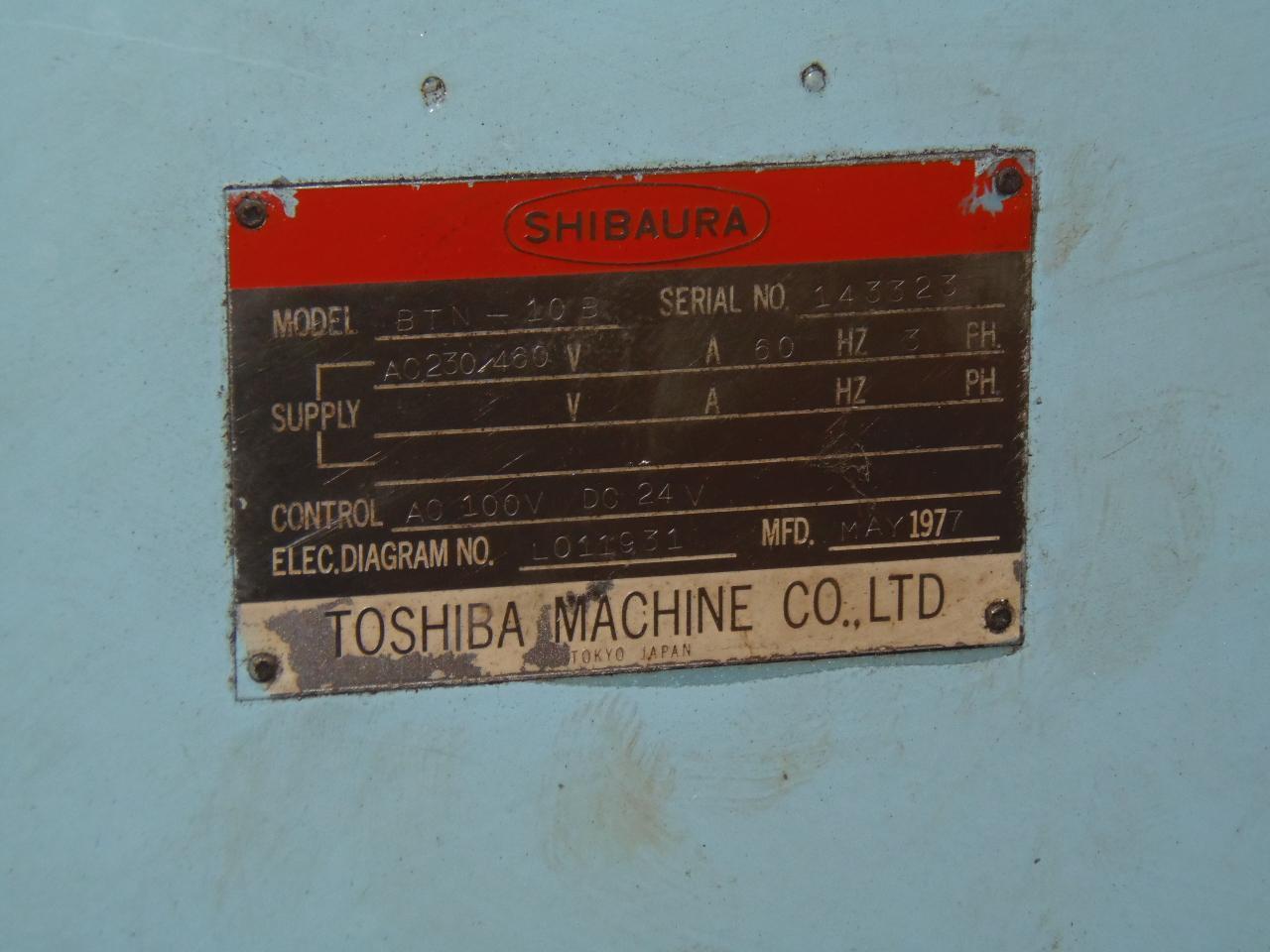

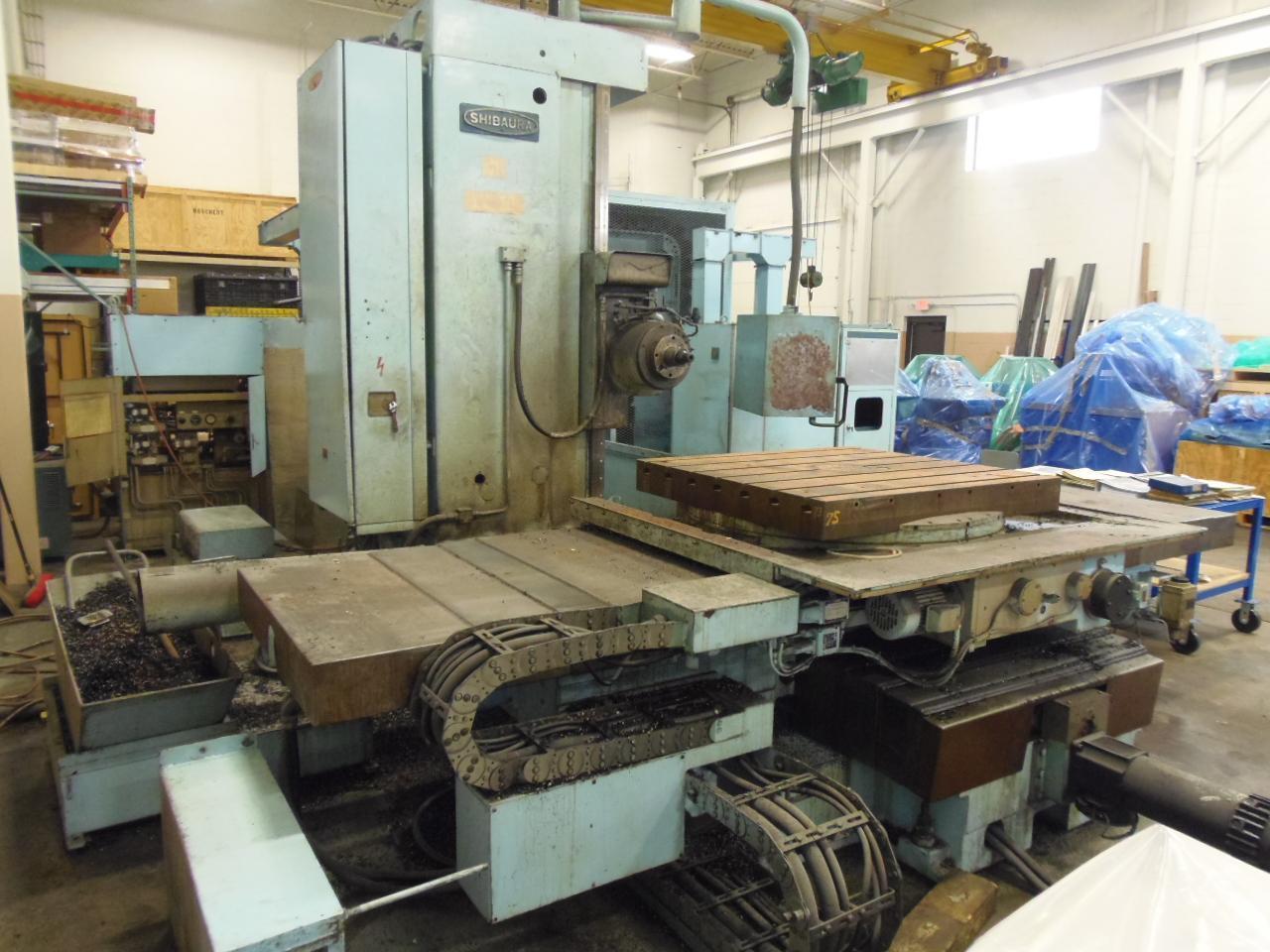

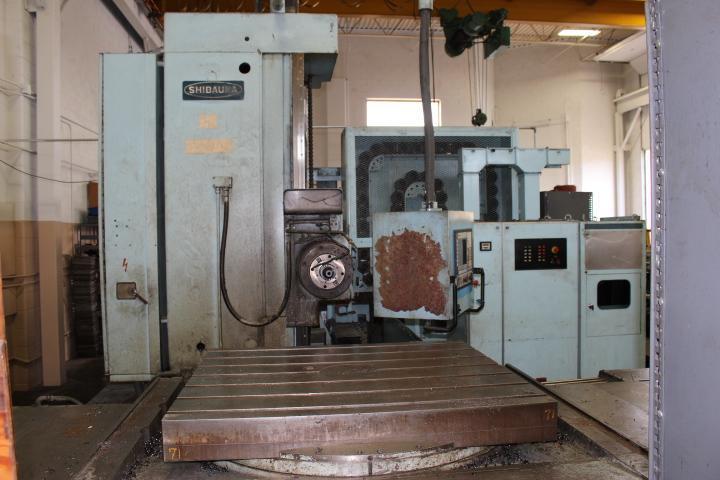

Manufacturer..................................... Toshiba Shibaura

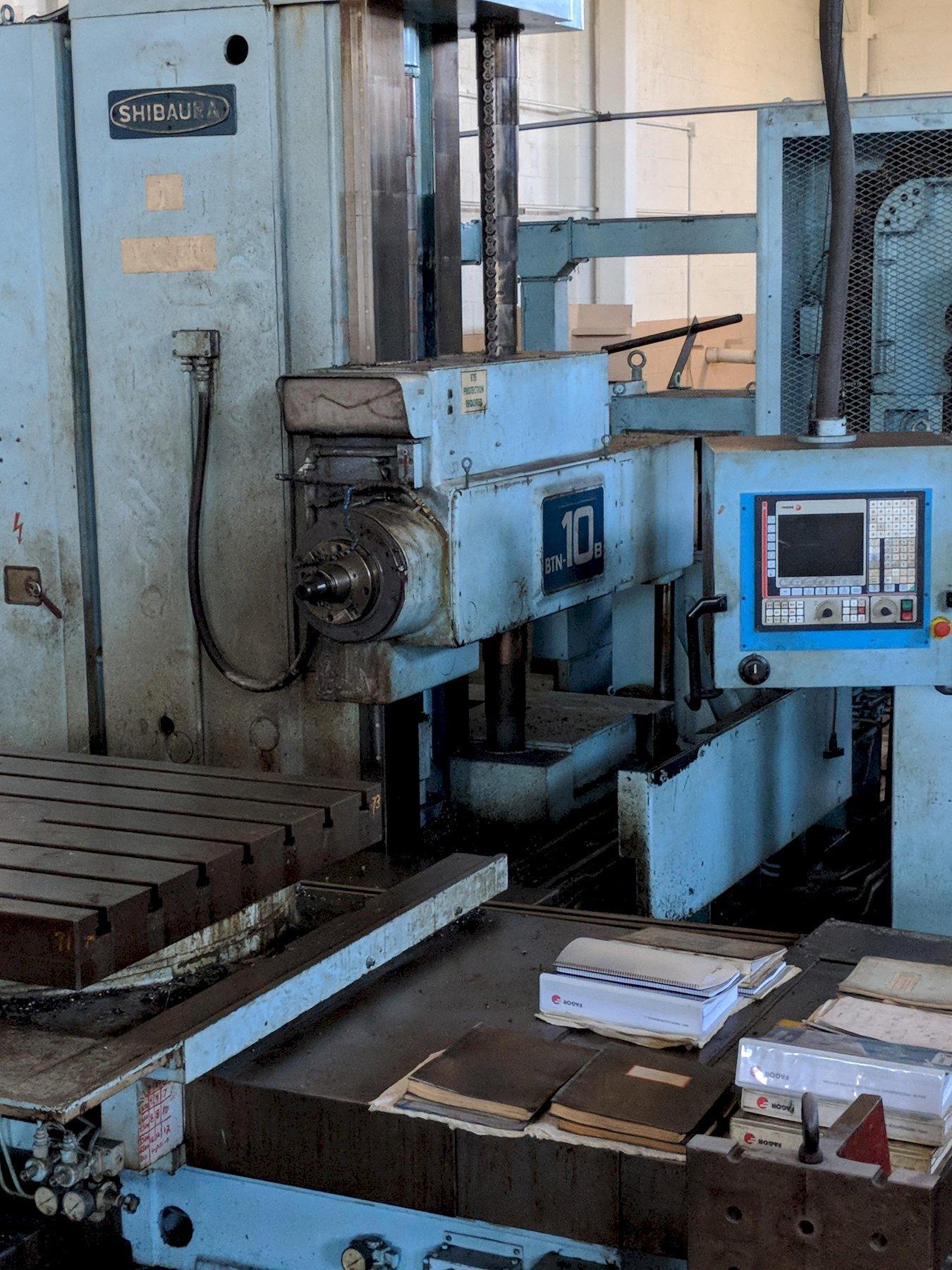

Model............................................ BTN-10B
Age.............................................. 1977/retrofitted 2012
Serial Number.................................... 143323

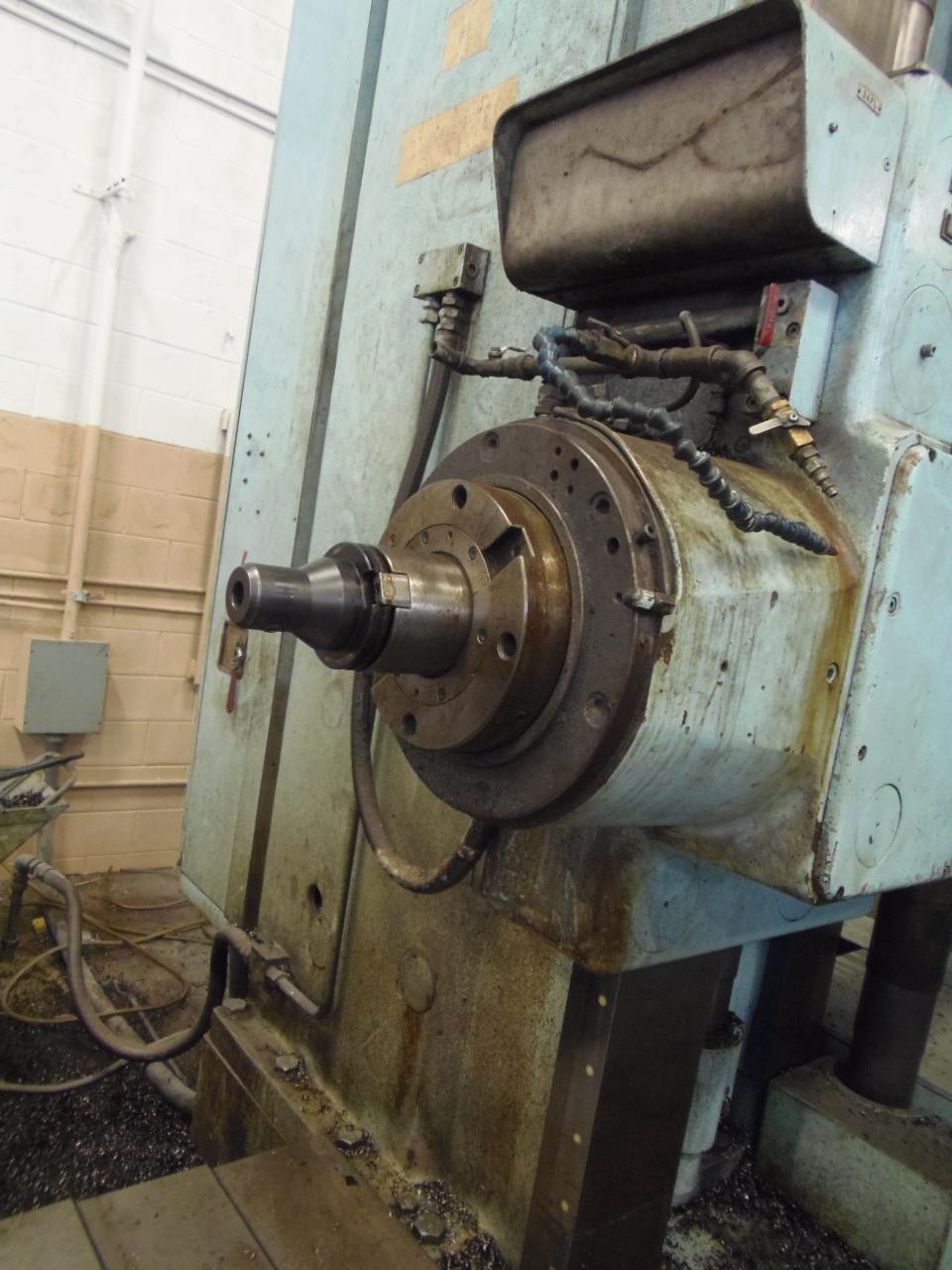

Spindle ......................................... 3.94”
Spindle Taper ................................... 50 Taper

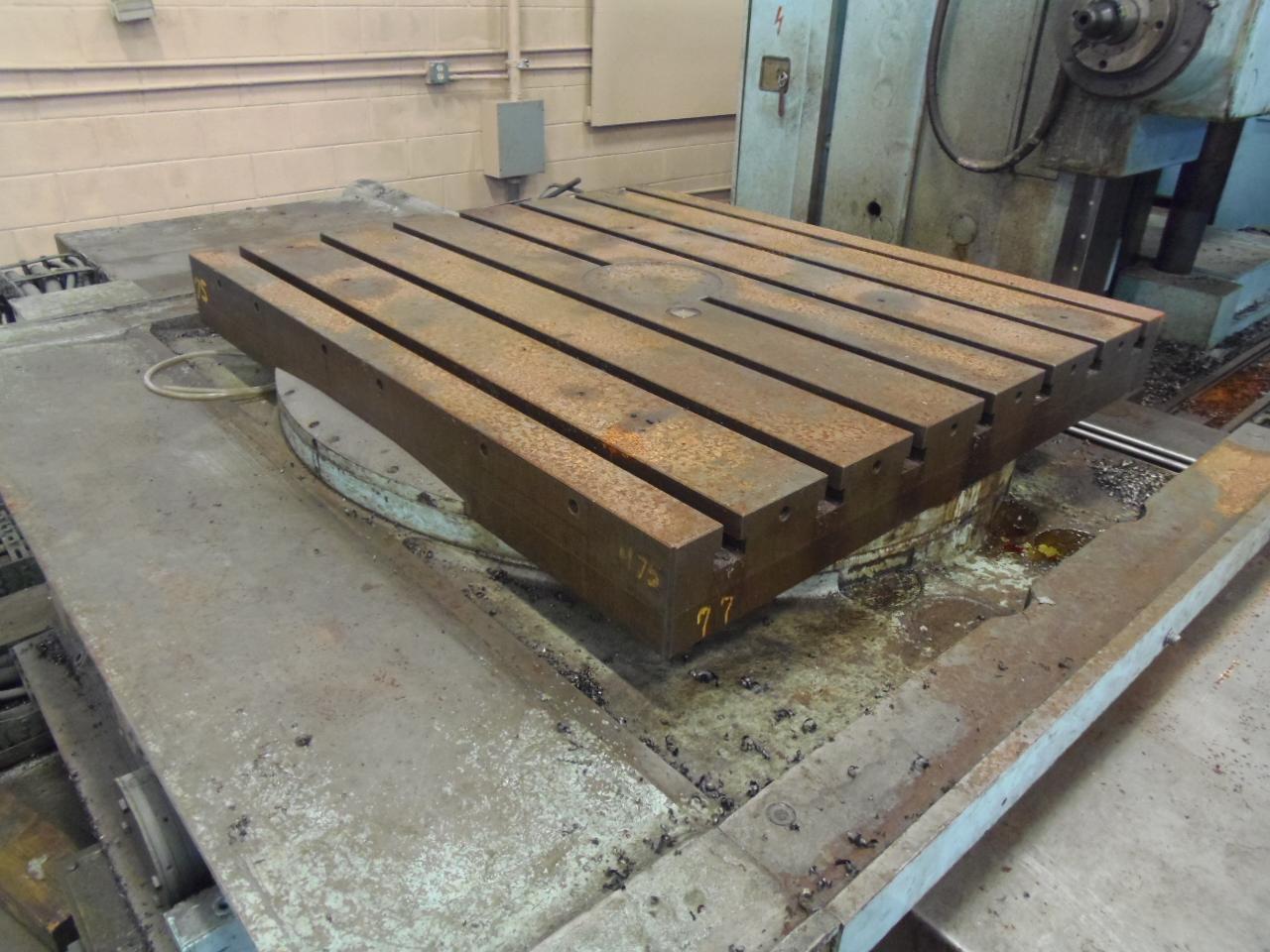

Size of T-slotted Index Table ................... 44” x 49”

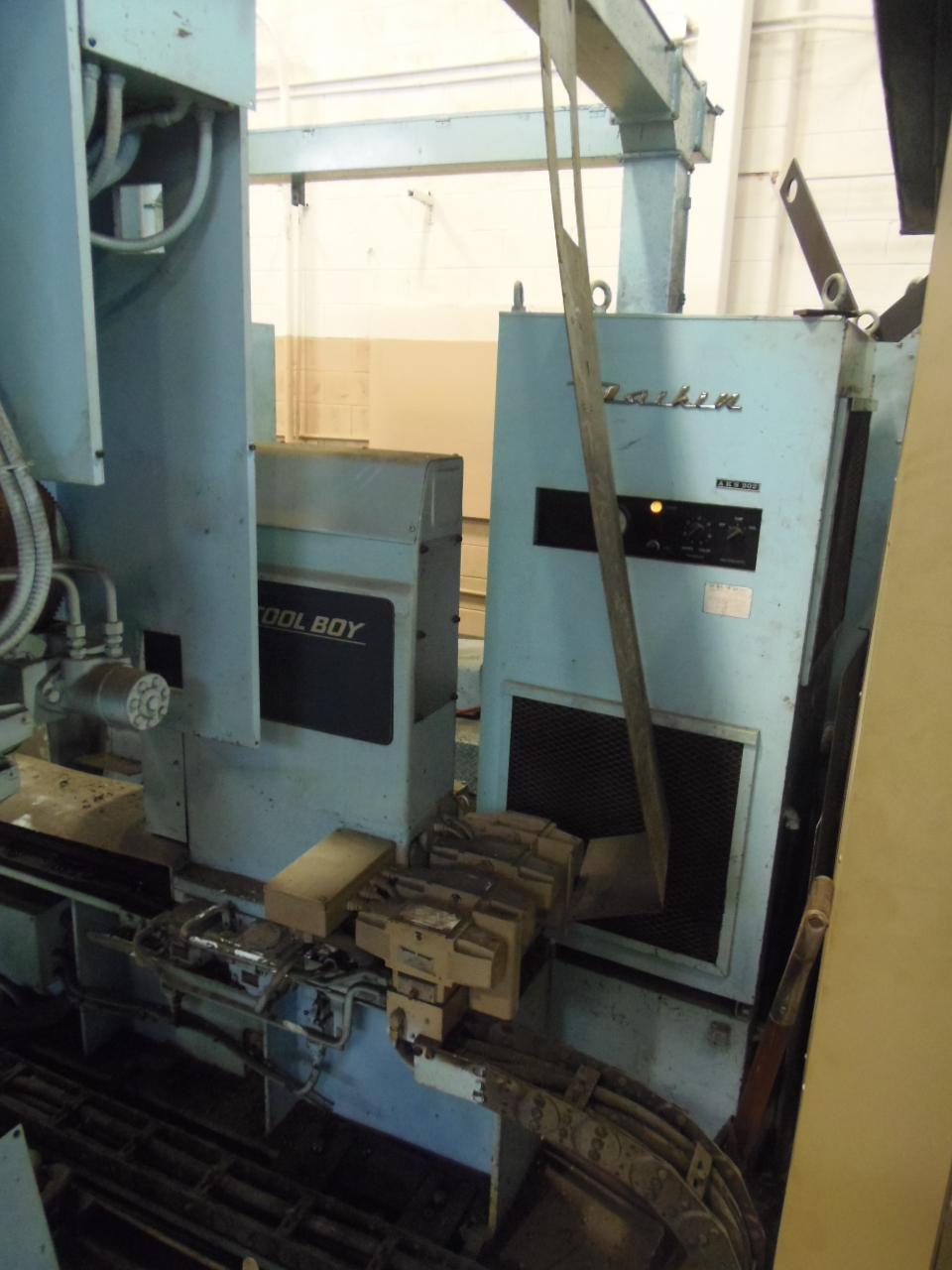

Tools in Automatic Tool Changer ................. 80 (not operating)
Spindle motor (230/460/3/60...................... 20 HP
Spindle speeds (16) ............................. 16 – 1600 rpm
Feeds (Variable) ................................ 0.2 – 120 ipm
Travels
X-axis ....................................... 55”
Y-axis ....................................... 49”
Z-axis ....................................... 43”
W-axis (spindle) ................................ 16”
Equipped with: 360 degree indexing table, 12” x 48” right angle fixtures,
24” x 48” right angle fixtures.
