Specifications
Equipped With
GENERAL SPECIFICATIONS
MAKE............................. TOSHIBA
MODEL............................ TUE-200

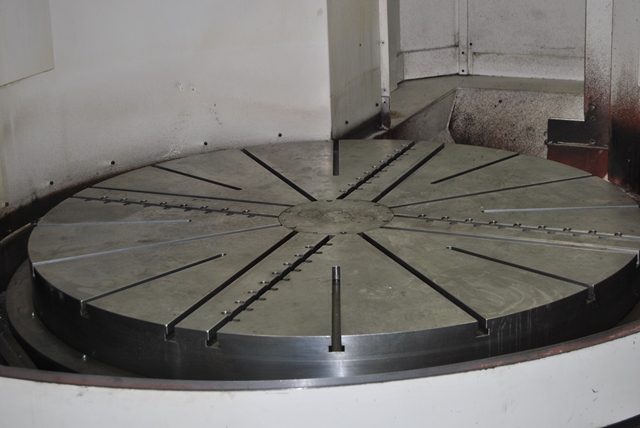

TABLE DIAMETER................... 78.7" (2,000MM)
MAXIMUM SWING/CUTTING DIA........ 94.5" (2,400MM)
MAX. HEIGHT UNDER RAM............ 67.72"
MAX. CUTTING HEIGHT.............. 61.02"

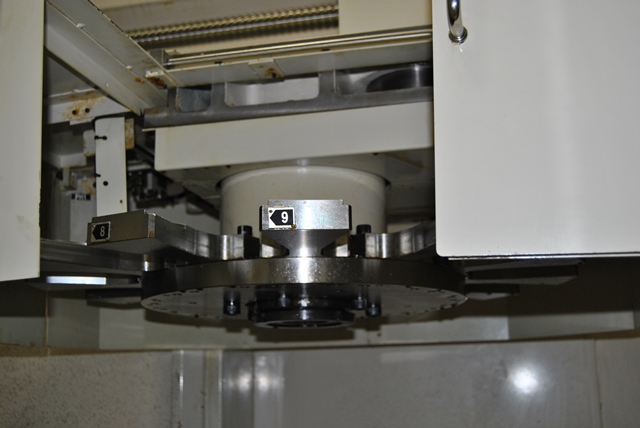

ATC......................12
MAIN MOTOR...............60/50HP (45/37KW)
MAIN MOTOR...............240RPMS
EQUIPPED WITH:
FANUC SERIES Oi T CONTROL
CHIP CONVEYOR
HIGH SPLASH GUARD
TOOL HOLDERS 4 PIECES STANDARD
*AMERICA MODEL TUE-200 IS WITHOUT DRILLING SPINDLE*
SPECIFICATIONS SUBJECT TO VERIFICATION
