Specifications
Equipped With
GENERAL SPECIFICATIONS
MAKE.........................TOSHIBA
MODEL........................BTD-110.R16
SPINDLE SIZE.................4.3"
TRAVEL (X)...................78.7"
TRAVEL (Y)...................59.1"
TRAVEL (Z)...................57"
TRAVEL (W)...................19.7"
TABLE SIZE...................55.1X63

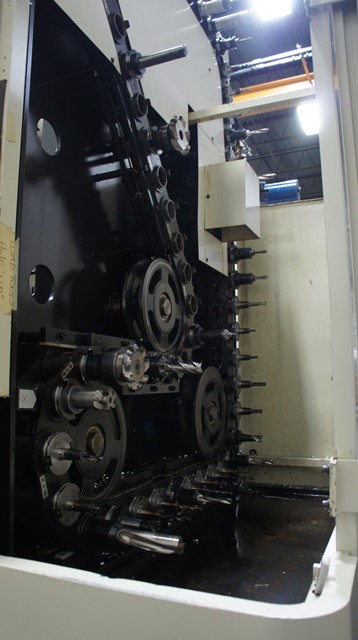

ATC..........................60 TOOLS
GLASS SCALES.................X,Y,Z
SPINDLE SPEED................8000RPM
MOTOR........................ 36/30HP
COOLANT THRU SPINDLE.........140-PSI
EQUIPPED WITH:

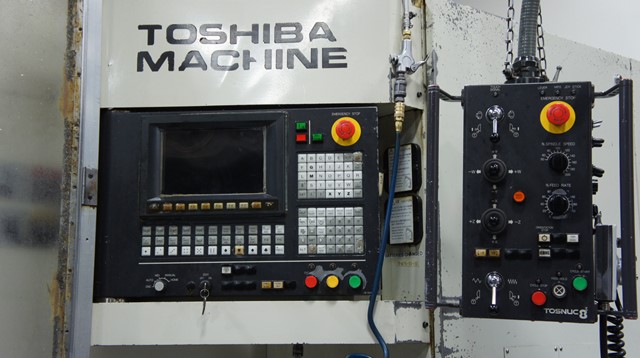

TOSNUC 888 CNC CONTROL
BUILT IN 4TH AXIS ROTARY INDEX TABLE
SHAPE CONTROL
REMOTE BUFFER UNIT
CHIP & SPLASH ENCLOSURE
SPECIFICATIONS SUBJECT TO VERIFICATION
