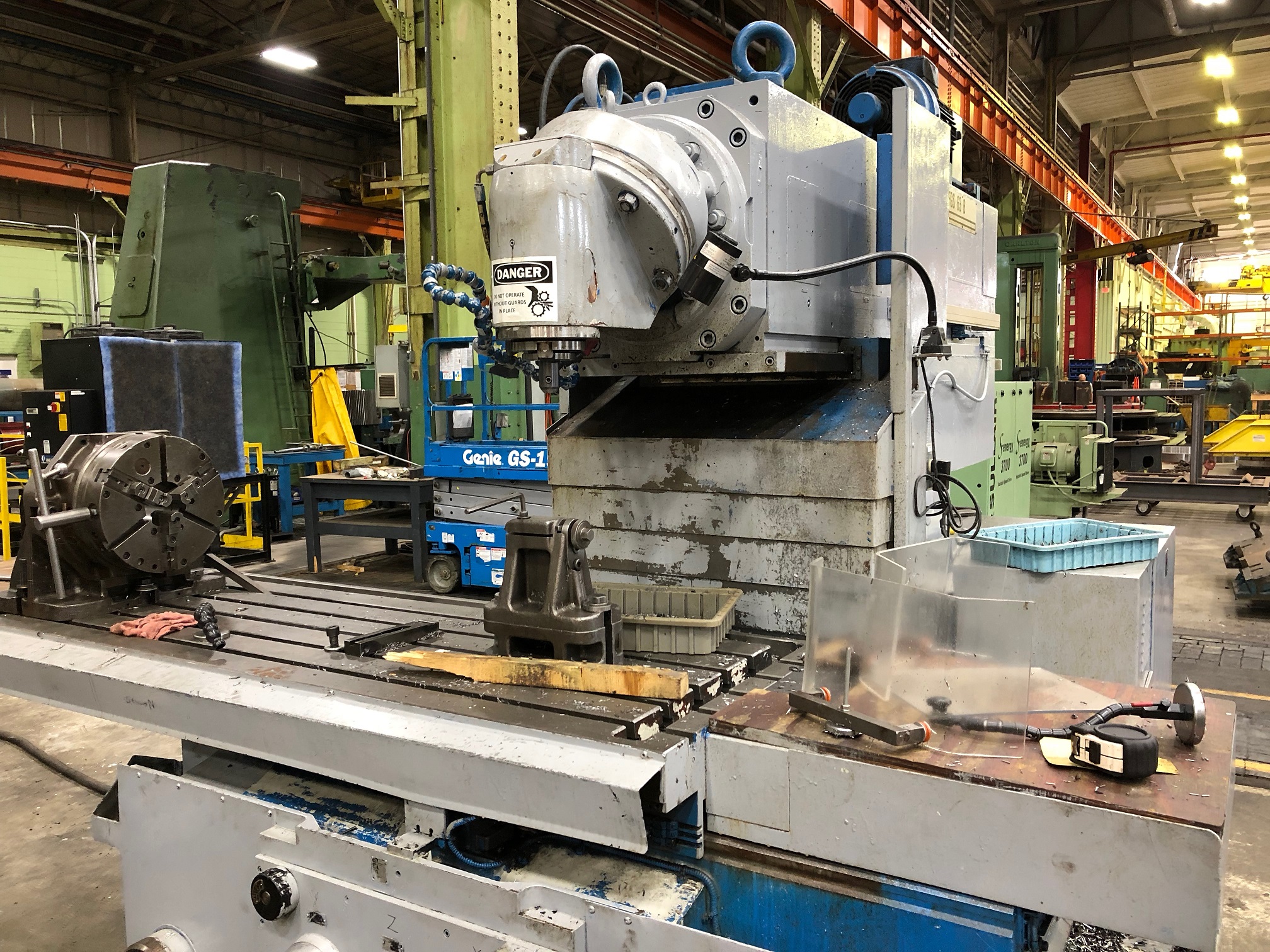

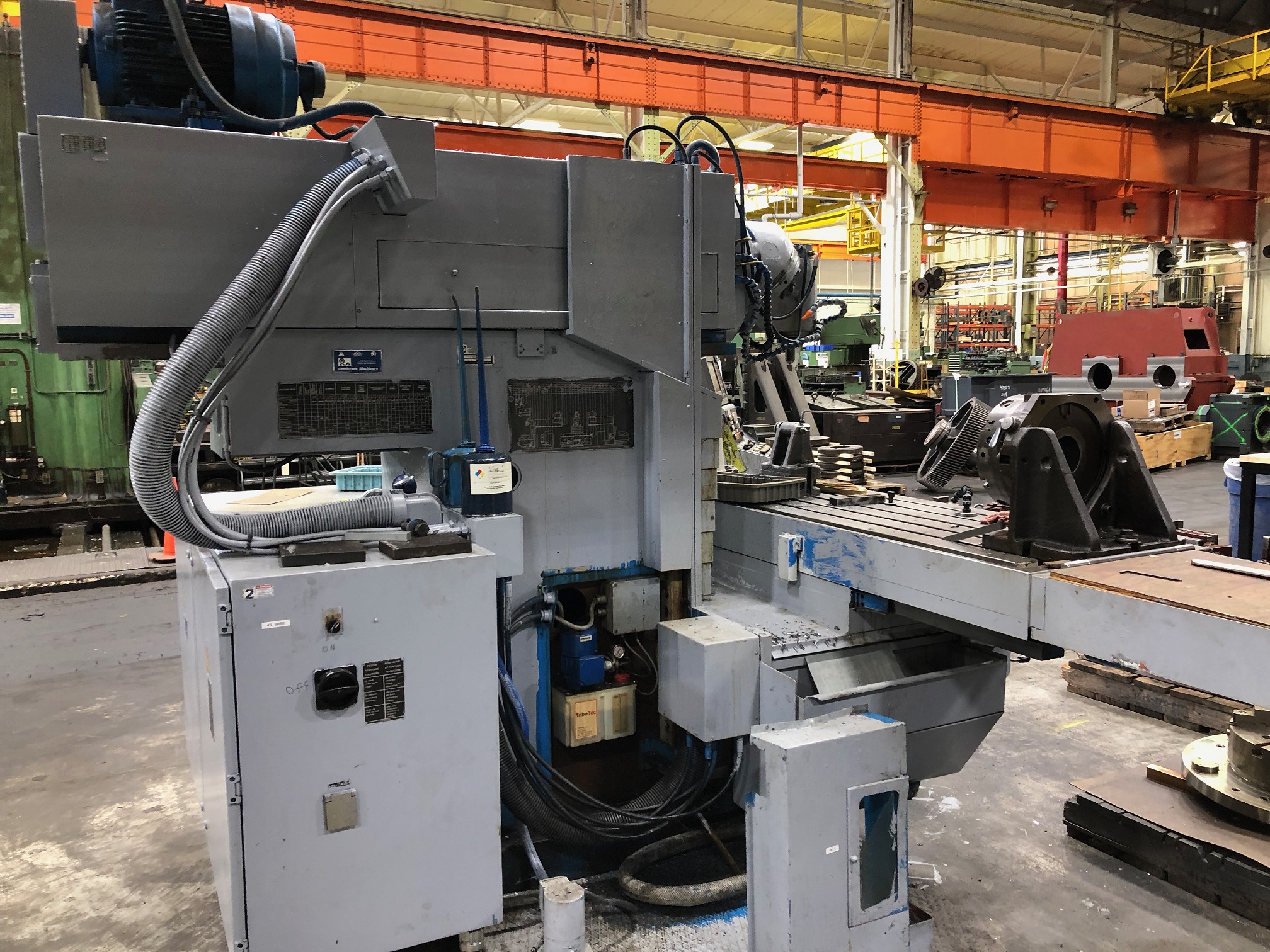

GENERAL SPECIFICATIONS:

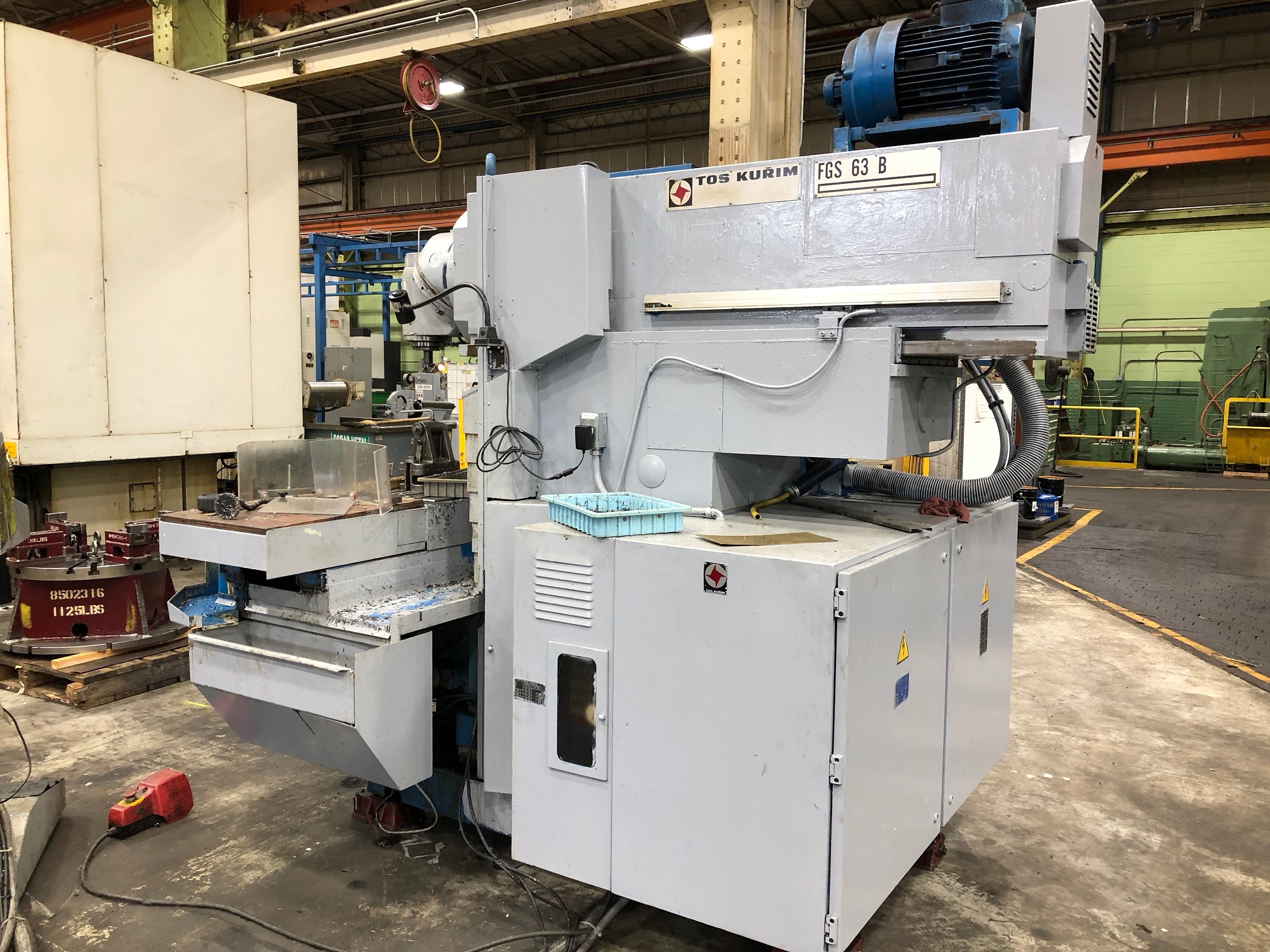

MANUFACTURER........................ TOS
MODEL............................... FGS63B
NEW................................. 1998
TABLE SIZE.......................... 24" X 70"

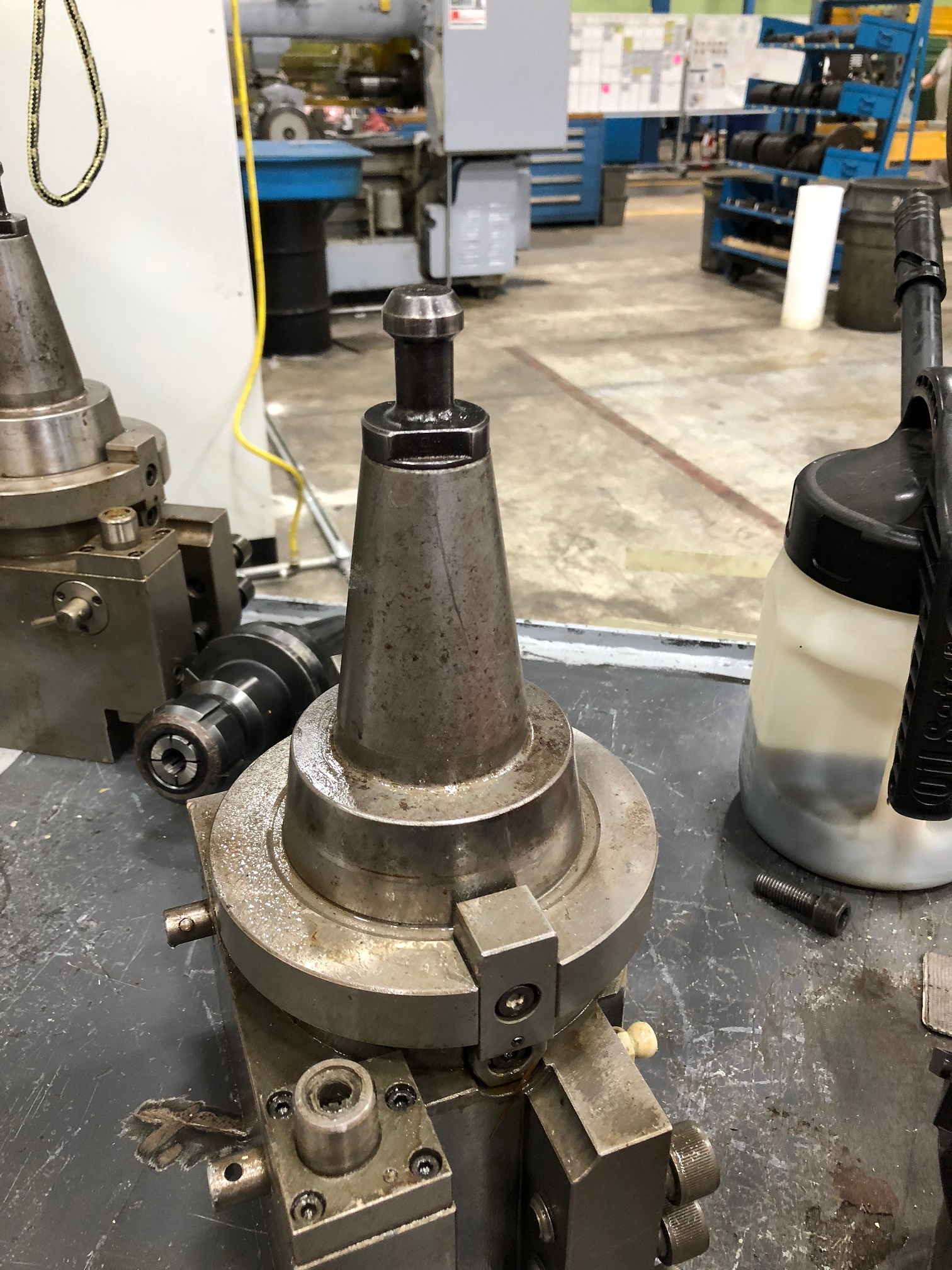

SPINDLE TAPER....................... 50
SPINDLE SPEEDS...................... (18) 30 TO 4000 RPM
LONG AND CROSS FEEDS................ (16) .4 TO 72 IPM
LONG AND CROSS RAPID RATE........... 160 IPM
VERTICAL FEEDS...................... (16) .1 TO 18 IPM
VERTICAL RAPID RATE................. 40 IPM
HEADSTOCK CROSS FEED................ 33"
TABLE VERTICAL FEED................. 19.7"
TABLE TRAVEL (X).................... 55"
MAIN MOTOR.......................... 35 HP
WEIGHT (APPROX)..................... 14,300 LBS.
EQUIPPED WITH:
UNIVERSAL SWIVEL HEAD

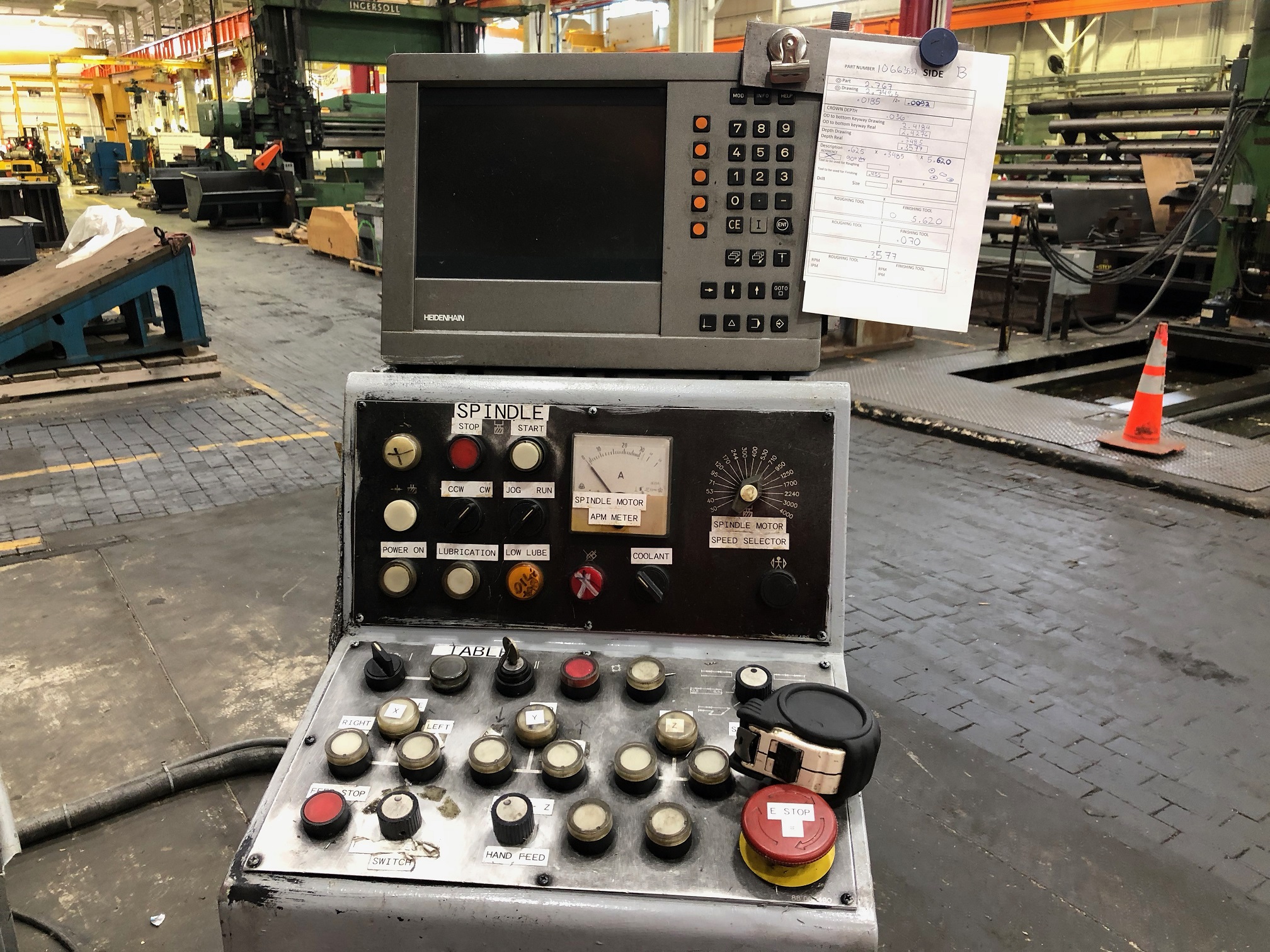

DIGITAL READOUT
MISC. TOOLING
COOLANT
AUTO CYCLE
