Specifications
Equipped With
SPECIFICATIONS:

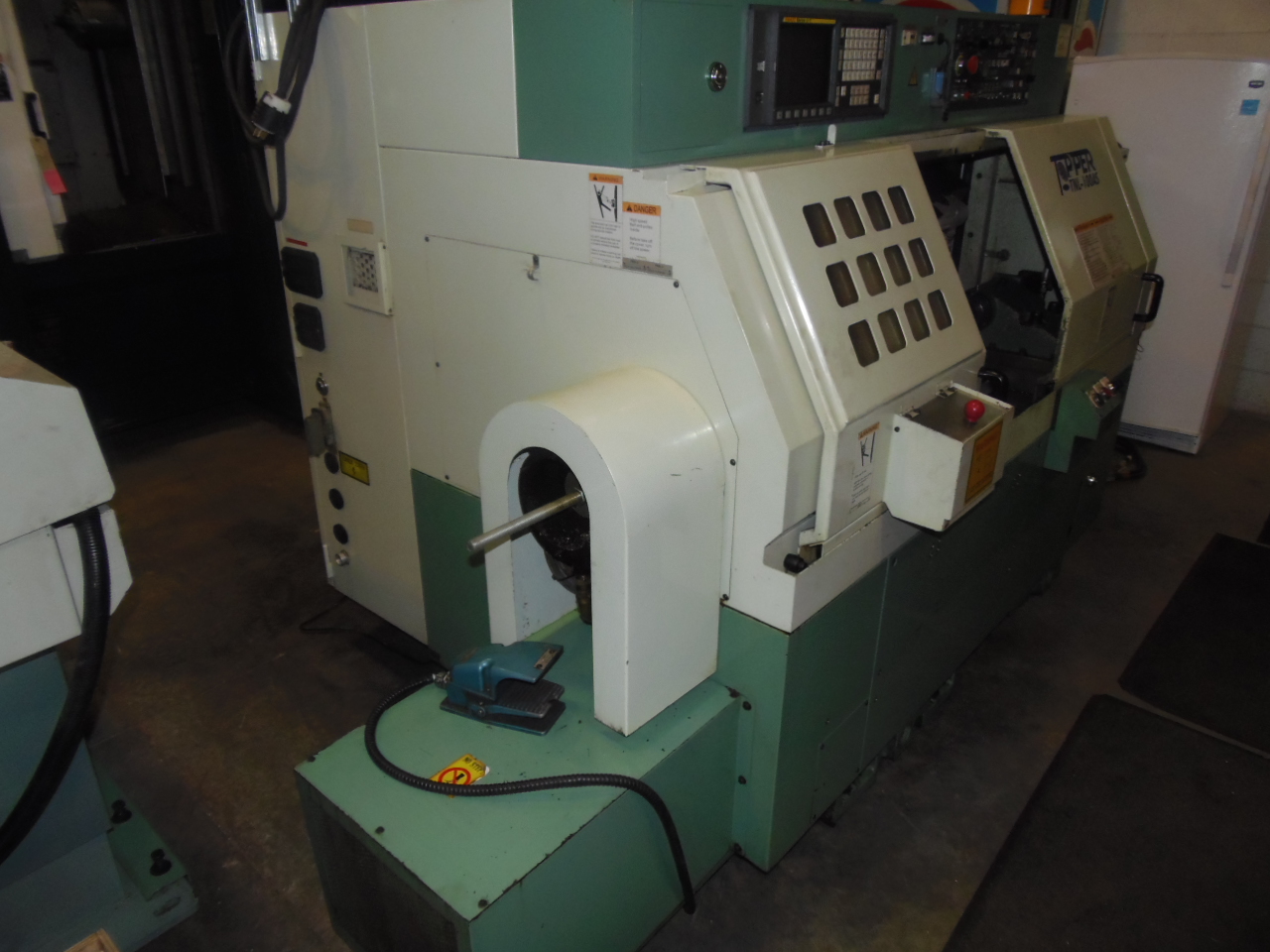

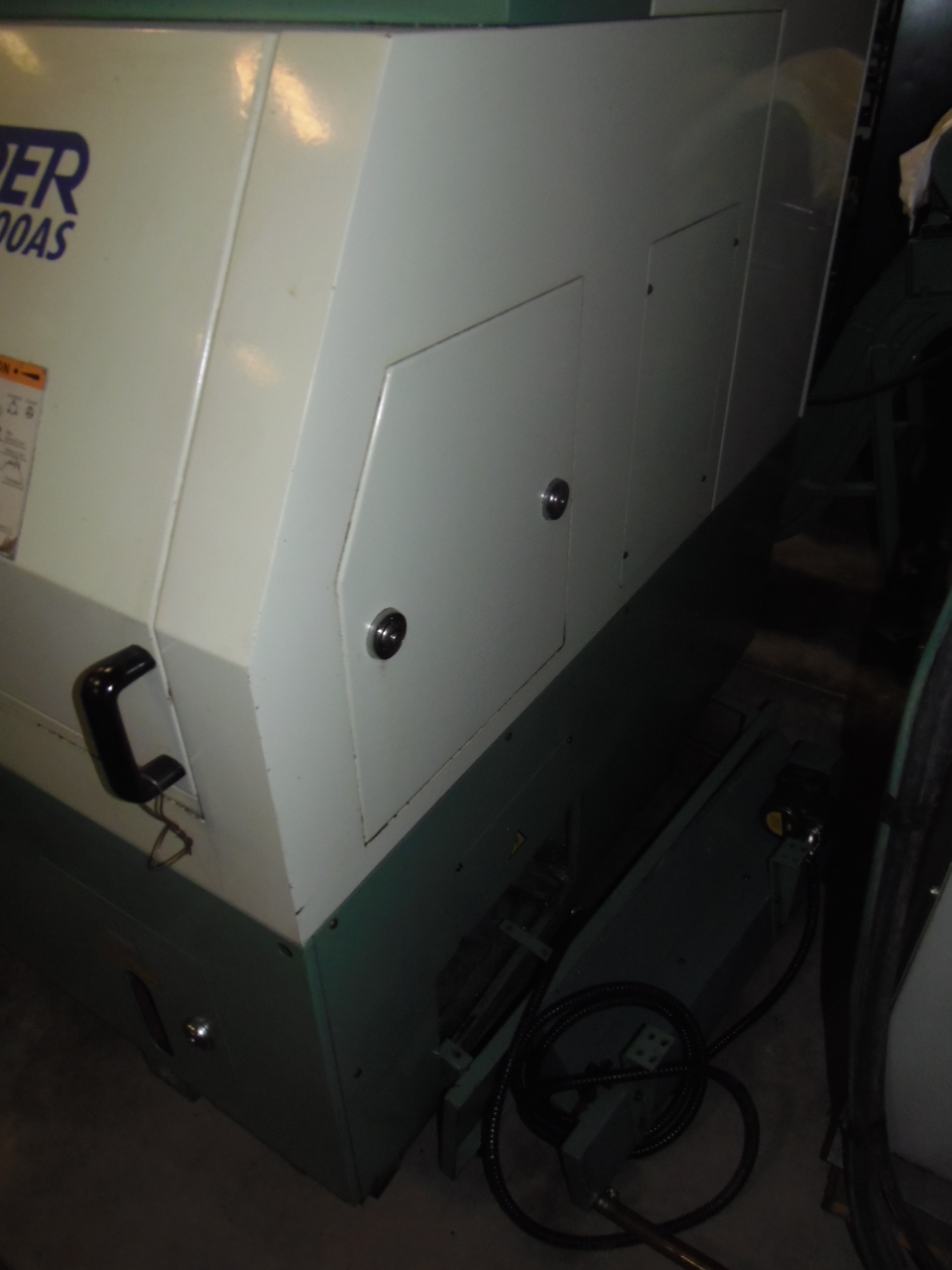

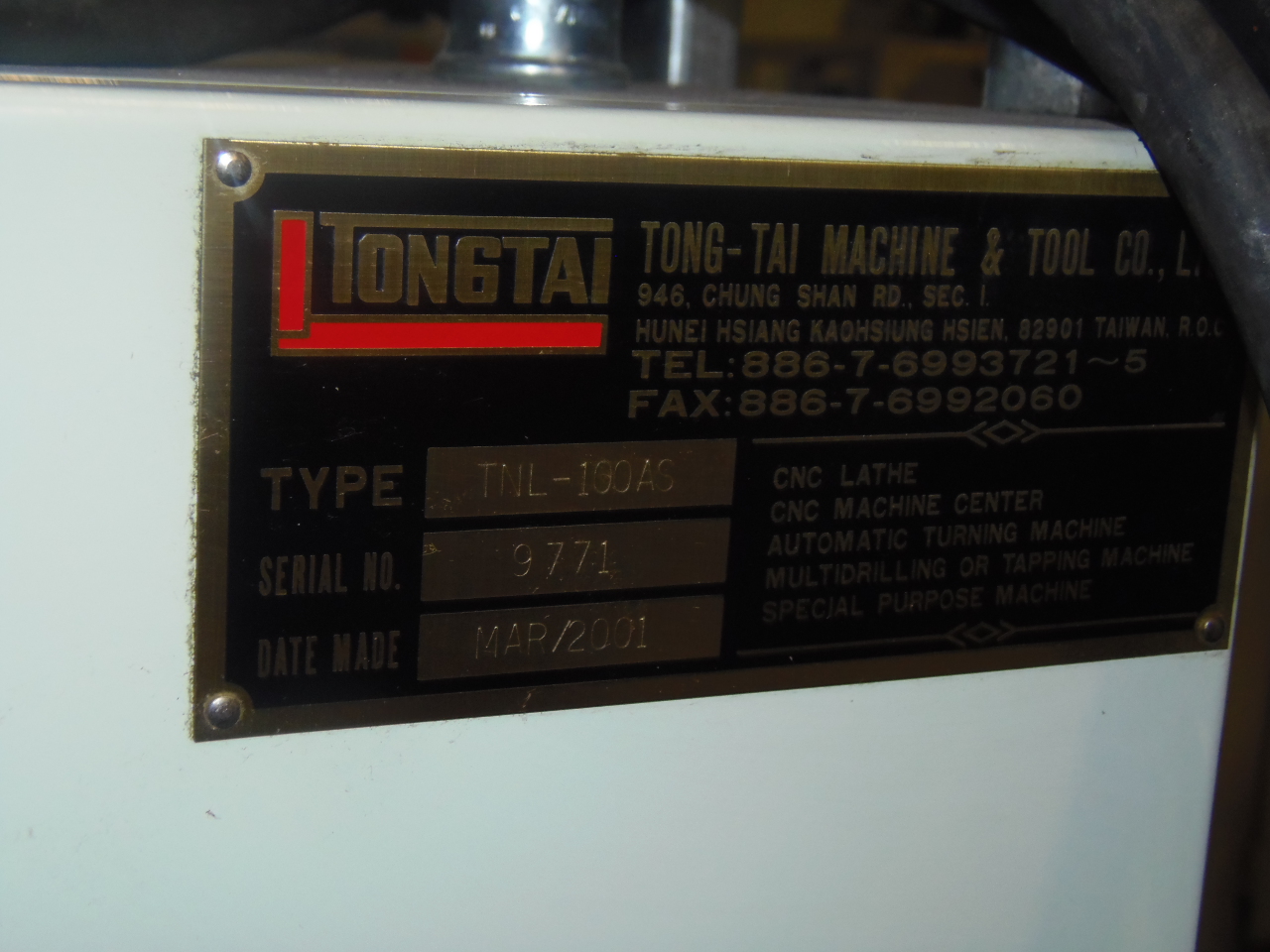

MAKE......................... TOPPER (TONG TAI)
MODEL........................ TNL-100AS
SERIAL NUMBER................ 9771
AGE.......................... 2001
SWING OVER FRONT APRON....... 14.6"
MAX TURNING DIAMETER......... 10.4"
MAX CUTTING LENGTH........... 14.8"
BAR CAPACITY................. 1.7"
CHUCK SIZE................... 8"
SPINDLE NOSE................. A2-6
SPINDLE BORE................. 2.4"
SPINDLE MOTOR................ 20/15 HP
SPINDLE SPEED................ 36 - 4800 RPM
X-AXIS TRAVEL................ 5.9"
Z-AXIS TRAVEL................ 15.7"

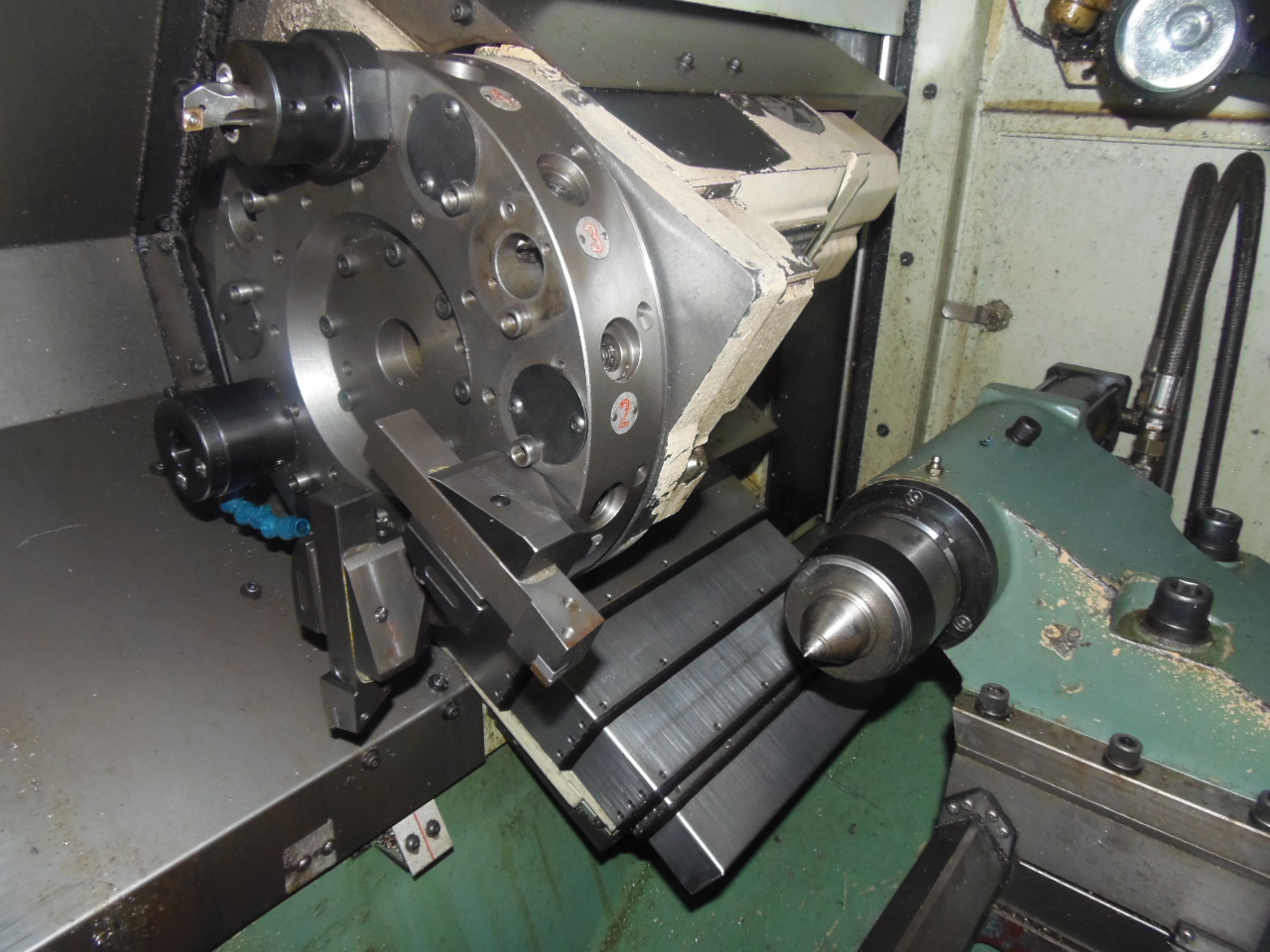

TURRET CAPACITY.............. 12-STATION
MACHINE SIZE................. 85" X 70" X 66"
MACHINE WEIGHT............... 4000 LBS
EQUIPPED WITH:

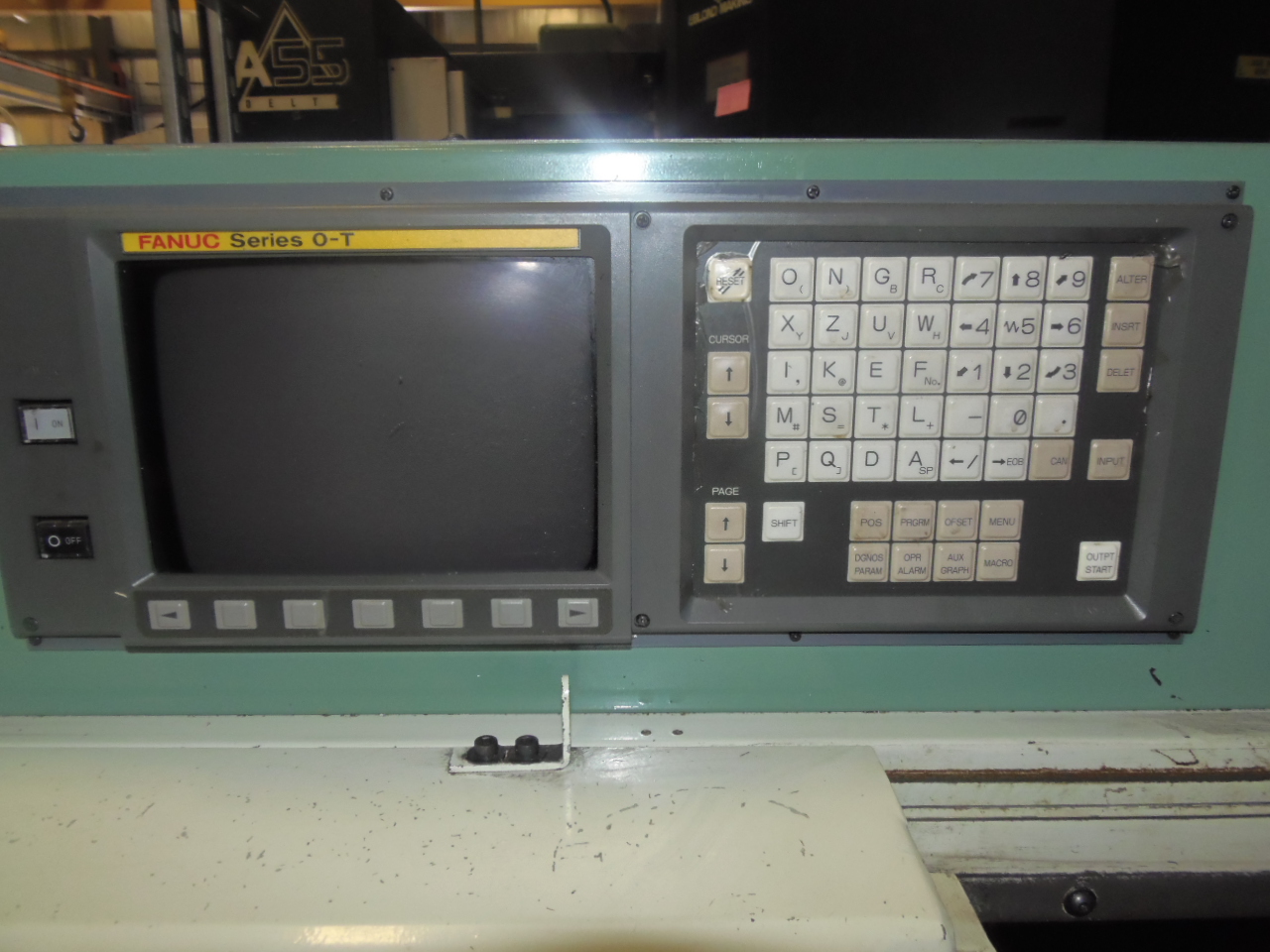

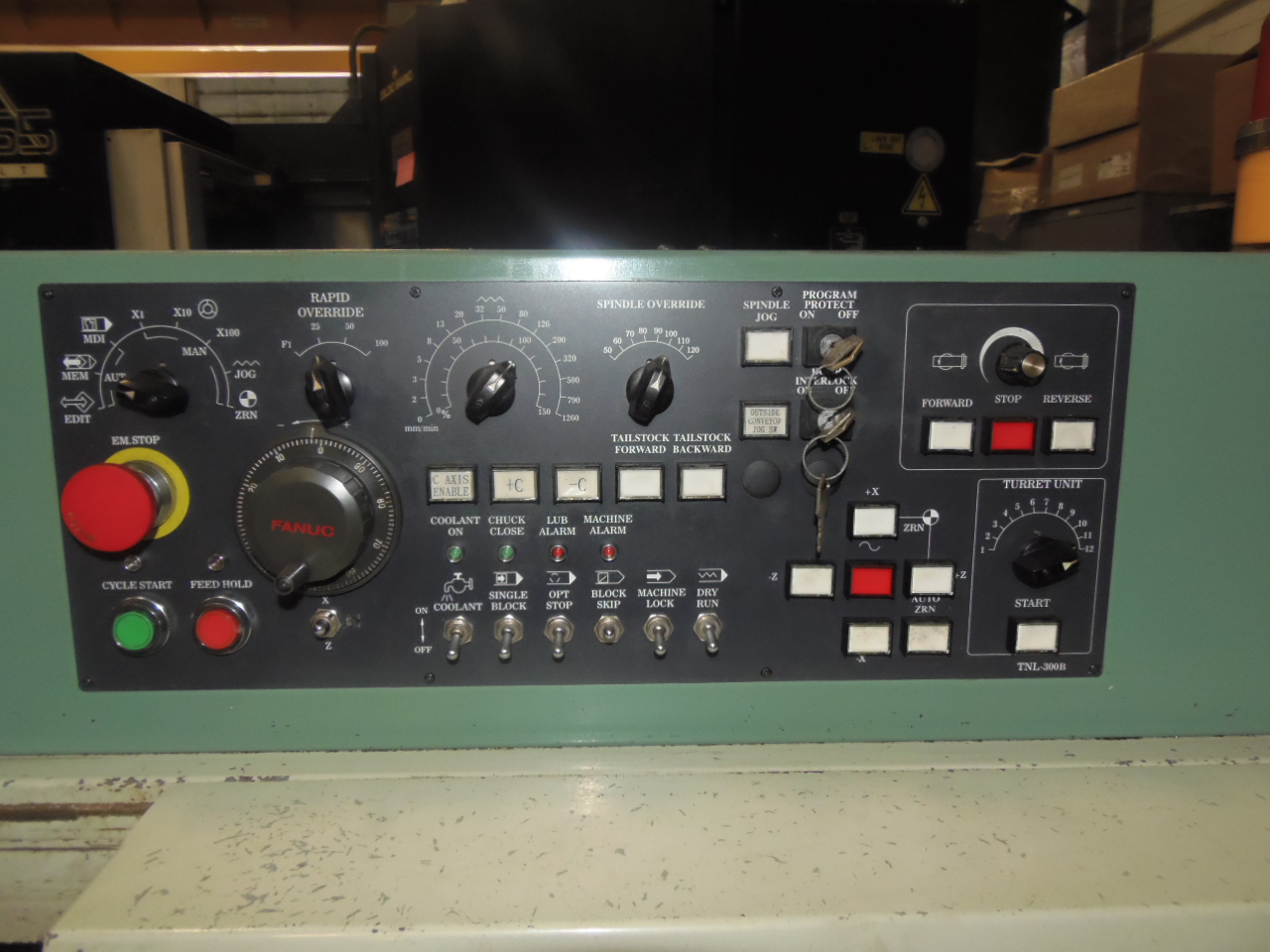

FANUC Oi-TD CONTROL

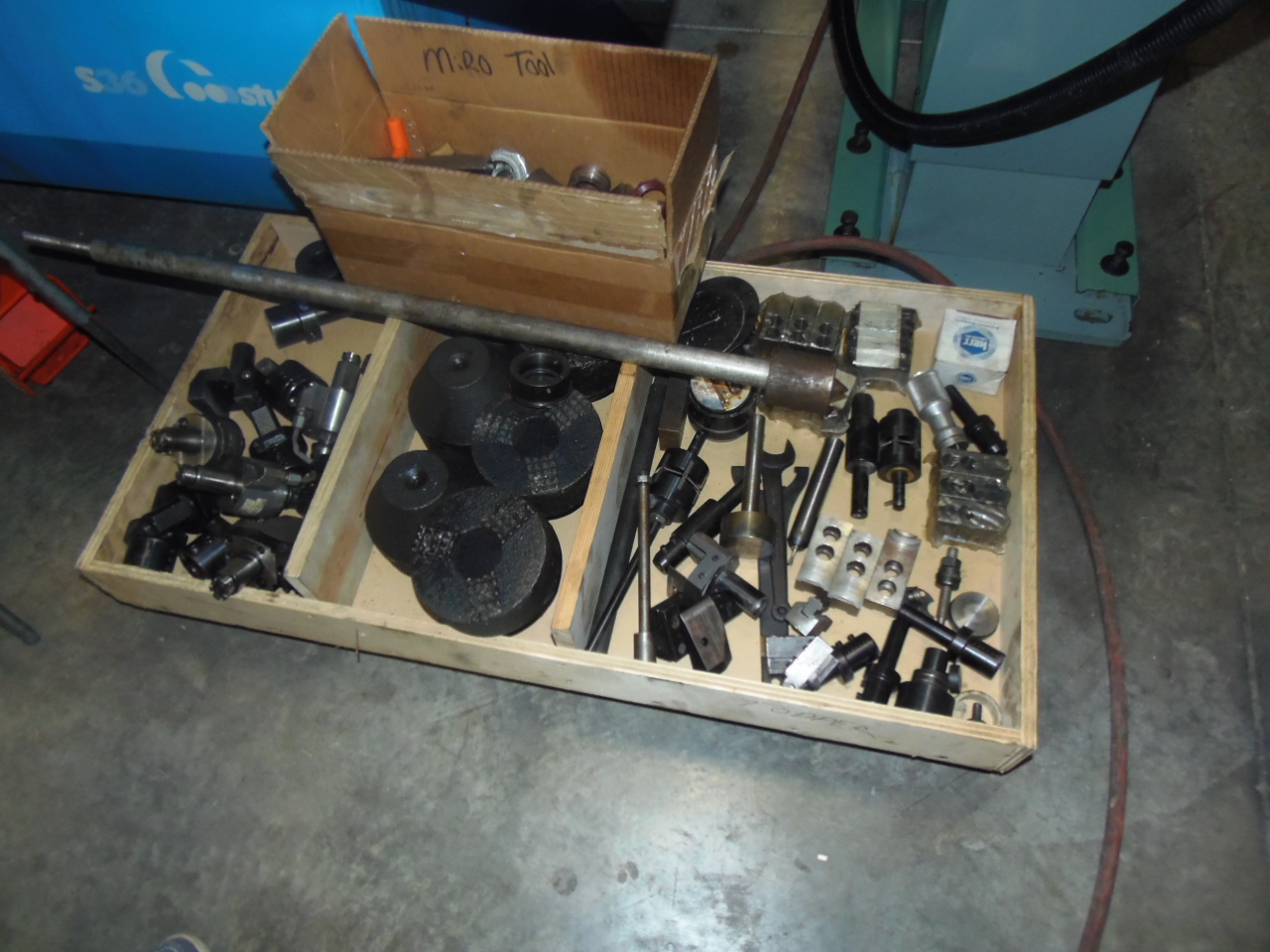

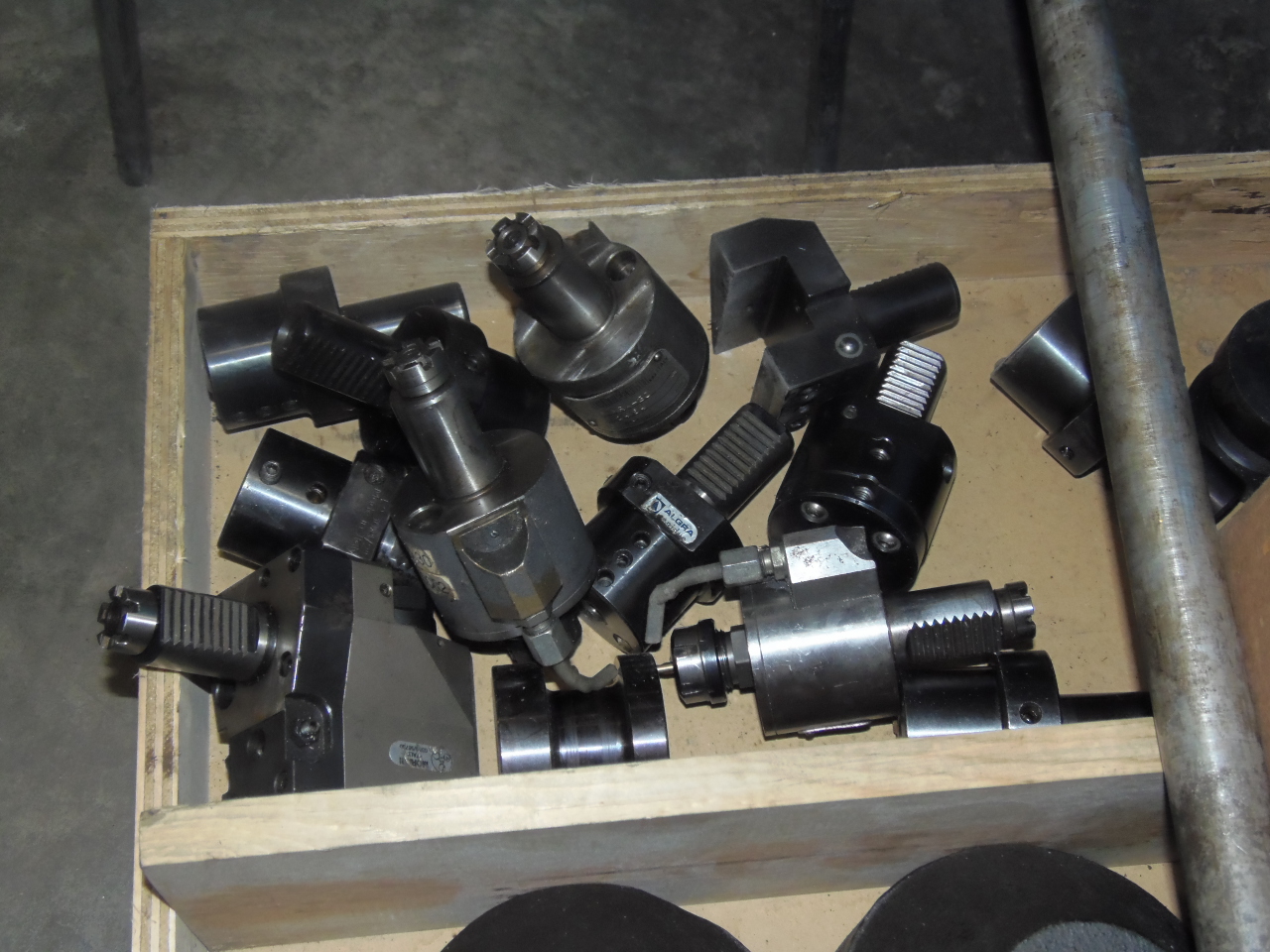

MISC 4 LIVE TOOL HOLDERS AND MISC HOLDERS
LIVE MILLING
FULL C-AXIS
COLLET CHUCK

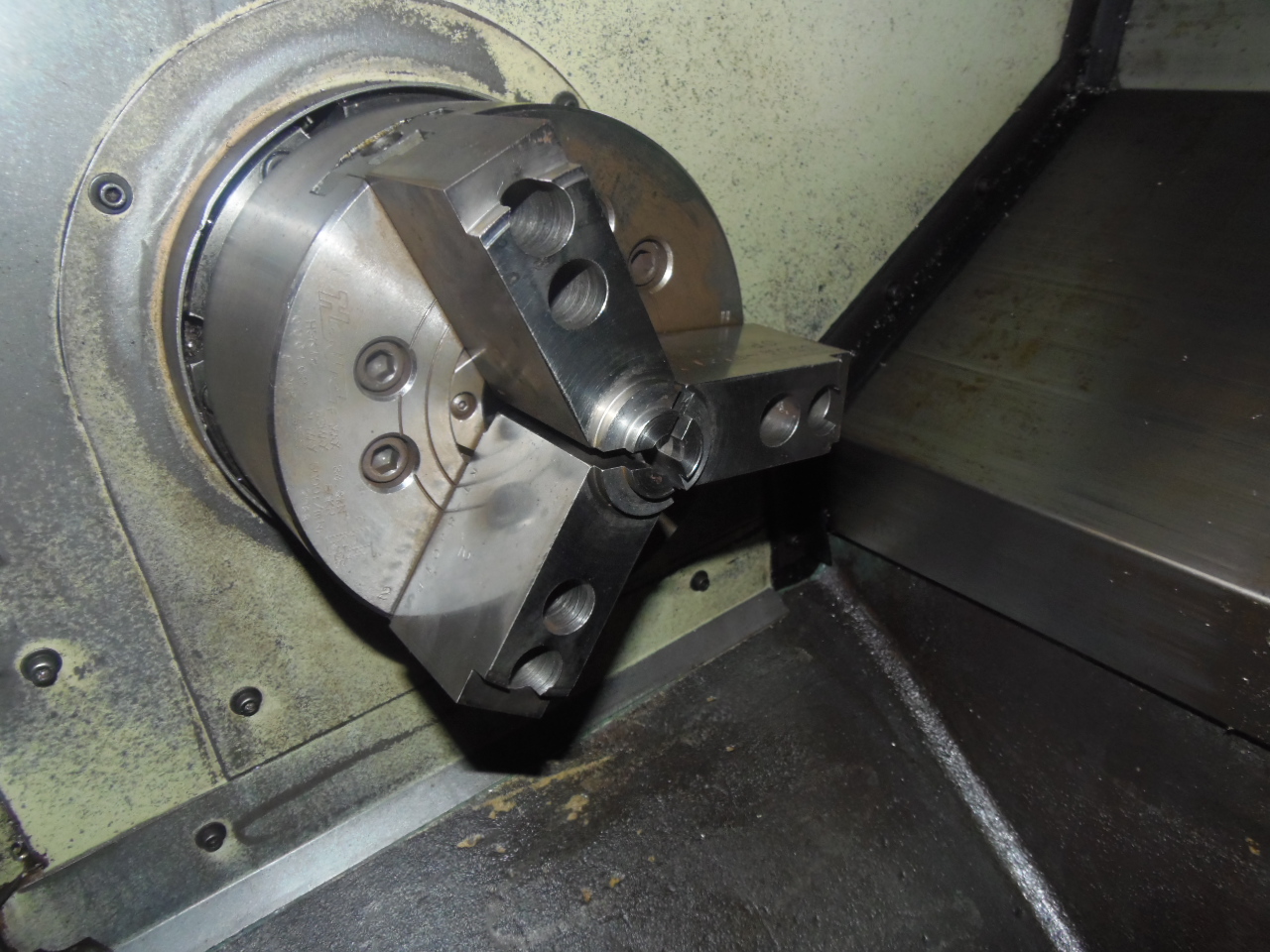

8" 3 JAW CHUCK
TAILSTOCK
PARTS CATCHER
CHIP CONVEYOR

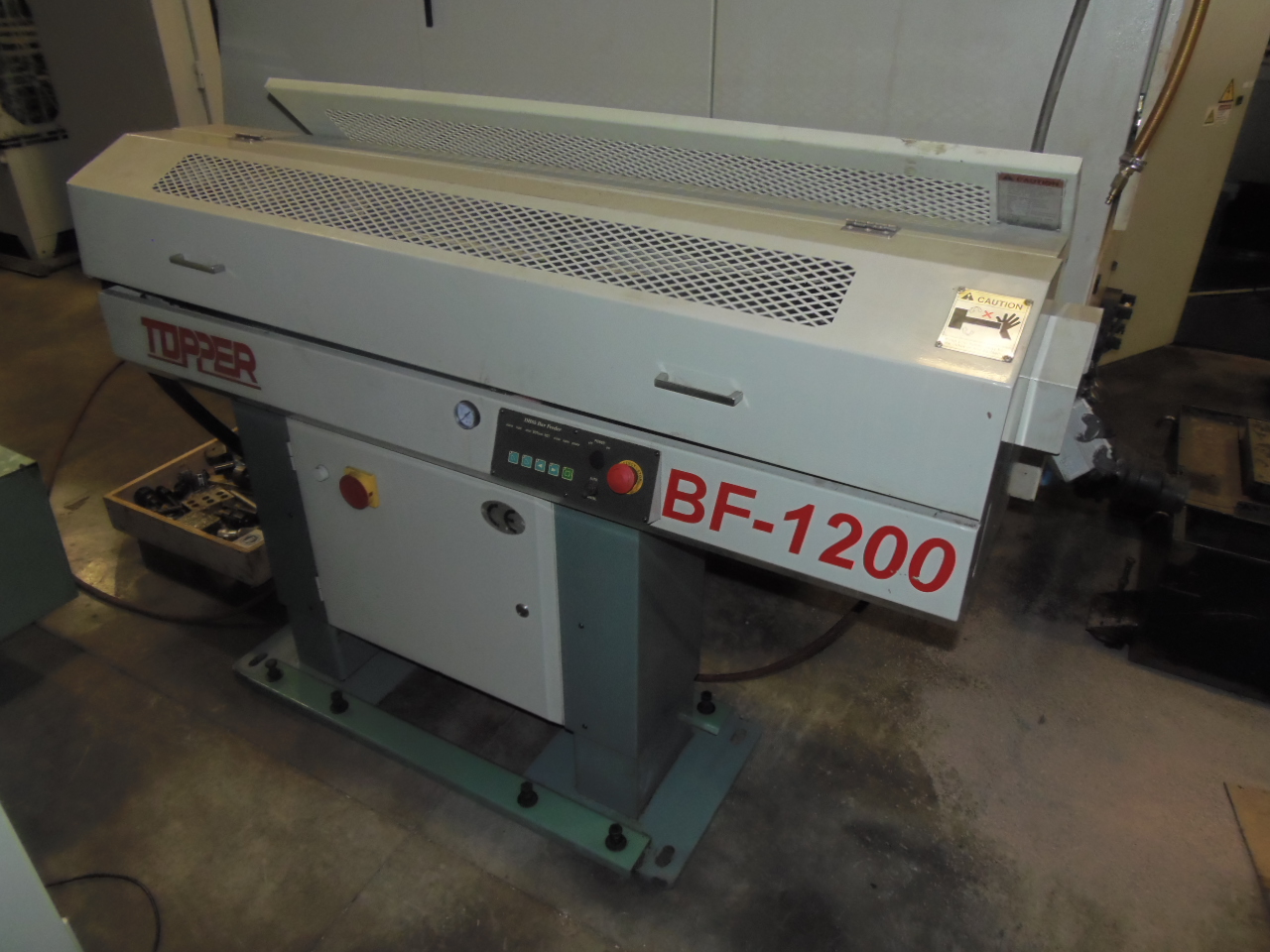

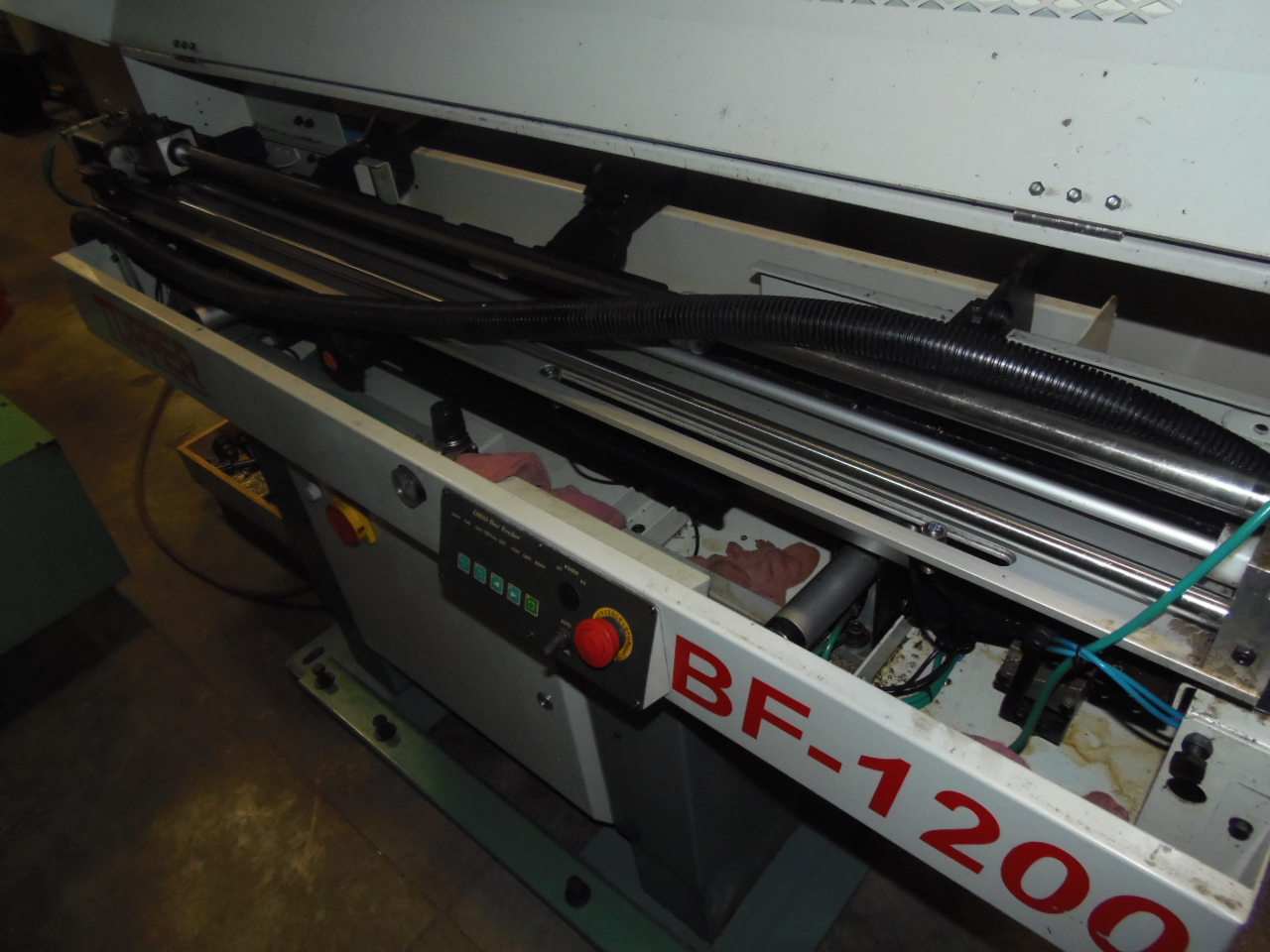

TOPPER BF-1200 BARFEED
.197" - 2.560" DIAMETER
48" BAR LENGTH
