Specifications
Equipped With
GENERAL SPECIFICATIONS:

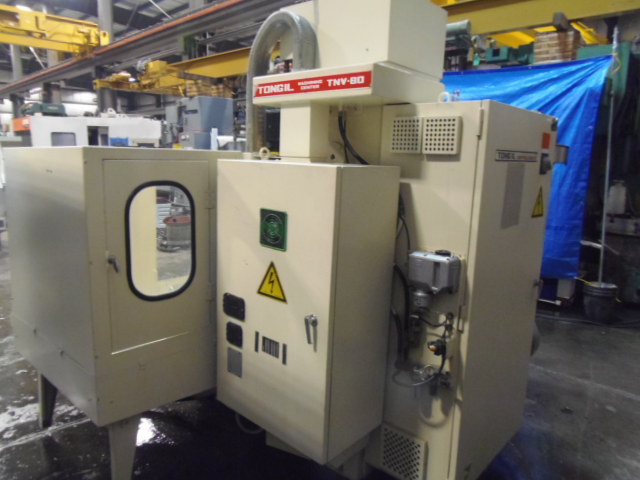

MANUFACTURER....................... TONGIL
MODEL.............................. TNV-80F 39

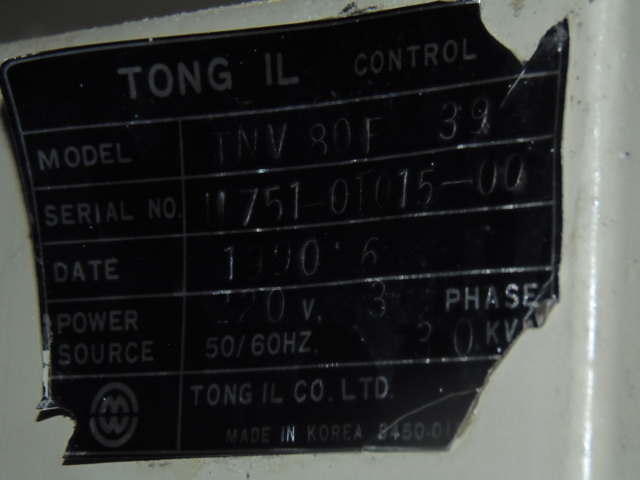

SERIAL#............................ U751-01015-00
AGE APPROXIMATELY.................. 1990

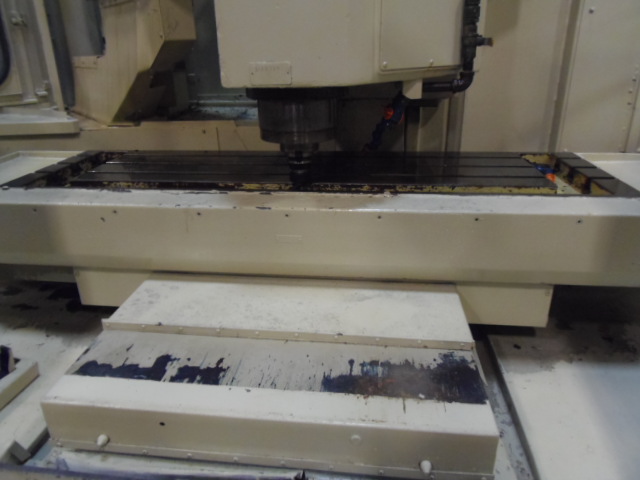

TABLE SIZE (OUTSIDE COOLANT TROUGH) 17" X 59"
TABLE SIZE (INSIDE COOLANT TROUGH). 14" X 46"
TRAVELS (X)........................ 29.5"
(Y)........................ 17.75"
(Z)........................ 19.7"
DISTANCE TABLE TOP TO SPINDLE...... 4" TO 23"
TABLE LOAD CAPACITY................ 1653 LBS.
SPINDLE SPEED...................... 45-4500 RPM
SPINDLE TAPER...................... BT 40
ATC CAPACITY....................... 30 TOOLS
MAIN MOTOR......................... 20 HP
FEED RATES......................... .039-158 IPM
RAPID TRAVERSE..................... 472 IPM
MACHINE WEIGHT APROX............... 14,000 LBS
DIMENSIONS......................... 118" x 116" x 112" H
EQUIPPED WITH:

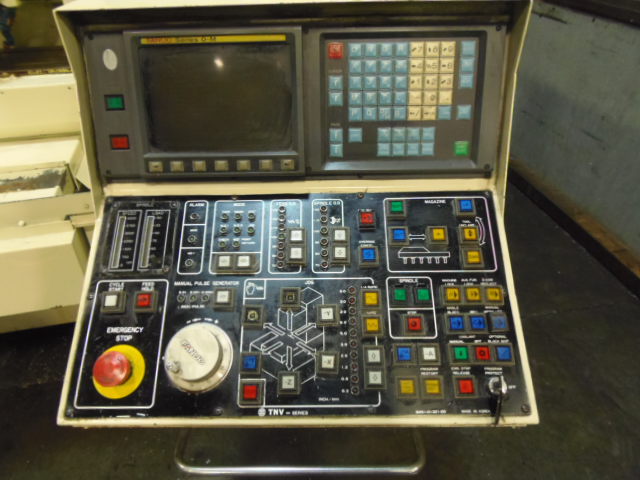

FANUC OM CNC CONTROL

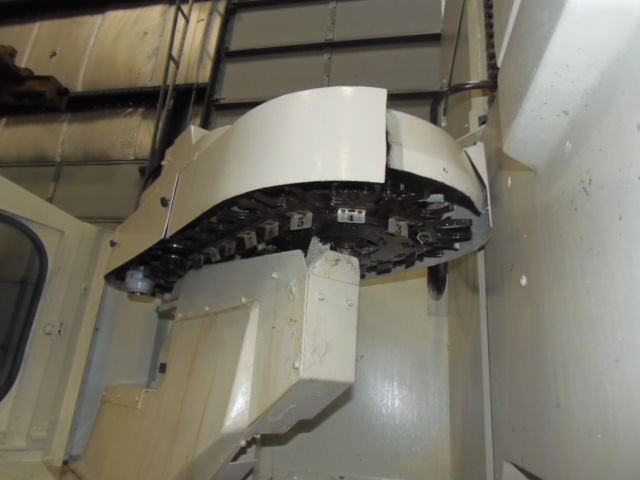

30 TOOL ATC
COOLANT SYSTEM

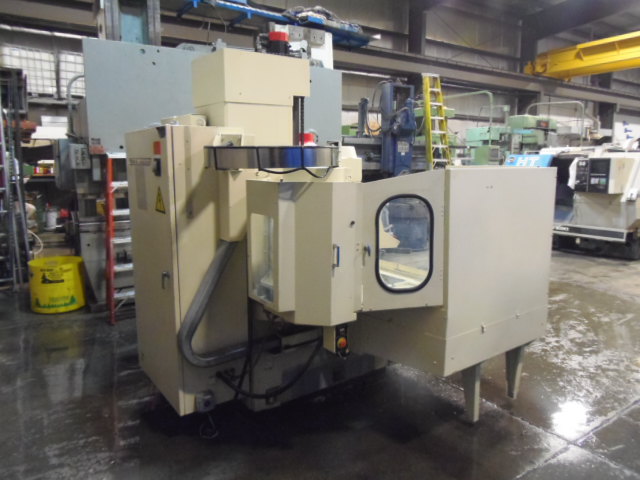

FULL ENCLOSURE
AUTO LUBE SYSTEM
SPECIFICATIONS SUBJECT TO VERIFICATION
