Specifications
Equipped With
GENERAL SPECIFICATIONS:

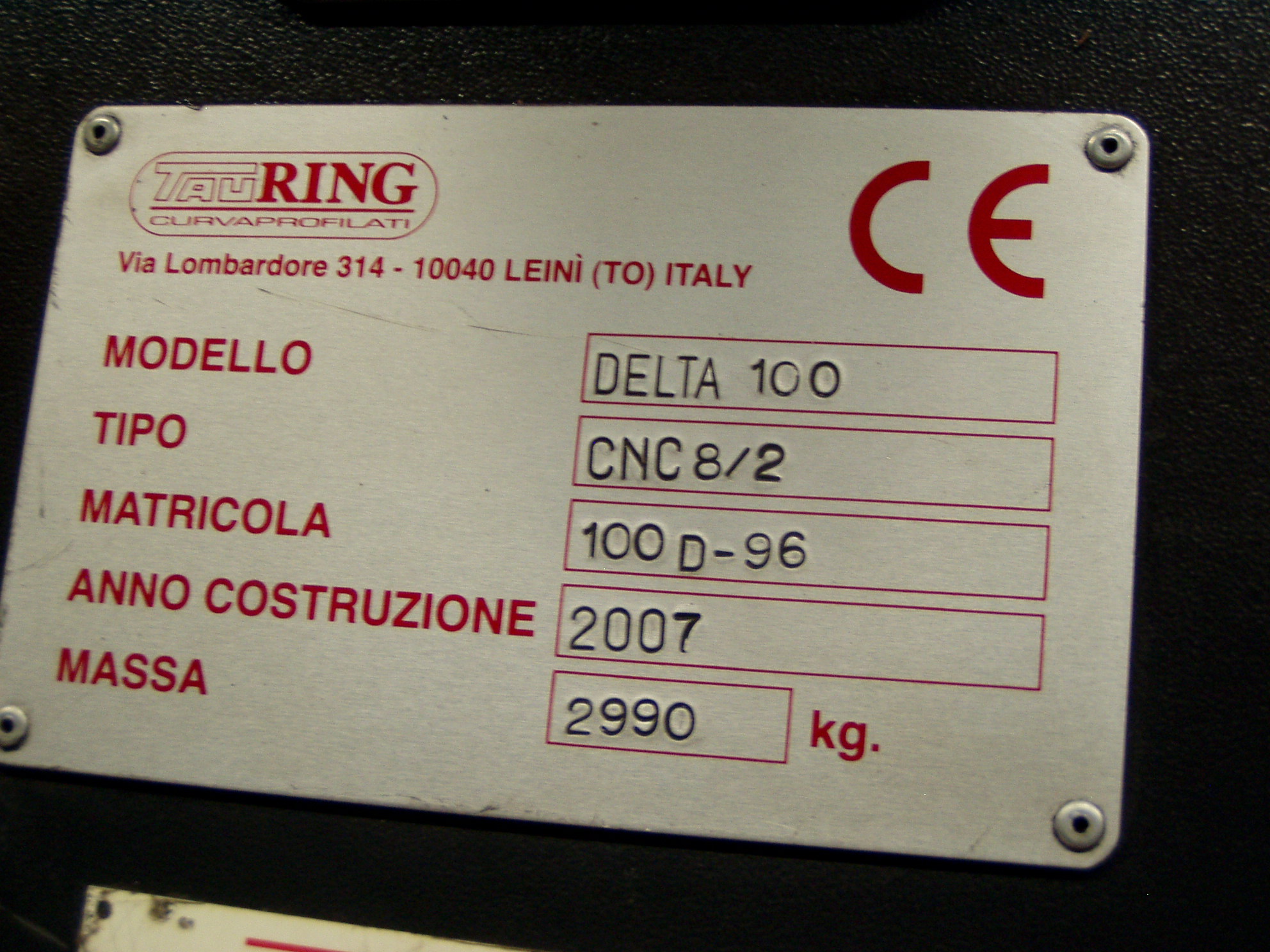

MAKE.............................. TAURING
MODEL............................. DELTA 100
SERIAL NUMBER..................... 100D-96
AGE (APPROX)...................... 2007

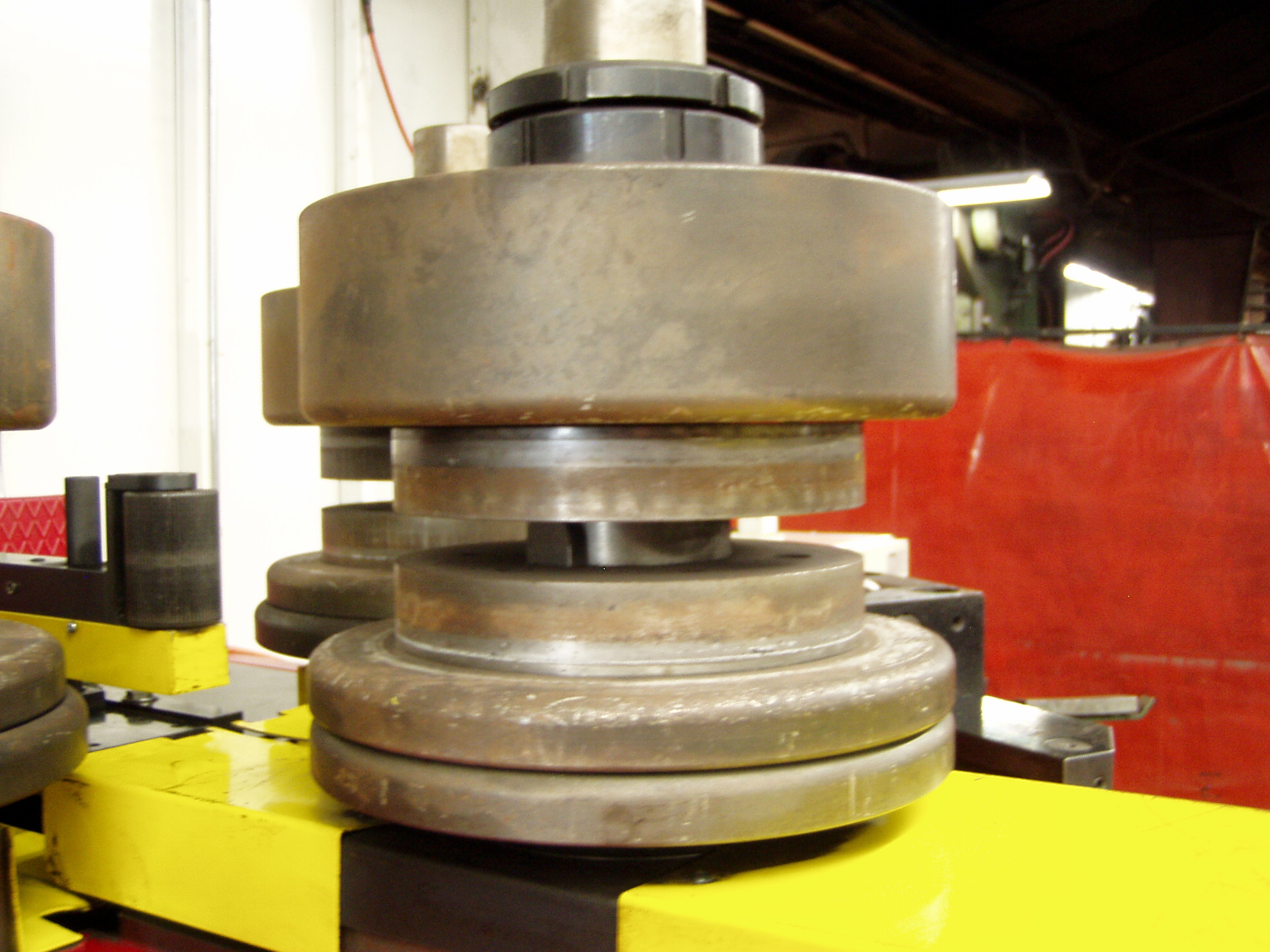

ROLL DIAMETER..................... 12.4"
SHAFT LENGTH...................... 10.23"

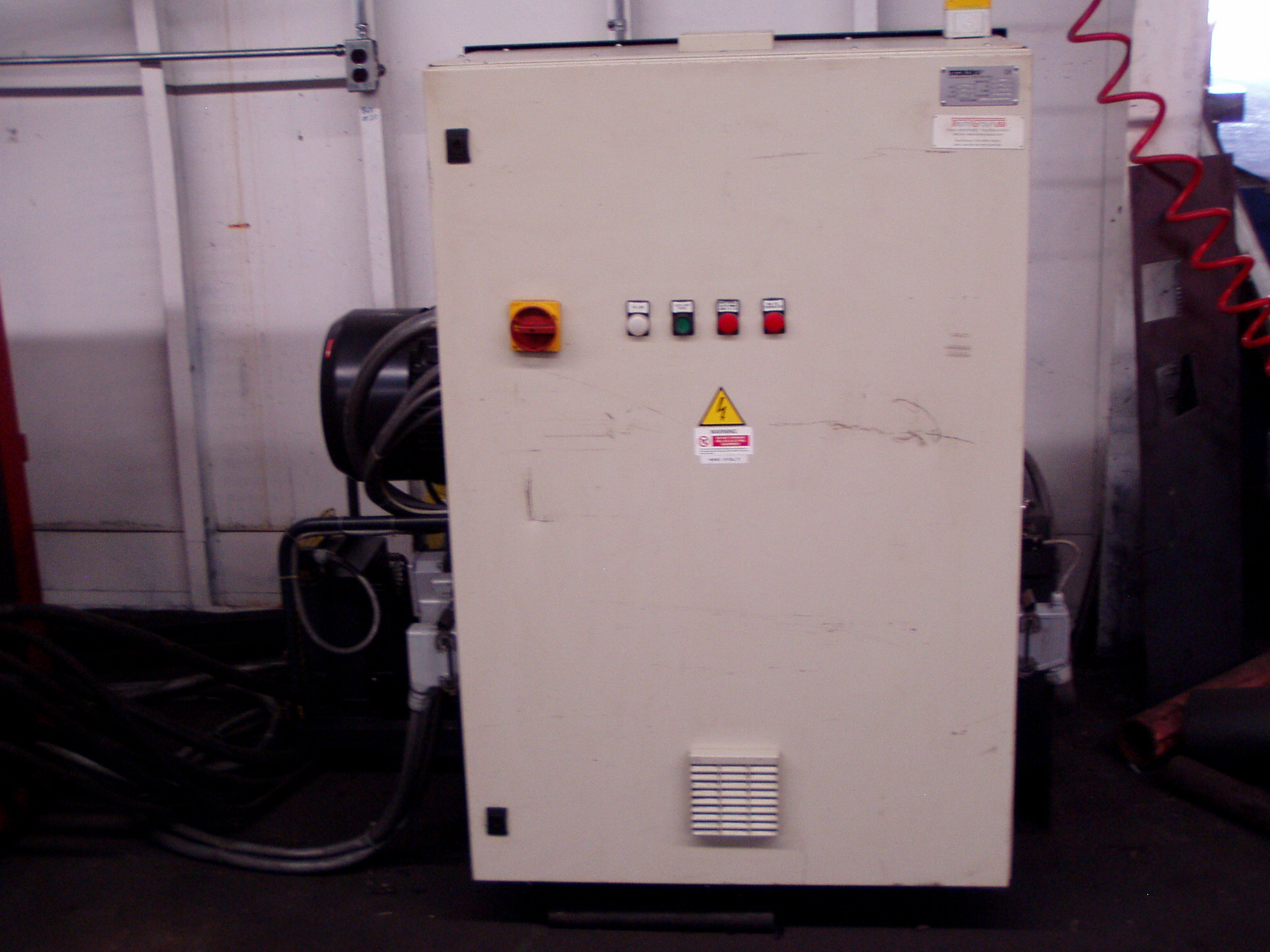

VOLTAGE........................... 480V / 3PH

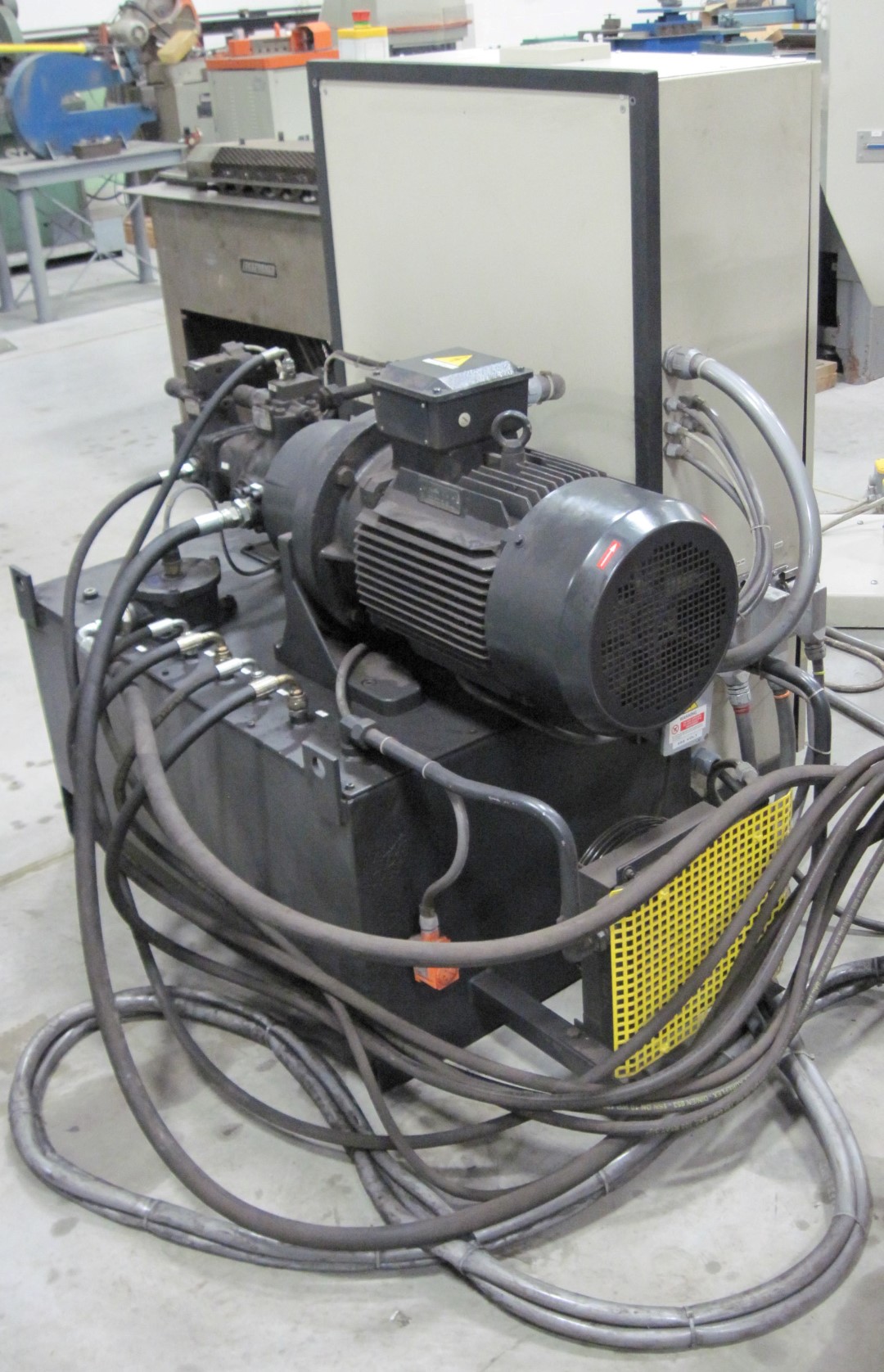

MOTOR............................. 14 HP
DIMENSIONS........................ 71" X 85" X 73"
WEIGHT (APPROX)................... 6000 LBS. (2990 KG)
CAPACITY:
4.72" X 4.72" X .511" ANGLE IRON, LEG OUT TO 78.74" RADIUS
4.72" X 4.72" X .511" ANGLE IRON, LEG IN TO 98.42" RADIUS
1.57" X 9.84" FLAT BAR, EASY WAY TO 27.55" RADIUS
.78" X 6.29" FLAT BAR, HARD WAY TO 31.49" RADIUS
.13" WALL ROUND TUBE X 5.51" TO 177.16" RADIUS
5" PIPE TO 86.61 RADIUS
5.9" X 3.93" X .31" WALL RECT. TUBE EASY WAY TO 70.86" RADIUS
5.51" X 3.14" X .23" WALL RECT. TUBE HARD WAY TO 98.42 RADIUS
EQUIPPED WITH:

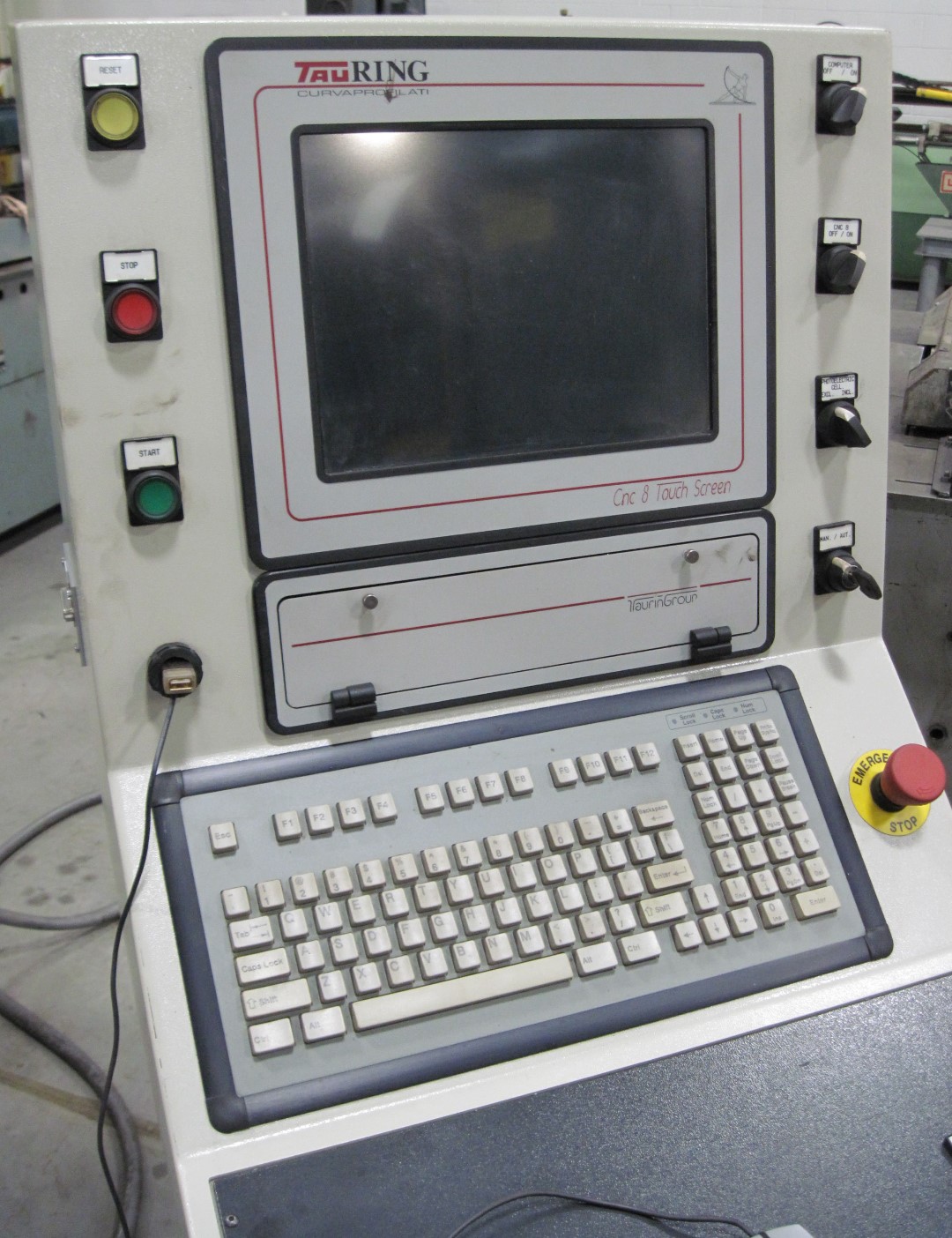

TAURING CNC 8 CONTROL
SPECIFICATIONS SUBJECT TO VERIFICATION
