Specifications
Equipped With
GENERAL SPECIFICATIONS:
MANUFACTURER TARUS
MODEL TPTCGD408
MAX. DIAMETER 2"
MAX. LENGTH 84"
SPINDLE SPEED (INF. VARIABLE) 0 - 4000 RPM
TRAVELS, VERTICAL (MAIN SPDL) 48"
TRAVELS, VERTICAL (AUXILIARY SPDL) 61"
TRAVELS, CROSS 96"
TABLE SIZE 60" x 96"
CONTROLLED AXIS 4
WORK AREA 48" x 96"
DIMENSIONS (APPROX.) 237" x 237" x 150"H
WEIGHT (APPROX.) 60,000 LBS.
EQUIPPED WITH:
TARUS MULTI-AXIS CONTROL MDL MBX92-G/486
COOLANT AND FILTRATION SYSTEM
HIGH PRESSURE PUMP ASSEMBLY
OPERATORS MOVABLE CONTROL CONSOLE
REGENERATIVE D.C. DRIVES
DESCRIPTION:

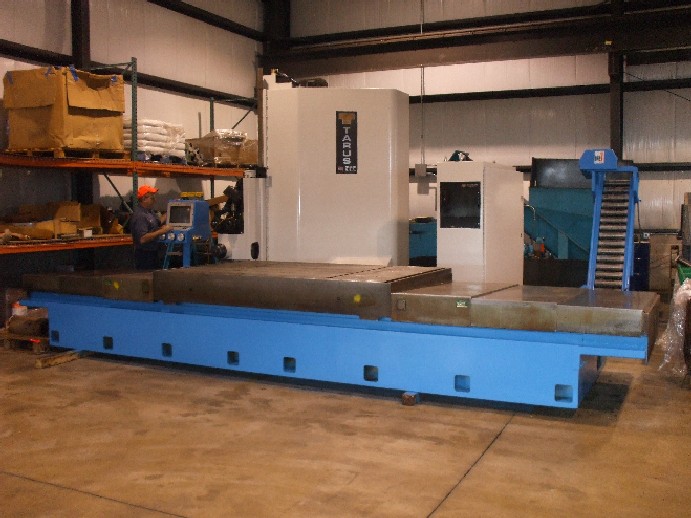

TARUS MULTI-SPINDLE 4-AXIS TRAVELING OCLUMN TYPE, W/30" TRAVEL, TRAVELLING TABLE W/96" TRAVEL DEEP HOLE DRILLING MACHINE WITH 48"/61" OF VERTICAL TRAVEL OPERATING IN CONJUNCTION WITH A HORIZONTAL MOVEMENT PERPENDICULAR TO BED SECTION TRAVEL AND A CHILL HEAD WITH 96" OF MOVEMENT. TOTAL TRAVEL 96", EFFECTIVE TRAVEL 84". TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
